Auxiliary Nodes

LogScale supports auxiliary nodes that can perform additional operations alongside your LogScale cluster. The Auxiliary services UI interface allows you to monitor the list of auxiliary nodes connected to the cluster.

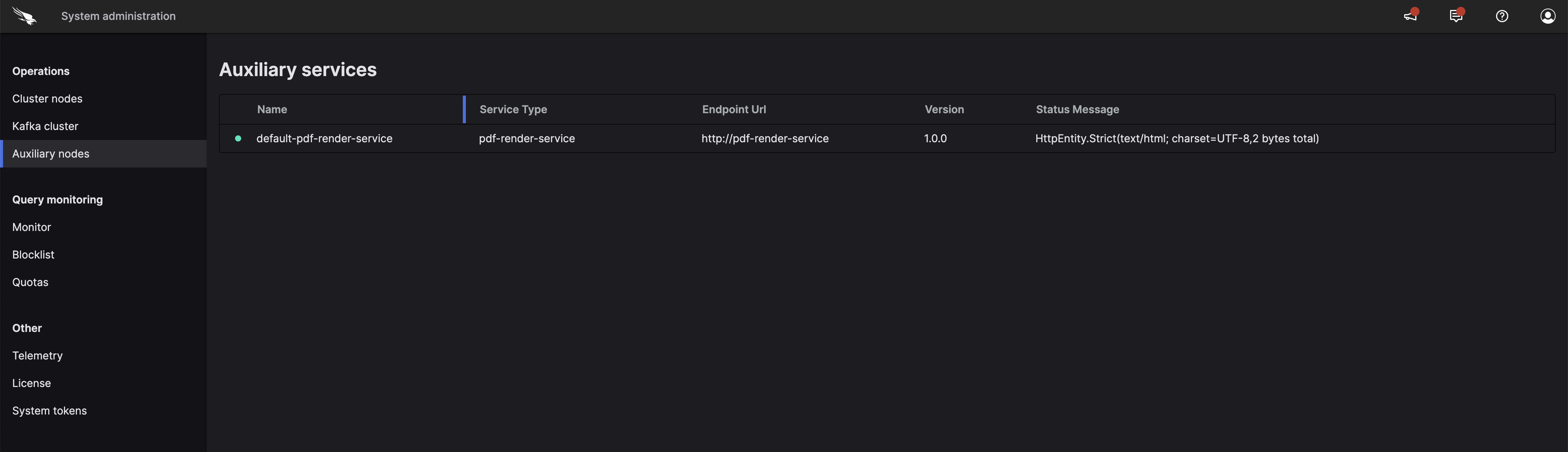

Screenshot of the LogScale Auxiliary Services interface showing a tabular view of connected auxiliary nodes. The table displays key information about each auxiliary service including Name, Service Type, Endpoint URL, Version, and Status Message columns. This monitoring interface allows administrators to track the status and configuration of auxiliary services such as the pdf-render-service that performs additional operations alongside the main LogScale cluster.

Figure 75. Auxiliary Services Interface


The panel displays the following columns:

  • Name

    The name of the auxiliary service.

  • Service Type

    The type of auxiliary service, such as the pdf-render-service.

  • Endpoint Url

    The URL that the LogScale cluster uses to communicate with the auxiliary service.

  • Version

    The version number of the auxiliary service.

  • Status Message

    The current status message for the auxiliary node. If there is an issue, an error message here will indicate the error message and cause.

Currently supported auxiliary services:

For more information on installing auxiliary services, see Deploying Auxiliary Services.
