Event Forwarding Rules

Event Forwarding Rules define which events are forwarded from a repository to an Event Forwarder, and optionally how those events are transformed before forwarding.

Rules are configured per repository and linked to a previously created Event Forwarder.

You must have at least one Event Forwarder configured before you can create Event Forwarding Rules.

Note

Permission Required: You must have the Change event forwarding permission to configure Event Forwarding Rules.

How to create an Event Forwarding Rule

  1. Go to Repositories and Views and select a relevant repository.

  2. Click Settings, under Egress in the side menu click Event Forwarding to see and manage the event forwarding rules that apply to the repository.

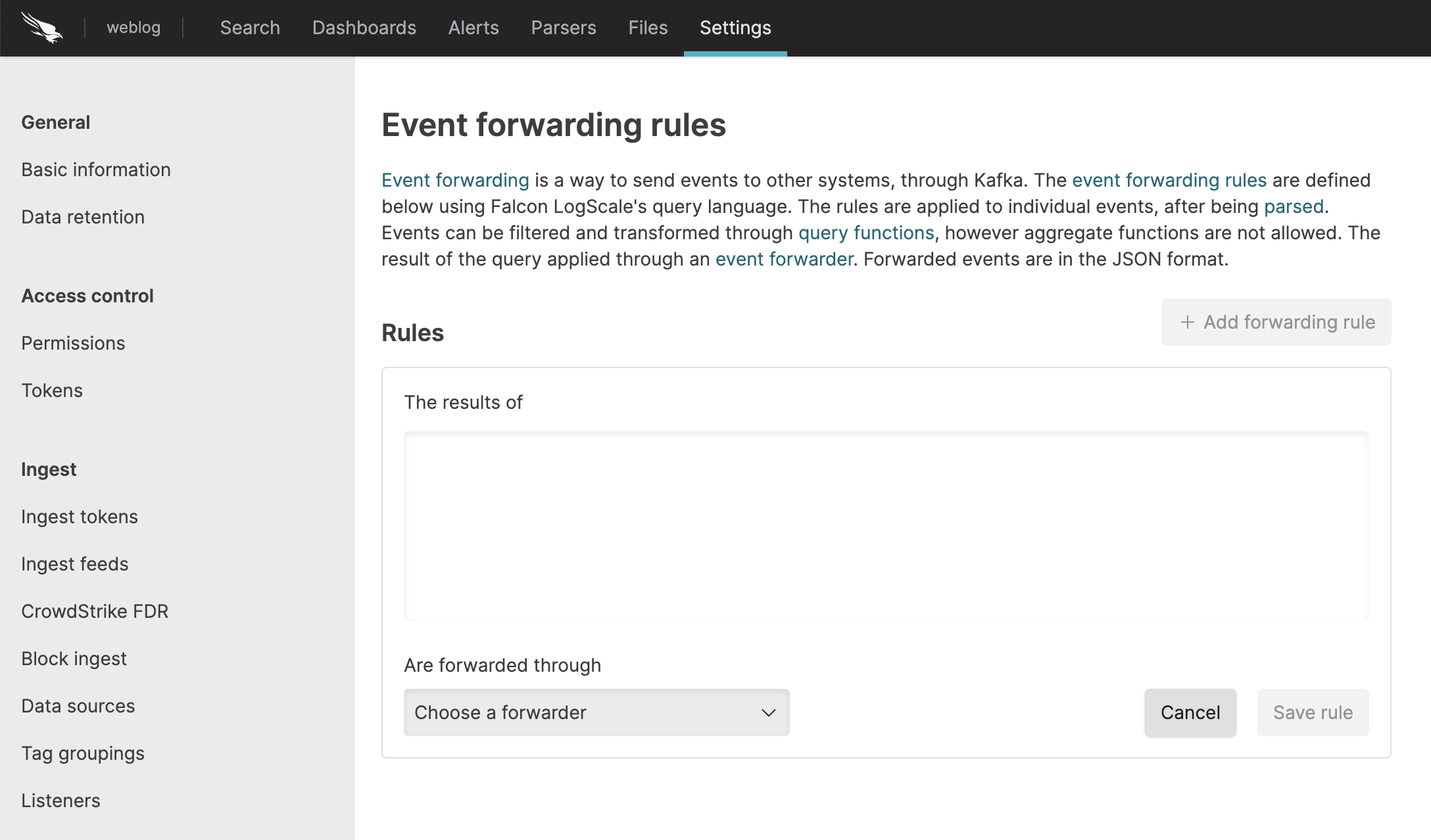

    Screenshot of the LogScale Event Forwarding Rules configuration interface showing the repository settings page where users can create and manage rules for forwarding events to external systems. The interface displays a form with fields for entering query rules to filter which events should be forwarded and a dropdown selector for choosing the target event forwarder. The panel includes options to save the rule configuration and displays any existing event forwarding rules already configured for the repository. This interface allows administrators to control precisely which events get forwarded from LogScale to external systems like Kafka for further processing or integration.

    Figure 11. Event Forwarding Rules


  3. To create an event forwarding rule, specify a rule and select an already configured event forwarder.

    The rule is a normal LogScale query. It is applied to the parsed events, and can be used to filter away events that you do not wish to forward, or add fields to or remove fields from the events before forwarding them. Any manipulation done to the events only apply to the forwarded events, whereas the events stored in LogScale will be the events that came out of the parser.

  4. Click Save rule.

How Rules Work

Rules are standard LogScale queries applied to parsed events. They can be used to:

  • Filter events - only forward events that match specific criteria

  • Add fields - enrich the forwarded event with additional fields before sending

  • Remove fields - strip fields you don't want to send to the external system

Note

Transformations only affect forwarded events. Any field additions or removals made in a forwarding rule apply only to the forwarded copy of the event. The event stored in LogScale always reflects the original parsed output — it is never modified by forwarding rules.

Rules support transformation functions but not aggregate functions. See Query Functions for details on the different query types.

Filtering Out Parse Failures

A failure during parsing does not prevent an event from being forwarded. Parse failures result in error fields being set (such as @event_parsed = false), but the event will still be forwarded unless explicitly filtered out by your rule.

If you do not want to forward events that failed to parse, add the following filter to your rule: @event_parsed != false.

Note

LogScale will only log Event Forwarding failures when multiple events fail, to avoid log spam. You can monitor forwarding failures using the event-forwarding-errors metric.

Attention

Warnings due to invalid files in lookup functions

When lookup query functions such as match(), ioc:lookup(), or cidr() are used in Event Forwarding rules, the files referenced by those functions might occasionally be missing or invalid. In these cases, LogScale reports a warning and adds @error fields to the forwarded events.

Warning

Events with tag grouping and auto sharding

Event Forwarding does not forward events with tag grouping and auto sharding applied. Tag grouped fields are forwarded with their actual value, instead of their hashed value. The #humioAutoShard tag is also not forwarded. The rule can contain any transformation function, but no aggregate functions. See Query Functions for information on the different query types.
