zscaler/private-access

VendorZscaler, Inc.
AuthorCrowdStrike
Version1.2.1
Minimum LogScale Version1.142.0

ZPA is a cloud service that provides secure remote access to internal applications running on cloud or data center using a Zero Trust framework.

With ZPA, applications are never exposed to the internet, making them completely invisible to unauthorized users.

The service enables the applications to connect to users via inside-out connectivity rather than extending the network to them. ZPA provides a simple, secure, and effective way to access internal applications. Access is based on policies created by the IT administrator within the ZPA Admin Portal and hosted within the Zscaler cloud. On each user device, software called Zscaler Client Connector is installed. Zscaler Client Connector ensures the user's device posture and extends a secure microtunnel out to the Zscaler cloud when a user attempts to access an internal application.

The parser normalizes data to a common schema based on CrowdStrike Parsing Standard (CPS) 1.0. This schema allows you to search the data without knowing the data specifically, and just knowing the common schema instead. It also allows you to combine the data more easily with other data sources which conform to the same schema.

Breaking Changes

This update includes parser changes, which means that data ingested after upgrade will not be backwards compatible with logs ingested with the previous version.

Updating to version 1.0.0 or newer will therefore result in issues with existing queries in for example dashboards or alerts created prior to this version.

See CrowdStrike Parsing Standard (CPS) 1.0 for more details on the new parser schema.

Follow the CPS Migration to update your queries to use the fields and tags that are available in data parsed with version 1.0.0.

Installing the Package in LogScale

Find the repository where you want to send the events, or Creating a Repository or View.

  1. Navigate to your repository in the LogScale interface, click Settings and then Packages on the left.

  2. Click Marketplace and install the LogScale package for (i.e. zscaler/private-access).

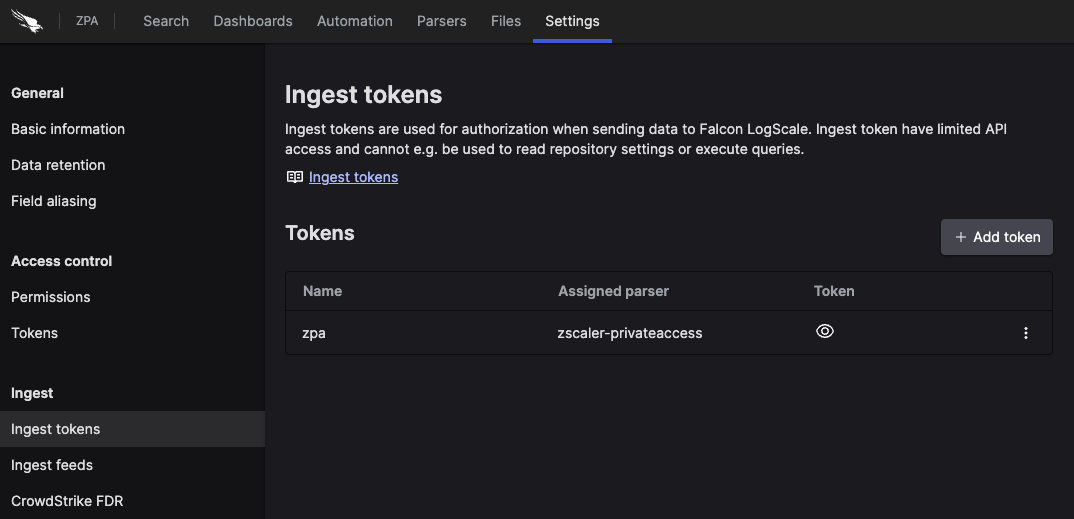

  3. When the package has finished installing, click Ingest tokens on the left still under the Settings.

  4. In the right panel, click + Add Token to create a new token. Give the token an appropriate name (e.g. the name of the log it will collect logs from), and assign the parser to the token.

    ZPA

    Figure 57. ZPA


    Before leaving this page, view the ingest token and copy it to your clipboard — to save it temporarily elsewhere.

    Now that you have a repository set up in LogScale along with an ingest token you're ready to send logs to LogScale.

Configurations and Sending the Logs to LogScale

To get logs from Zscaler ZPA into LogScale, use Zscaler Log Streaming Service (LSS)

  1. Install the Package as described in the previous section.

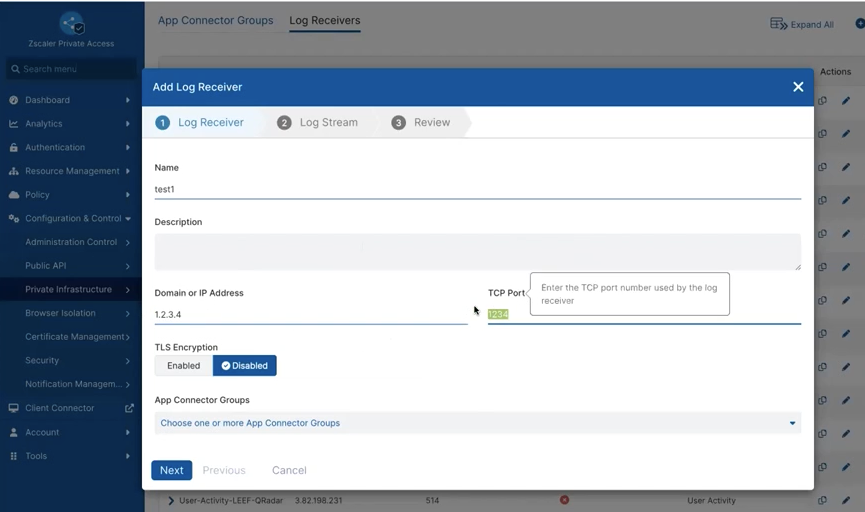

  2. In the ZPA administration console add a new log receiver and configure it with your LogScale Collector's IP address, TCP port, and TLS encryption details (if required). More on the ZPA documentation. See Syslog via TLS for more infromation on configuring LogScale collector for TLS connections.

    Verify that the TLS cert you provide is from a publicly trusted CA or the ZPA app connector (the ZS component that streams logs to the SIEM) must be updated to trust the private TLS cert being used.

    ZPA

    Figure 58. ZPA

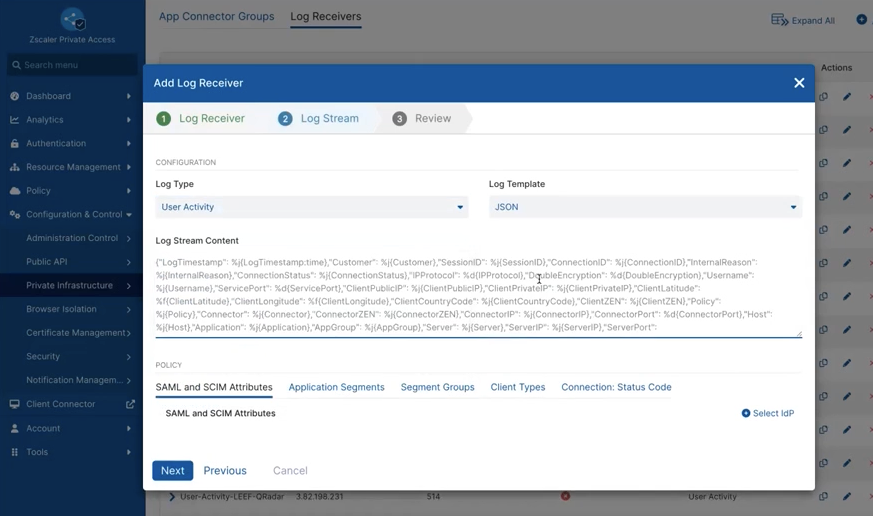

  3. In the Log Stream tab, select the log type and JSON for log format. Use the log format described below.

    ZPA Logs

    Figure 59. ZPA Logs


  4. Configure LogScale Collector with TCP syslog receiver to ship logs to LogScale, see Sources & Examples.

    Note that events might be truncated if they exceed the default limit of 2048 bytes and the limit should be increased to 1MB (maxEventSize: 1048576)

Note that, you can add any fields you would like to these formats, and they will be present and usable in LogScale, but they will only be mapped to the schema if you manually extend the parsers to handle those fields.

Expected log formats used to generate logs and default logs formats:

  • App-Connector-Status

    Expected Format:

    \{ "sourcetype" : "app-connector-status", "event" :\{"LogTimestamp": %j{LogTimestamp:time},"Customer": %j{Customer},"SessionID": %j{SessionID},"SessionType": %j{SessionType},"SessionStatus": %j{SessionStatus},"Version": %j{Version},"Platform": %j{Platform},"ZEN": %j{ZEN},"Connector": %j{Connector},"ConnectorGroup": %j{ConnectorGroup},"PrivateIP": %j{PrivateIP},"PublicIP": %j{PublicIP},"Latitude": %f{Latitude},"Longitude": %f{Longitude},"CountryCode": %j{CountryCode},"TimestampAuthentication": %j{TimestampAuthentication:iso8601},"TimestampUnAuthentication": %j{TimestampUnAuthentication:iso8601},"CPUUtilization": %d{CPUUtilization},"MemUtilization": %d{MemUtilization},"ServiceCount": %d{ServiceCount},"InterfaceDefRoute": %j{InterfaceDefRoute},"DefRouteGW": %j{DefRouteGW},"PrimaryDNSResolver": %j{PrimaryDNSResolver},"HostUpTime": %j{HostUpTime},"ConnectorUpTime": %j{ConnectorUpTime},"NumOfInterfaces": %d{NumOfInterfaces},"BytesRxInterface": %d{BytesRxInterface},"PacketsRxInterface": %d{PacketsRxInterface},"ErrorsRxInterface": %d{ErrorsRxInterface},"DiscardsRxInterface": %d{DiscardsRxInterface},"BytesTxInterface": %d{BytesTxInterface},"PacketsTxInterface": %d{PacketsTxInterface},"ErrorsTxInterface": %d{ErrorsTxInterface},"DiscardsTxInterface": %d{DiscardsTxInterface},"TotalBytesRx": %d{TotalBytesRx},"TotalBytesTx": %d{TotalBytesTx}\}\}\n

    Default Format:

    {"LogTimestamp": %j{LogTimestamp:time},"Customer": %j{Customer},"SessionID": %j{SessionID},"SessionType": %j{SessionType},"SessionStatus": %j{SessionStatus},"Version": %j{Version},"Platform": %j{Platform},"ZEN": %j{ZEN},"Connector": %j{Connector},"ConnectorGroup": %j{ConnectorGroup},"PrivateIP": %j{PrivateIP},"PublicIP": %j{PublicIP},"Latitude": %f{Latitude},"Longitude": %f{Longitude},"CountryCode": %j{CountryCode},"TimestampAuthentication": %j{TimestampAuthentication:iso8601},"TimestampUnAuthentication": %j{TimestampUnAuthentication:iso8601},"CPUUtilization": %d{CPUUtilization},"MemUtilization": %d{MemUtilization},"ServiceCount": %d{ServiceCount},"InterfaceDefRoute": %j{InterfaceDefRoute},"DefRouteGW": %j{DefRouteGW},"PrimaryDNSResolver": %j{PrimaryDNSResolver},"HostStartTime": %j{HostStartTime},"ConnectorStartTime": %j{ConnectorStartTime},"NumOfInterfaces": %d{NumOfInterfaces},"BytesRxInterface": %d{BytesRxInterface},"PacketsRxInterface": %d{PacketsRxInterface},"ErrorsRxInterface": %d{ErrorsRxInterface},"DiscardsRxInterface": %d{DiscardsRxInterface},"BytesTxInterface": %d{BytesTxInterface},"PacketsTxInterface": %d{PacketsTxInterface},"ErrorsTxInterface": %d{ErrorsTxInterface},"DiscardsTxInterface": %d{DiscardsTxInterface},"TotalBytesRx": %d{TotalBytesRx},"TotalBytesTx": %d{TotalBytesTx},"MicroTenantID": %j{MicroTenantID}}\n

  • AppProtection

    Expected Format:

    \{ "sourcetype" : "app-protection", "event" :\{"LogTimestamp": %j{LogTimestamp:time},"Customer": %j{Customer}, "ConnectionID": %j{ConnectionID}, "UserID": %j{UserID}, "AssistantID": %j{AssistantID}, "ExchangeSequenceIndex": %d{ExchangeSequenceIndex}, "TimestampRequestReceiveStart": %d{TimestampRequestReceiveStart}, "TimestampRequestReceiveHeaderFinish": %d{TimestampRequestReceiveHeaderFinish}, "TimestampRequestReceiveFinish": %d{TimestampRequestReceiveFinish}, "TimestampRequestTransmitStart": %d{TimestampRequestTransmitStart}, "TimestampRequestTransmitFinish": %d{TimestampRequestTransmitFinish}, "TimestampResponseReceiveFinish": %d{TimestampResponseReceiveFinish}, "TimestampResponseTransmitStart": %d{TimestampResponseTransmitStart}, "TimestampResponseTransmitFinish": %d{TimestampResponseTransmitFinish}, "TotalTimeRequestReceive": %d{TotalTimeRequestReceive}, "TotalTimeRequestTransmit": %d{TotalTimeRequestTransmit}, "TotalTimeResponseReceive": %d{TotalTimeResponseReceive}, "TotalTimeResponseTransmit": %d{TotalTimeResponseTransmit}, "Domain": %j{Domain}, "Method": %j{Method}, "Protocol": %j{Protocol}, "ProtocolVersion": %j{ProtocolVersion}, "ContentType": %j{ContentType}, "ContentEncoding": %j{ContentEncoding}, "TransferEncoding": %j{TransferEncoding}, "Host": %j{Host}, "Destination": %j{Destination}, "OriginDomain": %j{OriginDomain}, "URL": %j{URL}, "UserAgent": %j{UserAgent}, "HTTPError": %j{HTTPError}, "ClientPublicIp": %j{ClientPublicIp}, "ClientPort": %d{ClientPort}, "UpgradeHeaderPresent": %d{UpgradeHeaderPresent}, "StatusCode": %d{StatusCode}, "RequestHdrSize": %d{RequestHdrSize}, "ResponseHdrSize": %d{ResponseHdrSize}, "RequestBodySize": %d{RequestBodySize}, "ResponseBodySize": %d{ResponseBodySize}, "Application": %d{Application}, "ApplicationGroup": %d{ApplicationGroup}, "InspectionPolicy": %d{InspectionPolicy}, "InspectionProfile": %d{InspectionProfile}, "ParanoiaLevel": %d{ParanoiaLevel}, "InspectionControlsHitCount": %d{InspectionControlsHitCount}, "InspectionRuleProcessingTime": %d{InspectionRuleProcessingTime}, "InspectionReqHeadersProcessingTime": %d{InspectionReqHeadersProcessingTime}, "InspectionReqBodyProcessingTime": %d{InspectionReqBodyProcessingTime}, "InspectionRespHeadersProcessingTime": %d{InspectionRespHeadersProcessingTime}, "InspectionRespBodyProcessingTime": %d{InspectionRespBodyProcessingTime}, "CertificateId": %d{CertificateId}, "DoubleEncryption": %d{DoubleEncryption}, "SSLInspection": %d{SSLInspection}, "TotalBytesProcessed": %d{TotalBytesProcessed}\}\}\n

    Default Format:

    {"LogTimestamp": %j{LogTimestamp:time},"Customer": %j{Customer}, "ConnectionID": %j{ConnectionID}, "UserID": %j{UserID}, "AssistantID": %j{AssistantID}, "ExchangeSequenceIndex": %d{ExchangeSequenceIndex}, "TimestampRequestReceiveStart": %d{TimestampRequestReceiveStart}, "TimestampRequestReceiveHeaderFinish": %d{TimestampRequestReceiveHeaderFinish}, "TimestampRequestReceiveFinish": %d{TimestampRequestReceiveFinish}, "TimestampRequestTransmitStart": %d{TimestampRequestTransmitStart}, "TimestampRequestTransmitFinish": %d{TimestampRequestTransmitFinish}, "TimestampResponseReceiveFinish": %d{TimestampResponseReceiveFinish}, "TimestampResponseTransmitStart": %d{TimestampResponseTransmitStart}, "TimestampResponseTransmitFinish": %d{TimestampResponseTransmitFinish}, "TotalTimeRequestReceive": %d{TotalTimeRequestReceive}, "TotalTimeRequestTransmit": %d{TotalTimeRequestTransmit}, "TotalTimeResponseReceive": %d{TotalTimeResponseReceive}, "TotalTimeResponseTransmit": %d{TotalTimeResponseTransmit}, "Domain": %j{Domain}, "Method": %j{Method}, "Protocol": %j{Protocol}, "ProtocolVersion": %j{ProtocolVersion}, "ContentType": %j{ContentType}, "ContentEncoding": %j{ContentEncoding}, "TransferEncoding": %j{TransferEncoding}, "Host": %j{Host}, "Destination": %j{Destination}, "OriginDomain": %j{OriginDomain}, "URL": %j{URL}, "UserAgent": %j{UserAgent}, "HTTPError": %j{HTTPError}, "ClientPublicIp": %j{ClientPublicIp}, "ClientPort": %d{ClientPort}, "UpgradeHeaderPresent": %d{UpgradeHeaderPresent}, "StatusCode": %d{StatusCode}, "RequestHdrSize": %d{RequestHdrSize}, "ResponseHdrSize": %d{ResponseHdrSize}, "RequestBodySize": %d{RequestBodySize}, "ResponseBodySize": %d{ResponseBodySize}, "Application": %d{Application}, "ApplicationGroup": %d{ApplicationGroup}, "InspectionPolicy": %d{InspectionPolicy}, "InspectionProfile": %d{InspectionProfile}, "ParanoiaLevel": %d{ParanoiaLevel}, "InspectionControlsHitCount": %d{InspectionControlsHitCount}, "InspectionRuleProcessingTime": %d{InspectionRuleProcessingTime}, "InspectionReqHeadersProcessingTime": %d{InspectionReqHeadersProcessingTime}, "InspectionReqBodyProcessingTime": %d{InspectionReqBodyProcessingTime}, "InspectionRespHeadersProcessingTime": %d{InspectionRespHeadersProcessingTime}, "InspectionRespBodyProcessingTime": %d{InspectionRespBodyProcessingTime}, "CertificateId": %d{CertificateId}, "DoubleEncryption": %d{DoubleEncryption}, "SSLInspection": %d{SSLInspection}, "TotalBytesProcessed": %d{TotalBytesProcessed}}\n

  • Audit

    Expected Format:

    \{ "sourcetype" : "audit", "event" : \{"ModifiedTime":%j{modifiedTime:iso8601},"CreationTime":%j{creationTime:iso8601},"ModifiedBy":%d{modifiedBy},"RequestID":%j{requestId},"SessionID":%j{sessionId},"AuditOldValue":%j{auditOldValue},"AuditNewValue":%j{auditNewValue},"AuditOperationType":%j{auditOperationType},"ObjectType":%j{objectType},"ObjectName":%j{objectName},"ObjectID":%d{objectId},"CustomerID":%d{customerId},"User":%j{modifiedByUser},"ClientAuditUpdate":%d{isClientAudit}\}\}\n

    Default Format:

    {"ModifiedTime":%j{modifiedTime:iso8601},"CreationTime":%j{creationTime:iso8601},"ModifiedBy":%d{modifiedBy},"RequestID":%j{requestId},"SessionID":%j{sessionId},"AuditOldValue":%j{auditOldValue},"AuditNewValue":%j{auditNewValue},"AuditOperationType":%j{auditOperationType},"ObjectType":%j{objectType},"ObjectName":%j{objectName},"ObjectID":%d{objectId},"CustomerID":%d{customerId},"User":%j{modifiedByUser},"ClientAuditUpdate":%d{clientAuditUpdate}}\n

  • Browser Access

    Expected Format:

    \{ "sourcetype" : "browser-access", "event" : \{"LogTimestamp":%j{LogTimestamp:time},"ConnectionID":%j{ConnectionID},"Exporter":%j{Exporter},"TimestampRequestReceiveStart":%j{TimestampRequestReceiveStart:iso8601},"TimestampRequestReceiveHeaderFinish":%j{TimestampRequestReceiveHeaderFinish:iso8601},"TimestampRequestReceiveFinish":%j{TimestampRequestReceiveFinish:iso8601},"TimestampRequestTransmitStart":%j{TimestampRequestTransmitStart:iso8601},"TimestampRequestTransmitFinish":%j{TimestampRequestTransmitFinish:iso8601},"TimestampResponseReceiveStart":%j{TimestampResponseReceiveStart:iso8601},"TimestampResponseReceiveFinish":%j{TimestampResponseReceiveFinish:iso8601},"TimestampResponseTransmitStart":%j{TimestampResponseTransmitStart:iso8601},"TimestampResponseTransmitFinish":%j{TimestampResponseTransmitFinish:iso8601},"TotalTimeRequestReceive":%d{TotalTimeRequestReceive},"TotalTimeRequestTransmit":%d{TotalTimeRequestTransmit},"TotalTimeResponseReceive":%d{TotalTimeResponseReceive},"TotalTimeResponseTransmit":%d{TotalTimeResponseTransmit},"TotalTimeConnectionSetup":%d{TotalTimeConnectionSetup},"TotalTimeServerResponse":%d{TotalTimeServerResponse},"Method":%j{Method},"Protocol":%j{Protocol},"Host":%j{Host},"URL":%j{URL},"UserAgent":%j{UserAgent},"XFF":%j{XFF},"NameID":%j{NameID},"StatusCode":%d{StatusCode},"RequestSize":%d{RequestSize},"ResponseSize":%d{ResponseSize},"ApplicationPort":%d{ApplicationPort},"ClientPublicIp":%j{ClientPublicIp},"ClientPublicPort":%d{ClientPublicPort},"ClientPrivateIp":%j{ClientPrivateIp},"Customer":%j{Customer},"ConnectionStatus":%j{ConnectionStatus},"ConnectionReason":%j{ConnectionReason},"Origin":%j{Origin},"CorsToken":%j{CorsToken}\}\}\n

    Default Format:

    {"LogTimestamp":%j{LogTimestamp:time},"ConnectionID":%j{ConnectionID},"Exporter":%j{Exporter},"TimestampRequestReceiveStart":%j{TimestampRequestReceiveStart:iso8601},"TimestampRequestReceiveHeaderFinish":%j{TimestampRequestReceiveHeaderFinish:iso8601},"TimestampRequestReceiveFinish":%j{TimestampRequestReceiveFinish:iso8601},"TimestampRequestTransmitStart":%j{TimestampRequestTransmitStart:iso8601},"TimestampRequestTransmitFinish":%j{TimestampRequestTransmitFinish:iso8601},"TimestampResponseReceiveStart":%j{TimestampResponseReceiveStart:iso8601},"TimestampResponseReceiveFinish":%j{TimestampResponseReceiveFinish:iso8601},"TimestampResponseTransmitStart":%j{TimestampResponseTransmitStart:iso8601},"TimestampResponseTransmitFinish":%j{TimestampResponseTransmitFinish:iso8601},"TotalTimeRequestReceive":%d{TotalTimeRequestReceive},"TotalTimeRequestTransmit":%d{TotalTimeRequestTransmit},"TotalTimeResponseReceive":%d{TotalTimeResponseReceive},"TotalTimeResponseTransmit":%d{TotalTimeResponseTransmit},"TotalTimeConnectionSetup":%d{TotalTimeConnectionSetup},"TotalTimeServerResponse":%d{TotalTimeServerResponse},"Method":%j{Method},"Protocol":%j{Protocol},"Host":%j{Host},"URL":%j{URL},"UserAgent":%j{UserAgent},"XFF":%j{XFF},"NameID":%j{NameID},"StatusCode":%d{StatusCode},"RequestSize":%d{RequestSize},"ResponseSize":%d{ResponseSize},"ApplicationPort":%d{ApplicationPort},"ClientPublicIp":%j{ClientPublicIp},"ClientPublicPort":%d{ClientPublicPort},"ClientPrivateIp":%j{ClientPrivateIp},"Customer":%j{Customer},"ConnectionStatus":%j{ConnectionStatus},"ConnectionReason":%j{ConnectionReason},"Origin":%j{Origin},"CorsToken":%j{CorsToken}}\n

  • User-Activity

    Expected Format:

    \{ "sourcetype" : "user-activity", "event" : \{"LogTimestamp": %j{LogTimestamp:time},"Customer": %j{Customer},"SessionID": %j{SessionID},"ConnectionID": %j{ConnectionID},"InternalReason": %j{InternalReason},"ConnectionStatus": %j{ConnectionStatus},"IPProtocol": %d{IPProtocol},"DoubleEncryption": %d{DoubleEncryption},"Username": %j{Username},"ServicePort": %d{ServicePort},"ClientPublicIP": %j{ClientPublicIP},"ClientPrivateIP": %j{ClientPrivateIP},"ClientLatitude": %f{ClientLatitude},"ClientLongitude": %f{ClientLongitude},"ClientCountryCode": %j{ClientCountryCode},"ClientZEN": %j{ClientZEN},"Policy": %j{Policy},"Connector": %j{Connector},"ConnectorZEN": %j{ConnectorZEN},"ConnectorIP": %j{ConnectorIP},"ConnectorPort": %d{ConnectorPort},"Host": %j{Host},"Application": %j{Application},"AppGroup": %j{AppGroup},"Server": %j{Server},"ServerIP": %j{ServerIP},"ServerPort": %d{ServerPort},"PolicyProcessingTime": %d{PolicyProcessingTime},"ServerSetupTime": %d{ServerSetupTime},"TimestampConnectionStart": %j{TimestampConnectionStart:iso8601},"TimestampConnectionEnd": %j{TimestampConnectionEnd:iso8601},"TimestampCATx": %j{TimestampCATx:iso8601},"TimestampCARx": %j{TimestampCARx:iso8601},"TimestampAppLearnStart": %j{TimestampAppLearnStart:iso8601},"TimestampZENFirstRxClient": %j{TimestampZENFirstRxClient:iso8601},"TimestampZENFirstTxClient": %j{TimestampZENFirstTxClient:iso8601},"TimestampZENLastRxClient": %j{TimestampZENLastRxClient:iso8601},"TimestampZENLastTxClient": %j{TimestampZENLastTxClient:iso8601},"TimestampConnectorZENSetupComplete": %j{TimestampConnectorZENSetupComplete:iso8601},"TimestampZENFirstRxConnector": %j{TimestampZENFirstRxConnector:iso8601},"TimestampZENFirstTxConnector": %j{TimestampZENFirstTxConnector:iso8601},"TimestampZENLastRxConnector": %j{TimestampZENLastRxConnector:iso8601},"TimestampZENLastTxConnector": %j{TimestampZENLastTxConnector:iso8601},"ZENTotalBytesRxClient": %d{ZENTotalBytesRxClient},"ZENBytesRxClient": %d{ZENBytesRxClient},"ZENTotalBytesTxClient": %d{ZENTotalBytesTxClient},"ZENBytesTxClient": %d{ZENBytesTxClient},"ZENTotalBytesRxConnector": %d{ZENTotalBytesRxConnector},"ZENBytesRxConnector": %d{ZENBytesRxConnector},"ZENTotalBytesTxConnector": %d{ZENTotalBytesTxConnector},"ZENBytesTxConnector": %d{ZENBytesTxConnector},"Idp": %j{Idp},"ClientToClient": %j{c2c}\}\}\n

    Default Format:

    { "LogTimestamp": %j{LogTimestamp:time}, "Customer": %j{Customer}, "SessionID": %j{SessionID}, "ConnectionID": %j{ConnectionID}, "InternalReason": %j{InternalReason}, "ConnectionStatus": %j{ConnectionStatus}, "IPProtocol": %d{IPProtocol}, "DoubleEncryption": %d{DoubleEncryption}, "Username": %j{Username}, "ServicePort": %d{ServicePort}, "ClientPublicIP": %j{ClientPublicIP}, "ClientPrivateIP": %j{ClientPrivateIP}, "ClientLatitude": %f{ClientLatitude}, "ClientLongitude": %f{ClientLongitude}, "ClientCountryCode": %j{ClientCountryCode}, "ClientZEN": %j{ClientZEN}, "Policy": %j{Policy}, "Connector": %j{Connector}, "ConnectorZEN": %j{ConnectorZEN}, "ConnectorIP": %j{ConnectorIP}, "ConnectorPort": %d{ConnectorPort}, "Host": %j{Host}, "Application": %j{Application}, "AppGroup": %j{AppGroup}, "Server": %j{Server}, "ServerIP": %j{ServerIP}, "ServerPort": %d{ServerPort}, "PolicyProcessingTime": %d{PolicyProcessingTime}, "ServerSetupTime": %d{ServerSetupTime}, "TimestampConnectionStart": %j{TimestampConnectionStart:iso8601}, "TimestampConnectionEnd": %j{TimestampConnectionEnd:iso8601}, "TimestampCATx": %j{TimestampCATx:iso8601}, "TimestampCARx": %j{TimestampCARx:iso8601}, "TimestampAppLearnStart": %j{TimestampAppLearnStart:iso8601}, "TimestampZENFirstRxClient": %j{TimestampZENFirstRxClient:iso8601}, "TimestampZENFirstTxClient": %j{TimestampZENFirstTxClient:iso8601}, "TimestampZENLastRxClient": %j{TimestampZENLastRxClient:iso8601}, "TimestampZENLastTxClient": %j{TimestampZENLastTxClient:iso8601}, "TimestampConnectorZENSetupComplete": %j{TimestampConnectorZENSetupComplete:iso8601}, "TimestampZENFirstRxConnector": %j{TimestampZENFirstRxConnector:iso8601}, "TimestampZENFirstTxConnector": %j{TimestampZENFirstTxConnector:iso8601}, "TimestampZENLastRxConnector": %j{TimestampZENLastRxConnector:iso8601}, "TimestampZENLastTxConnector": %j{TimestampZENLastTxConnector:iso8601}, "ZENTotalBytesRxClient": %d{ZENTotalBytesRxClient}, "ZENBytesRxClient": %d{ZENBytesRxClient}, "ZENTotalBytesTxClient": %d{ZENTotalBytesTxClient}, "ZENBytesTxClient": %d{ZENBytesTxClient}, "ZENTotalBytesRxConnector": %d{ZENTotalBytesRxConnector}, "ZENBytesRxConnector": %d{ZENBytesRxConnector}, "ZENTotalBytesTxConnector": %d{ZENTotalBytesTxConnector}, "ZENBytesTxConnector": %d{ZENBytesTxConnector}, "Idp": %j{Idp}, "ClientToClient": %j{c2c}, "ClientCity": %j{ClientCity}, "MicroTenantID": %j{MicroTenantID}, "AppMicroTenantID": %j{AppMicroTenantID}, "PRAConnectionID": %j{PRAConnectionID}, "PRAConsoleType": %j{PRAConsoleType}, "PRAApprovalID": %d{PRAApprovalID}, "PRACapabilityPolicyID": %d{PRACapabilityPolicyID}, "PRACredentialPolicyID": %d{PRACredentialPolicyID}, "PRACredentialUserName": %j{PRACredentialUserName}, "PRACredentialLoginType": %j{PRACredentialLoginType}, "PRAErrorStatus": %j{PRAErrorStatus}, "PRAFileTransferList": %j{PRAFileTransferList}, "PRARecordingStatus": %j{PRARecordingStatus}, "PRASharedUsersList": %j{PRASharedUsersList}, "PRASessionType": %j{PRASessionType}, "PRASharedMode": %j{PRASharedMode} }

  • User-Status

    Expected Format:

    \{ "sourcetype" : "user-status", "event" : \{"LogTimestamp": %j{LogTimestamp:time},"Customer": %j{Customer},"Username": %j{Username},"SessionID": %j{SessionID},"SessionStatus": %j{SessionStatus},"Version": %j{Version},"ZEN": %j{ZEN},"CertificateCN": %j{CertificateCN},"PrivateIP": %j{PrivateIP},"PublicIP": %j{PublicIP},"Latitude": %f{Latitude},"Longitude": %f{Longitude},"CountryCode": %j{CountryCode},"TimestampAuthentication": %j{TimestampAuthentication:iso8601},"TimestampUnAuthentication": %j{TimestampUnAuthentication:iso8601},"TotalBytesRx": %d{TotalBytesRx},"TotalBytesTx": %d{TotalBytesTx},"Idp": %j{Idp},"Hostname": %j{Hostname},"Platform": %j{Platform},"ClientType": %j{ClientType},"TrustedNetworks": [%j(,){TrustedNetworks}],"TrustedNetworksNames": [%j(,){TrustedNetworksNames}],"SAMLAttributes": %j{SAMLAttributes},"PosturesHit": [%j(,){PosturesHit}],"PosturesMiss": [%j(,){PosturesMiss}],"ZENLatitude": %f{ZENLatitude},"ZENLongitude": %f{ZENLongitude},"ZENCountryCode": %j{ZENCountryCode},"FQDNRegistered": %j{fqdn_registered},"FQDNRegisteredError": %j{fqdn_register_error}\}\}\n

    Default Format:

    {"LogTimestamp": %j{LogTimestamp:time},"Customer": %j{Customer},"Username": %j{Username},"SessionID": %j{SessionID},"SessionStatus": %j{SessionStatus},"Version": %j{Version},"ZEN": %j{ZEN},"CertificateCN": %j{CertificateCN},"PrivateIP": %j{PrivateIP},"PublicIP": %j{PublicIP},"Latitude": %f{Latitude},"Longitude": %f{Longitude},"CountryCode": %j{CountryCode},"TimestampAuthentication": %j{TimestampAuthentication:iso8601},"TimestampUnAuthentication": %j{TimestampUnAuthentication:iso8601},"TotalBytesRx": %d{TotalBytesRx},"TotalBytesTx": %d{TotalBytesTx},"Idp": %j{Idp},"Hostname": %j{Hostname},"Platform": %j{Platform},"ClientType": %j{ClientType},"TrustedNetworks": [%j(,){TrustedNetworks}],"TrustedNetworksNames": [%j(,){TrustedNetworksNames}],"SAMLAttributes": %j{SAMLAttributes},"PosturesHit": [%j(,){PosturesHit}],"PosturesMiss": [%j(,){PosturesMiss}],"ZENLatitude": %f{ZENLatitude},"ZENLongitude": %f{ZENLongitude},"ZENCountryCode": %j{ZENCountryCode},"FQDNRegistered": %j{fqdn_registered},"FQDNRegisteredError": %j{fqdn_register_error},"City": %j{City},"MicroTenantID": %j{MicroTenantID}}\n

Verify Data is Arriving in LogScale

Once you have completed the above steps the data should be arriving in your LogScale repository.

You can verify this by doing a simple search for the events:

logscale
#Vendor = "zscaler"
| #event.module="zpa"

Package Contents Explained

This package parses incoming data, and normalizing the data as part of that parsing. The parser normalizes the data to CrowdStrike Parsing Standard (CPS) 1.0 schema based on OpenTelemetry standards, while still preserving the original data.

If you want to search using the original field names and values, you can access those in the fields whose names are prefixed with the word Vendor. Fields which are not prefixed with Vendor are standard fields which are either based on the schema (e.g. source.ip) or on LogScale conventions (e.g. @rawstring).

The fields which the parser currently maps the data to, are chosen based on what seems the most relevant, and will potentially be expanded in the future. But the parser won't necessarily normalize every field that has potential to be normalized.
