cisco/meraki

VendorCisco Systems, Inc.
AuthorCrowdStrike
Version1.2.1
Minimum LogScale Version1.142.0

The parser normalizes MX Security Appliances and MR Access Points data.

Breaking Changes

This update includes parser changes, which means that data ingested after upgrade will not be backwards compatible with logs ingested with the previous version.

Updating to version 1.0.0 or newer will therefore result in issues with existing queries in for example dashboards or alerts created prior to this version.

See CrowdStrike Parsing Standard (CPS) 1.0 for more details on the new parser schema.

Follow the CPS Migration to update your queries to use the fields and tags that are available in data parsed with version 1.0.0.

Installing the Package in LogScale

Find the repository where you want to send the Cisco Meraki events, or create a new one.

  1. Navigate to your repository in the LogScale interface, click Settings and then Packages on the left.

  2. Click Marketplace and install the LogScale package for Cisco Meraki (i.e. cisco/meraki).

  3. When the package has finished installing, click Ingest tokens on the left (still under the Settings, see Figure 6, “Ingest Token”).

  4. In the right panel, click + Add Token to create a new token. Give the token an appropriate name (e.g. the name of the server the token is ingesting logs for), and either leave the parser unassigned (instead of setting the parser in the log collector configuration later on), or assign the cisco-meraki parser to it.

    Ingest token

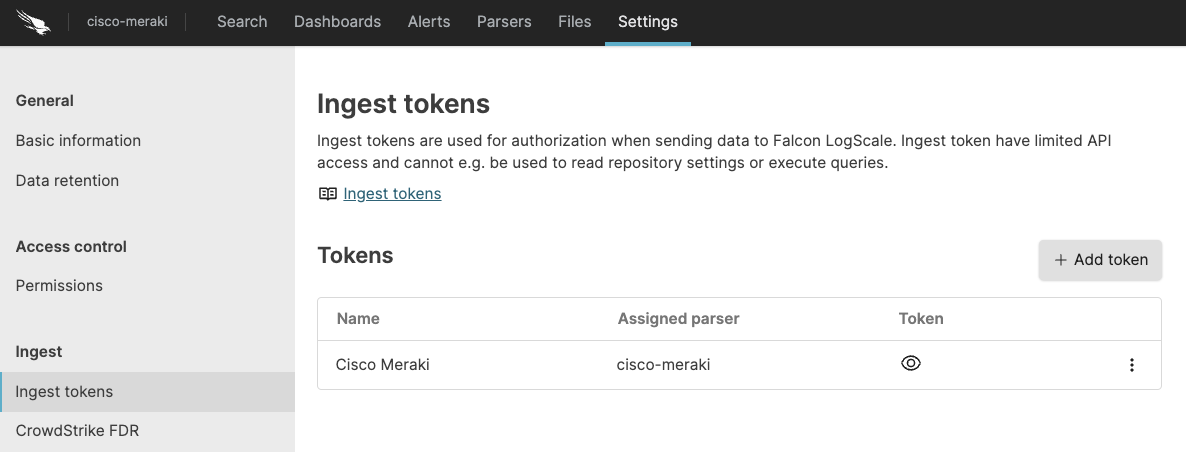

    Figure 6. Ingest Token


    Before leaving this page, view the ingest token and copy it to your clipboard — to save it temporarily elsewhere.

  5. Configure the syslog server to send the Cisco Meraki events to LogScale.

  6. Now that you have a repository set up in LogScale along with an ingest token you're ready to send logs to LogScale.

For more about Cisco Meraki event types and configuration, visit the Syslog Event Types and Log Samples and the Syslog Server Overview and Configuration pages.

Verify Data is Arriving in LogScale

Once you have completed the above steps the Cisco Meraki data should be arriving in your LogScale repository.

You can verify this by doing a simple search for the events:

logscale
#Vendor = "cisco"
| #event.module = "meraki"
