Organization Query Monitor

Security Requirements and Controls
  • Monitor queries permission

The Organization Query Monitor enables live viewing of queries being executed within the current Organization, showing resource usage and displaying detailed information about the process.

Note

The Monitor queries permission is required to access the page. Organization owners can access the page and grant access to other users by granting them this permission.

To access the Organization Query Monitor page, select Organization Settings from the User menu. Then select the Monitor under Query monitoring in the left-hand panel.

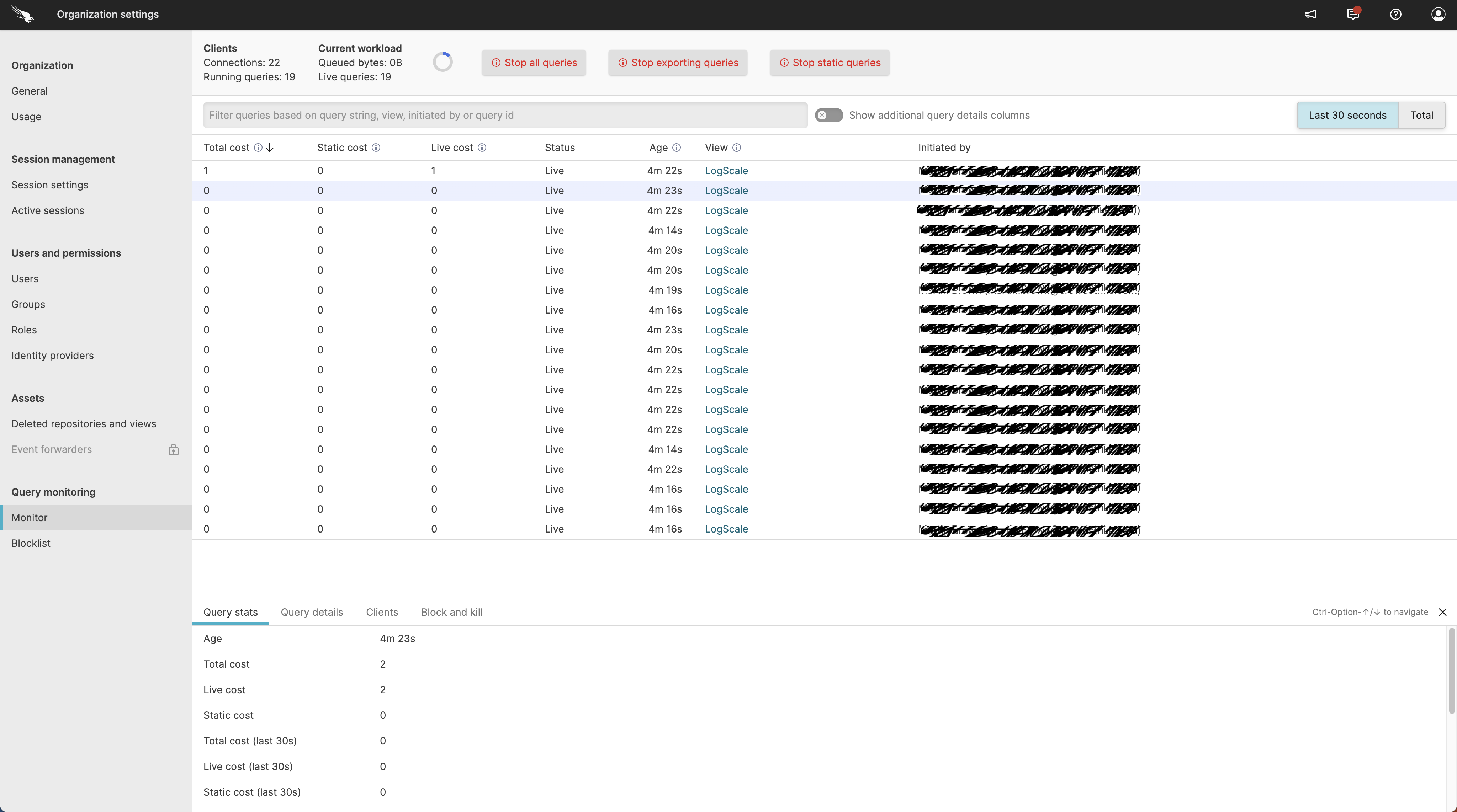

The main page for the Organization Query Monitor is shown in Figure 10, “Organization Query Monitor”.

Organization Query Monitor

Figure 10. Organization Query Monitor


Important

Streaming Aggregate Queries will not be shown in the list of running queries, and they are not canceled by the Stop Streaming Queries button. These queries can only be canceled by rebooting LogScale nodes.

Each query that runs in the LogScale cluster uses CPU and I/O resources to varying levels. This is often referred to as the Query work. The cost a query can be used to compare two queries against each other, but not to rate or identify the work for a single query. Using the Organization Query Monitor, administrators can determine which query has the largest impact right now, or through the query's runtime. If a query is using too many resources it can be temporarily killed or completely blocked, prohibiting it from being run again.

The Organization Query Monitor contains information about the queries running in the current organization. The main part of the query monitor is the tabular view that shows the top 1000 queries running.

The main display is divided into three sections, the summary data data at the top, the list of queries in the middle, and detailed panel of information for a selected running query.

The display of running queries is refreshed automatically every ten seconds; the redrawing blue circle at the top of the display shows the refresh information. The query data displayed can be controlled using the various Organization Query Monitor Display Controls, including filtering the content and switching the showing recent (last 30 seconds) and all queries.

Organization Query Monitor Display Controls

The information displayed in the main panel can be controlled using the buttons in the main display:

  • Last 30 Seconds/Total

    These two buttons switch the display between showing only queries executed within the last 30 seconds, and the data for all queries executed.

  • Show additional query details columns

    This toggle enables three additional fields showing resource CPU and memory usage to be displayed for each of the shown queries.

  • Filter search

    The filter search box allows you to filter the displayed queries by searching for specific information, including the query string, affected view, the user or the query ID. To filter the results, just start typing into the box.

  • Stop all queries

    Stops all running queries immediately

  • Stop exporting queries

    Stops queries that are exporting data or events

  • Stop static queries

    Stops queries that are reading data from archived storage

Keyboard Controls

In addition to selecting the different queries directly, The Alt+ and Alt+ allow you to move up and down through individual displayed queries.

Organization Query Monitor Summary Information

The top part of the Organization Query Monitor shows summary information for all the queries being monitored and displayed:

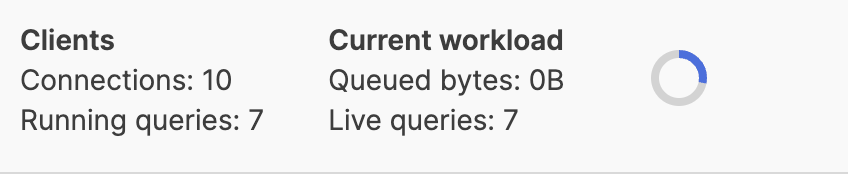

Organization Query Monitor Summary Panel

Figure 11. Organization Query Monitor Summary Panel


  • Clients

    • Connections

      Shows the number of active query connections to the cluster.

    • Running Queries

      Indicates the number of queries currently being executed. This includes all running queries, either through the search interface, dashboards or automations.

  • Current Workload

    The workload shows the active workload on the cluster:

    • Queued Bytes

      The estimated number of bytes what LogScale needs to load from disk in order for the currently executing queries to finish processing the history parts of the query.

    • Live Queries

      Indicates the number of queries currently being executed that are waiting on data. This can be different to the number of running queries as differences in automated queries and dashboard refresh will not be included in this number.

Organization Query Monitor Table List

The main table lists the currently running queries. The list of running queries can be sorted by selecting a specific column to change the displayed order. You can also filter and restrict the view using the filter box at the top of the list.

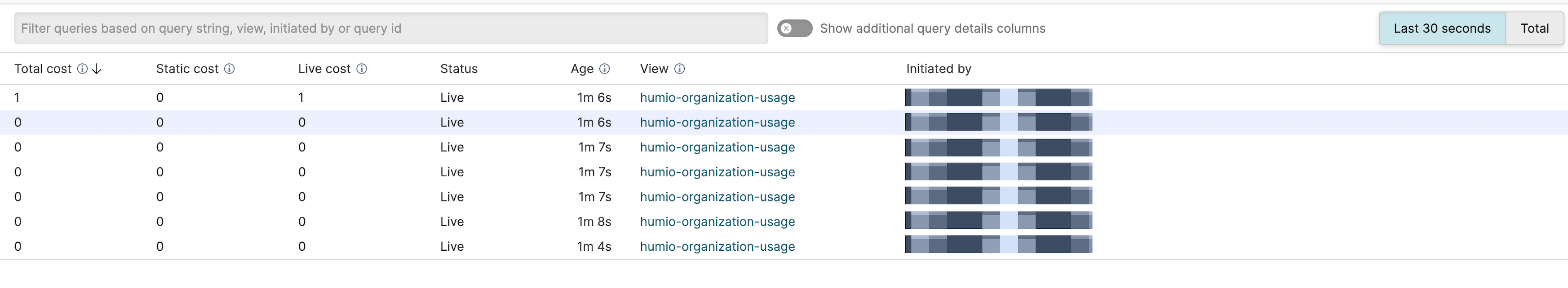

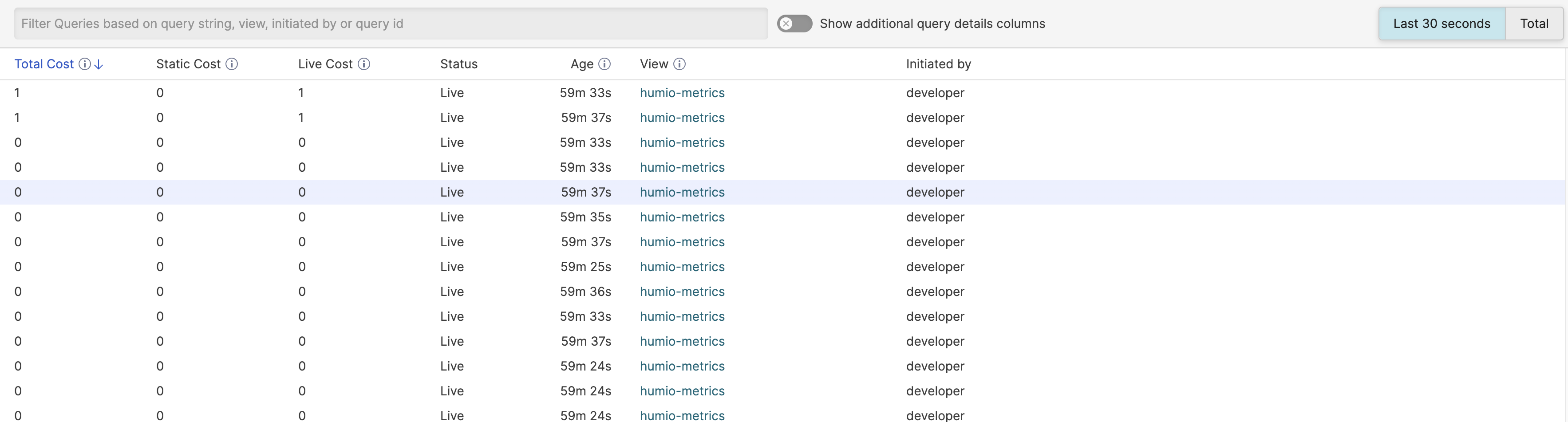

Organization Query Monitor Table

Figure 12. Organization Query Monitor Table


The following columns are displayed:

  • Total Cost

    Overall cost of executing the query in the last 30 seconds. The query cost is calculated as a combination of the CPU and memory requirements for a given query. The value can be used comparison cost value when comparing queries against each other. However, it is best to check the specific CPU and memory

  • Static Cost

    The static cost of executing the query during the last 30 seconds. The static cost is a measure of the effort by the cluster to process historic (archived) data to perform the query.

  • Live Cost

    The live cost of executing the query during the last 30 seconds. The live cost the time spent processing active (not yet archived) data.

  • Status

    The current status of the query. A Live query is one actively being processed, for example as part of a dashboard or automation. Static queries are queries that have finished executing within a search.

  • Age

    The time since the query was started. For a live query, this will show the time since the query was first executed.

  • View

    Which dashboard, view or repository was used to execute the query.

  • Initiated by

    The email address of the user that initiated the query.

If the Show additional query details columns toggle has been enabled, the following additional columns are shown:

  • Static CPU

    CPU time spent fetching archived data to execute the query.

  • Live CPU

    CPU time spent processing active data for the query.

  • Total MA

    Total Memory allocated in order to complete the query.

Selecting a given process from the list allows you to display more detailed information. This information is shown in the bottom panel:
