Scatter Chart Widget

The Scatter Chart widget is useful for discovering the connection between different metrics in your data: it can be used to visualize any results containing two or more sets of correlated numerical values, in the form of scatter plot points. The first set of numerical values in the result will function as points on the X-axis, whereas all following sets will be plotted as series in the chart.

See in Figure 171, “Scatter Chart” an example of how this widget may look like.

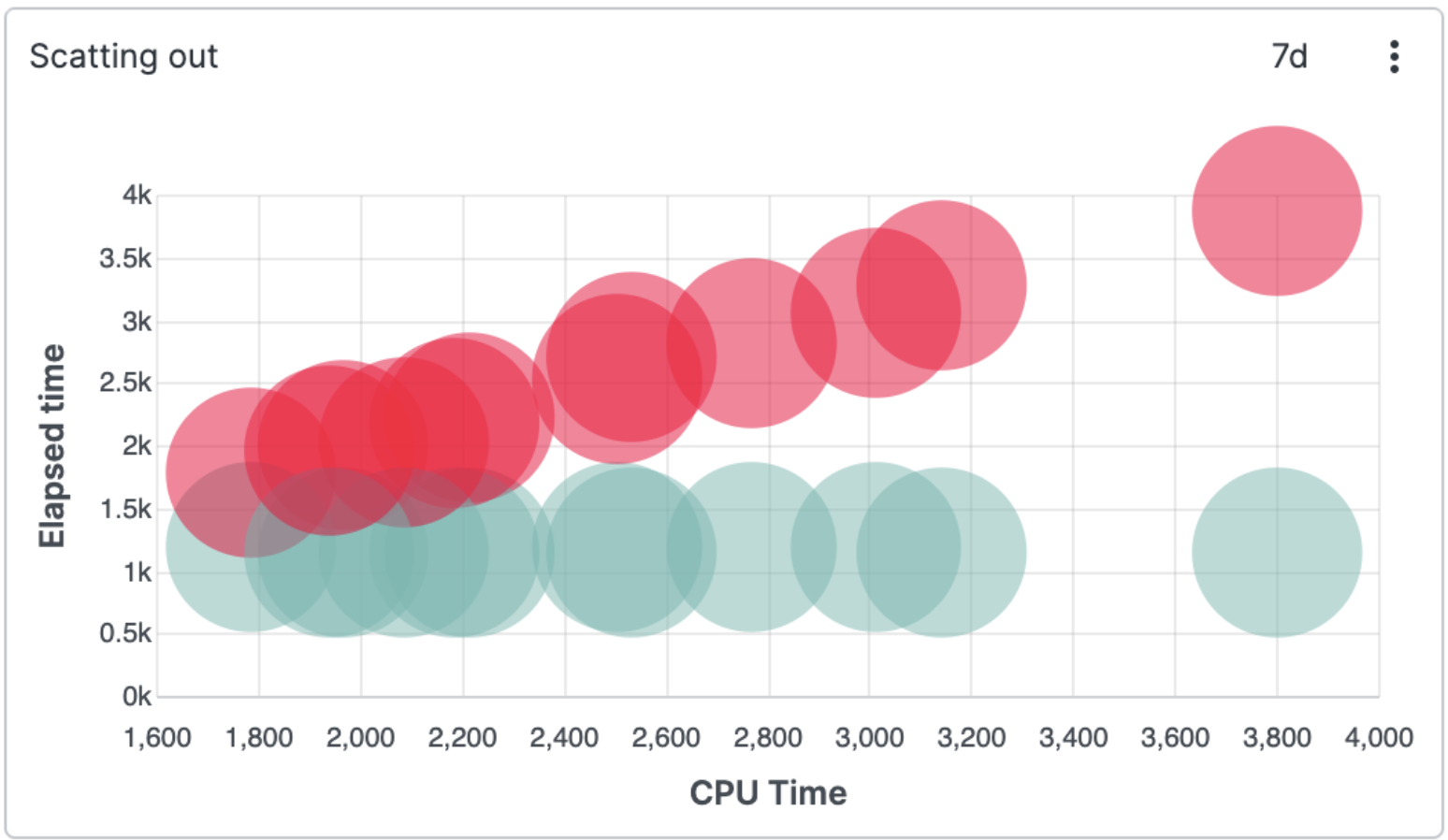

Scatter Chart

Figure 171. Scatter Chart


Input Format

You can use the Scatter Chart with a single series to have a service producing logs like the ones below:

ini
2022-03-14T10:59:02.387+0000 INFO c.h.u.TimerExecutor$ 3 cputime=266935 wallclock=269564 alloc=4712
2022-03-14T10:59:02.389+0000 INFO c.h.u.TimerExecutor$ 1 cputime=17521 wallclock=19430 alloc=40
2022-03-14T10:59:02.419+0000 INFO c.h.u.TimerExecutor$ 3 cputime=95658 wallclock=98754 alloc=64

Assuming we would like to make a chart showing the correlation between cputime, wallclock and memory allocation alloc, we will use the table() function:

logscale
table([cputime, wallclock, alloc])

This query will produce a Scatter Chart with cputime as the X-axis and wallclock and alloc as two series of plotted numerical values (as in Figure 171, “Scatter Chart”). Any additional inputs to the table() function field list would add more series to the chart.

The Scatter Chart is also meant to be used in conjunction with other functions such as select(), groupBy(), timeChart(), bucket(), and top().

Wide or Long Input Format

The Scatter Chart offers the Input Data Format property, whose Auto mode looks at the query result and automatically chooses the best interpretation of the data between long or wide data format.

  • Long format data must have one group field for the series names and two additional fields for x and y values respectively.

  • Wide format must have at least two fields (neither needs to be a group field), the first one is used for x values and any subsequent fields contain y values. There is a limit of 49 series when the wide format is chosen (50 in total, but the x axis takes the first slot).

Notice that a group field is the field used as the first argument to either groupBy(), bucket() or timeChart() functions.

See an example of Auto mode selecting the long data format, where we will use a nested groupBy() function:

logscale
groupBy(#vhost, function=[groupBy(alloc)])

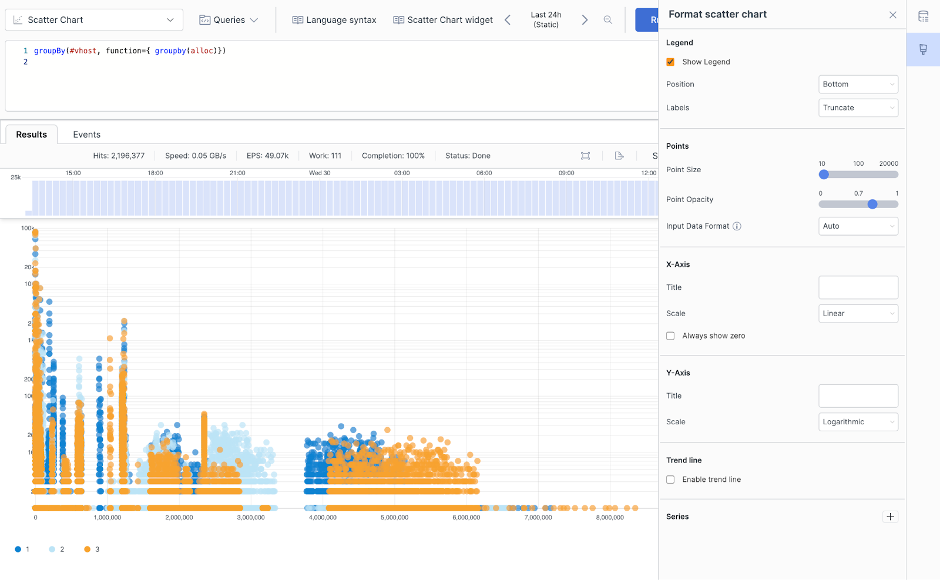

Scatter Chart Selecting Long Format

Figure 172. Scatter Chart Selecting Long Format


Widget Properties

Use the widget's Edit Style panel to configure the following properties.

  • Title

    The title of the widget as displayed in the dashboard.

  • Description

    The description of the bar chart. This is free form text supporting markdown syntax.

  • Legend

    • Show Legend checkbox.

      Tick the box to show the legend in the chart.

    • Position

      Choose where you want the legend to appear in the chart. Valid options are:

      • Right

      • Bottom

    • Labels

      You have two options for displaying labels:

      • Truncate shortens the length of the series for a better visualization within the chart. It is used in case of long labels that would exceed the maximum space allowed in the chart. It is the default option. Hover the mouse over a label, then press and hold ALT to momentarily see the full series.

      • Show full shows the full name of the series, that is, the entire value is displayed in the label or tooltip. In case of very long labels, it might affect their visibility within the chart. Hover the mouse over a label, then press and hold ALT to momentarily see the truncated series.

  • Points

    Controls the appearance of points in the chart.

    • Point Size

      Reduces or increases the size of each data point.

    • Point Opacity

      Reduces or increases the opacity of each data point.

    • Input Data Format

      How to interpret the resulting query data. Valid options are:

      • Auto enables automatic selection of long or wide formats.

      • Long uses one field for the series.

      • Wide uses a distinct field for each series.

  • X-Axis

    • Title

      Gives a title to the X-Axis.

    • Scale

      Valid options are:

      • Linear — quantitative scales that preserve proportional differences.

      • Logarithmic — quantitative scales particularly useful for plotting data that varies over multiple orders of magnitude.

    • Always show zero checkbox

      Tick the box to include the point 0 on the horizontal axis. If, for example, all values are in the range 100-200, by default the axis will only show that range roughly. But you can force it to extent the axis to 0. That makes it easier to get a sense of the absolute numbers, not just the numbers relative to each other.

  • Y-Axis

    • Title

      Gives a title to the Y-Axis.

    • Scale

    Valid options are:

    • Linear — quantitative scales that preserve proportional differences.

    • Logarithmic — quantitative scales particularly useful for plotting data that varies over multiple orders of magnitude.

    • Always show zero checkbox

      Tick the box to include the point 0 on the vertical axis. If, for example, all values are in the range 100-200, by default the axis will only show that range roughly. But you can force it to extent the axis to 0. That makes it easier to get a sense of the absolute numbers, not just the numbers relative to each other.

  • Trend Line

    A line or curve that estimates the relationship between X and Y values. In some cases, a straight line is the best fit. But there might be cases where other types of graphs may better estimate the relationship.

    • Enable trend line checkbox.

      Tick the box to visualize the trend line.

    • Type

      When Enable trend line is checked, enables to set the type of regression type to be visualized in the chart. Valid options are:

      • Linear — a straight line described by the formula y = ax +b

      • Logarithmicy = a + b * log(x)

      • Exponentialy = a + e(b * x)

      • Powery = a * xb

      • Quadraticy = a + b * x + c * x2

      • Polynomialy = a + b * x + ... * x^order

  • Series

    Assign a color to the series and provide a title to be displayed in chart.
