Manage Dashboard Parameters

Security Requirements and Controls

Dashboard parameters allow you to interact with dashboards for performing filtering and assisting with drill-down dashboards.

By providing parameters within your queries, you allow your users to configure values in the dashboard for the fields you have defined as being the parameters for that dashboard.

Here is an example of query with parameters on the Search page:

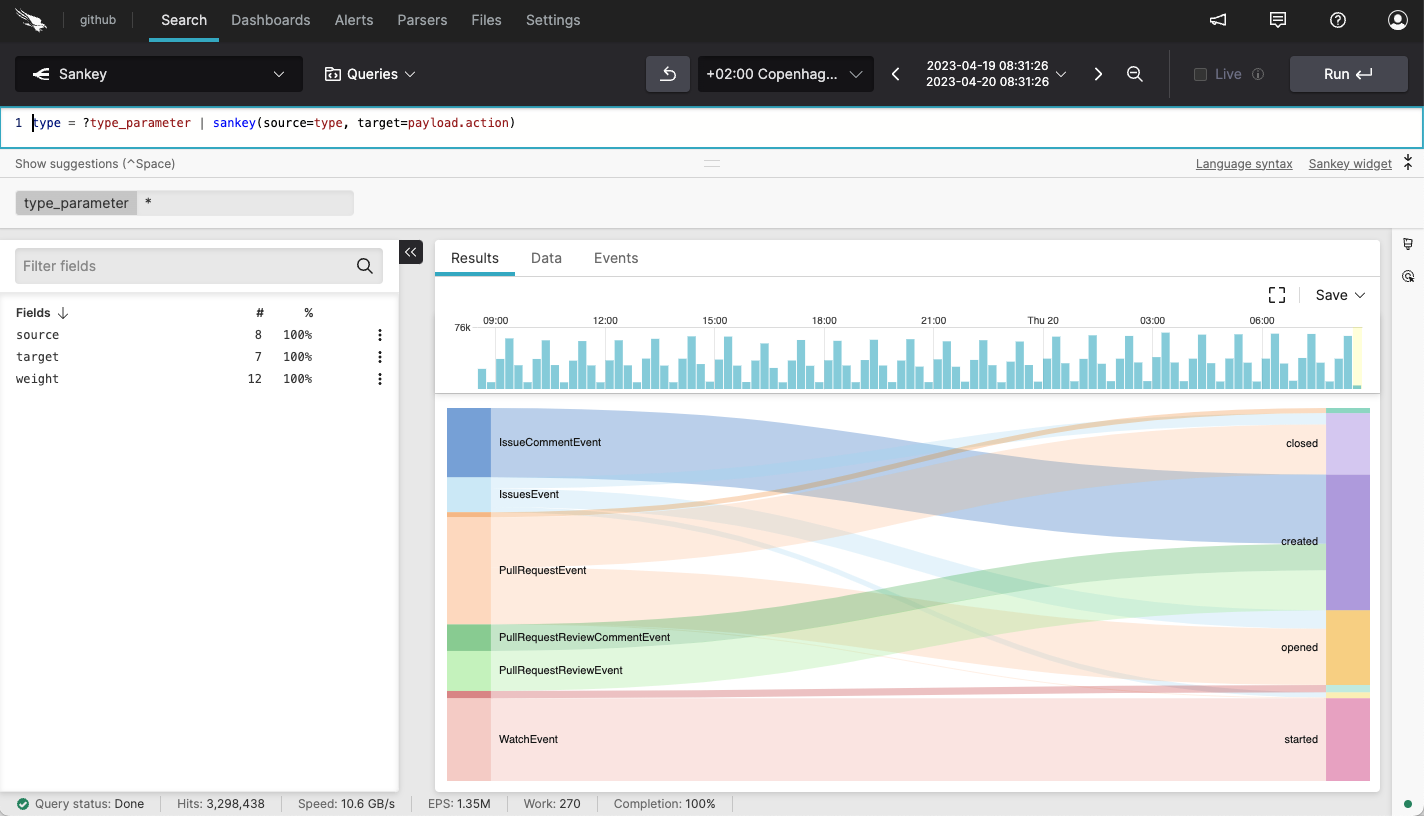

Query Parameter in Search

Figure 134. Query Parameter in Search


All parameters are added to the query using the ?parameterName syntax e.g., ?type_parameter in the example above. For more details on the syntax used for query parameters, see User Parameters/Variables.

When you specify some parameters in your query, they automatically appear as options during searches, and the query is used as part of a widget within a dashboard. This allows for users to submit values for a query without the need to edit the query directly.

Here is an example of parameter on the Dashboards page, where the ?loglevels parameter is autodetected and used by a widget within the dashboard:

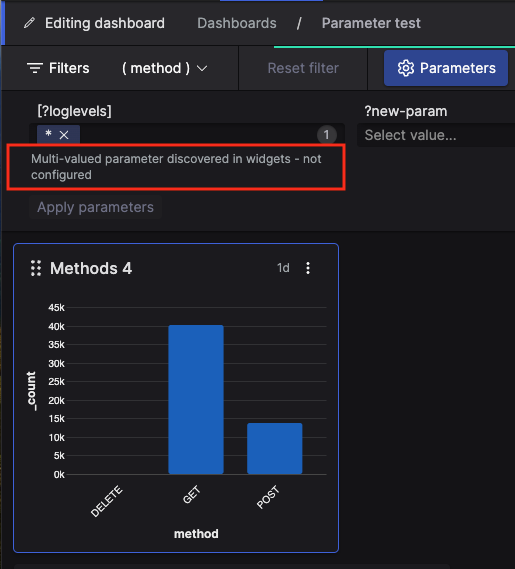

Autodetected Parameter

Figure 135. Autodetected Parameter


Parameters with the same name used in different widgets use the same input field. This allows you to impact multiple widgets with a single parameter input field.

Therefore, dashboards show a list of unique parameter names across all widgets, meaning that, if multiple widgets use the same parameter — like in the example figure above — the parameter name will only appear once on top of the dashboard. This also means that, whenever you need to delete a parameter that multiple widgets have in common, you will have to remove it in each single widget.

If a new widget uses a different parameter name instead, then this new parameter name will be added on top of the dashboard, and will of course use a different input field.

See Adding Parameters and Configuring Dashboard Parameters for how to set parameters in the UI and the syntax usage.

There are different kinds of parameters you can set, find them all described at Parameter Types.

For examples of parameters used in dashboards, see Examples of Parameterized Dashboards.

Adding Parameters

You can add dashboard parameters in two ways.

  • Specify parameters in the search query:

    1. Insert one or more parameters in the query using the syntax ?parametername, for example:

      logscale
      ComputerName = ?ComputerName AND AgentIdString = ?aid AND CustomerIdString = ?cid

      In this query, the ?ComputerName parameter works as a single-value parameter, meaning that it allows to submit a single string as its value.

      To support specifying one or more values, you can make it a multi-value parameter by using an array syntax instead:

      logscale
      in(ComputerName, values=[?ComputerName])

      For more explanations on how multi-value parameters are used, see Multi-value Parameters.

    2. Run the query, select the desired widget type and add the widget to the dashboard: parameters set in the query are automatically discovered on the dashboard and will appear at the top of it.

  • Add parameters directly from the dashboard interface:

    1. Click the pencil icon on the top right to take the dashboard in Editing dashboard mode.

    2. On top of the dashboard, click Parameters and add a new parameter.

    3. Parameters are displayed in the top panel: for better organize the information in dashboards, you can use a Parameter Panel Widget and move parameters out of the top panel and onto the dashboard area.

    4. For the added parameters to take an effect on the widgets, edit your widget queries to include the parameter syntax, as described in Specify parameters in the search query. Similarly, to remove parameters select Edit in search view from the icon of each single widget and delete all ?parametername syntax references from the widget's query.

By default the input fields are plain text fields that default to * — as on the Search page. But you can customize parameters to make them easier to use, and to select values in a dropdown instead of manually typing. See Configuring Dashboard Parameters for information on how to configure and customize your parameters.

Configuring Dashboard Parameters

To configure your parameters in a dashboard:

  1. Click the Edit button with the pencil icon on the top right to take the dashboard in Editing dashboard mode

  2. Click the Parameters button, this will show all available parameters.

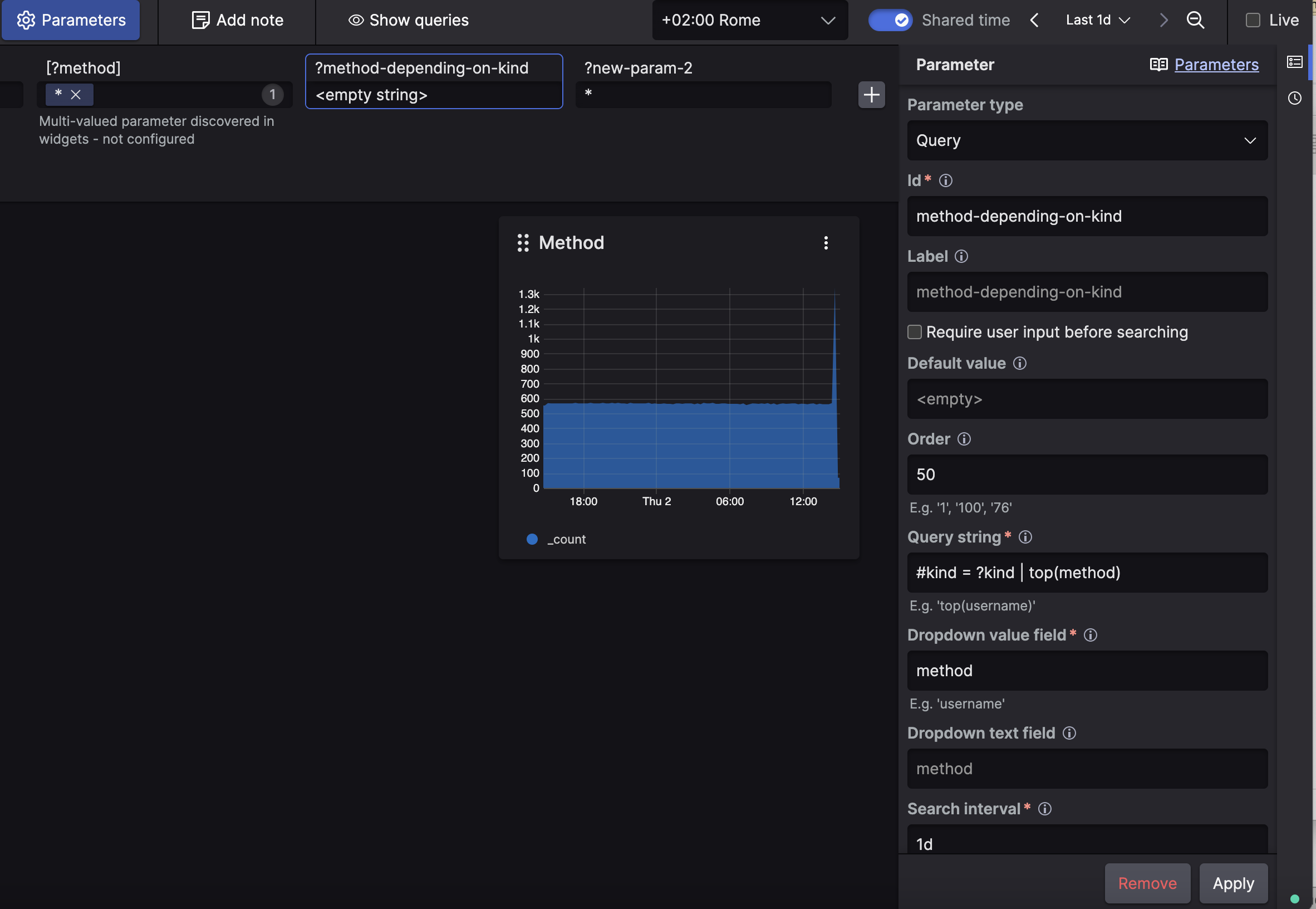

    Configuring Parameters

    Figure 136. Configuring Parameters


  3. Click on a parameter and fill in the Parameter side panel to configure its settings:

    • Parameter Type choose the type from a list of available Parameter Types.

    • Id — is the ID of the parameter e.g., user will mean you use ?user to reference it in a query. When changing the ID of a parameter you will have to manually update any queries using it to reflect the name ID.

    • Label — is the name displayed in the list of parameters. For example, Username in place of ?user would best suit to appear on the dashboard.

    • Require user input before searching — allows preventing the dashboard from executing any queries on page load until the user provides a value to the parameter.

      For example, in the query:

      logscale
      in(method, values=?method)

      widgets that use the ?method parameter will defer their execution until their user has entered a value e.g., GET or POST in the parameter's input field:

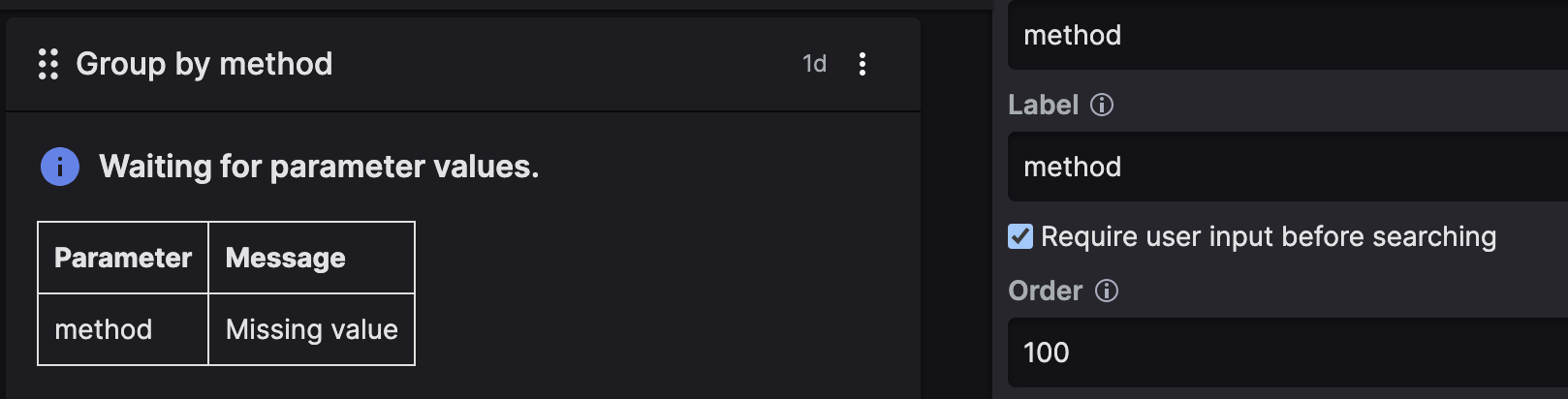

      Required User Input

      Figure 137. Required User Input


      This setting can be useful in cases of long and complex queries — too expensive to run and returning a huge amount of data not meaningful for the purpose of the search.

      For example, you may want to run a query limited to a certain group of emails from your data: you can do this by setting an ?email parameter and then run the search only when certain email domains are entered as input for that parameter.

      If this setting is unchecked, you need to specify the default value used in the queries on the page load. You can use wildcards like * to use all values.

    • Default Value — allows you to set the default value the parameter should have. You might want to set, for example, production for an ?environment parameter. Use the wildcard * as the default to match everything, which means no filtering.

    • Order — controls the order of parameters on the dashboard page. Lower values will bring the parameter to the first positions on the list. For example, 1 or 100.

    • Other settings specific to different parameter types. For details on these settings, see Parameter Types.

  4. Click Apply, or Reset if you need to set a new configuration.

  5. Whenever you need to remove all settings from a parameter you've configured, select it again and click Remove.

Parameter Types

While you are Configuring Dashboard Parameters, you can choose one of the following parameter types from the Parameter Type dropdown menu:

  • Free Text — allows you to just type a free text input as the value you want to filter or aggregate.

  • Query — creates a dropdown list of values based on the results of the query. The dropdown list is created as single or multiple choice, depending if the parameter is single or multi-valued (see examples of both at Examples of Parameterized Dashboards).

    On top of the settings common to all parameter types, other settings specific to the Query parameter are:

    • Query String — must contain a LogScale query. This is a mandatory field. For example, you may want to fill in this field in conjunction with an aggregate function. See some examples of parameters used in queries at Examples of Parameterized Dashboards.

    • Dropdown Value Field — is the field in the results that should be used as the value for items. For example, userId. This is a mandatory field.

    • Dropdown Text Field — is the field in the results that should be used as the display text of items. For example, email.

    • Search Interval — sets how far back in time to search for values. This is always relative to the current time. For example, 5m, 2h. This is a mandatory field.

    • Use Dashboard Search Interval checkbox — makes the query for this parameter use the same time interval selected for the dashboard.

    Query-based parameters can contain references to other parameters, see Parameters Referenced in Other Parameters for more information.

  • FixedList — provides a fixed set of options, it is good when you have a small set of fixed values that will fit into a dropdown menu. If there are too many values to use this parameter type, however, the File parameter may be a better fit.

    On top of the settings common to all parameter types, other settings specific to the FixedList parameter are:

    • Values — List of comma-separated values. For example, server1, server2, server3. This is a mandatory field.

    • Labels — List of comma-separated labels to name a value. For example, Prod, Test, Staging.

  • File — LogScale supports uploading of CSV and JSON files for use with the match() function in queries, but those same files can also be used for populating parameters. File-based parameters can contain references to other parameters, see Parameters Referenced in Other Parameters for more information.

    On top of the settings common to all parameter types, other settings specific to the File parameter are:

    • File — Insert the name of a file. This is a mandatory field.

    • Value Field — The field in the file that should be used as the value, e.g., userId. This is a mandatory field.

    • Label Field — The field in the file that should be used as the display text of items, e.g., email. Allows you to configure the values that will appear in the Web UI when you select the value for the parameter, but it is still the value field that determines what data goes in the query. If no labeling field is configured, the Web UI will display the actual values.

    • Value Filters — Limit entries coming from the file by configuring some fields e.g., country, with a certain value e.g., Germany. Parameters can be used as values, and multiple values can be specified, separated by comma.

    Take this configuration as an example:

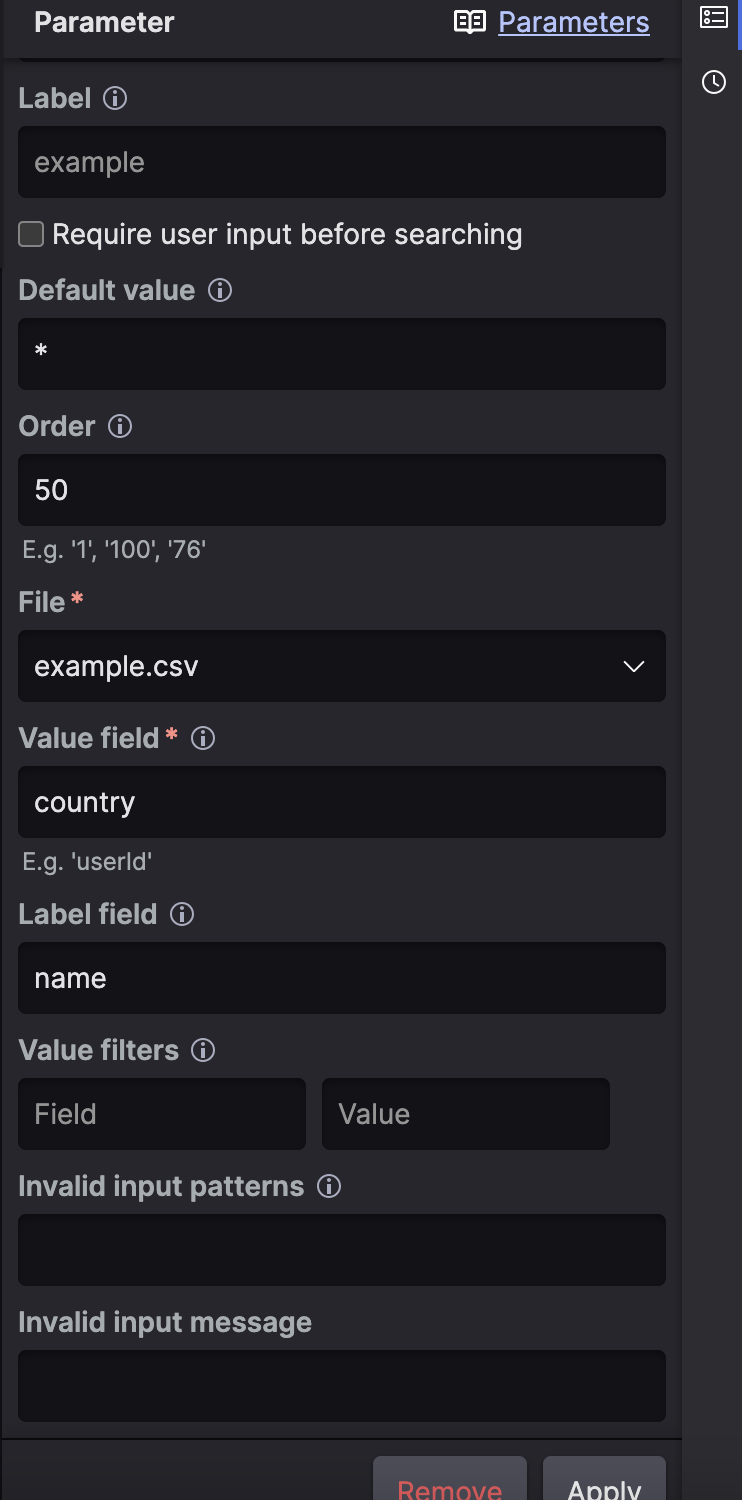

    File Based Parameter Configuration

    Figure 138. File Based Parameter Configuration


    If example.csv has these contents:

    csv
    userid,name,country
    1,alice,us
    2,bob,uk

    Then using the parameter in the dashboard looks like this:

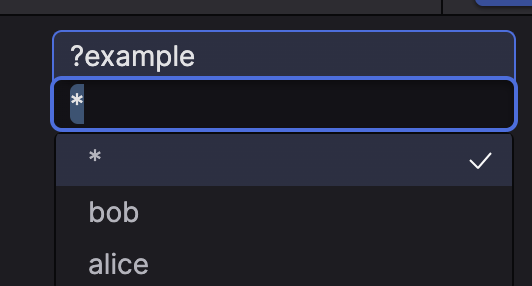

    File Based Parameter Output

    Figure 139. File Based Parameter Output


    Selecting the alice option will insert the value 1 into the parameter, and the same for bob and 2.

    We can also use the Value filters configuration to hide entries from the output. Since example.csv also contains a country column, we can specify that we only want users from, for example, the USA:

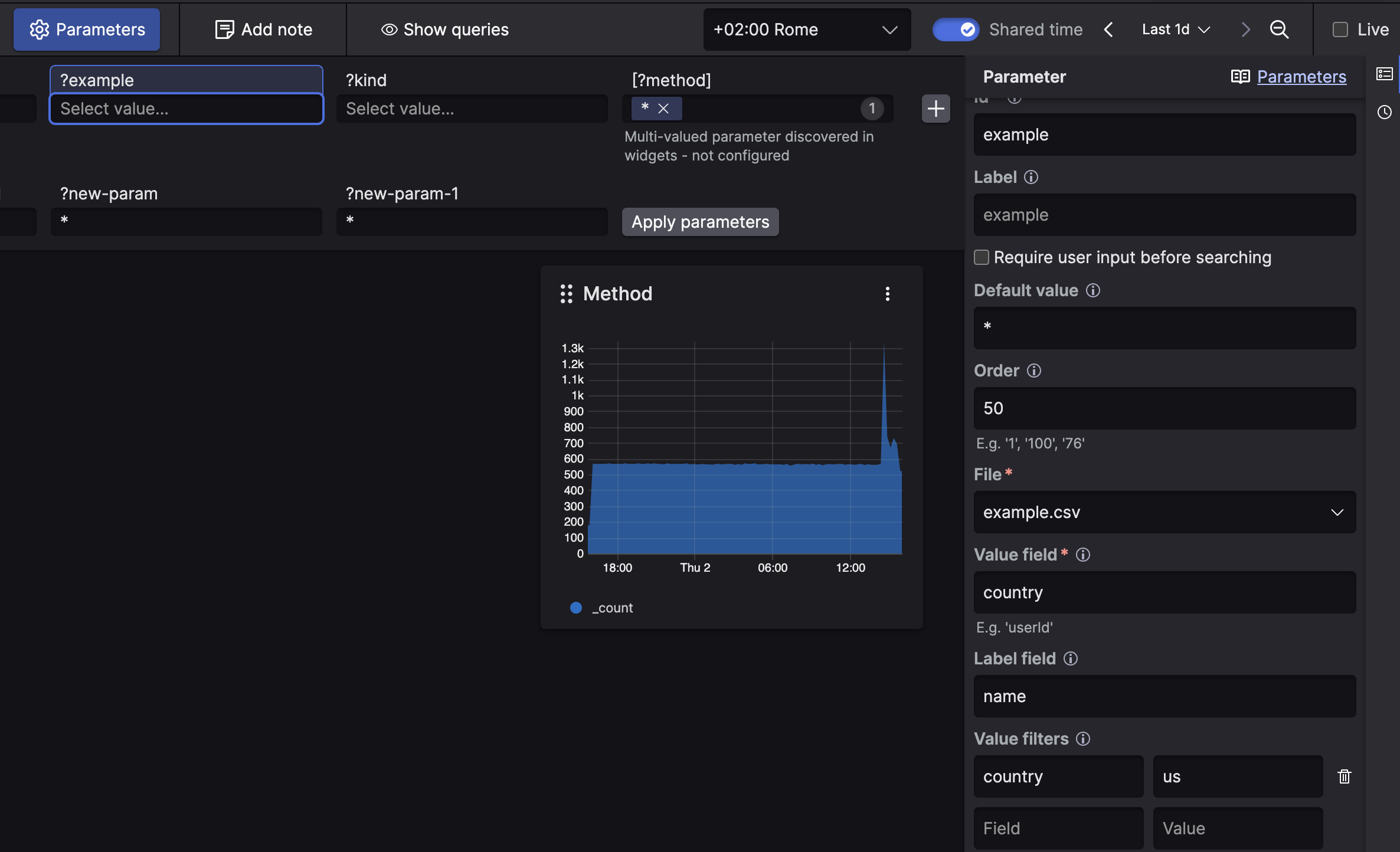

    File Based Parameter with Static Filter

    Figure 140. File Based Parameter with Static Filter


    This would remove bob from the output, but we can also specify multiple values, separated by comma, or use a parameter as input. Using a parameter is the same as writing out the options yourself, but you type, for example, ?country instead of us, and you will get the appropriate options.

URL

When parameters are assigned, they will be added to the URL and you can share a link to a dashboard configuration simply by sharing the URL of what you are looking at.

This can also be used to integrate with other systems, where you can construct dashboard URLs that contain parameters. This could for instance be an IP found in an external system that you want to look at logs for on a dashboard.

Notice that URLs use the syntax dashboards/<dashboard-id>?$param1=value1&$param2=value2 where parameters are denoted with the $ sign instead of the ? (like you use in queries). This is because ? is a reserved character in URLs.

Tip

Use Dashboard Link Interactions to bind values from the data to parameters for a dynamic integration with related LogScale dashboards.

Examples of Parameterized Dashboards

Single-value Parameters

Let's take an example where you want to create a dashboard that monitors status codes for the different hosts available in the data, and you want to match these codes within a certain range — subnet — of these hosts. Let's assume that events are attributed with the following fields:

  • host — the hostname of the server.

  • status_code — the status code of the entry, such as 200.

  1. Go to the Search tab from the top menu bar and enter a query like the one below:

    logscale
    cidr(host,subnet=?Subnet)
    | status_code > ?StatusCode
    | groupBy(host)

    The query contains two parameters: ?Subnet, and ?StatusCode.

  2. Run the query to produce a Bar Chart widget with one series per subnet host, counting how many errors occur.

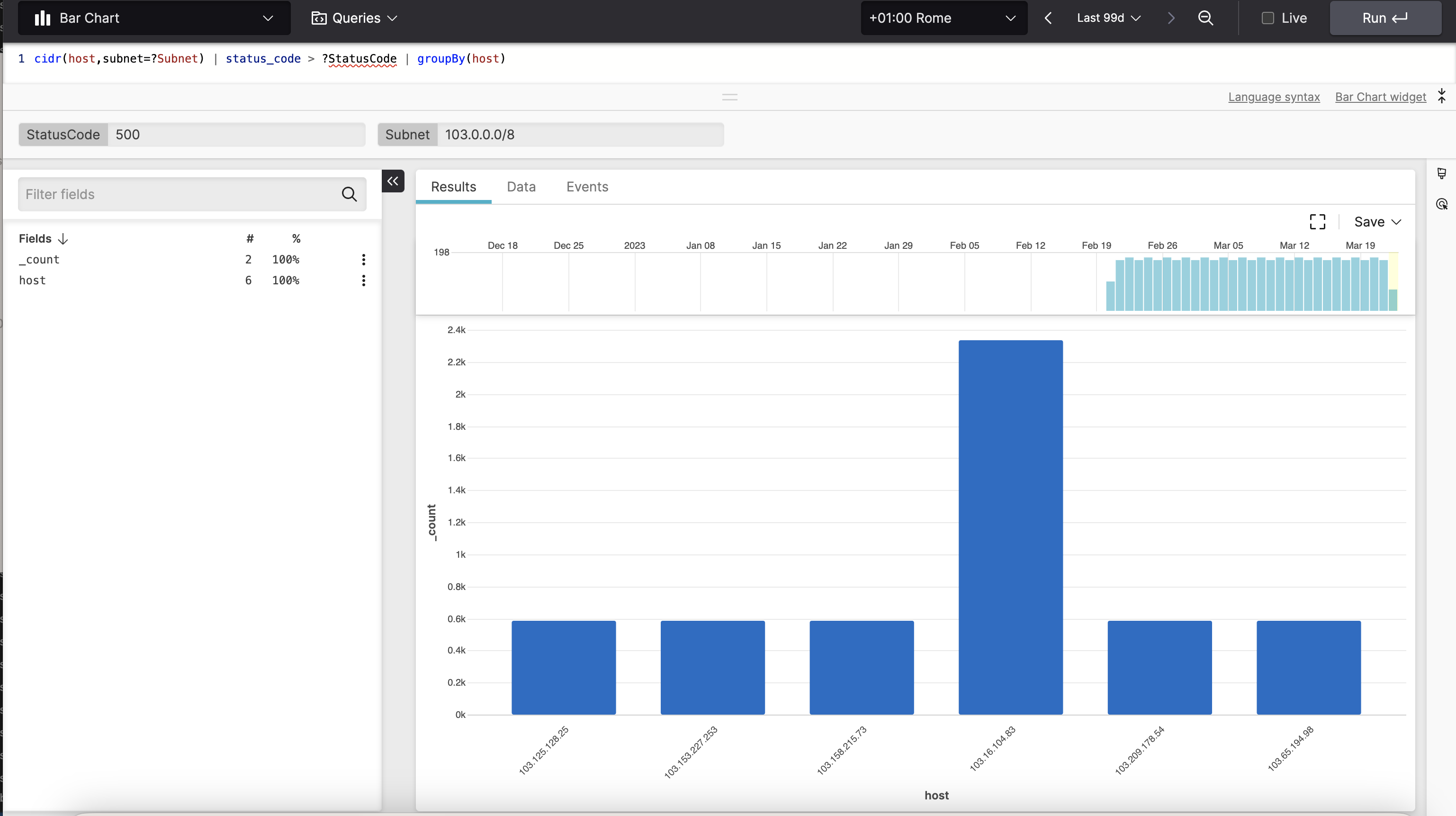

    Parameters in a Query

    Figure 141. Parameters in a Query


  3. Set the ?StatusCode parameter to 500, and the ?Subnet parameter to 103.0.0.0/8 for example, and run the query again to show results for only those hosts having registered a 500 status code in that specified subnet.

You can also set one of the two parameters to * as its default value, meaning that it matches everything, e.g. all status codes.

The above is an example where ?Subnet, and ?StatusCode are used as single-value parameters that is, you can input just one value for those parameters.

Multi-value Parameters

You can use multivalued parameters to select more options from a list of available values:

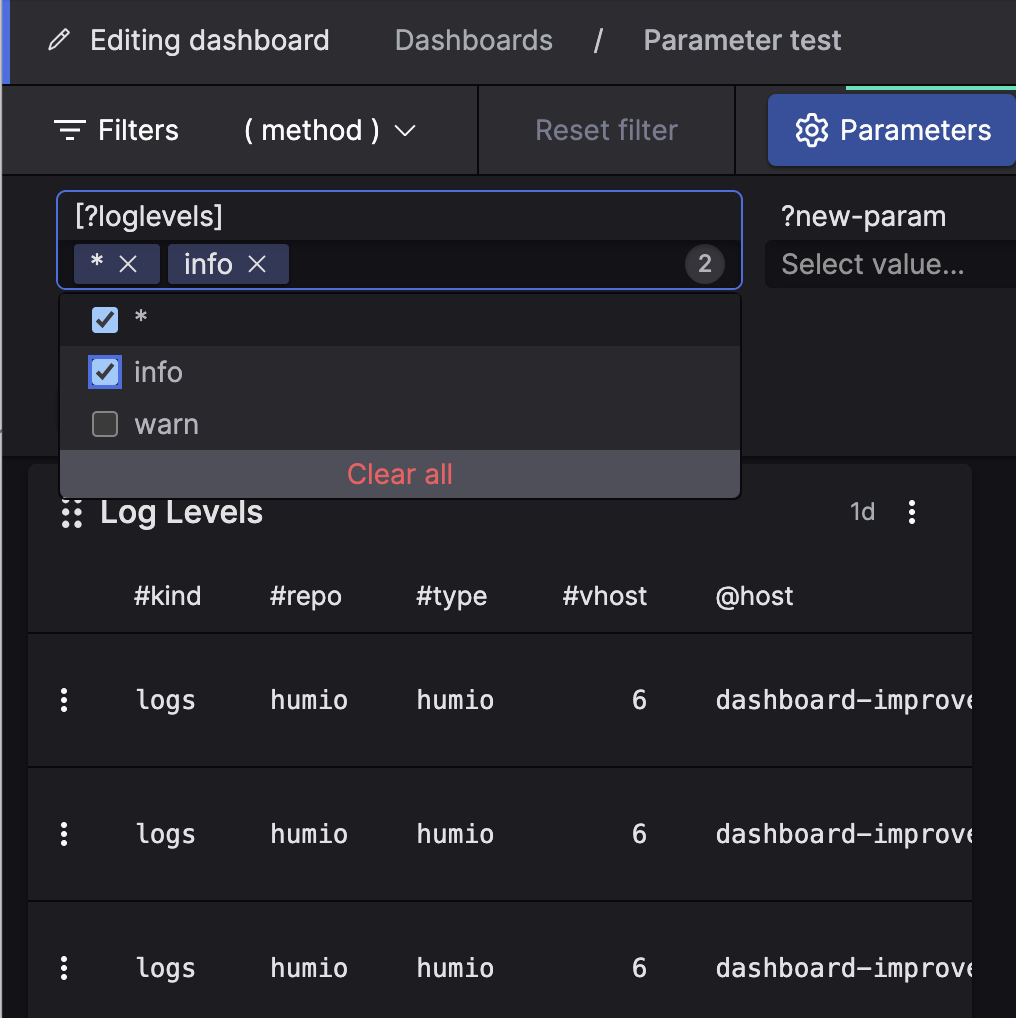

Multivalue Parameters Selection

Figure 142. Multivalue Parameters Selection


Multiple values can be added at once to a multi-value parameter by using comma as a delimiter for the list of values, thus the values can be used individually. Syntax options for adding values to multi-value parameters are described at Multi-Value Dashboard Parameters Syntax.

The example in figure above is produced from the query:

logscale
in(field=loglevel, values=[?loglevels])

Any parameter becomes multi-value whenever it is used inside brackets in a query — that is, in an array — like the parameter ?loglevels in the example query above. This will allow submitting the values of the loglevel field e.g., INFO and WARN in the parameter.

Use the Clear all button to remove the selected values from the list in one click.

When the query is executed, the selected values are combined in the query into a comma-separated string. Using the same example, the query becomes:

logscale
in(field=loglevel, values=["INFO", "WARN"])

If the same parameter is used in two queries in a dashboard — once as a single value and once as a multi-value — we will treat it as a single value to keep it compatible with both queries.

In the example below, ?loglevel will be displayed as a standard single-value parameter, because the second query does not use it inside an array:

logscale
in(field=loglevel, values=[?loglevels])
logscale
loglevel=?loglevel
| groupby(loglevel)

Another example of query serving well for a multi-value parameter would use the field method with its values counted in a timeChart() function:

logscale
in(method, values=[?method])
| timeChart()

With GET and POST selected for the ?method parameter in the Time Chart widget, the query will be executed as:

logscale
in(method, values = ["GET", "POST"])
| timeChart([method])

and will produce a visualization limited to the selected methods:

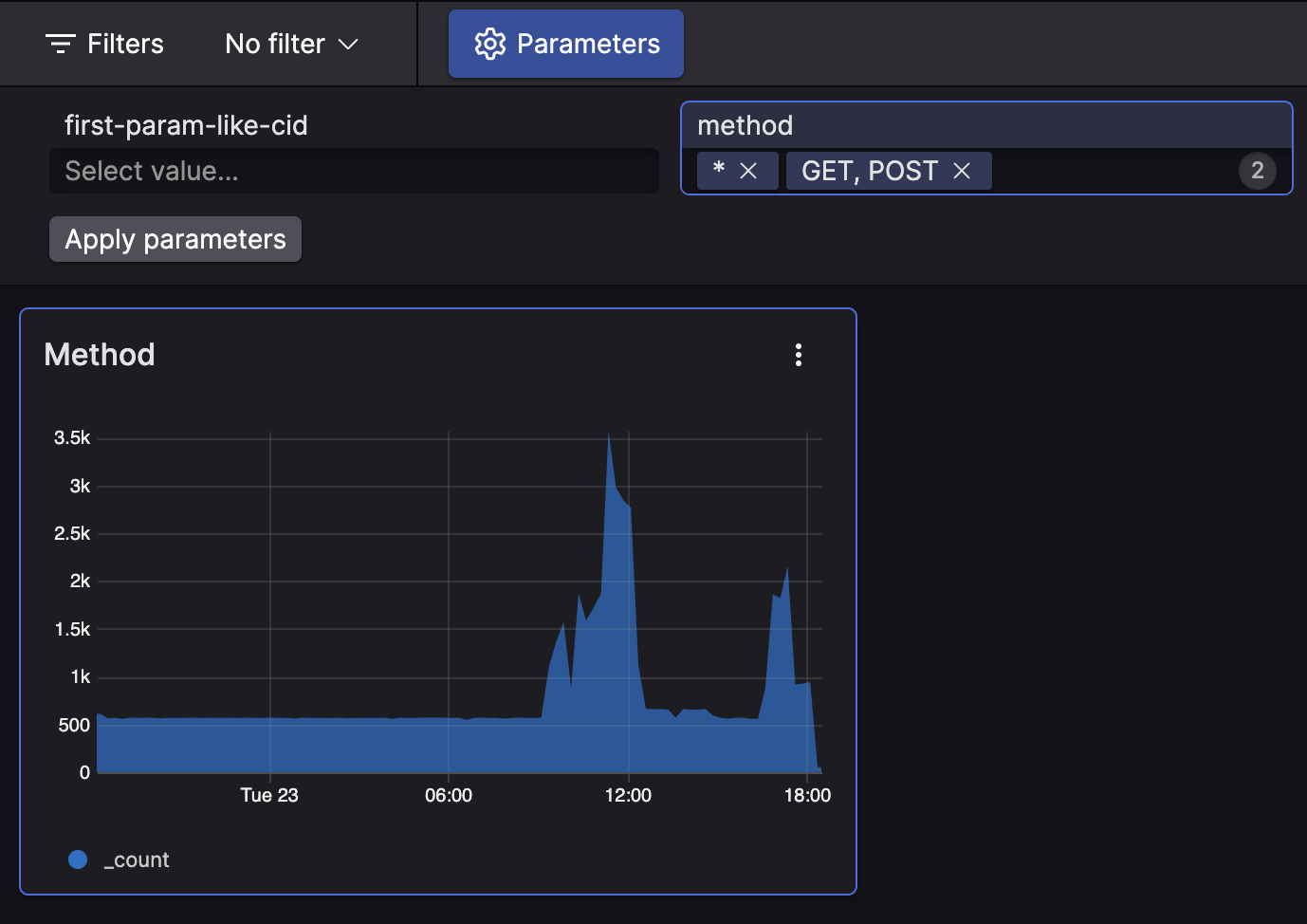

Widget with Multivalued Parameter in TimeChart

Figure 143. Widget with Multivalued Parameter in TimeChart


Parameters Referenced in Other Parameters

It is a common scenario to have multiple parameters, with one parameter depending on another. For example, a dashboard used to see how a specific host is doing may have a parameter which selects which region or data center to look at (e.g. ?region), and then a second parameter to list the hosts available to choose from (e.g. ?host).

In that scenario, the second parameter should naturally only show the hosts within the region you've selected previously.

You can reference other parameters if you are using either a Query Parameter or a File Parameter types. That is, all types of parameters can be referenced, but only query and file-based parameters can contain references.

For example, if the ?host parameter is a query-based parameter, it might be populated by a query similar to:

logscale
groupBy(hostName, function=[])

in which case referencing the ?region parameter becomes a matter of using that parameter in the query, same as you would reference it in other queries:

logscale
hostRegion = ?region
| groupBy(hostName, function=[])

For file-based parameters, you can also reference another parameter simply by referring to it. Say ?host is a file-based parameter, based on a CSV file like this:

|-----------------------|
| regionName | hostName |
| us         | host-1   |
| us         | host-2   |
| eu         | host-3   |
|-----------------------|

For this file-based parameter, you can add a value filter, which can reference another parameter. In other words, you can specify that the regionName column must match what is selected in the ?region parameter, as shown in the parameter configuration here depicted:

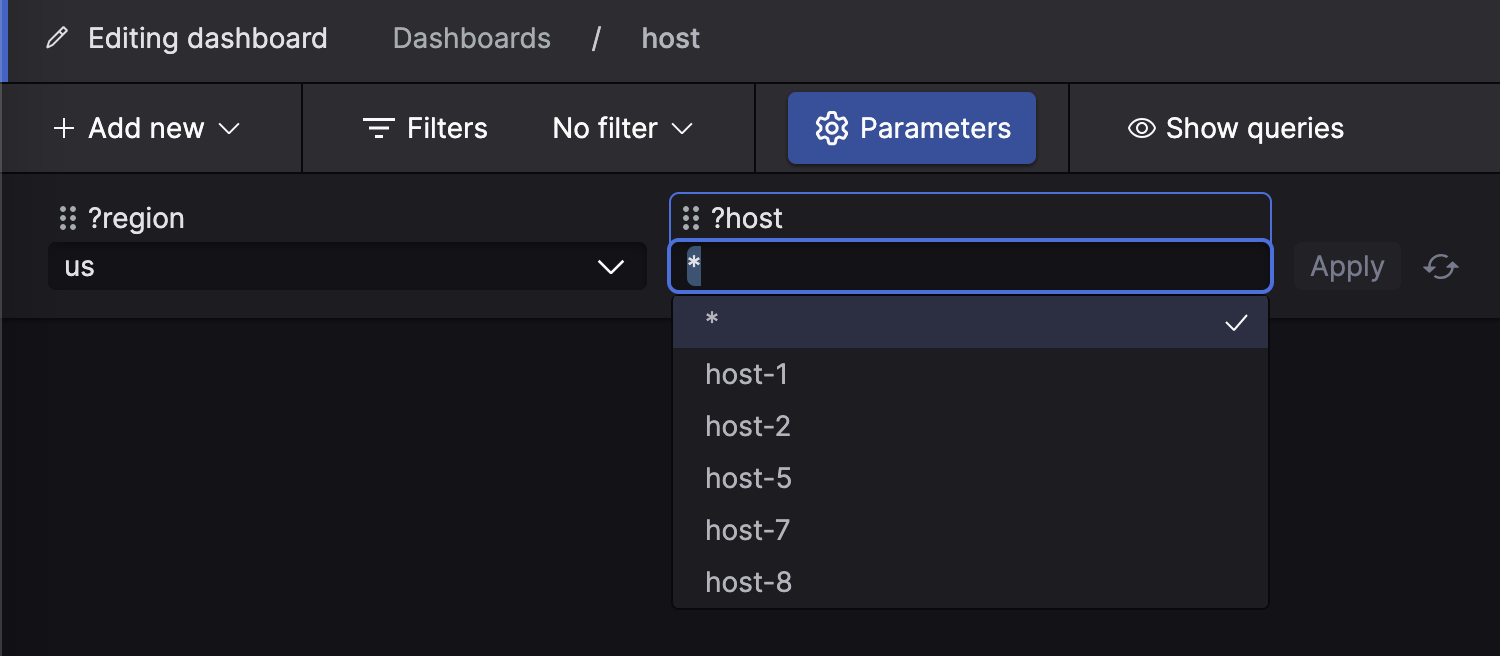

Multiple Parameters in a File Parameter

Figure 144. Multiple Parameters in a File Parameter

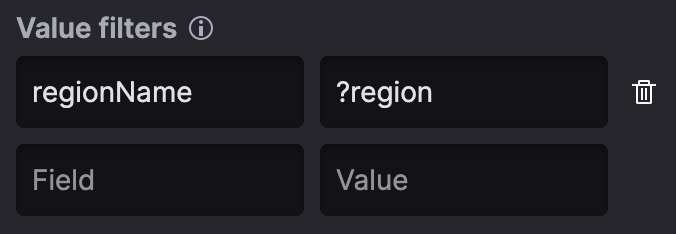

Referenced Parameter Configuration

Figure 145. Referenced Parameter Configuration


Parameters with Regex

A parameter can only be assigned a fixed value, the value from a parameter cannot be used within a regex, for example:

logscale
/error="?error"/i

One way to work-around this is to use the parameter as the entire regex to the regex() function:

logscale
regex(?regex, field="message")

In the above example we use a parameter to represent the string used as a regular expression that is matched against the field message.

You also cannot provide an array:

logscale
["foo","bar"]

Or a subquery

logscale
foo AND bar

Parameters with Aggregate Query Functions

Usually you will want to fill in the Query String field with a LogScale query that uses an aggregate function like top() and find the most frequent values that appear in a certain field. For example, you could find all hosts in your production cluster using:

logscale
env=PROD
| top(host)

You will need to then set host as the value in Dropdown Value Field, meaning it is the value of this field (host) in the search results from the query env=PROD | top(host) that should be bound to the parameters.

Using top() like in the example above is useful to get the most frequent values. If instead you want all possible values from the data, you can use the groupBy() function to get those values.

The most efficient way to do so is by calling groupBy() with no aggregation function, using:

logscale
groupBy(fieldName, function=[])

This will make groupBy() just gather the unique values without doing any operations on those values (like counting how many times they occur).

You can use the same parameter names in different queries for different widgets, so that the parameters shown in the dashboard will apply to any widget in that dashboard.

Parameters with Case-Insensitive Searches

Parameters can be used in case-insensitive searches; in the example below the field Username is filtered based on the inputUserName parameter value:

logscale
| inputUserName := ?parameterUserName
| test(lower(inputUserName) == lower(UserName))
