Selecting & Filtering Fields

LogScale allows selecting single fields and offers searching and filtering on those fields.

  1. Click on a field in the Fields panel (Figure 54, “Fields Panel”) for example, #severity in the example. A window opens with the list of values found and the number of occurrences for each.

    Selecting Fields

    Figure 56. Selecting Fields


  2. Click the icon next to each field name to get several filtering options.

    Filtering Options

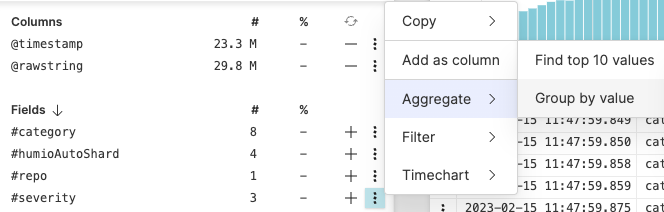

    Figure 57. Filtering Options


  3. Select one of the options, for example, AggregateGroup by value will group events by the value of that field, TimechartUse field as series will run the timeChart() function in the Query editor to show events that have that field grouped into series and plotted in a timechart.

More filter options and interactions with fields are available for example, exclude () or include (⊜) in the search all events that have the selected field. See Field Interactions.

When the menu is opened for Field Interactions with live queries, the Fields panel flyout will display a fixed list of top values. The top values are kept from the point in time when the menu was opened.
