Outbound Blocked Requests

Visualize firewall blocked connections flow

This is a query example for the Outbound Blocked Requests widget in the Summary Dashboard dashboard of the crowdstrike/siem-connector package.

Query

flowchart LR; %%{init: {"flowchart": {"defaultRenderer": "elk"}} }%% repo{{Events}} 1[/Filter/] 2[/Filter/] 3[/Filter/] 4[(Function)] result{{Result Set}} repo --> 1 1 --> 2 2 --> 3 3 --> 4 4 --> result

logscale

*
| metadata.eventType=FirewallMatchEvent
| event.RuleId = 1
| sankey(source="event.LocalAddress",target="event.RemoteAddress")

Introduction

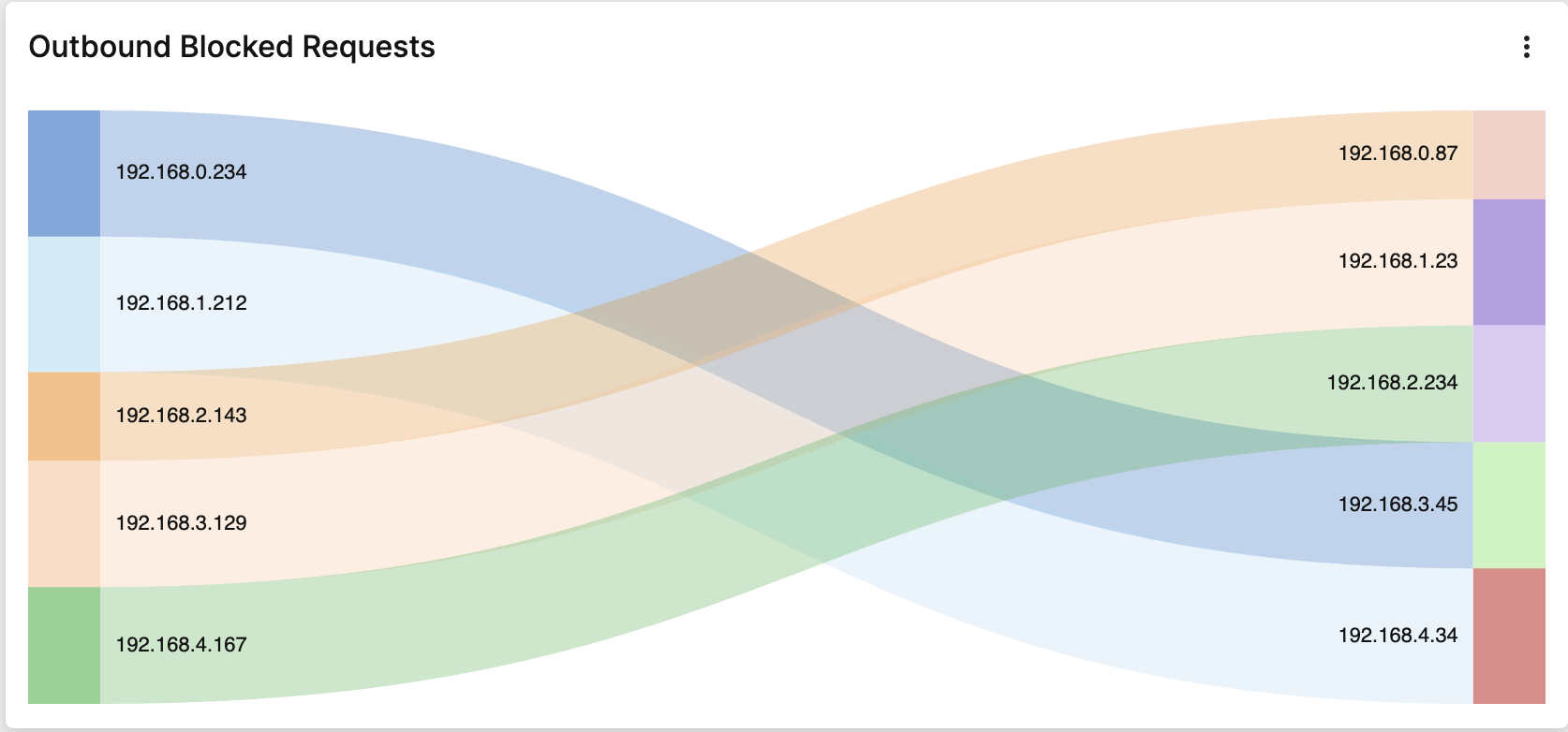

This widget is used to visualize the flow of blocked firewall requests between local and remote addresses using a Sankey diagram, providing a clear representation of network traffic patterns.

In this widget, the sankey() function is used to create a flow diagram showing the relationship between source and target IP addresses from firewall events.

Example incoming data might look like this:

@timestamp	#error	#repo	#type	@error	@error_msg	@error_msg[0]	@error_msg[1]	@event_parsed	@id	@ingesttimestamp	@rawstring	@timezone	event.CommandLine	event.ComputerName	event.DetectDescription	event.DetectName	event.DeviceId	event.HostName	event.ImageFileName	event.LocalAddress	event.LocalIP	event.Objective	event.RemoteAddress	event.RuleId	event.SensorId	event.SeverityName	event.Tactic	event.Technique	event.UserName	metadata.customerIDString	metadata.eventCreationTime	metadata.eventType
2026-01-14T11:23:10	true	auto-dashboard-queries	siem-connector	true	Could not parse json for field=@rawstring msg=Could not handle input. reason=Could not parse JSON \| No field named metadata.eventCreationTime to use when parsing timestamp	Could not parse json for field=@rawstring msg=Could not handle input. reason=Could not parse JSON	No field named metadata.eventCreationTime to use when parsing timestamp	false	rfVIA55U9jSH8zSzmRYJIeBx_0_22_1768389790	2026-01-14T11:23:10	{"metadata":{ "eventType":"FirewallMatchEvent","eventCreationTime":"1768389786295","customerIDString":"a1b2c3d4e5f6g7h8i9j0" }, "event":{"RuleId":"1", "LocalAddress":"192.168.2.143","RemoteAddress":"192.168.0.87","HostName":"PROD-WEB01","SensorId":"b2c3d4e5f6g7h8i9j0k1","DeviceId" : "c3d4e5f6g7h8i9j0k1l2", "CommandLine" : "/usr/bin/grep -i "error" /var/log/syslog", "ImageFileName" : "/usr/bin/grep"}} 38cbc192813c809d34dfb3b8a7996e7b	Z
2026-01-14T11:23:10		auto-dashboard-queries	siem-connector						QTsJCoPniAANCCdKBxWdooCq_4_258_1768389790	2026-01-14T11:23:11	{"metadata":{ "eventType":"DetectionSummaryEvent","eventCreationTime":"1768389790391", "customerIDString":"d4e5f6g7h8i9j0k1l2m3" }, "event":{"SeverityName":"Medium", "DetectName":"Suspicious PowerShell Command Line","ComputerName":"PROD-APP02","UserName":"adamsb","SensorId":"e5f6g7h8i9j0k1l2m3n4","LocalIP":"192.168.3.211","Tactic":"Execution","Technique":"T1059.001 - PowerShell","DetectDescription":"Detected suspicious PowerShell command execution with encoded arguments","Objective":"Command and Control"}} 38cbc192813c809d34dfb3b8a7996e7b	Z		PROD-APP02	Detected suspicious PowerShell command execution with encoded arguments	Suspicious PowerShell Command Line					192.168.3.211	Command and Control			e5f6g7h8i9j0k1l2m3n4	Medium	Execution	T1059.001 - PowerShell	adamsb	d4e5f6g7h8i9j0k1l2m3	1768389790391	DetectionSummaryEvent
2026-01-14T11:23:11		auto-dashboard-queries	siem-connector						QTsJCoPniAANCCdKBxWdooCq_4_259_1768389791	2026-01-14T11:23:11	{"metadata":{ "eventType":"FirewallMatchEvent","eventCreationTime":"1768389791164","customerIDString":"f6g7h8i9j0k1l2m3n4o5" }, "event":{"RuleId":"3", "LocalAddress":"192.168.1.54","RemoteAddress":"192.168.4.198","HostName":"PROD-DB01","SensorId":"g7h8i9j0k1l2m3n4o5p6","DeviceId" : "h8i9j0k1l2m3n4o5p6q7", "CommandLine" : "/usr/sbin/useradd -m -s /bin/bash jdoe", "ImageFileName" : "/usr/sbin/useradd"}} 38cbc192813c809d34dfb3b8a7996e7b	Z	/usr/sbin/useradd -m -s /bin/bash jdoe				h8i9j0k1l2m3n4o5p6q7	PROD-DB01	/usr/sbin/useradd	192.168.1.54			192.168.4.198	3	g7h8i9j0k1l2m3n4o5p6					f6g7h8i9j0k1l2m3n4o5	1768389791164	FirewallMatchEvent
2026-01-14T11:23:11		auto-dashboard-queries	siem-connector						QTsJCoPniAANCCdKBxWdooCq_4_260_1768389791	2026-01-14T11:23:12	{"metadata":{ "eventType":"DetectionSummaryEvent","eventCreationTime":"1768389791929", "customerIDString":"i9j0k1l2m3n4o5p6q7r8" }, "event":{"SeverityName":"Low", "DetectName":"Suspicious Registry Modification","ComputerName":"PROD-FILE01","UserName":"andersonk","SensorId":"j0k1l2m3n4o5p6q7r8s9","LocalIP":"192.168.2.16","Tactic":"Credential Access","Technique":"T1003.001 - LSASS Memory","DetectDescription":"Detected potential credential dumping from LSASS memory","Objective":"Credential Theft"}} 38cbc192813c809d34dfb3b8a7996e7b	Z		PROD-FILE01	Detected potential credential dumping from LSASS memory	Suspicious Registry Modification					192.168.2.16	Credential Theft			j0k1l2m3n4o5p6q7r8s9	Low	Credential Access	T1003.001 - LSASS Memory	andersonk	i9j0k1l2m3n4o5p6q7r8	1768389791929	DetectionSummaryEvent
2026-01-14T11:23:12		auto-dashboard-queries	siem-connector						QTsJCoPniAANCCdKBxWdooCq_4_261_1768389792	2026-01-14T11:23:13	{"metadata":{ "eventType":"FirewallMatchEvent","eventCreationTime":"1768389792721","customerIDString":"k1l2m3n4o5p6q7r8s9t0" }, "event":{"RuleId":"1", "LocalAddress":"192.168.0.234","RemoteAddress":"192.168.3.45","HostName":"PROD-SQL01","SensorId":"l2m3n4o5p6q7r8s9t0u1","DeviceId" : "m3n4o5p6q7r8s9t0u1v2", "CommandLine" : "/bin/ls -lah /home/user", "ImageFileName" : "/bin/ls"}} 38cbc192813c809d34dfb3b8a7996e7b	Z	/bin/ls -lah /home/user				m3n4o5p6q7r8s9t0u1v2	PROD-SQL01	/bin/ls	192.168.0.234			192.168.3.45	1	l2m3n4o5p6q7r8s9t0u1					k1l2m3n4o5p6q7r8s9t0	1768389792721	FirewallMatchEvent

Step-by-Step

Starting with the source repository events.
flowchart LR; %%{init: {"flowchart": {"defaultRenderer": "elk"}} }%% repo{{Events}} 1[/Filter/] 2[/Filter/] 3[/Filter/] 4[(Function)] result{{Result Set}} repo --> 1 1 --> 2 2 --> 3 3 --> 4 4 --> result style 1 fill:#ff0000,stroke-width:4px,stroke:#000;
logscale
```
*
```
Matches all events in the data stream.
flowchart LR; %%{init: {"flowchart": {"defaultRenderer": "elk"}} }%% repo{{Events}} 1[/Filter/] 2[/Filter/] 3[/Filter/] 4[(Function)] result{{Result Set}} repo --> 1 1 --> 2 2 --> 3 3 --> 4 4 --> result style 2 fill:#ff0000,stroke-width:4px,stroke:#000;
logscale
```
| metadata.eventType=FirewallMatchEvent
```
Filters events to include only those where metadata.eventType equals FirewallMatchEvent.
flowchart LR; %%{init: {"flowchart": {"defaultRenderer": "elk"}} }%% repo{{Events}} 1[/Filter/] 2[/Filter/] 3[/Filter/] 4[(Function)] result{{Result Set}} repo --> 1 1 --> 2 2 --> 3 3 --> 4 4 --> result style 3 fill:#ff0000,stroke-width:4px,stroke:#000;
logscale
```
| event.RuleId = 1
```
Further filters the results to include only events where event.RuleId equals 1.
flowchart LR; %%{init: {"flowchart": {"defaultRenderer": "elk"}} }%% repo{{Events}} 1[/Filter/] 2[/Filter/] 3[/Filter/] 4[(Function)] result{{Result Set}} repo --> 1 1 --> 2 2 --> 3 3 --> 4 4 --> result style 4 fill:#ff0000,stroke-width:4px,stroke:#000;
logscale
```
| sankey(source="event.LocalAddress",target="event.RemoteAddress")
```
Creates a Sankey diagram visualization where the source nodes are defined by event.LocalAddress and the target nodes are defined by event.RemoteAddress.
The width of the flows represents the frequency of connections between each source-target pair.
Event Result set.

Summary and Results

The widget is used to visualize network traffic patterns in firewall blocked requests.

This widget is useful to identify common patterns in blocked network connections, detect unusual communication attempts between internal and external addresses, and analyze the distribution of blocked traffic across different network segments.

Sample output from the incoming example data:

source	target	weight
192.168.0.234	192.168.3.45	4
192.168.1.212	192.168.4.34	5
192.168.2.143	192.168.0.87	3
192.168.3.129	192.168.1.23	4
192.168.4.167	192.168.2.234	4

Note that the weight value in the output represents the number of connections between each source-target pair, determining the thickness of the flow in the Sankey diagram.
