Display Detection Events And Associated Data in Table Format

Create a comprehensive detection events overview

This is a query example for the Detections widget in the Summary Dashboard dashboard of the crowdstrike/siem-connector package.

Query

flowchart LR; %%{init: {"flowchart": {"defaultRenderer": "elk"}} }%% repo{{Events}} 1[/Filter/] 2[/Filter/] 3[\Add Field/] 4[\Add Field/] 5[\Add Field/] 6[\Add Field/] 7[\Add Field/] 8[\Add Field/] 9[\Add Field/] 10[\Add Field/] 11[\Add Field/] 12[\Add Field/] 13{{Aggregate}} result{{Result Set}} repo --> 1 1 --> 2 2 --> 3 3 --> 4 4 --> 5 5 --> 6 6 --> 7 7 --> 8 8 --> 9 9 --> 10 10 --> 11 11 --> 12 12 --> 13 13 --> result
logscale
metadata.eventType = DetectionSummaryEvent
| event.ComputerName=* AND metadata.customerIDString = *
| SensorId := event.SensorId
| ComputerName:=event.ComputerName
| User:=event.UserName
| DetectName:=event.DetectName
| Severity:=event.SeverityName
| LocalIP:=event.LocalIP
| Tactic:=event.Tactic
| Technique:= event.Technique
| Description:= event.DetectDescription
| Objective:=event.Objective
| table([@timestamp,SensorId,ComputerName,User,DetectName,Severity,LocalIP,Tactic,Technique,Objective,Description])

Introduction

This widget is used to display security detection events from Falcon LogScale in a structured table format, providing key information such as timestamp, computer details, user information, and detection specifics for security analysis and incident response.

In this widget, the table() function is used to organize detection event data into a structured format with specific columns for analysis and investigation.

Example incoming data might look like this:

@timestamp#repo#type@id@ingesttimestamp@rawstring@timestamp.nanos@timezoneevent.ComputerNameevent.DetectDescriptionevent.DetectNameevent.LocalIPevent.Objectiveevent.SensorIdevent.SeverityNameevent.Tacticevent.Techniqueevent.UserNamemetadata.customerIDStringmetadata.eventCreationTimemetadata.eventType
2026-01-12T10:22:45auto-dashboard-queriessiem-connectorQTsJCoPniAANCCdKBxWdooCq_3_300_17682133652026-01-12T10:22:45{"metadata":{ "eventType":"DetectionSummaryEvent","eventCreationTime":"1768213365060", "customerIDString":"a1b2c3d4e5f6g7h8i9j0" }, "event":{"SeverityName":"Medium", "DetectName":"Suspicious PowerShell Command Line","ComputerName":"PROD-WEB01","UserName":"adamsb","SensorId":"b2c3d4e5f6g7h8i9j0k1","LocalIP":"192.168.2.143","Tactic":"Execution","Technique":"T1059.001 - PowerShell","DetectDescription":"Detected suspicious PowerShell command execution with encoded arguments","Objective":"Command and Control"}}0ZPROD-WEB01Detected suspicious PowerShell command execution with encoded argumentsSuspicious PowerShell Command Line192.168.2.143Command and Controlb2c3d4e5f6g7h8i9j0k1MediumExecutionT1059.001 - PowerShelladamsba1b2c3d4e5f6g7h8i9j01768213365060DetectionSummaryEvent
2026-01-12T10:22:45auto-dashboard-queriessiem-connectorQTsJCoPniAANCCdKBxWdooCq_3_301_17682133652026-01-12T10:22:46{"metadata":{ "eventType":"DetectionSummaryEvent","eventCreationTime":"1768213365928", "customerIDString":"c3d4e5f6g7h8i9j0k1l2" }, "event":{"SeverityName":"Low", "DetectName":"Suspicious Registry Modification","ComputerName":"PROD-APP02","UserName":"andersonk","SensorId":"d4e5f6g7h8i9j0k1l2m3","LocalIP":"192.168.0.87","Tactic":"Credential Access","Technique":"T1003.001 - LSASS Memory","DetectDescription":"Detected potential credential dumping from LSASS memory","Objective":"Credential Theft"}}0ZPROD-APP02Detected potential credential dumping from LSASS memorySuspicious Registry Modification192.168.0.87Credential Theftd4e5f6g7h8i9j0k1l2m3LowCredential AccessT1003.001 - LSASS Memoryandersonkc3d4e5f6g7h8i9j0k1l21768213365928DetectionSummaryEvent
2026-01-12T10:22:46auto-dashboard-queriessiem-connectorQTsJCoPniAANCCdKBxWdooCq_3_302_17682133662026-01-12T10:22:47{"metadata":{ "eventType":"DetectionSummaryEvent","eventCreationTime":"1768213366748", "customerIDString":"e5f6g7h8i9j0k1l2m3n4" }, "event":{"SeverityName":"High", "DetectName":"Credential Dumping via Mimikatz","ComputerName":"PROD-DB01","UserName":"bakerm","SensorId":"f6g7h8i9j0k1l2m3n4o5","LocalIP":"192.168.3.211","Tactic":"Lateral Movement","Technique":"T1021.002 - SMB/Windows Admin Shares","DetectDescription":"Detected suspicious access to administrative shares","Objective":"Internal Reconnaissance"}}0ZPROD-DB01Detected suspicious access to administrative sharesCredential Dumping via Mimikatz192.168.3.211Internal Reconnaissancef6g7h8i9j0k1l2m3n4o5HighLateral MovementT1021.002 - SMB/Windows Admin Sharesbakerme5f6g7h8i9j0k1l2m3n41768213366748DetectionSummaryEvent
2026-01-12T10:22:47auto-dashboard-queriessiem-connectorQTsJCoPniAANCCdKBxWdooCq_3_303_17682133672026-01-12T10:22:48{"metadata":{ "eventType":"DetectionSummaryEvent","eventCreationTime":"1768213367566", "customerIDString":"g7h8i9j0k1l2m3n4o5p6" }, "event":{"SeverityName":"Critical", "DetectName":"Suspicious Service Creation","ComputerName":"PROD-FILE01","UserName":"blackj","SensorId":"h8i9j0k1l2m3n4o5p6q7","LocalIP":"192.168.1.54","Tactic":"Defense Evasion","Technique":"T1078.002 - Domain Accounts","DetectDescription":"Detected authentication using potentially compromised domain account","Objective":"Privilege Escalation"}}0ZPROD-FILE01Detected authentication using potentially compromised domain accountSuspicious Service Creation192.168.1.54Privilege Escalationh8i9j0k1l2m3n4o5p6q7CriticalDefense EvasionT1078.002 - Domain Accountsblackjg7h8i9j0k1l2m3n4o5p61768213367566DetectionSummaryEvent
2026-01-12T10:22:48auto-dashboard-queriessiem-connectorQTsJCoPniAANCCdKBxWdooCq_3_304_17682133682026-01-12T10:22:49{"metadata":{ "eventType":"DetectionSummaryEvent","eventCreationTime":"1768213368386", "customerIDString":"i9j0k1l2m3n4o5p6q7r8" }, "event":{"SeverityName":"Medium", "DetectName":"Lateral Movement via WMI","ComputerName":"PROD-SQL01","UserName":"brownr","SensorId":"j0k1l2m3n4o5p6q7r8s9","LocalIP":"192.168.4.198","Tactic":"Persistence","Technique":"T1053.005 - Scheduled Task","DetectDescription":"Detected suspicious scheduled task creation for persistence","Objective":"Persistence Establishment"}}0ZPROD-SQL01Detected suspicious scheduled task creation for persistenceLateral Movement via WMI192.168.4.198Persistence Establishmentj0k1l2m3n4o5p6q7r8s9MediumPersistenceT1053.005 - Scheduled Taskbrownri9j0k1l2m3n4o5p6q7r81768213368386DetectionSummaryEvent

Step-by-Step

  1. Starting with the source repository events.

  2. flowchart LR; %%{init: {"flowchart": {"defaultRenderer": "elk"}} }%% repo{{Events}} 1[/Filter/] 2[/Filter/] 3[\Add Field/] 4[\Add Field/] 5[\Add Field/] 6[\Add Field/] 7[\Add Field/] 8[\Add Field/] 9[\Add Field/] 10[\Add Field/] 11[\Add Field/] 12[\Add Field/] 13{{Aggregate}} result{{Result Set}} repo --> 1 1 --> 2 2 --> 3 3 --> 4 4 --> 5 5 --> 6 6 --> 7 7 --> 8 8 --> 9 9 --> 10 10 --> 11 11 --> 12 12 --> 13 13 --> result style 1 fill:#ff0000,stroke-width:4px,stroke:#000;
    logscale
    metadata.eventType = DetectionSummaryEvent

    Filters for events where metadata.eventType equals DetectionSummaryEvent.

  3. flowchart LR; %%{init: {"flowchart": {"defaultRenderer": "elk"}} }%% repo{{Events}} 1[/Filter/] 2[/Filter/] 3[\Add Field/] 4[\Add Field/] 5[\Add Field/] 6[\Add Field/] 7[\Add Field/] 8[\Add Field/] 9[\Add Field/] 10[\Add Field/] 11[\Add Field/] 12[\Add Field/] 13{{Aggregate}} result{{Result Set}} repo --> 1 1 --> 2 2 --> 3 3 --> 4 4 --> 5 5 --> 6 6 --> 7 7 --> 8 8 --> 9 9 --> 10 10 --> 11 11 --> 12 12 --> 13 13 --> result style 2 fill:#ff0000,stroke-width:4px,stroke:#000;
    logscale
    | event.ComputerName=* AND metadata.customerIDString = *

    Further filters to include only events that have both an event.ComputerName field and a metadata.customerIDString field.

  4. flowchart LR; %%{init: {"flowchart": {"defaultRenderer": "elk"}} }%% repo{{Events}} 1[/Filter/] 2[/Filter/] 3[\Add Field/] 4[\Add Field/] 5[\Add Field/] 6[\Add Field/] 7[\Add Field/] 8[\Add Field/] 9[\Add Field/] 10[\Add Field/] 11[\Add Field/] 12[\Add Field/] 13{{Aggregate}} result{{Result Set}} repo --> 1 1 --> 2 2 --> 3 3 --> 4 4 --> 5 5 --> 6 6 --> 7 7 --> 8 8 --> 9 9 --> 10 10 --> 11 11 --> 12 12 --> 13 13 --> result style 3 fill:#ff0000,stroke-width:4px,stroke:#000;
    logscale
    | SensorId := event.SensorId

    Creates a new field named SensorId from event.SensorId.

    This simplifies the field name for better readability and preserves the unique sensor identifier information.

  5. flowchart LR; %%{init: {"flowchart": {"defaultRenderer": "elk"}} }%% repo{{Events}} 1[/Filter/] 2[/Filter/] 3[\Add Field/] 4[\Add Field/] 5[\Add Field/] 6[\Add Field/] 7[\Add Field/] 8[\Add Field/] 9[\Add Field/] 10[\Add Field/] 11[\Add Field/] 12[\Add Field/] 13{{Aggregate}} result{{Result Set}} repo --> 1 1 --> 2 2 --> 3 3 --> 4 4 --> 5 5 --> 6 6 --> 7 7 --> 8 8 --> 9 9 --> 10 10 --> 11 11 --> 12 12 --> 13 13 --> result style 4 fill:#ff0000,stroke-width:4px,stroke:#000;
    logscale
    | ComputerName:=event.ComputerName

    Creates a new field named ComputerName from event.ComputerName.

    This maintains system identification information and simplifies the field name structure.

  6. flowchart LR; %%{init: {"flowchart": {"defaultRenderer": "elk"}} }%% repo{{Events}} 1[/Filter/] 2[/Filter/] 3[\Add Field/] 4[\Add Field/] 5[\Add Field/] 6[\Add Field/] 7[\Add Field/] 8[\Add Field/] 9[\Add Field/] 10[\Add Field/] 11[\Add Field/] 12[\Add Field/] 13{{Aggregate}} result{{Result Set}} repo --> 1 1 --> 2 2 --> 3 3 --> 4 4 --> 5 5 --> 6 6 --> 7 7 --> 8 8 --> 9 9 --> 10 10 --> 11 11 --> 12 12 --> 13 13 --> result style 5 fill:#ff0000,stroke-width:4px,stroke:#000;
    logscale
    | User:=event.UserName

    Creates a new field named User from event.UserName.

    This tracks the user associated with the detection event and provides user context for security analysis.

  7. flowchart LR; %%{init: {"flowchart": {"defaultRenderer": "elk"}} }%% repo{{Events}} 1[/Filter/] 2[/Filter/] 3[\Add Field/] 4[\Add Field/] 5[\Add Field/] 6[\Add Field/] 7[\Add Field/] 8[\Add Field/] 9[\Add Field/] 10[\Add Field/] 11[\Add Field/] 12[\Add Field/] 13{{Aggregate}} result{{Result Set}} repo --> 1 1 --> 2 2 --> 3 3 --> 4 4 --> 5 5 --> 6 6 --> 7 7 --> 8 8 --> 9 9 --> 10 10 --> 11 11 --> 12 12 --> 13 13 --> result style 6 fill:#ff0000,stroke-width:4px,stroke:#000;
    logscale
    | DetectName:=event.DetectName

    Creates a new field named DetectName from event.DetectName.

    This identifies the type of detection that occurred and provides quick reference to the detection category.

  8. flowchart LR; %%{init: {"flowchart": {"defaultRenderer": "elk"}} }%% repo{{Events}} 1[/Filter/] 2[/Filter/] 3[\Add Field/] 4[\Add Field/] 5[\Add Field/] 6[\Add Field/] 7[\Add Field/] 8[\Add Field/] 9[\Add Field/] 10[\Add Field/] 11[\Add Field/] 12[\Add Field/] 13{{Aggregate}} result{{Result Set}} repo --> 1 1 --> 2 2 --> 3 3 --> 4 4 --> 5 5 --> 6 6 --> 7 7 --> 8 8 --> 9 9 --> 10 10 --> 11 11 --> 12 12 --> 13 13 --> result style 7 fill:#ff0000,stroke-width:4px,stroke:#000;
    logscale
    | Severity:=event.SeverityName

    Creates a new field named Severity from event.SeverityName.

    This indicates the severity level of the detection and enables prioritization of security events.

  9. flowchart LR; %%{init: {"flowchart": {"defaultRenderer": "elk"}} }%% repo{{Events}} 1[/Filter/] 2[/Filter/] 3[\Add Field/] 4[\Add Field/] 5[\Add Field/] 6[\Add Field/] 7[\Add Field/] 8[\Add Field/] 9[\Add Field/] 10[\Add Field/] 11[\Add Field/] 12[\Add Field/] 13{{Aggregate}} result{{Result Set}} repo --> 1 1 --> 2 2 --> 3 3 --> 4 4 --> 5 5 --> 6 6 --> 7 7 --> 8 8 --> 9 9 --> 10 10 --> 11 11 --> 12 12 --> 13 13 --> result style 8 fill:#ff0000,stroke-width:4px,stroke:#000;
    logscale
    | LocalIP:=event.LocalIP

    Creates a new field named LocalIP from event.LocalIP.

    This records the IP address of the affected system and provides network context for the security event.

  10. flowchart LR; %%{init: {"flowchart": {"defaultRenderer": "elk"}} }%% repo{{Events}} 1[/Filter/] 2[/Filter/] 3[\Add Field/] 4[\Add Field/] 5[\Add Field/] 6[\Add Field/] 7[\Add Field/] 8[\Add Field/] 9[\Add Field/] 10[\Add Field/] 11[\Add Field/] 12[\Add Field/] 13{{Aggregate}} result{{Result Set}} repo --> 1 1 --> 2 2 --> 3 3 --> 4 4 --> 5 5 --> 6 6 --> 7 7 --> 8 8 --> 9 9 --> 10 10 --> 11 11 --> 12 12 --> 13 13 --> result style 9 fill:#ff0000,stroke-width:4px,stroke:#000;
    logscale
    | Tactic:=event.Tactic

    Creates a new field named Tactic from event.Tactic.

    This identifies the MITRE ATT&CK tactic associated with the detection and provides context for the attacker's methodology.

  11. flowchart LR; %%{init: {"flowchart": {"defaultRenderer": "elk"}} }%% repo{{Events}} 1[/Filter/] 2[/Filter/] 3[\Add Field/] 4[\Add Field/] 5[\Add Field/] 6[\Add Field/] 7[\Add Field/] 8[\Add Field/] 9[\Add Field/] 10[\Add Field/] 11[\Add Field/] 12[\Add Field/] 13{{Aggregate}} result{{Result Set}} repo --> 1 1 --> 2 2 --> 3 3 --> 4 4 --> 5 5 --> 6 6 --> 7 7 --> 8 8 --> 9 9 --> 10 10 --> 11 11 --> 12 12 --> 13 13 --> result style 10 fill:#ff0000,stroke-width:4px,stroke:#000;
    logscale
    | Technique:= event.Technique

    Creates a new field named Technique from event.Technique.

    This specifies the MITRE ATT&CK technique identified and details the specific method used in the attack.

  12. flowchart LR; %%{init: {"flowchart": {"defaultRenderer": "elk"}} }%% repo{{Events}} 1[/Filter/] 2[/Filter/] 3[\Add Field/] 4[\Add Field/] 5[\Add Field/] 6[\Add Field/] 7[\Add Field/] 8[\Add Field/] 9[\Add Field/] 10[\Add Field/] 11[\Add Field/] 12[\Add Field/] 13{{Aggregate}} result{{Result Set}} repo --> 1 1 --> 2 2 --> 3 3 --> 4 4 --> 5 5 --> 6 6 --> 7 7 --> 8 8 --> 9 9 --> 10 10 --> 11 11 --> 12 12 --> 13 13 --> result style 11 fill:#ff0000,stroke-width:4px,stroke:#000;
    logscale
    | Description:= event.DetectDescription

    Creates a new field named Description from event.DetectDescription.

    This provides detailed information about the detection event and offers context for investigation and analysis.

  13. flowchart LR; %%{init: {"flowchart": {"defaultRenderer": "elk"}} }%% repo{{Events}} 1[/Filter/] 2[/Filter/] 3[\Add Field/] 4[\Add Field/] 5[\Add Field/] 6[\Add Field/] 7[\Add Field/] 8[\Add Field/] 9[\Add Field/] 10[\Add Field/] 11[\Add Field/] 12[\Add Field/] 13{{Aggregate}} result{{Result Set}} repo --> 1 1 --> 2 2 --> 3 3 --> 4 4 --> 5 5 --> 6 6 --> 7 7 --> 8 8 --> 9 9 --> 10 10 --> 11 11 --> 12 12 --> 13 13 --> result style 12 fill:#ff0000,stroke-width:4px,stroke:#000;
    logscale
    | Objective:=event.Objective

    Creates a new field named Objective from event.Objective.

    This identifies the suspected goal of the detected activity and helps understand the potential impact of the threat.

  14. flowchart LR; %%{init: {"flowchart": {"defaultRenderer": "elk"}} }%% repo{{Events}} 1[/Filter/] 2[/Filter/] 3[\Add Field/] 4[\Add Field/] 5[\Add Field/] 6[\Add Field/] 7[\Add Field/] 8[\Add Field/] 9[\Add Field/] 10[\Add Field/] 11[\Add Field/] 12[\Add Field/] 13{{Aggregate}} result{{Result Set}} repo --> 1 1 --> 2 2 --> 3 3 --> 4 4 --> 5 5 --> 6 6 --> 7 7 --> 8 8 --> 9 9 --> 10 10 --> 11 11 --> 12 12 --> 13 13 --> result style 13 fill:#ff0000,stroke-width:4px,stroke:#000;
    logscale
    | table([@timestamp,SensorId,ComputerName,User,DetectName,Severity,LocalIP,Tactic,Technique,Objective,Description])

    The table() function creates an organized view of the detection events with specific columns.

    • Displays timestamp first for chronological reference.

    • Groups system identifiers (SensorId, ComputerName) for context.

    • Shows user information for attribution.

    • Presents detection details and severity for quick assessment.

    • Includes attack details (Tactic, Technique, Objective) for threat analysis.

    • Ends with full description for comprehensive understanding.

  15. Event Result set.

Summary and Results

The widget is used to create a comprehensive view of security detection events, enabling efficient analysis and investigation of potential threats.

This widget is useful to monitor security incidents in real-time, investigate potential compromises, and track attack patterns across the environment.

Sample output from the incoming example data:

@timestampComputerNameDescriptionDetectNameLocalIPObjectiveSensorIdSeverityTacticTechniqueUser
2026-01-12T10:22:45PROD-WEB01Detected suspicious PowerShell command execution with encoded argumentsSuspicious PowerShell Command Line192.168.2.143Command and Controlb2c3d4e5f6g7h8i9j0k1MediumExecutionT1059.001 - PowerShelladamsb
2026-01-12T10:22:45PROD-APP02Detected potential credential dumping from LSASS memorySuspicious Registry Modification192.168.0.87Credential Theftd4e5f6g7h8i9j0k1l2m3LowCredential AccessT1003.001 - LSASS Memoryandersonk
2026-01-12T10:22:46PROD-DB01Detected suspicious access to administrative sharesCredential Dumping via Mimikatz192.168.3.211Internal Reconnaissancef6g7h8i9j0k1l2m3n4o5HighLateral MovementT1021.002 - SMB/Windows Admin Sharesbakerm
2026-01-12T10:22:47PROD-FILE01Detected authentication using potentially compromised domain accountSuspicious Service Creation192.168.1.54Privilege Escalationh8i9j0k1l2m3n4o5p6q7CriticalDefense EvasionT1078.002 - Domain Accountsblackj
2026-01-12T10:22:48PROD-SQL01Detected suspicious scheduled task creation for persistenceLateral Movement via WMI192.168.4.198Persistence Establishmentj0k1l2m3n4o5p6q7r8s9MediumPersistenceT1053.005 - Scheduled Taskbrownr

Note that the output presents events with severity levels ranging from Low to Critical, enabling quick identification of high-priority security incidents.

Also note that each event includes MITRE ATT&CK framework references (Tactic, Technique) to aid in threat analysis and response.

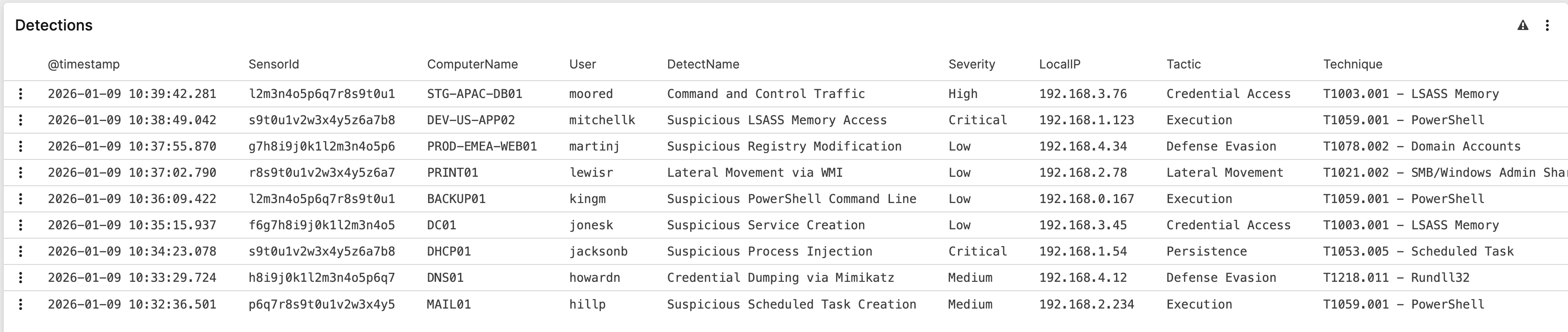

Example of a Detections widget
