Analyze Detection Types Distribution

Visualize the frequency of different detection types

This is a query example for the Detection Types widget in the Detections dashboard of the crowdstrike/siem-connector package.

Query

flowchart LR; %%{init: {"flowchart": {"defaultRenderer": "elk"}} }%% repo{{Events}} 1{{Aggregate}} result{{Result Set}} repo --> 1 1 --> result

logscale

| groupby(event.DetectName)

Introduction

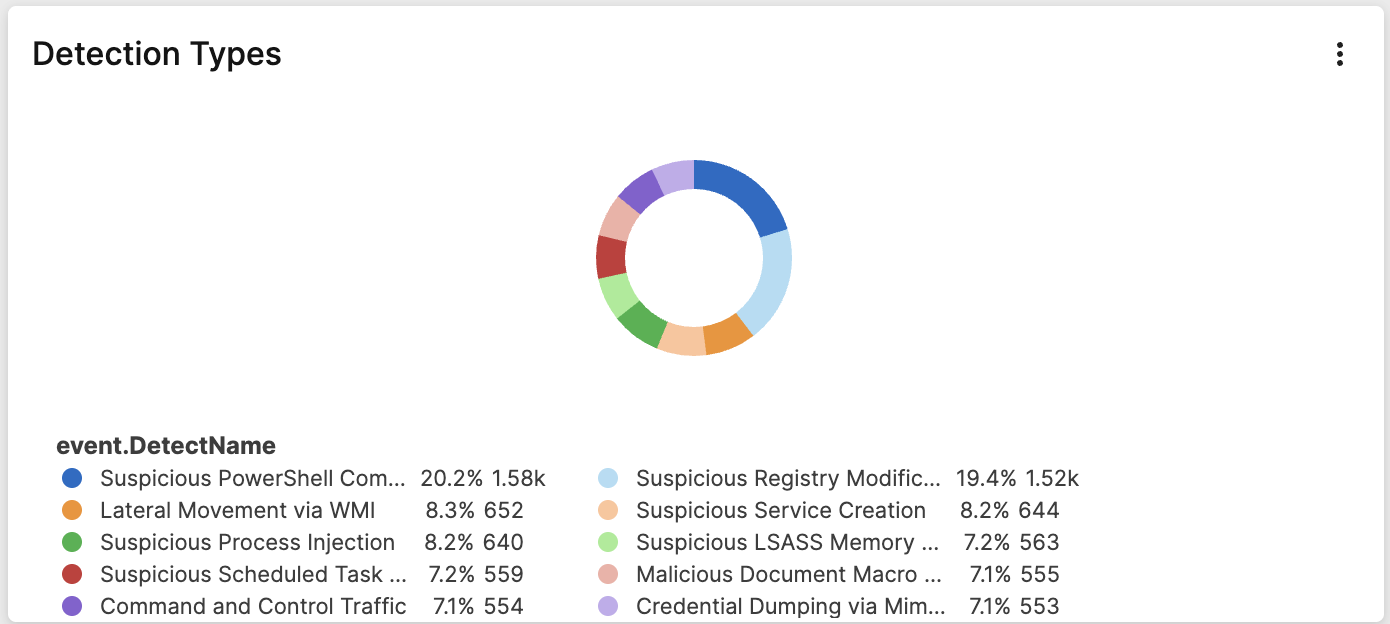

This widget is used to visualize the distribution of different detection types in your security events, helping identify the most common types of security detections in your environment. When configured as a pie chart visualization, it provides an intuitive view of the relative proportions of different detection types.

In this widget, the groupBy() function is used to aggregate and count detection events by their detection name, providing insights into the prevalence of different types of security detections.

The widget processes CrowdStrike detection summary events that contain information about various security incidents, including PowerShell commands, registry modifications, credential dumping attempts, and other suspicious activities.

Example incoming data might look like this:

@timestamp	#repo	#type	@id	@ingesttimestamp	@rawstring	@timezone	event.ComputerName	event.DetectDescription	event.DetectName	event.LocalIP	event.Objective	event.SensorId	event.SeverityName	event.Tactic	event.Technique	event.UserName	metadata.customerIDString	metadata.eventCreationTime	metadata.eventType
2026-01-12T10:22:45	auto-dashboard-queries	siem-connector	QTsJCoPniAANCCdKBxWdooCq_3_300_1768213365	2026-01-12T10:22:45	{"metadata":{ "eventType":"DetectionSummaryEvent","eventCreationTime":"1768213365060", "customerIDString":"a1b2c3d4e5f6g7h8i9j0" }, "event":{"SeverityName":"Medium", "DetectName":"Suspicious PowerShell Command Line","ComputerName":"PROD-WEB01","UserName":"adamsb","SensorId":"b2c3d4e5f6g7h8i9j0k1","LocalIP":"192.168.2.143","Tactic":"Execution","Technique":"T1059.001 - PowerShell","DetectDescription":"Detected suspicious PowerShell command execution with encoded arguments","Objective":"Command and Control"}} 86beba81b4553c59c7a125eea1100bca	Z	PROD-WEB01	Detected suspicious PowerShell command execution with encoded arguments	Suspicious PowerShell Command Line	192.168.2.143	Command and Control	b2c3d4e5f6g7h8i9j0k1	Medium	Execution	T1059.001 - PowerShell	adamsb	a1b2c3d4e5f6g7h8i9j0	1768213365060	DetectionSummaryEvent
2026-01-12T10:22:45	auto-dashboard-queries	siem-connector	QTsJCoPniAANCCdKBxWdooCq_3_301_1768213365	2026-01-12T10:22:46	{"metadata":{ "eventType":"DetectionSummaryEvent","eventCreationTime":"1768213365928", "customerIDString":"c3d4e5f6g7h8i9j0k1l2" }, "event":{"SeverityName":"Low", "DetectName":"Suspicious Registry Modification","ComputerName":"PROD-APP02","UserName":"andersonk","SensorId":"d4e5f6g7h8i9j0k1l2m3","LocalIP":"192.168.0.87","Tactic":"Credential Access","Technique":"T1003.001 - LSASS Memory","DetectDescription":"Detected potential credential dumping from LSASS memory","Objective":"Credential Theft"}} 86beba81b4553c59c7a125eea1100bca	Z	PROD-APP02	Detected potential credential dumping from LSASS memory	Suspicious Registry Modification	192.168.0.87	Credential Theft	d4e5f6g7h8i9j0k1l2m3	Low	Credential Access	T1003.001 - LSASS Memory	andersonk	c3d4e5f6g7h8i9j0k1l2	1768213365928	DetectionSummaryEvent
2026-01-12T10:22:46	auto-dashboard-queries	siem-connector	QTsJCoPniAANCCdKBxWdooCq_3_302_1768213366	2026-01-12T10:22:47	{"metadata":{ "eventType":"DetectionSummaryEvent","eventCreationTime":"1768213366748", "customerIDString":"e5f6g7h8i9j0k1l2m3n4" }, "event":{"SeverityName":"High", "DetectName":"Credential Dumping via Mimikatz","ComputerName":"PROD-DB01","UserName":"bakerm","SensorId":"f6g7h8i9j0k1l2m3n4o5","LocalIP":"192.168.3.211","Tactic":"Lateral Movement","Technique":"T1021.002 - SMB/Windows Admin Shares","DetectDescription":"Detected suspicious access to administrative shares","Objective":"Internal Reconnaissance"}} 86beba81b4553c59c7a125eea1100bca	Z	PROD-DB01	Detected suspicious access to administrative shares	Credential Dumping via Mimikatz	192.168.3.211	Internal Reconnaissance	f6g7h8i9j0k1l2m3n4o5	High	Lateral Movement	T1021.002 - SMB/Windows Admin Shares	bakerm	e5f6g7h8i9j0k1l2m3n4	1768213366748	DetectionSummaryEvent
2026-01-12T10:22:47	auto-dashboard-queries	siem-connector	QTsJCoPniAANCCdKBxWdooCq_3_303_1768213367	2026-01-12T10:22:48	{"metadata":{ "eventType":"DetectionSummaryEvent","eventCreationTime":"1768213367566", "customerIDString":"g7h8i9j0k1l2m3n4o5p6" }, "event":{"SeverityName":"Critical", "DetectName":"Suspicious Service Creation","ComputerName":"PROD-FILE01","UserName":"blackj","SensorId":"h8i9j0k1l2m3n4o5p6q7","LocalIP":"192.168.1.54","Tactic":"Defense Evasion","Technique":"T1078.002 - Domain Accounts","DetectDescription":"Detected authentication using potentially compromised domain account","Objective":"Privilege Escalation"}} 86beba81b4553c59c7a125eea1100bca	Z	PROD-FILE01	Detected authentication using potentially compromised domain account	Suspicious Service Creation	192.168.1.54	Privilege Escalation	h8i9j0k1l2m3n4o5p6q7	Critical	Defense Evasion	T1078.002 - Domain Accounts	blackj	g7h8i9j0k1l2m3n4o5p6	1768213367566	DetectionSummaryEvent
2026-01-12T10:22:48	auto-dashboard-queries	siem-connector	QTsJCoPniAANCCdKBxWdooCq_3_304_1768213368	2026-01-12T10:22:49	{"metadata":{ "eventType":"DetectionSummaryEvent","eventCreationTime":"1768213368386", "customerIDString":"i9j0k1l2m3n4o5p6q7r8" }, "event":{"SeverityName":"Medium", "DetectName":"Lateral Movement via WMI","ComputerName":"PROD-SQL01","UserName":"brownr","SensorId":"j0k1l2m3n4o5p6q7r8s9","LocalIP":"192.168.4.198","Tactic":"Persistence","Technique":"T1053.005 - Scheduled Task","DetectDescription":"Detected suspicious scheduled task creation for persistence","Objective":"Persistence Establishment"}} 86beba81b4553c59c7a125eea1100bca	Z	PROD-SQL01	Detected suspicious scheduled task creation for persistence	Lateral Movement via WMI	192.168.4.198	Persistence Establishment	j0k1l2m3n4o5p6q7r8s9	Medium	Persistence	T1053.005 - Scheduled Task	brownr	i9j0k1l2m3n4o5p6q7r8	1768213368386	DetectionSummaryEvent

Step-by-Step

Starting with the source repository events.
flowchart LR; %%{init: {"flowchart": {"defaultRenderer": "elk"}} }%% repo{{Events}} 1{{Aggregate}} result{{Result Set}} repo --> 1 1 --> result style 1 fill:#ff0000,stroke-width:4px,stroke:#000;
logscale
```
| groupby(event.DetectName)
```
Groups the events by the event.DetectName field and automatically counts occurrences of each detection type. The function creates a field named _count containing the number of events for each unique detection name.
Event Result set.

Summary and Results

The widget is used to provide a clear visualization of the distribution of different types of security detections in your environment.

This widget is useful to identify the most common types of security detections, track patterns in attack techniques and methods, prioritize security response based on detection frequency, and monitor changes in threat patterns over time.

Sample output from the incoming example data:

_count	event.DetectName
21	Suspicious PowerShell Command Line
8	Suspicious Process Injection
20	Suspicious Registry Modification
7	Suspicious Scheduled Task Creation
8	Suspicious Service Creation

The _count field shows the frequency of each detection type and the results are automatically sorted by the detection name. When visualized as a pie chart, the segments will represent the relative proportion of each detection type.
