Visualize Attack Techniques Over Time

Track MITRE ATT&CK techniques frequency in hourly intervals

This is a query example for the Techniques over Time widget in the Summary Dashboard dashboard of the crowdstrike/siem-connector package.

Query

flowchart LR; %%{init: {"flowchart": {"defaultRenderer": "elk"}} }%% repo{{Events}} 1[/Filter/] 2[/Filter/] 3{{Aggregate}} result{{Result Set}} repo --> 1 1 --> 2 2 --> 3 3 --> result
logscale
metadata.eventType = DetectionSummaryEvent
| event.ComputerName=* AND metadata.customerIDString = *
| timechart(span=1h, event.Technique)

Introduction

This widget is used to visualize the frequency of different MITRE ATT&CK techniques detected in the environment over time, providing insights into attack patterns and trends in hourly intervals.

In this widget, the timeChart() function is used to create a time-based visualization of attack techniques, showing their frequency of occurrence over one-hour time spans.

Example incoming data might look like this:

@timestamp#repo#type@id@ingesttimestamp@rawstring@timestamp.nanos@timezoneevent.ComputerNameevent.DetectDescriptionevent.DetectNameevent.LocalIPevent.Objectiveevent.SensorIdevent.SeverityNameevent.Tacticevent.Techniqueevent.UserNamemetadata.customerIDStringmetadata.eventCreationTimemetadata.eventType
2026-01-12T10:22:45auto-dashboard-queriessiem-connectorQTsJCoPniAANCCdKBxWdooCq_3_300_17682133652026-01-12T10:22:45{"metadata":{ "eventType":"DetectionSummaryEvent","eventCreationTime":"1768213365060", "customerIDString":"a1b2c3d4e5f6g7h8i9j0" }, "event":{"SeverityName":"Medium", "DetectName":"Suspicious PowerShell Command Line","ComputerName":"PROD-WEB01","UserName":"adamsb","SensorId":"b2c3d4e5f6g7h8i9j0k1","LocalIP":"192.168.2.143","Tactic":"Execution","Technique":"T1059.001 - PowerShell","DetectDescription":"Detected suspicious PowerShell command execution with encoded arguments","Objective":"Command and Control"}} 86beba81b4553c59c7a125eea1100bca0ZPROD-WEB01Detected suspicious PowerShell command execution with encoded argumentsSuspicious PowerShell Command Line192.168.2.143Command and Controlb2c3d4e5f6g7h8i9j0k1MediumExecutionT1059.001 - PowerShelladamsba1b2c3d4e5f6g7h8i9j01768213365060DetectionSummaryEvent
2026-01-12T10:22:45auto-dashboard-queriessiem-connectorQTsJCoPniAANCCdKBxWdooCq_3_301_17682133652026-01-12T10:22:46{"metadata":{ "eventType":"DetectionSummaryEvent","eventCreationTime":"1768213365928", "customerIDString":"c3d4e5f6g7h8i9j0k1l2" }, "event":{"SeverityName":"Low", "DetectName":"Suspicious Registry Modification","ComputerName":"PROD-APP02","UserName":"andersonk","SensorId":"d4e5f6g7h8i9j0k1l2m3","LocalIP":"192.168.0.87","Tactic":"Credential Access","Technique":"T1003.001 - LSASS Memory","DetectDescription":"Detected potential credential dumping from LSASS memory","Objective":"Credential Theft"}} 86beba81b4553c59c7a125eea1100bca0ZPROD-APP02Detected potential credential dumping from LSASS memorySuspicious Registry Modification192.168.0.87Credential Theftd4e5f6g7h8i9j0k1l2m3LowCredential AccessT1003.001 - LSASS Memoryandersonkc3d4e5f6g7h8i9j0k1l21768213365928DetectionSummaryEvent
2026-01-12T10:22:46auto-dashboard-queriessiem-connectorQTsJCoPniAANCCdKBxWdooCq_3_302_17682133662026-01-12T10:22:47{"metadata":{ "eventType":"DetectionSummaryEvent","eventCreationTime":"1768213366748", "customerIDString":"e5f6g7h8i9j0k1l2m3n4" }, "event":{"SeverityName":"High", "DetectName":"Credential Dumping via Mimikatz","ComputerName":"PROD-DB01","UserName":"bakerm","SensorId":"f6g7h8i9j0k1l2m3n4o5","LocalIP":"192.168.3.211","Tactic":"Lateral Movement","Technique":"T1021.002 - SMB/Windows Admin Shares","DetectDescription":"Detected suspicious access to administrative shares","Objective":"Internal Reconnaissance"}} 86beba81b4553c59c7a125eea1100bca0ZPROD-DB01Detected suspicious access to administrative sharesCredential Dumping via Mimikatz192.168.3.211Internal Reconnaissancef6g7h8i9j0k1l2m3n4o5HighLateral MovementT1021.002 - SMB/Windows Admin Sharesbakerme5f6g7h8i9j0k1l2m3n41768213366748DetectionSummaryEvent
2026-01-12T10:22:47auto-dashboard-queriessiem-connectorQTsJCoPniAANCCdKBxWdooCq_3_303_17682133672026-01-12T10:22:48{"metadata":{ "eventType":"DetectionSummaryEvent","eventCreationTime":"1768213367566", "customerIDString":"g7h8i9j0k1l2m3n4o5p6" }, "event":{"SeverityName":"Critical", "DetectName":"Suspicious Service Creation","ComputerName":"PROD-FILE01","UserName":"blackj","SensorId":"h8i9j0k1l2m3n4o5p6q7","LocalIP":"192.168.1.54","Tactic":"Defense Evasion","Technique":"T1078.002 - Domain Accounts","DetectDescription":"Detected authentication using potentially compromised domain account","Objective":"Privilege Escalation"}} 86beba81b4553c59c7a125eea1100bca0ZPROD-FILE01Detected authentication using potentially compromised domain accountSuspicious Service Creation192.168.1.54Privilege Escalationh8i9j0k1l2m3n4o5p6q7CriticalDefense EvasionT1078.002 - Domain Accountsblackjg7h8i9j0k1l2m3n4o5p61768213367566DetectionSummaryEvent
2026-01-12T10:22:48auto-dashboard-queriessiem-connectorQTsJCoPniAANCCdKBxWdooCq_3_304_17682133682026-01-12T10:22:49{"metadata":{ "eventType":"DetectionSummaryEvent","eventCreationTime":"1768213368386", "customerIDString":"i9j0k1l2m3n4o5p6q7r8" }, "event":{"SeverityName":"Medium", "DetectName":"Lateral Movement via WMI","ComputerName":"PROD-SQL01","UserName":"brownr","SensorId":"j0k1l2m3n4o5p6q7r8s9","LocalIP":"192.168.4.198","Tactic":"Persistence","Technique":"T1053.005 - Scheduled Task","DetectDescription":"Detected suspicious scheduled task creation for persistence","Objective":"Persistence Establishment"}} 86beba81b4553c59c7a125eea1100bca0ZPROD-SQL01Detected suspicious scheduled task creation for persistenceLateral Movement via WMI192.168.4.198Persistence Establishmentj0k1l2m3n4o5p6q7r8s9MediumPersistenceT1053.005 - Scheduled Taskbrownri9j0k1l2m3n4o5p6q7r81768213368386DetectionSummaryEvent

Step-by-Step

  1. Starting with the source repository events.

  2. flowchart LR; %%{init: {"flowchart": {"defaultRenderer": "elk"}} }%% repo{{Events}} 1[/Filter/] 2[/Filter/] 3{{Aggregate}} result{{Result Set}} repo --> 1 1 --> 2 2 --> 3 3 --> result style 1 fill:#ff0000,stroke-width:4px,stroke:#000;
    logscale
    metadata.eventType = DetectionSummaryEvent

    Filters for events where metadata.eventType equals DetectionSummaryEvent.

  3. flowchart LR; %%{init: {"flowchart": {"defaultRenderer": "elk"}} }%% repo{{Events}} 1[/Filter/] 2[/Filter/] 3{{Aggregate}} result{{Result Set}} repo --> 1 1 --> 2 2 --> 3 3 --> result style 2 fill:#ff0000,stroke-width:4px,stroke:#000;
    logscale
    | event.ComputerName=* AND metadata.customerIDString = *

    Further filters to include only events that have both an event.ComputerName field and a metadata.customerIDString field.

  4. flowchart LR; %%{init: {"flowchart": {"defaultRenderer": "elk"}} }%% repo{{Events}} 1[/Filter/] 2[/Filter/] 3{{Aggregate}} result{{Result Set}} repo --> 1 1 --> 2 2 --> 3 3 --> result style 3 fill:#ff0000,stroke-width:4px,stroke:#000;
    logscale
    | timechart(span=1h, event.Technique)

    Creates a time-based chart by using span=1h to group events into hourly buckets, counts occurrences of each unique value in event.Technique, and returns results with _bucket timestamps and _count for each technique.

  5. Event Result set.

Summary and Results

The widget is used to track and visualize the frequency of different MITRE ATT&CK techniques detected in the environment over time.

This widget is useful to identify patterns in attack techniques, detect unusual spikes in specific techniques, and understand the evolution of threats over time.

Sample output from the incoming example data:

_bucket_countevent.Technique
176821200000013T1021.002 - SMB/Windows Admin Shares
176821200000013T1053.005 - Scheduled Task
176821200000027T1059.001 - PowerShell
176821200000013T1078.002 - Domain Accounts
176821200000013T1218.011 - Rundll32

The output shows the count of each technique within hourly time buckets, with timestamps in milliseconds. Techniques are identified by their full MITRE ATT&CK reference, including both technique ID and name.

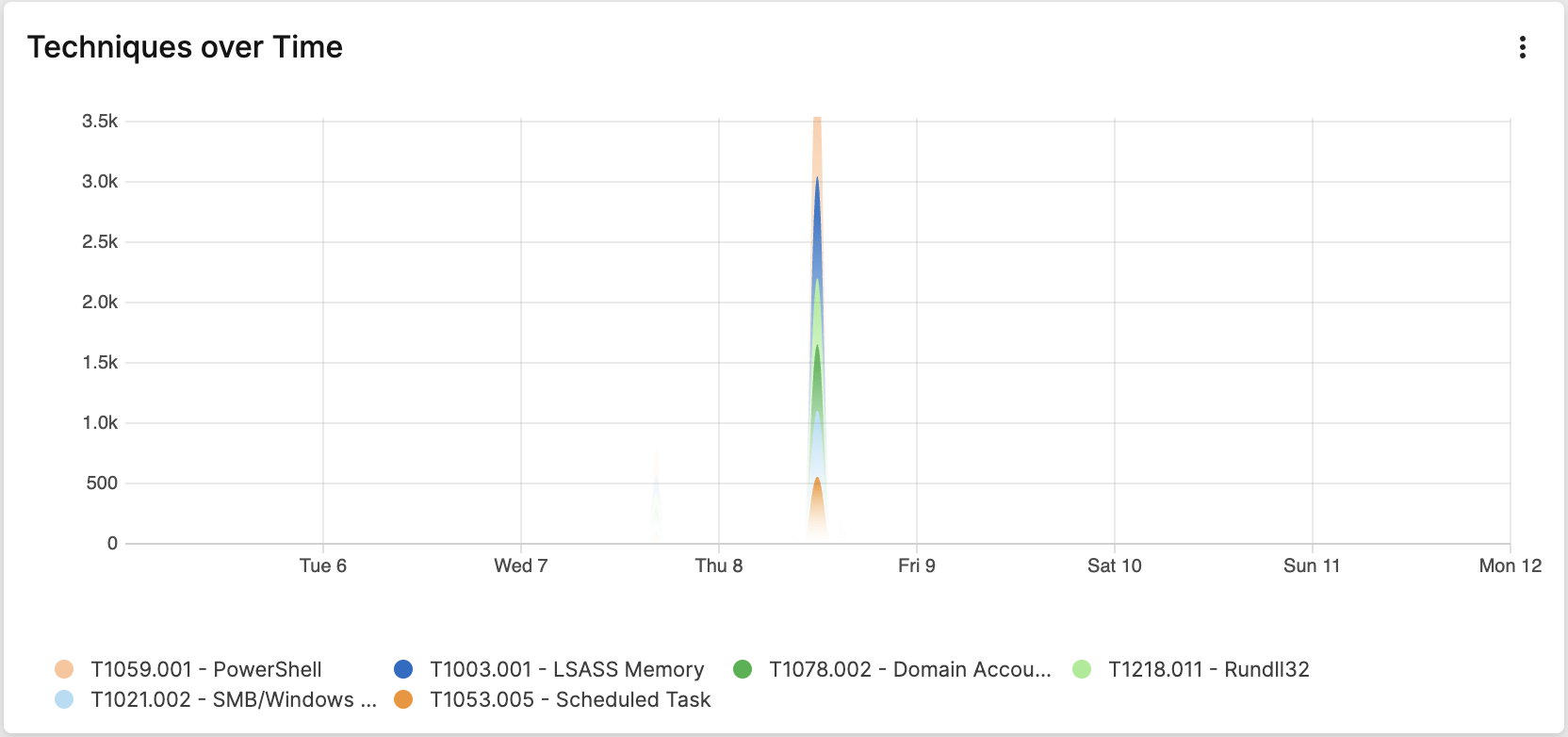

Example of a Techniques over Time widget
