Find Fields With S3Bucket in Class

Query

Search Repository: humio

logscale
wildcard(field=class, pattern="*S3Bucket*", ignoreCase=true)
| groupBy(class)

Introduction

Find all events containing any S3Bucket item (and all before and after) in their class, and count the occurrences for each class that is found.

Step-by-Step

  1. Starting with the source repository events.

  2. flowchart LR; %%{init: {"flowchart": {"defaultRenderer": "elk"}} }%% repo{{Events}} 0[/Filter/] 1{{Aggregate}} result{{Result Set}} repo --> 0 0 --> 1 1 --> result style 0 fill:#ff0000,stroke-width:4px,stroke:#000;
    logscale
    wildcard(field=class, pattern="*S3Bucket*", ignoreCase=true)

    Searches the incoming data to list all events having S3Bucket (or everything around it, case-insensitive) in their string.

  3. flowchart LR; %%{init: {"flowchart": {"defaultRenderer": "elk"}} }%% repo{{Events}} 0[/Filter/] 1{{Aggregate}} result{{Result Set}} repo --> 0 0 --> 1 1 --> result style 1 fill:#ff0000,stroke-width:4px,stroke:#000;
    logscale
    | groupBy(class)

    Takes the events extracted from the search and group them by the class field.

  4. Event Result set.

Summary and Results

The result is an aggregated count of all events matching anything with S3Bucket, case-insensitive, in the class field.

class_count
c.h.b.s.S3BucketStorageCleaningJob197
c.h.b.s.S3BucketStorageFileUpLoader2329
c.h.b.s.S3BucketStorageUploadJob3869

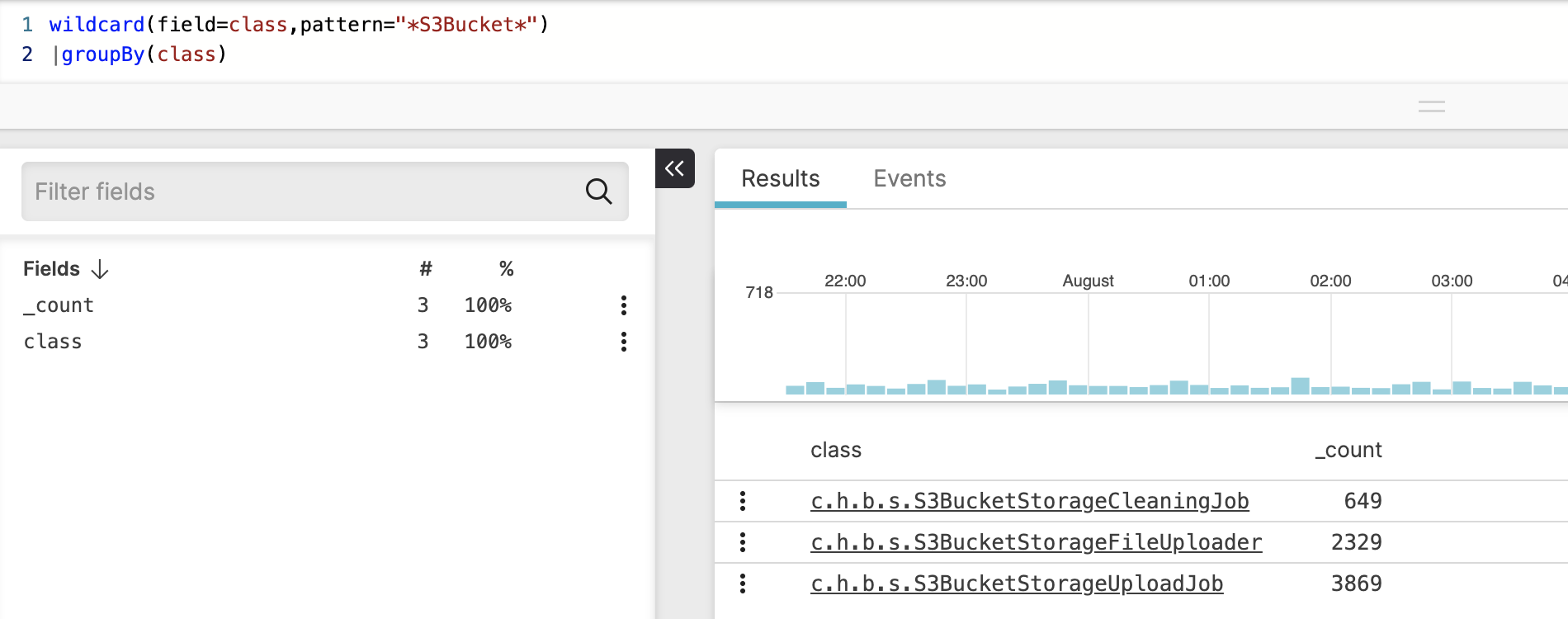

Searching S3Bucket with wildcard()

Figure 1. Search S3Bucket With wildcard()
