Create Time Chart With Default Percentiles For Multiple Fields

Visualize default percentiles (50th, 75th, 99th) of two metrics over time using the percentile() function with timeChart()

Query

flowchart LR; %%{init: {"flowchart": {"defaultRenderer": "elk"}} }%% repo{{Events}} 1{{Aggregate}} result{{Result Set}} repo --> 1 1 --> result

logscale

timeChart(function=[percentile(field=r1,as=r1),percentile(field=r2,as=r2)], span=4m)

Introduction

The timeChart() function combined with the percentile() function can be used to analyze and visualize how different metrics' distributions change over time.

When percentile() is used without specifying percentiles, it automatically calculates three default percentiles (50th, 75th, and 99th) for the given field.

In this example, the timeChart() function combines with two percentile() calculations to track the distribution of two different metrics (r1 and r2) over time.

Note that when percentile() is used without specifying percentiles, it automatically calculates three default percentiles (50th, 75th, and 99th) for the given field.

Example incoming data might look like this:

@timestamp	service	r1	r2	status
2023-06-15T10:00:00Z	service_a	120	150	ok
2023-06-15T10:01:00Z	service_a	145	165	ok
2023-06-15T10:02:00Z	service_a	98	110	ok
2023-06-15T10:03:00Z	service_a	167	190	error
2023-06-15T10:04:00Z	service_a	134	155	ok
2023-06-15T10:05:00Z	service_a	178	195	ok
2023-06-15T10:06:00Z	service_a	143	160	ok
2023-06-15T10:07:00Z	service_a	156	175	ok
2023-06-15T10:08:00Z	service_a	289	310	error
2023-06-15T10:09:00Z	service_a	123	145	ok

Step-by-Step

Starting with the source repository events.
flowchart LR; %%{init: {"flowchart": {"defaultRenderer": "elk"}} }%% repo{{Events}} 1{{Aggregate}} result{{Result Set}} repo --> 1 1 --> result style 1 fill:#ff0000,stroke-width:4px,stroke:#000;
logscale
```
timeChart(function=[percentile(field=r1,as=r1),percentile(field=r2,as=r2)], span=4m)
```
Creates a time chart with timespan of 4 minutes per bucket showing three percentile values for each field:
- For field r1, creates:
  - r1_50 (median)
  - r1_75 (third quartile)
  - r1_99 (99th percentile)
- For field r2, creates:
  - r2_50 (median)
  - r2_75 (third quartile)
  - r2_99 (99th percentile)
The span parameter is used to define the timespan of the bucket.
Event Result set.

Summary and Results

The query produces a time series showing the distribution of both metrics using three different percentile thresholds, allowing for comprehensive performance analysis. When percentiles are not explicitly specified, the percentile() function automatically calculates three default percentiles (50th, 75th, and 95th).

This query is useful for comparing typical (median) performance between two metrics, identifying performance variations using the 75th percentile and monitoring extreme outliers with the 99th percentile

Sample output from the incoming example data:

_bucket	r1_50	r1_75	r1_99	r2_50	r2_75	r2_99
1.68682E+12	120.80792246242098	143.93947040702542	143.93947040702542	149.4847016559383	163.94784285493662	163.94784285493662
1.68682E+12	143.93947040702542	155.16205054702775	155.16205054702775	160.9814359681496	176.22889949490784	176.22889949490784
1.68682E+12	123.13088804780689	123.13088804780689	123.13088804780689	143.93947040702542	143.93947040702542	143.93947040702542

Note that the different buckets contain six different percentile values, three for each metric. The 99th percentile captures the extreme values in the data, making it useful for identifying outliers and performance anomalies.

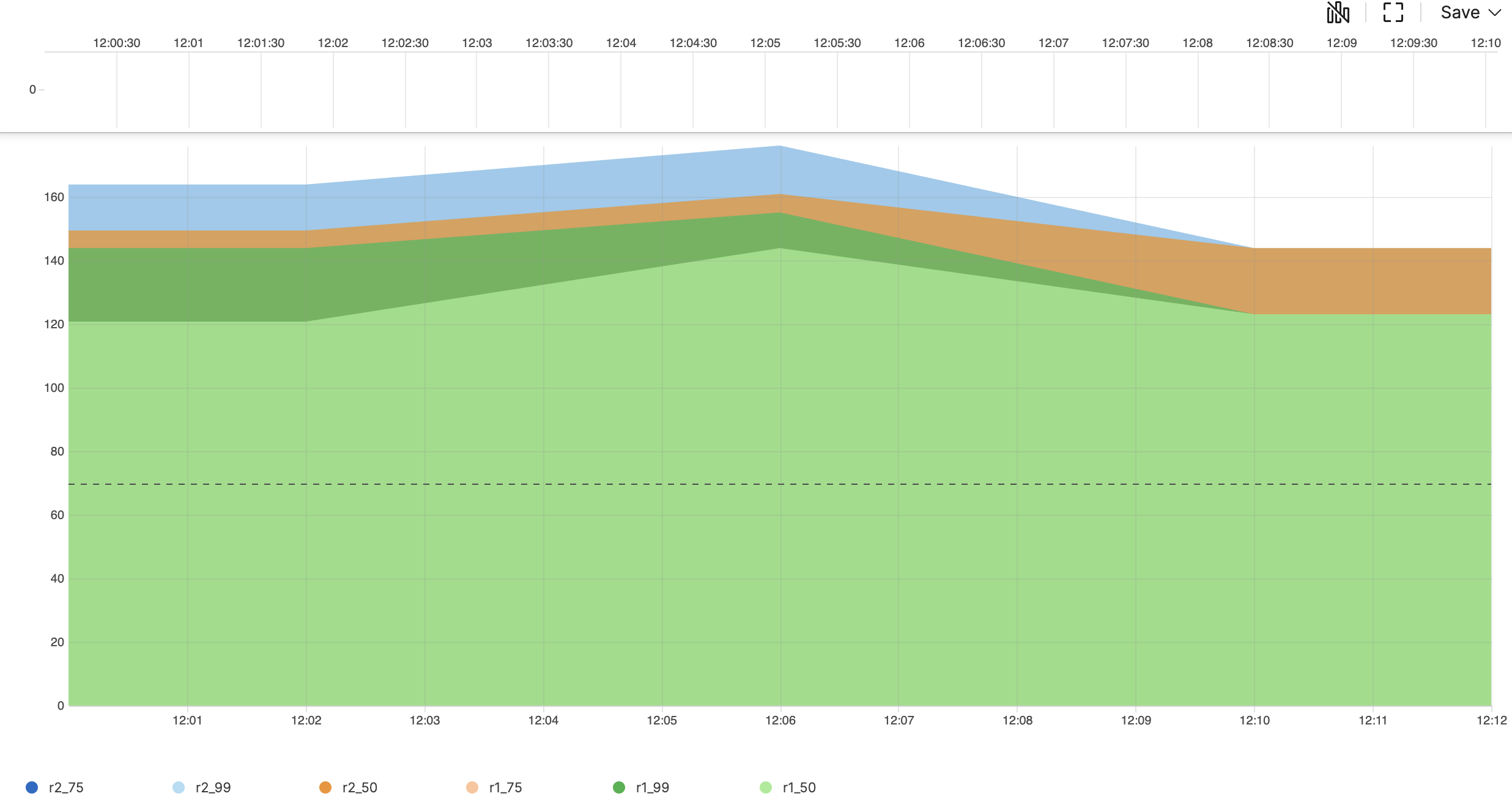

Showing Default Percentiles of Two Metrics
