Rounding Within a Timechart

Round down a number in a field and display information in a timechart using the round() and timeChart() functions

Query

flowchart LR; %%{init: {"flowchart": {"defaultRenderer": "elk"}} }%% repo{{Events}} 0{{Aggregate}} result{{Result Set}} repo --> 0 0 --> result

logscale

timeChart(function={max(value) | round(_max, how=floor)})timechart(function=max(value))

Introduction

When using the round() function in LogScale, a floating point number is rounded to the nearest integer. Using the floor parameter to a function always rounds down a number.

In this example, the round() function is used with a floor parameter to round down a field value to an integer (whole number) and display information within a timechart.

Step-by-Step

Starting with the source repository events.
flowchart LR; %%{init: {"flowchart": {"defaultRenderer": "elk"}} }%% repo{{Events}} 0{{Aggregate}} result{{Result Set}} repo --> 0 0 --> result style 0 fill:#ff0000,stroke-width:4px,stroke:#000;
logscale
```
timeChart(function={max(value) | round(_max, how=floor)})timechart(function=max(value))
```
Creates a time chart using max() as the aggregate function for a field named value to find the highest value in each time bucket, and returns the result in a field named _max.
Rounds the implied field _max from the aggregate max() using the floor option to round down the value.

Example of original _max values: 10.8, 15.3, 20.7.

After floor: 10, 15, 20.

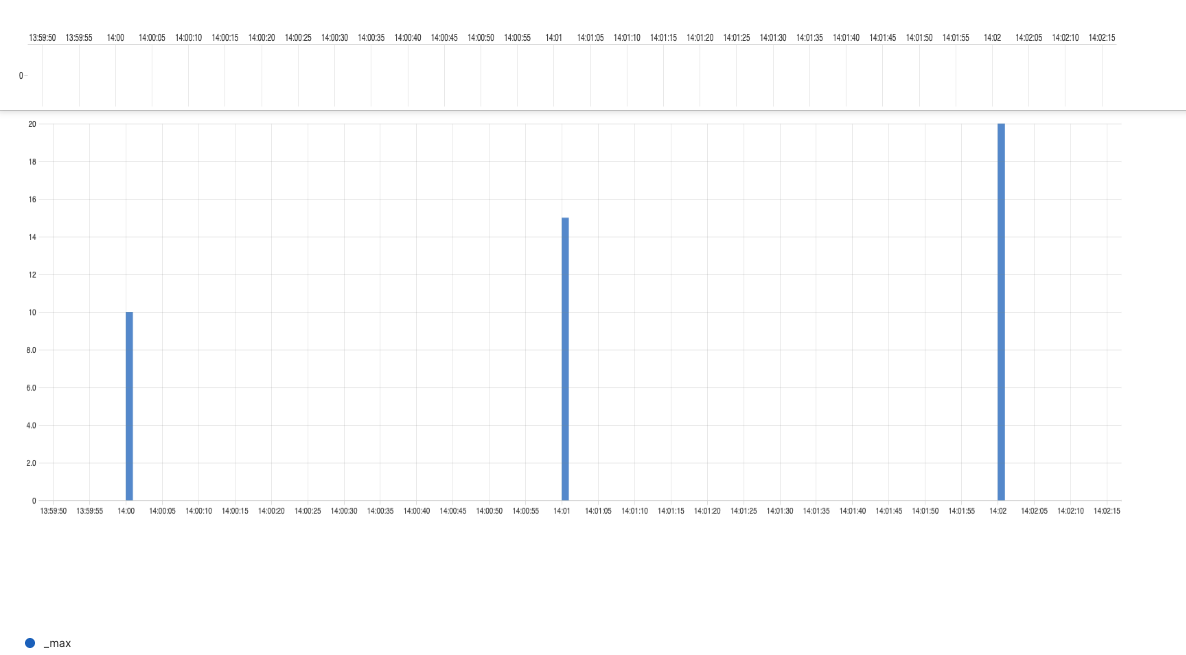

Event Result set.

Summary and Results

The query is used to round down maximum values over time to nearest integer (whole value). This is useful when displaying information in a time chart. Rounding to nearest integer will make it easier to distinguish the differences between values when used on a graph for time-based visualization. The query simplifies the data presentation.
