Sankey Examples Gallery
Click the title links on each card for step-by-step guidance on how to produce the sankey diagrams in this section. Each use case example details the following:
The sankey widget output visualization with a brief description
The sample input data for the given scenario
The query needed to obtain each sankey diagram
The steps required to configure each sankey diagram

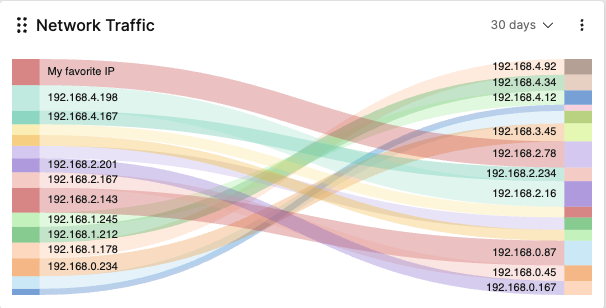

Network Traffic โ Sankey
diagram used to relate data from source and destination IPs.

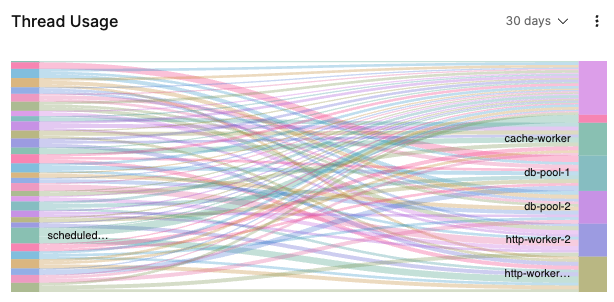

Thread Usage โ Sankey
diagram used to visualize which classes use which threads in a
service.
