Best Practice: Using widget visualizations

Note

โŒ› Article is more than two years old.

Visualizing aggregated data with widgets can add additional context and assist in the creation of custom dashboards. When running a simple query like this, selecting the desired widget from the drop down is all that's required:

shell
#event_simpleName=OsVersionInfo
| groupBy("ProductName")

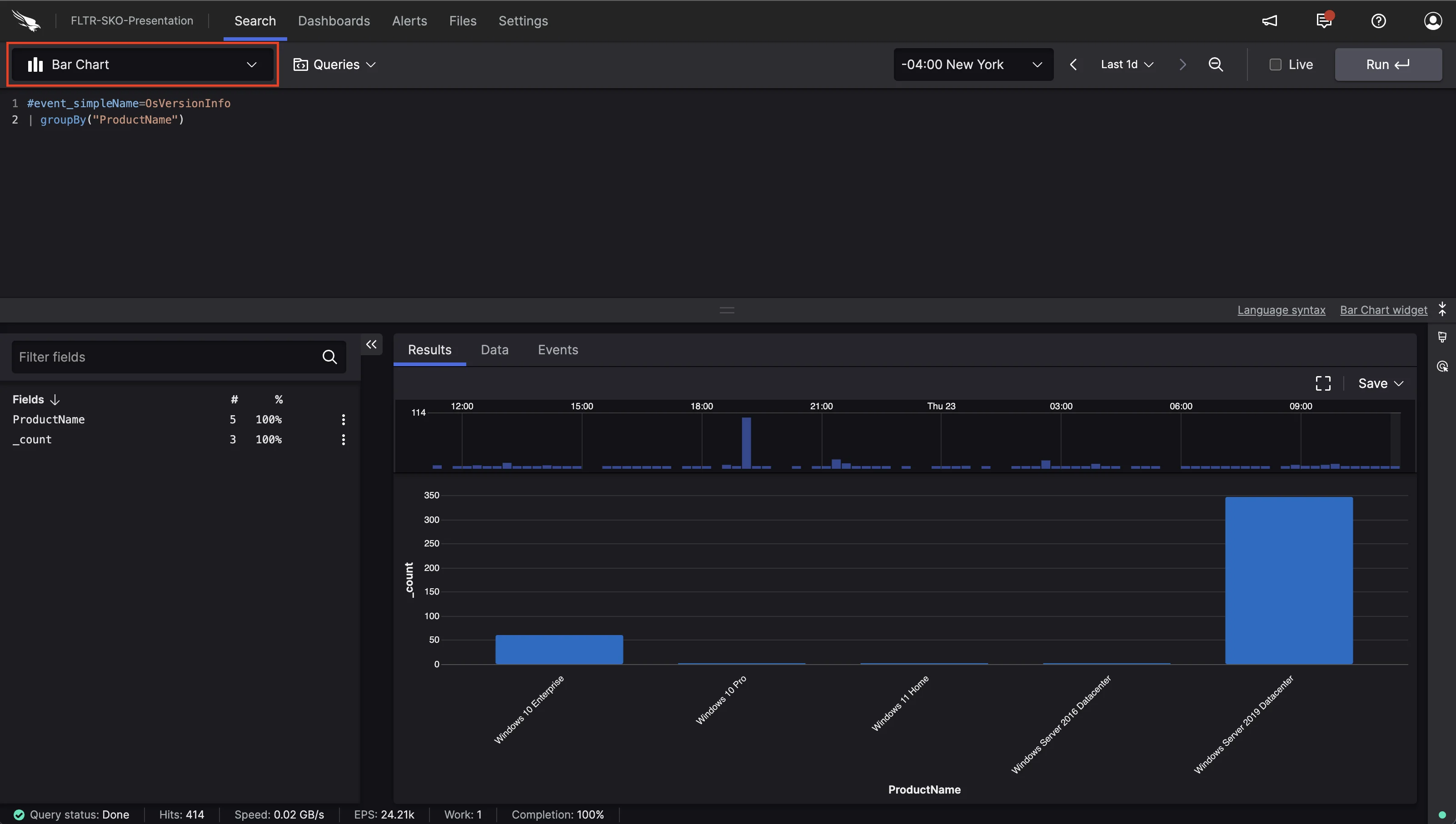

Barchart widget example

Note

LogScale will only allow you to select compatible widgets.

The desired visualization widget can also be specified in the query itself. As an example:

shell
EventType = "Event_ExternalApiEvent" ExternalApiType = "Event_DetectionSummaryEvent"
| sankey(source="Tactic",target="Technique", weight=count(AgentIdString))

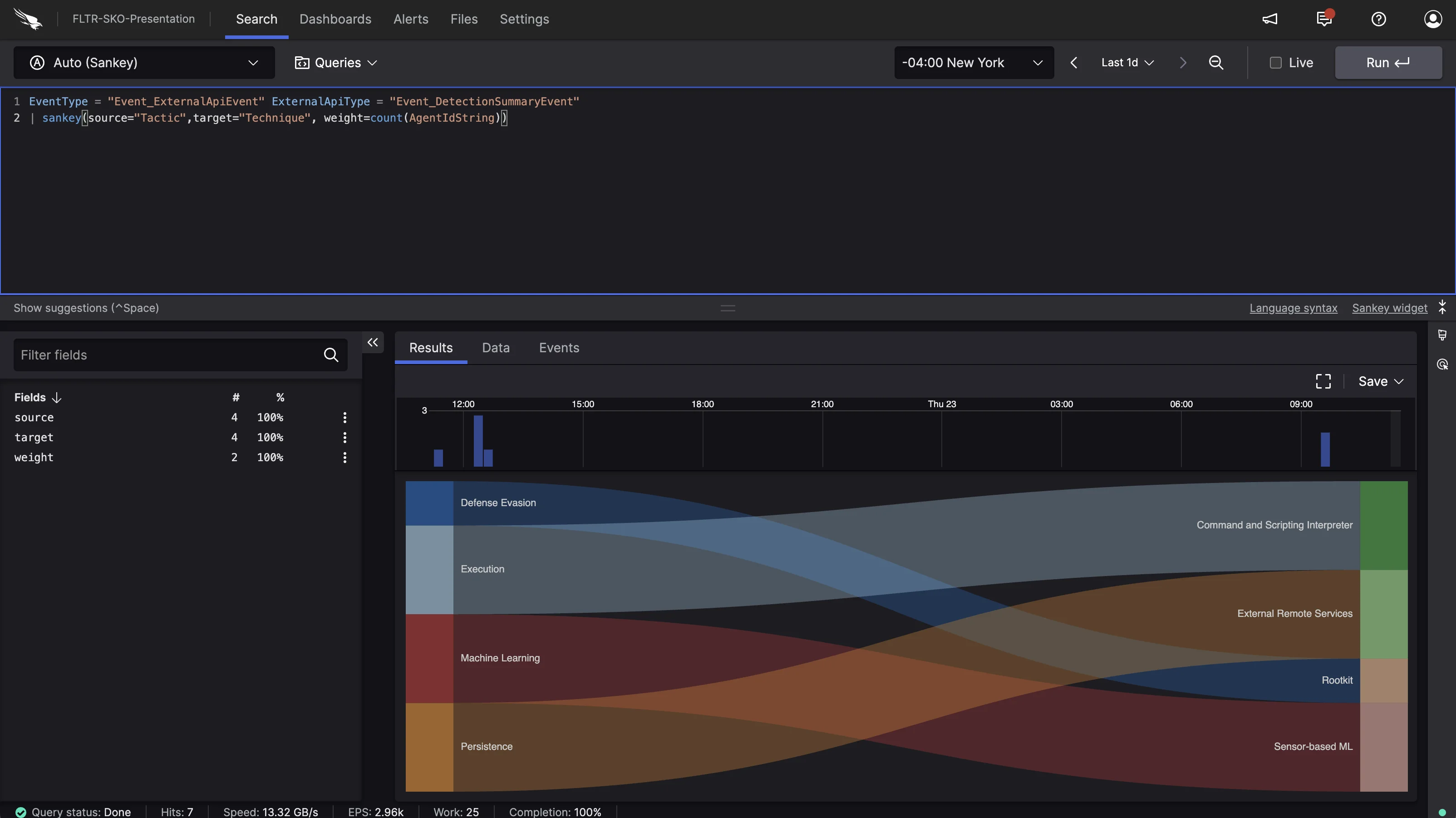

Sankey widget example

The Save button can be leveraged to add any query or widget to a custom dashboard.
