Terraform Sequence
Terraform Deployment Sequence (Repo-Specific)

This repo is opinionated about apply order because module.logscale contains kubernetes_manifest resources that require CRDs to exist at plan time. The practical result is that you must apply CRDs first.

Workspace validation: Each tfvars file includes workspace_name which must match terraform.workspace; a mismatch triggers a warning to prevent applying the wrong configuration.

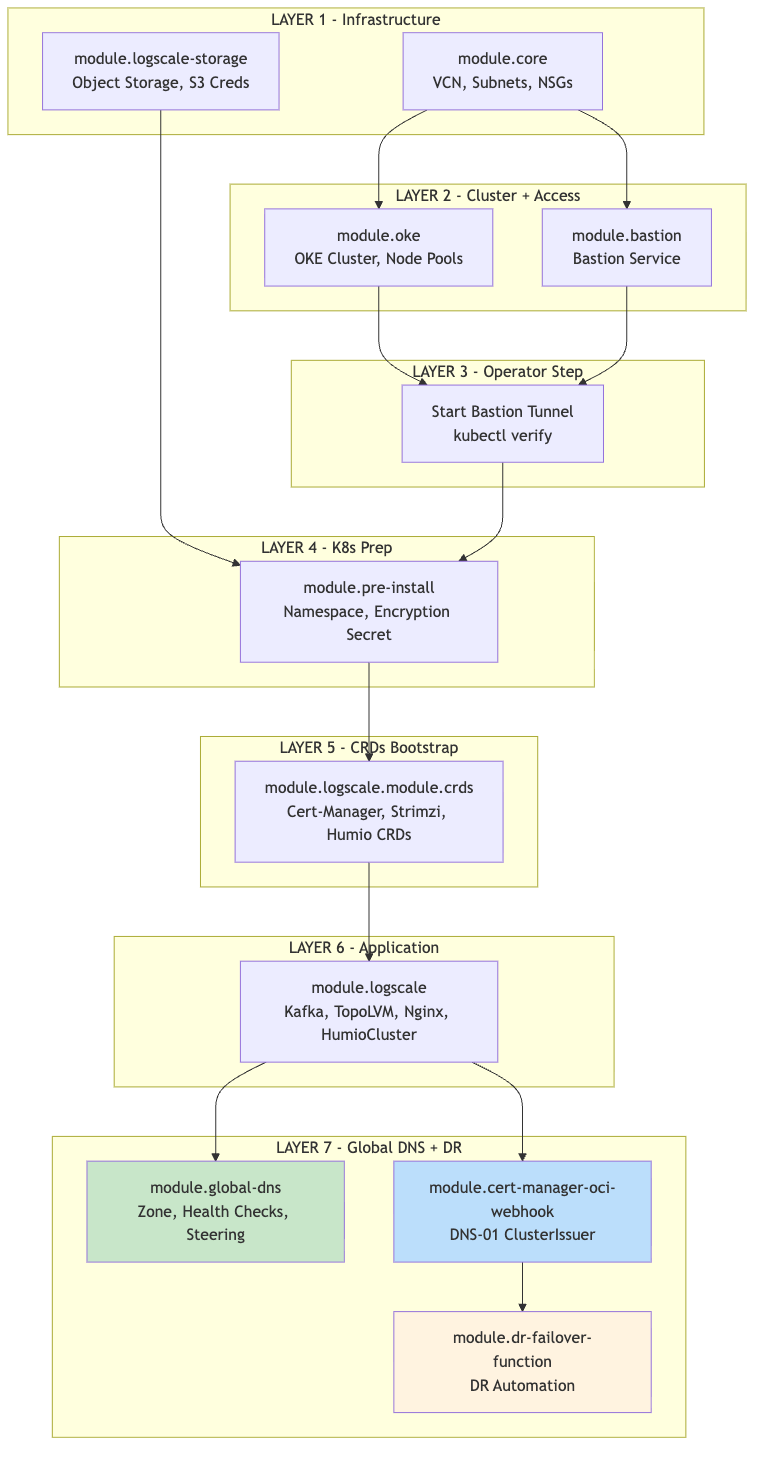

Module Dependency Graph

Follow this order to apply Terraform safely and avoid dependency issues.

Each module references outputs from upstream modules. The diagram below shows the dependency order — modules must be deployed top-to-bottom. Deploying out of order will result in missing references or Terraform errors.

Note

module.oci-logscale-storage feeds into module.pre-install because the storage module creates the Object Storage bucket and S3-compatible credentials, which the pre-install module needs to create the storage encryption Kubernetes secret. When both modules are included in the same targeted apply (-target), Terraform resolves this dependency automatically.

Module Dependency Graph

Important: Steps 4-7 require an active bastion tunnel and kubectl access to the OKE cluster. The module.logscale module contains kubernetes_manifest resources that require the Kubernetes API to be reachable at plan time, not just apply time.

Before running terraform plan or terraform apply for these modules:

  • Ensure that your bastion tunnel is running

  • Set kubernetes_api_host correctly (e.g., https://127.0.0.1:16443 for primary, https://127.0.0.1:16444 for secondary)

  • Set the kubectl context to the target OKE cluster (kubectl config use-context oci-primary or kubectl config use-context oci-secondary)

Important: The DNS-01 webhook module should be applied on both primary and secondary clusters when:

  • public_lb_cidrs restricts port 80/443 (recommended for security), blocking Let's Encrypt HTTP-01 validation, and/or:

    • the standby cluster already has the global FQDN certificate ready before failover

With cert_dns01_webhook_mode="auto", the module deploys only when DNS-01 is likely required (based on public_lb_cidrs and DR standby/global-FQDN conditions).
