The software requirements are shown in the following table:

The following Azure RBAC roles are required:

Automatic RBAC for DR: When deploying a standby cluster (dr="standby"), Terraform automatically creates a "Storage Blob Data Reader" role assignment on the primary storage account for the secondary cluster's AKS managed identity (azurerm_role_assignment.dr_read_primary_storage). LogScale still uses shared keys for storage access today, so this role assignment is not required for LogScale authentication, but it is created for parity/visibility and future-proofing.

The main infrastructure requirements are listed here:

The main Kubernetes Access requirements are listed here:

Storage container names are state-specific (they include a random prefix stored in state). Do not hardcode or guess these names; always use Terraform outputs.

The main Encryption Key requirements are listed here:

The following is your pre-deployment checklist:

The DR deployment uses separate Terraform state files for primary and secondary clusters. Both state files are stored in the same Azure Blob Storage backend but use different keys for complete isolation.

Backend Prerequisites

Create the Azure Storage resources for Terraform state if they do not already exist:

# 1. Create Resource Group for Terraform state
az group create --name terraform-state-rg --location centralus

# 2. Create Storage Account (name must be globally unique, 3-24 chars, lowercase alphanumeric)
az storage account create \
  --name <unique_storage_account_name> \
  --resource-group terraform-state-rg \
  --location centralus \
  --sku Standard_LRS \
  --encryption-services blob \
  --allow-blob-public-access false \
  --min-tls-version TLS1_2

# 3. Create Blob Container for state files
az storage container create \
  --name tfstate \
  --account-name <storage_account_name>

# 4. (Optional) Enable versioning for state recovery
az storage account blob-service-properties update \
  --account-name <storage_account_name> \
  --resource-group terraform-state-rg \
  --enable-versioning true

Backend Configuration

This repo uses partial backend configuration. Start with the example templates and copy them to your environment-specific backend configs.

Example backend-configs/production-primary.hcl:

cp backend-configs/example-primary.hcl backend-configs/production-primary.hcl
cp backend-configs/example-secondary.hcl backend-configs/production-secondary.hcl
# Edit the copied files with your Azure Resource Group + Storage Account values

Then update backend-configs/production-primary.hcl and backend-configs/production-secondary.hcl with your storage values.

Example backend-configs/production-primary.hcl:

resource_group_name  = "terraform-state-rg"
storage_account_name = "<your_storage_account_name>"
container_name       = "tfstate"
key                  = "logscale-azure-aks-primary.tfstate"

Example backend-configs/production-secondary.hcl:

resource_group_name  = "terraform-state-rg"
storage_account_name = "<your_storage_account_name>"
container_name       = "tfstate"
key                  = "logscale-azure-aks-secondary.tfstate"

State File Layout:

Each cluster has its own state file:

Workspace Creation

Each cluster requires initialization with its respective backend config.

Deploy Primary Cluster:

# Initialize with primary backend config
terraform init -backend-config=backend-configs/production-primary.hcl

# Plan and apply primary cluster
terraform plan -var-file=primary-centralus.tfvars
terraform apply -var-file=primary-centralus.tfvars

Deploy Secondary Cluster:

# Reinitialize with secondary backend config
terraform init -backend-config=backend-configs/production-secondary.hcl -reconfigure

# Plan and apply secondary cluster
terraform plan -var-file=secondary-eastus2.tfvars
terraform apply -var-file=secondary-eastus2.tfvarss

Switching Between Clusters:

# To switch from secondary back to primary:
terraform init -backend-config=backend-configs/production-primary.hcl -reconfigure

# To switch from primary to secondary:
terraform init -backend-config=backend-configs/production-secondary.hcl -reconfigure

Re-initialization - If you need to switch between backend configurations or reinitialize:

# Reconfigure backend (e.g., when changing storage accounts)
terraform init -backend-config=backend-configs/production-primary.hcl -reconfigure

tfvars Safety Validation

A critical safety mechanism prevents applying the wrong tfvars file with the wrong backend. Each tfvars file includes a workspace_name variable that must match the expected cluster context.

primary-centralus.tfvars:

workspace_name = "primary"
dr             = "active"
# ... other variables

secondary-eastus2.tfvars:

workspace_name = "secondary"
dr             = "standby"
# ... other variables

If you attempt to apply the wrong tfvars file, Terraform will fail with an error:

ERROR: WORKSPACE MISMATCH DETECTED!
============================================================================

Current Terraform workspace: 'default'
workspace_name in tfvars:    'secondary'

To fix this, either:

1. Initialize with the correct backend config:
   terraform init -backend-config=backend-configs/production-secondary.hcl -reconfigure

2. Or use the correct tfvars file for this backend:
   terraform plan -var-file=primary-<region>.tfvars
============================================================================

This validation prevents accidental destruction of resources by applying primary configuration to the secondary cluster or vice versa.

Authentication Options

The Azure backend supports multiple authentication methods:

Follow this order to apply Terraform safely and avoid dependency issues. The Azure deployment differs from OCI in that it does not require a bastion tunnel for Kubernetes API access (AKS clusters are typically accessible directly with authorized IP ranges).

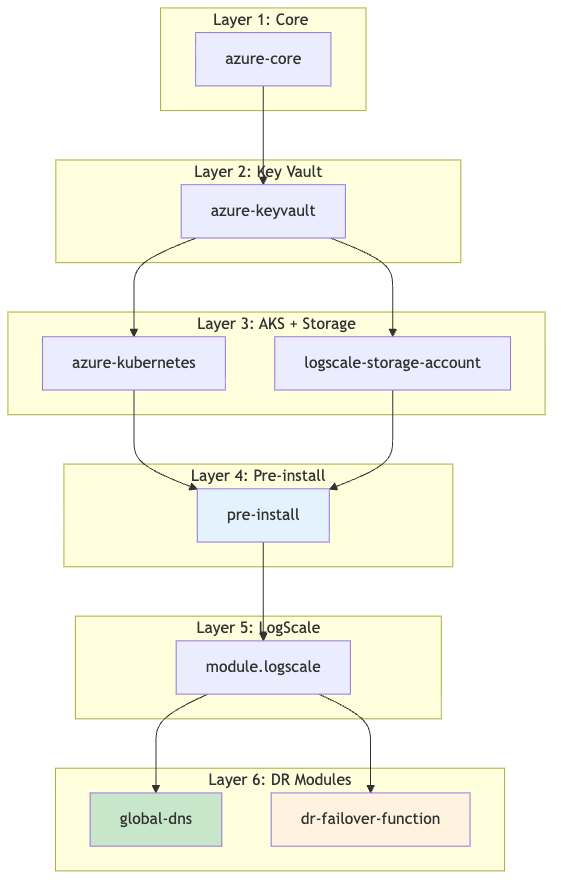

Module Dependency Graph

Deployment Phases

Phase 1: Infrastructure (No Kubernetes Required)

Deploy the core Azure infrastructure first. This does not require Kubernetes access.

# Initialize with primary backend config
terraform init -backend-config=backend-configs/production-primary.hcl

# Apply infrastructure modules only
terraform apply -var-file=primary-centralus.tfvars \
  -target="module.azure-core" \
  -target="module.azure-keyvault" \
  -target="module.azure-kubernetes" \
  -target="module.logscale-storage-account"

Phase 2: Configure Kubernetes Access

After AKS is created, configure kubectl access:

# Get AKS credentials (adds context to ~/.kube/config)
az aks get-credentials \
  --resource-group <resource-group-name> \
  --name <aks-cluster-name> \
  --overwrite-existing

# Verify access
kubectl get nodes

Phase 3: Pre-install and LogScale Application

Deploy the pre-install module (namespace + encryption key) and LogScale application stack:

# Apply pre-install and logscale modules
terraform apply -var-file=primary-centralus.tfvars \
  -target="module.pre-install" \
  -target="module.logscale"

Phase 4: DR Modules (Conditional)

Deploy DR-specific modules based on cluster role.

For Primary (active) cluster:

# Deploy global DNS and Traffic Manager (only if manage_global_dns=true)
terraform apply -var-file=primary-centralus.tfvars \
  -target="module.global-dns"

For Secondary (standby) cluster:

# Deploy DR failover function (only if dr_failover_function_enabled=true)
terraform apply -var-file=secondary-eastus2.tfvars \
  -target="module.dr-failover-function"

Phase 5: Full Apply (Final Verification)

After targeted applies succeed, run a full apply to ensure all resources are in sync:

terraform apply -var-file=primary-centralus.tfvars  # or secondary-eastus2.tfvars

Complete Deployment Order Summary

Notes:

Manual Secret Copy Checklist

Terraform does not replicate LogScale application/integration secrets between clusters. Before you rely on DR, ensure any secrets referenced by LogScale exist in both clusters.

Common examples (environment/integration specific):

Copy pattern (only for application/integration secrets — do not copy cert-manager, webhook, or other cluster-internal secrets):

kubectl --context aks-primary -n logging get secret <name> -o yaml | \
  kubectl --context aks-secondary -n logging apply -f -
