Page was created:Mar 18, 2026

How-To: Navigate the New LogScale Search Interface in Version 1.228

LogScale has introduced updates to the web user interface for the search experience in version 1.228. This new layout aims to provide a more intuitive and efficient search workflow.

This article compares previous and new versions of the search interface and highlights the key changes and new features.

In short:

  • New Query editor

  • New button for adding more data

  • New location of the style/format icon

  • New tabbing layout for output display

  • New Widget selector

What's new in the Query Editor

The Query editor supports new functionalities for a better search and data analysis experience. In particular, features like code folding, auto-indentation, pre-built code snippets or visual feedback on errors can support you in writing and refining complex queries as you type.

See Query Editor for more information.

How to add more data

The Sample more button replaces the Fetch more button. The new button can now display up to 5,000 sample event fields.

Previous LayoutCurrent Layout

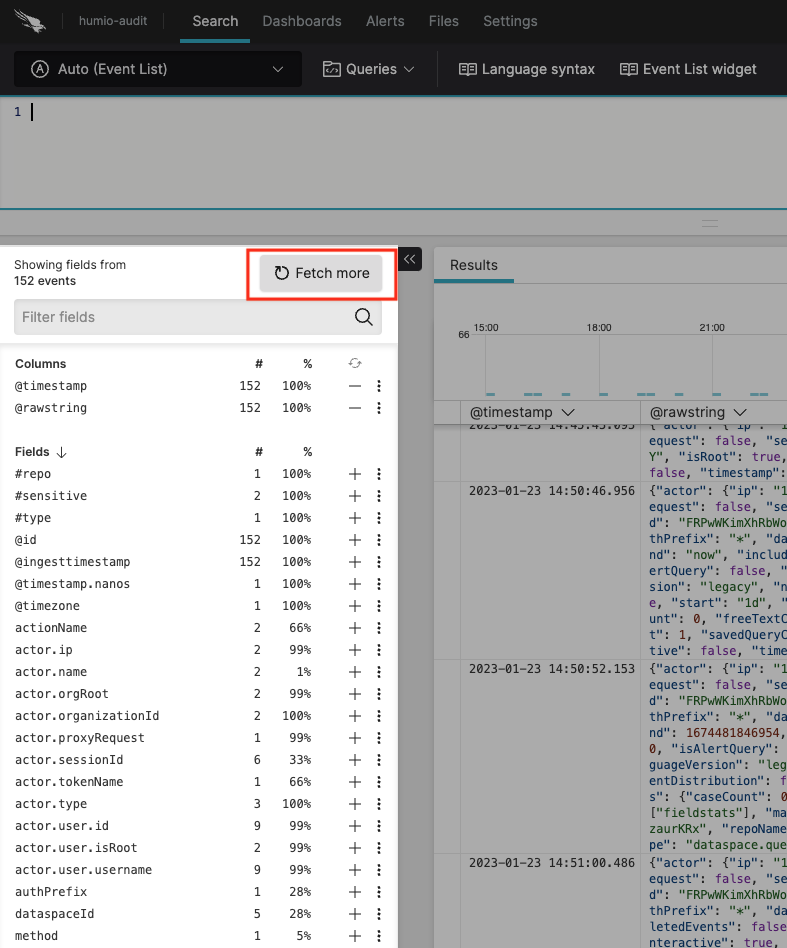

UI button to add more data in previous search interface

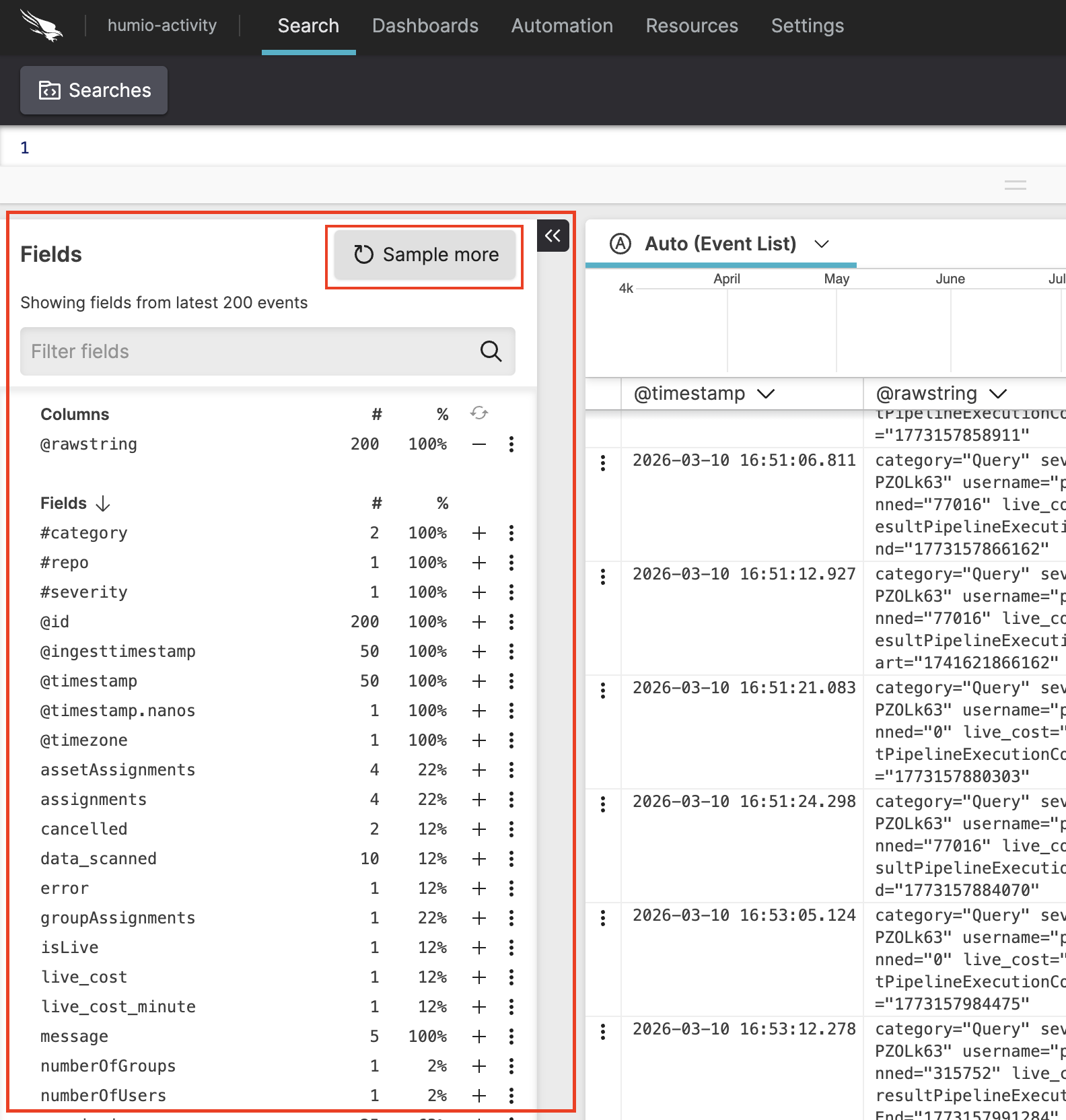

UI button to add more data in new search interface

See Display Fields for more information on this panel.

How to format events and field columns

The style icon that opens the Format panel is now located on top of the event list.

Previous LayoutCurrent Layout
Previous Format Panel access

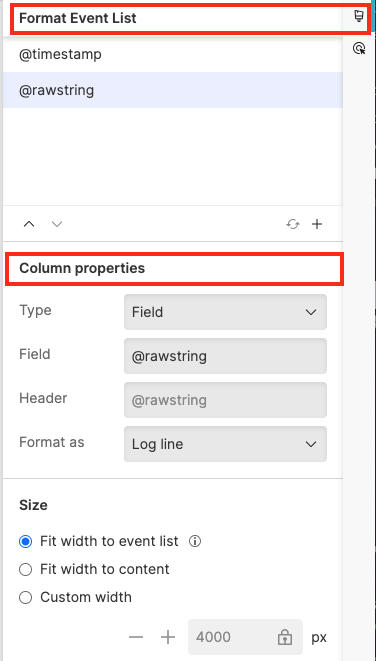

Previous Format Panel dialog

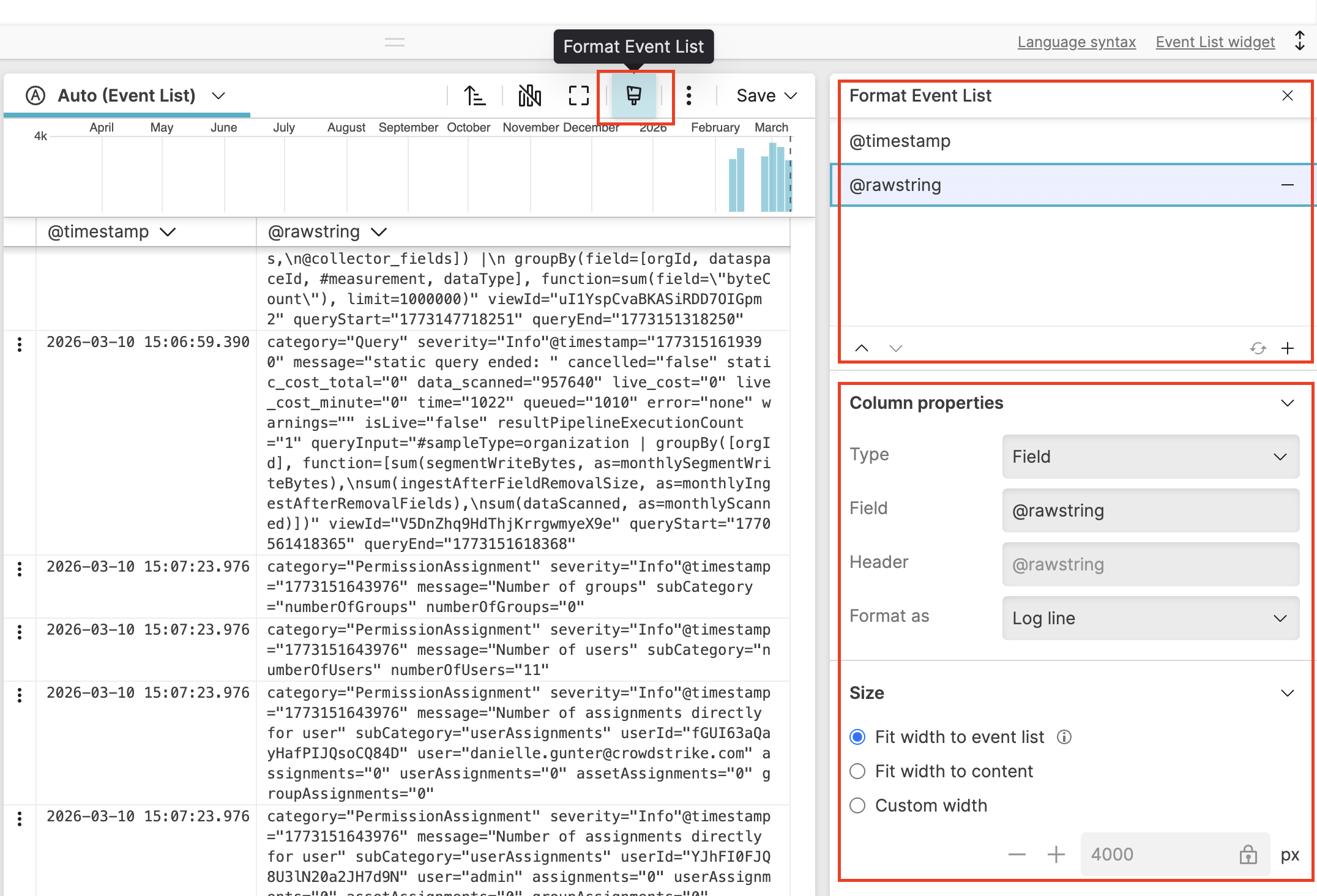

Current Format Panel access

Where to find output data

The Search page presents renamed tabs to display results and events according to the query used. See some of them in this table, refer to Display tabs for more.

Previous LayoutCurrent Layout

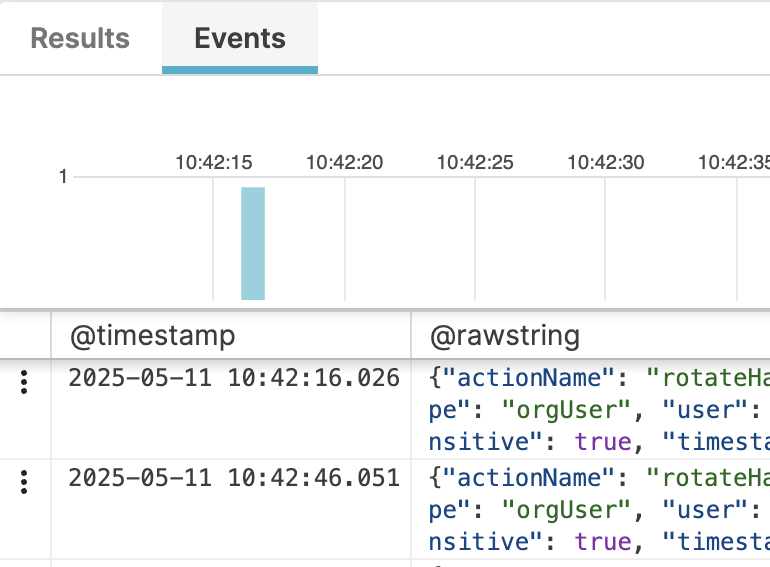

Previous layout of the Event List

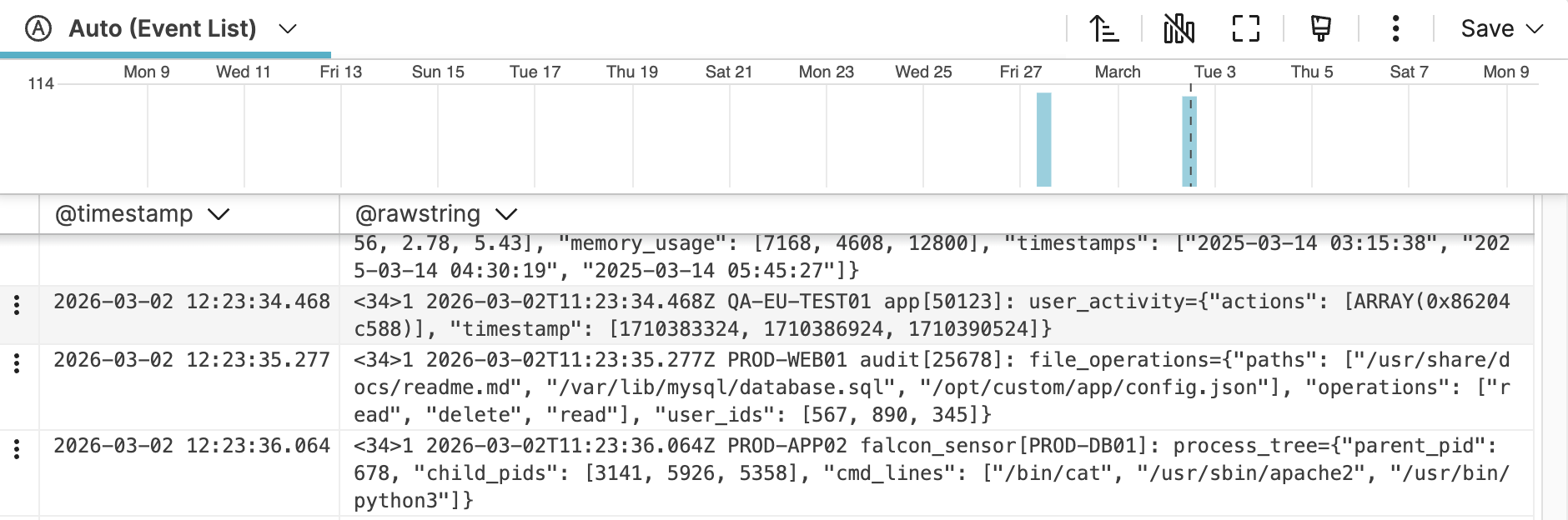

Current layout of the Event List

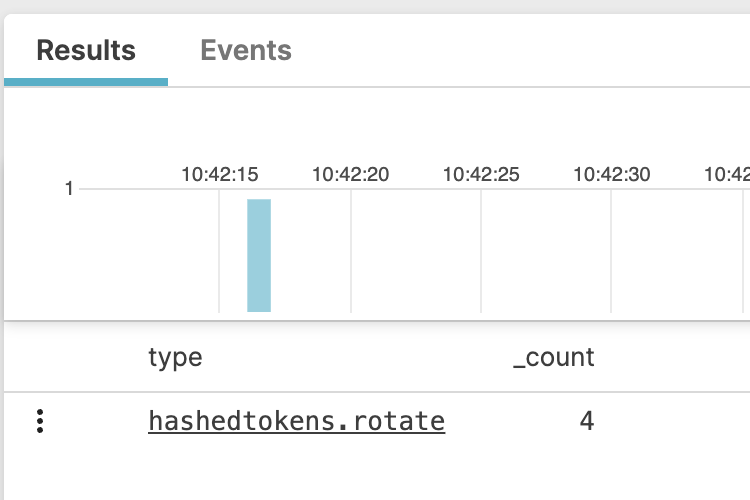

Previous layout of the Results tab

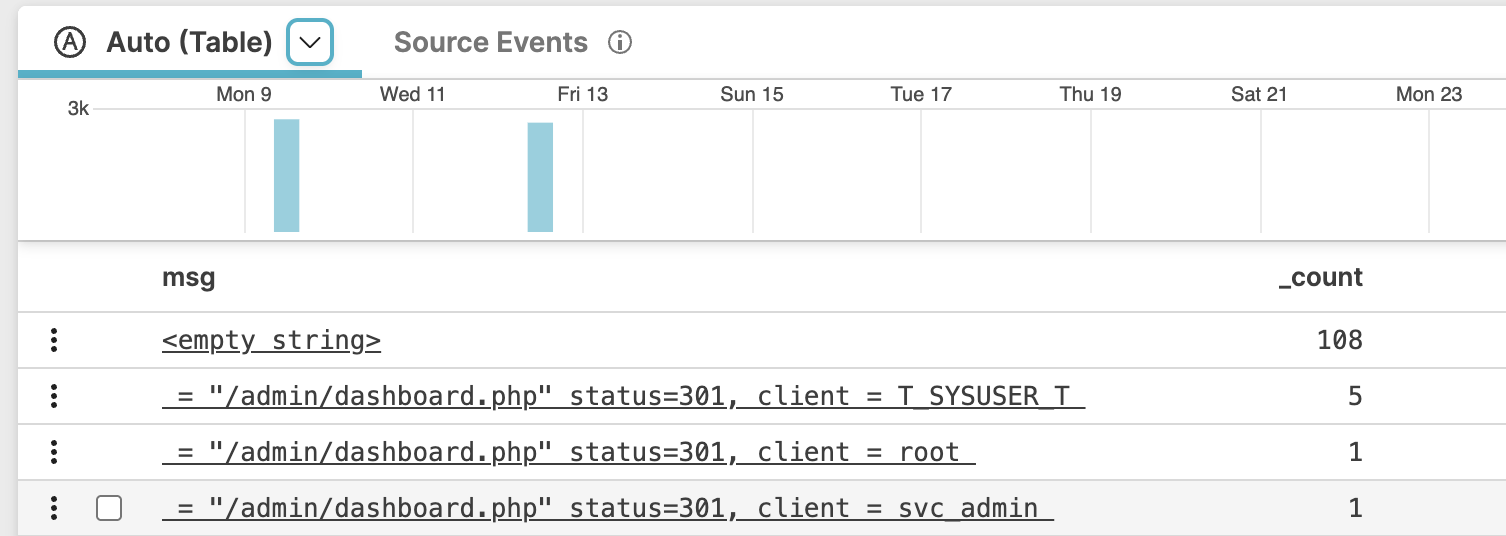

Current layout of the Auto tab

The Tool panel has also slightly changed: some displays options like Manage interactions or Filter match highlighting are now accessible via a three-dot menu ⋮:

Previous LayoutCurrent Layout

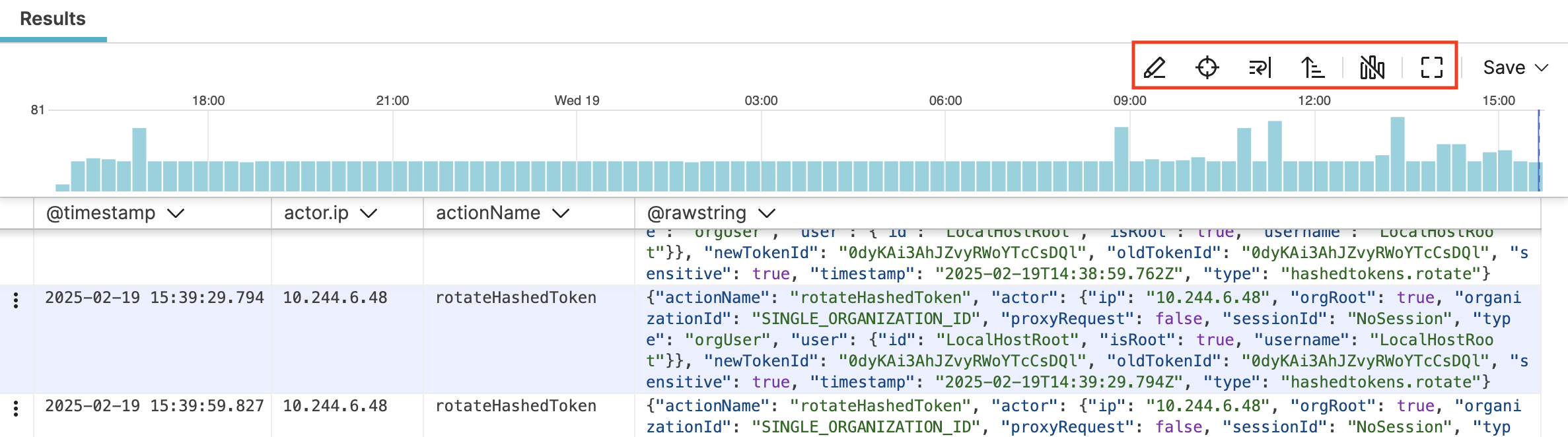

Previous layout of the Tool panel

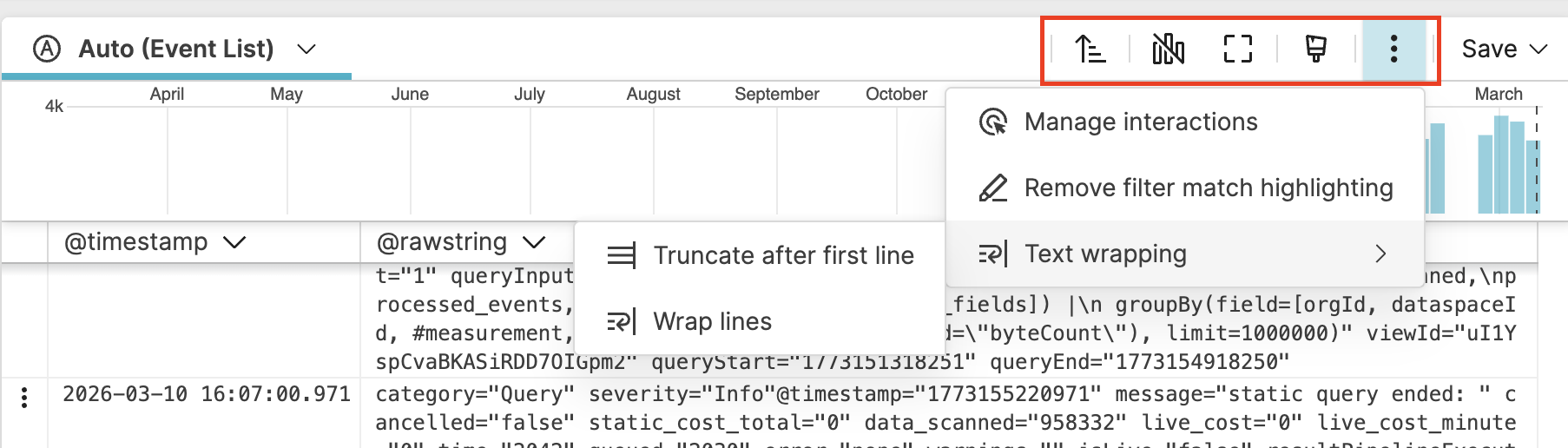

Current layout of the Tool panel

How to change data visualization

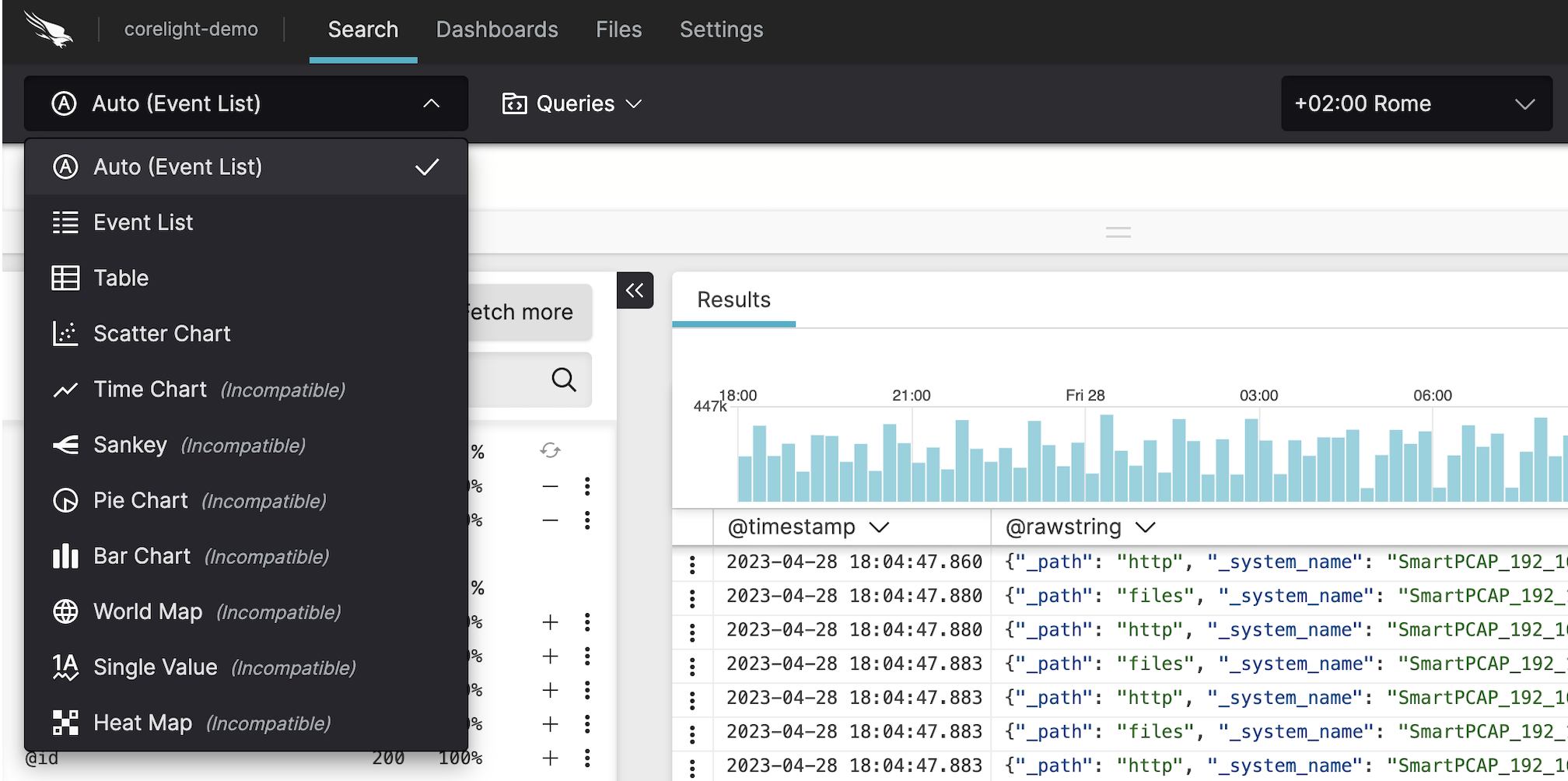

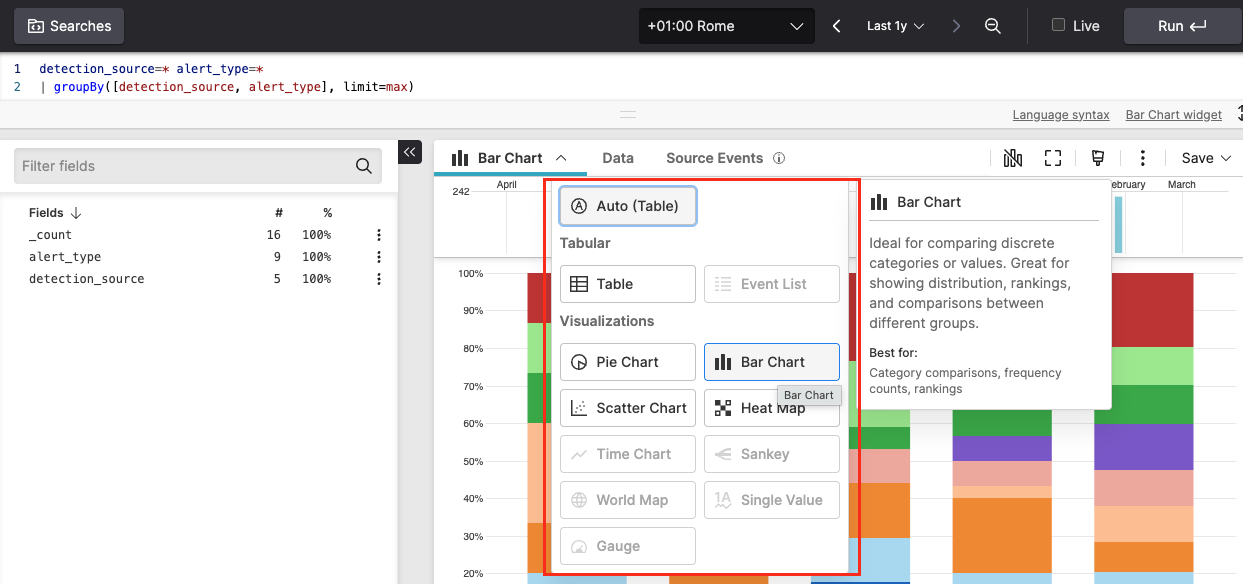

The Widget selector dropdown menu is now available as a new tab at the same level of the event list (it was previously positioned at the top of the Query editor).

Additionally, the Widget selector now provides descriptions of the different widgets, to help you choose the best visualization for your data.

Previous LayoutCurrent Layout
Previous layout of the Widget selector
Current layout of the Widget selector
Support
  • Twitter
  • LinkedIn
  • Youtube

© 2025 CrowdStrike All other marks contained herein are the property of their respective owners.

Sections on this Page

What's new in the Query Editor
How to add more data
How to format events and field columns
Where to find output data
How to change data visualization

  • Other articles on this topic

    • How-To Articles
    • Recent How-To Articles
    • Recent KB Articles
    • Search Data

Enter search term
