Figure 33. Configuration

To begin, you'll need to configure LogScale to receive incoming data from SentinelOne. In this example, we're configuring https://cloud.humio.com, but these same steps apply to a self-managed LogScale instance.

The first step is to create a repository — although this is optional. For the example here, we'll use a "sandbox" repository.

You will, though, have to create a new parser. It will parse the JSON data sent by Vector, the CEF message from SentinelOne, and extract the correct timestamp from each event.

parseJson(field=@rawstring)
|
parseCEF(field=message)
|
findTimestamp(field=message)

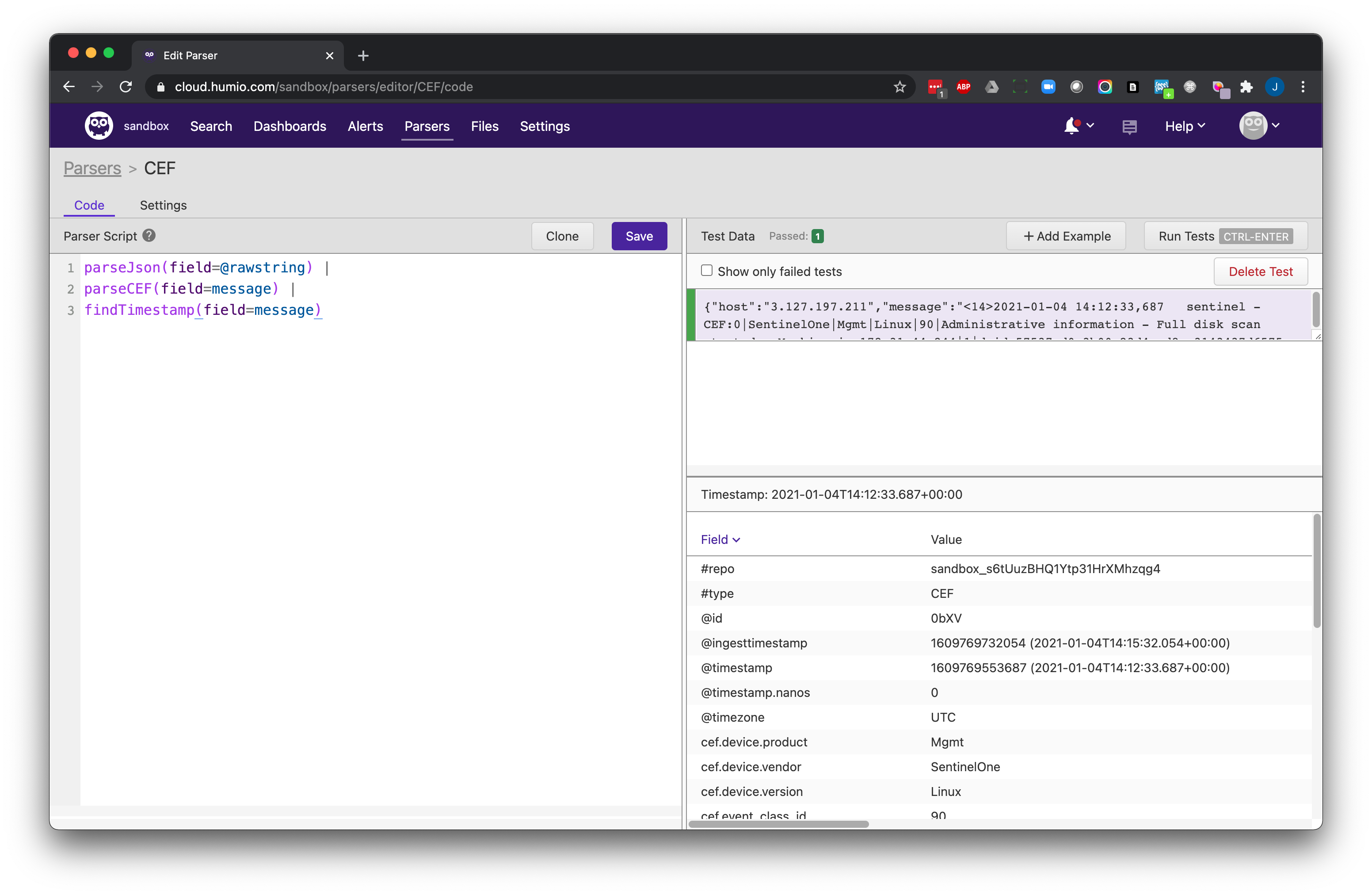

In this example the parser was saved as "CEF". See the screenshot in Figure 1 here.

Now create a new ingest token and link it to the parser. Be sure to make a copy of the token since you will need it when you configure vector next.

For the purposes of this article, we'll use Vector (vector.dev) as the intermediate agent. Below is the contents we'll use in the vector configuration. It will receive plain syslog entries over UDP.

In a production configuration it is strongly recommended to protect this with client SSL certificates. Creating and managing SSL certificates is out of scope of this article. Please see SentinelOne's documentation on how to do this.

The below was configured on an EC2 node in AWS running CentOS 8.2. That AWS instance had a security group allowing inbound UDP traffic on port 514 (the standard syslog port).

# Global data directory
data_dir = "/var/lib/vector"

# Vector's API for introspection
[api]
enabled = true
address = "127.0.0.1:8686"

# Plain syslog source
[sources.syslog]
type = "syslog"
address = "0.0.0.0:514"
mode = "udp"

# Output to Hosted LogScale
[sinks.out]
type = "humio_logs"
inputs = ["syslog"]
compression = "gzip"
endpoint = "https://cloud.humio.com"
token = "aa960b28-NNNN-XXXX-YYYY-00c8ed4a4c4b"

This configuration file above is a minimal working vector configuration. You should review the vector documentation in detail to get the optimal settings for your environment.

The endpoint is the path to your LogScale instance: the example above is based on LogScale's EMEA Cloud service. The token is the token from within LogScale that you configured in Configure LogScale

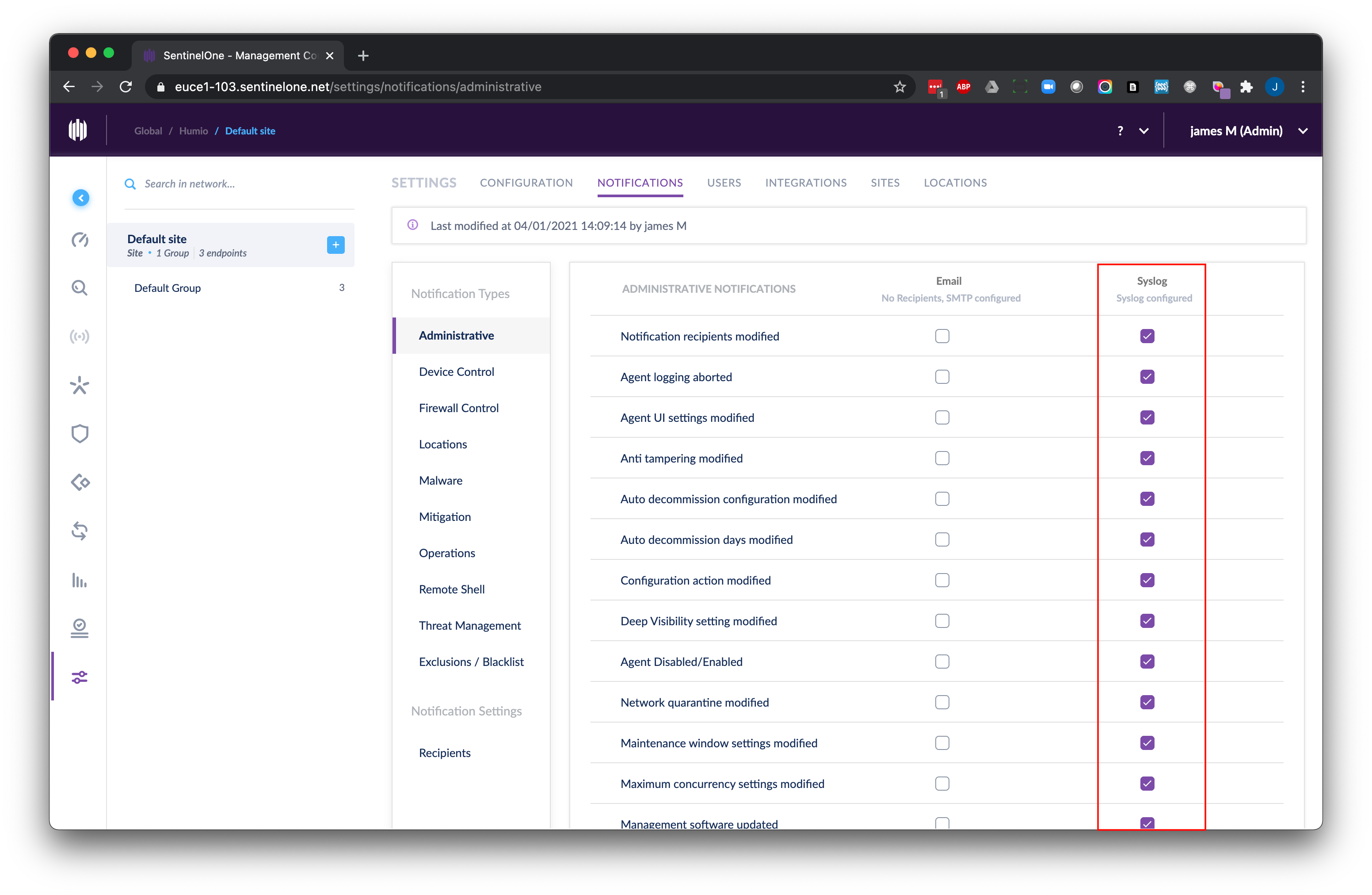

Figure 34. Setup Notifications

SentinelOne requires you to configure which events should trigger notifications to the Syslog integration. You can find the notifications settings under your site, Settings → Notifications will present a screen like the one you see here in Figure 2.

Notice that for the Administrative settings, we have all of the notifications checked for Syslog. This is so that everything generated for Syslog will be set to LogScale.

Enable Syslog Integration in SentinelOne

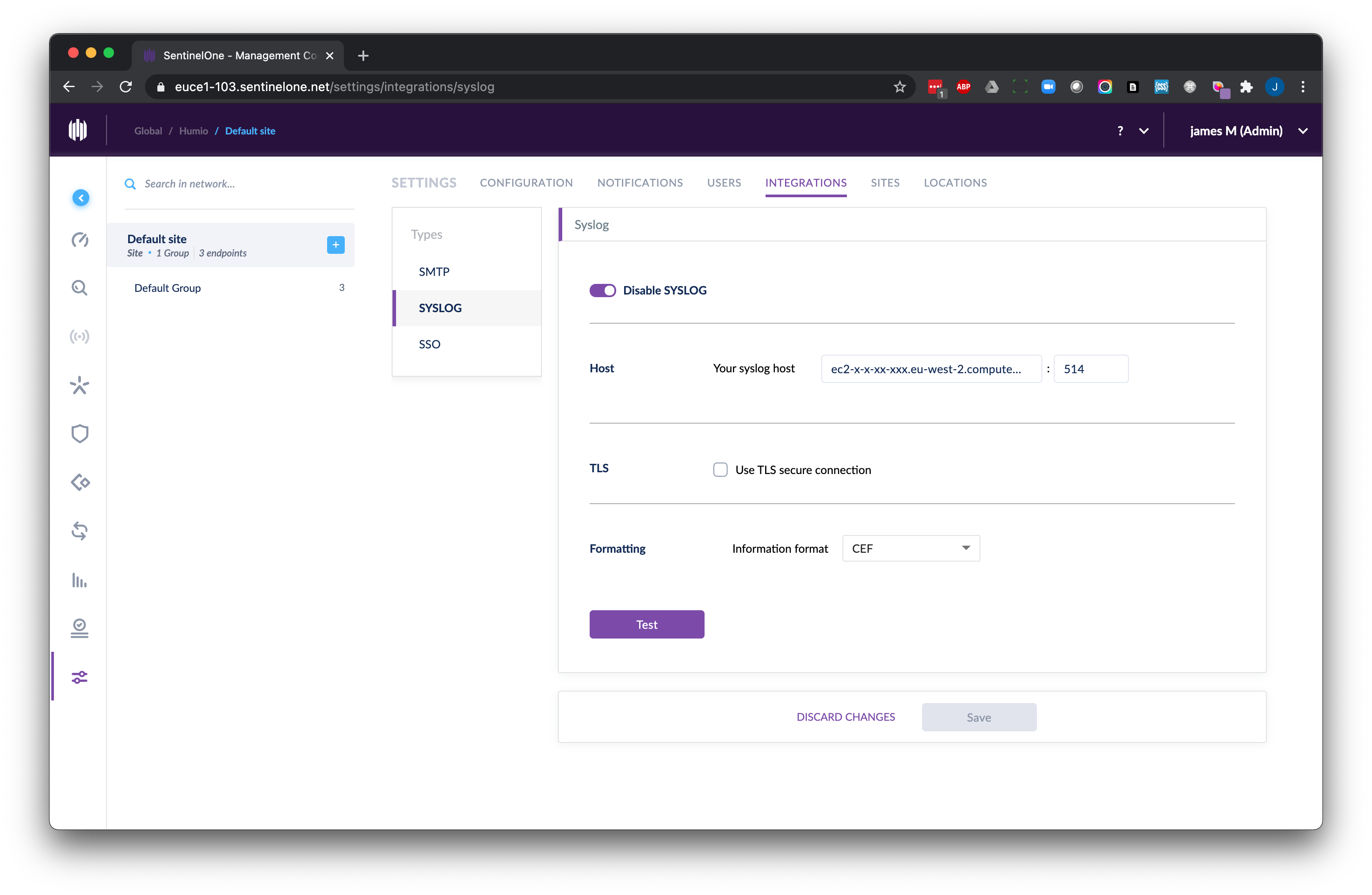

Figure 35. Enable Syslog Integration in SentinelOne

Configure the outbound Syslog settings in SentinelOne to start sending new notifications to LogScale. This can be accessed in SentinelOne under your site, Settings → Integrations.

You can see in the screenshot in Figure 3 that we set a few values: We set Your syslog host to the AWS EC2 public DNS name and port number. We disabled TLS. This should be configured in production use cases. Finally, we chose in the Formatting section, for information formatting, the CEF option.

When you have all of the values you want set, you can click on the large Test button to generate a sample syslog event.

Results and Troubleshooting

Once this is configured you should see events from SentinelOne appearing in LogScale. If that doesn't happen there are a few things to check: Has an event that is enabled for syslog notifications occurred since the syslog integration was configured? If the "Test" message arrives, but no other events then it's most likely an event has not occurred, or notifications are not enabled for the events.

Is UDP traffic able to get to vector? You can test this using netcat, for example:

logscale

$ echo test
| nc -u vector.server.com 514

Figure 36. Results and Troubleshooting

You should check if vector is seeing your data. You can do this for incoming and outgoing events in Vector by executing the following from the command-line:

logscale

vector top

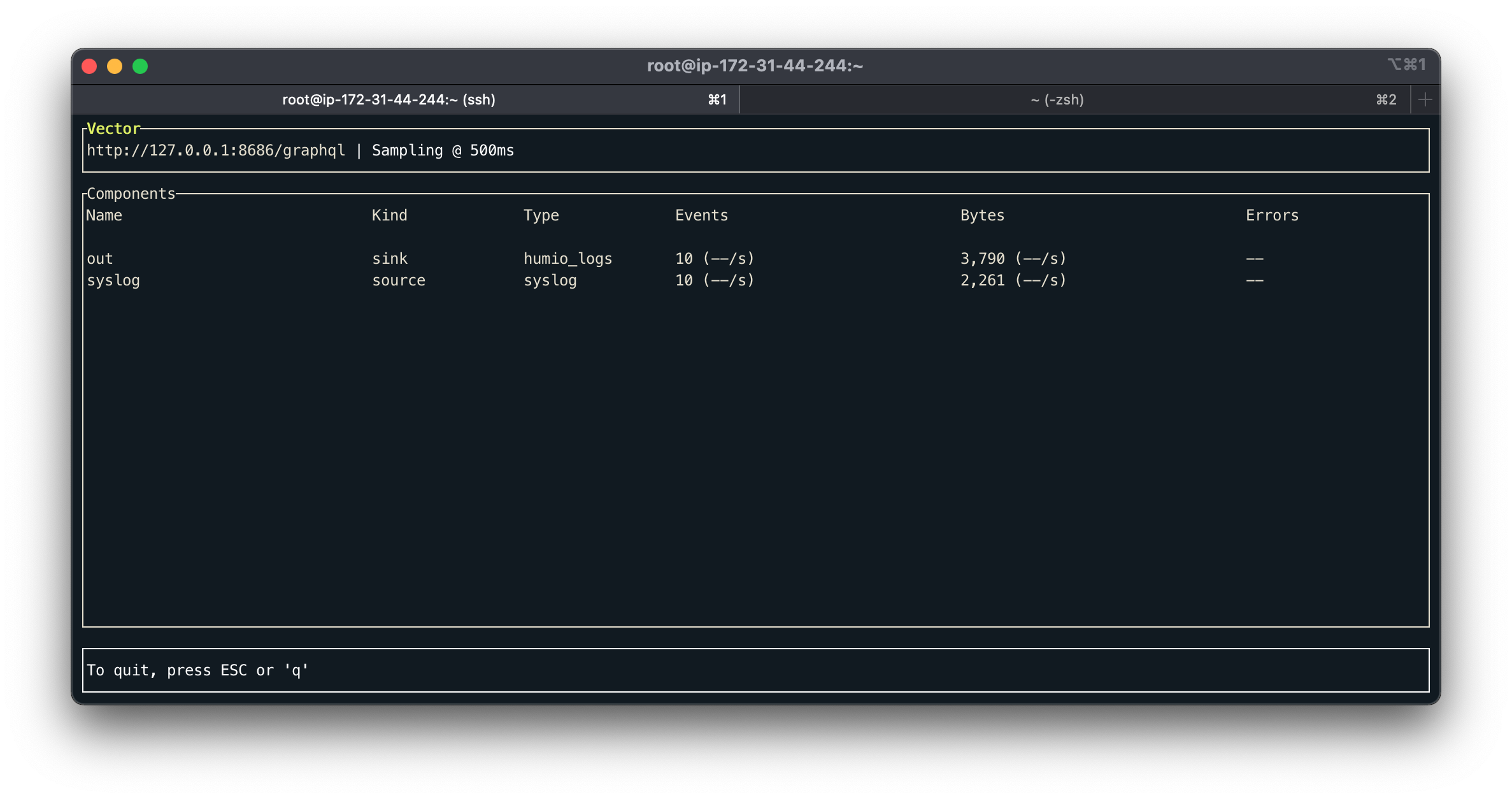

The results should look like the screenshot in Figure 4 here.
