A companion function Sankey Widget that produces data compatible with the widget. For more information about Sankey widgets, see Sankey Diagram Widget.
| Parameter | Type | Required | Default Value | Description |
|---|---|---|---|---|
source | string | required | The field containing the source node ID. | |
target | string | required | The field containing the target node ID. | |
weight | aggregate | optional[a] | count(as=_count) | A function used to calculate the weight the edges. Good candidates are functions like, for example, sum(), count() or max(). |
[a] Optional parameters use their default value unless explicitly set. | ||||
sankey() Syntax Examples

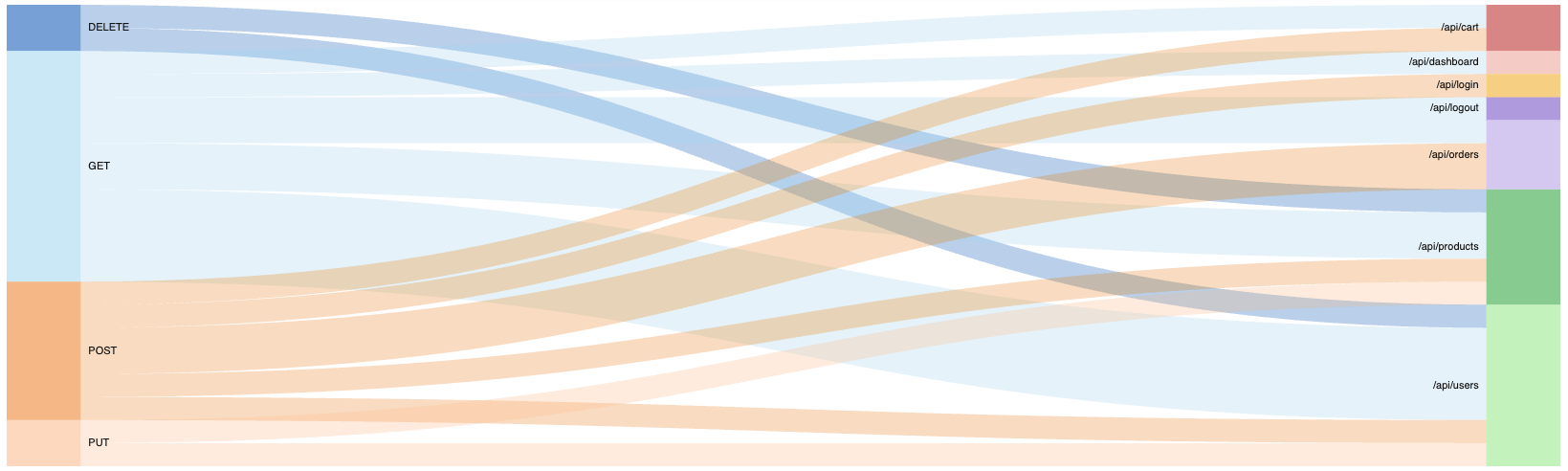

For a webserver log, shows which URLs match HTTP methods:
#type=accesslog

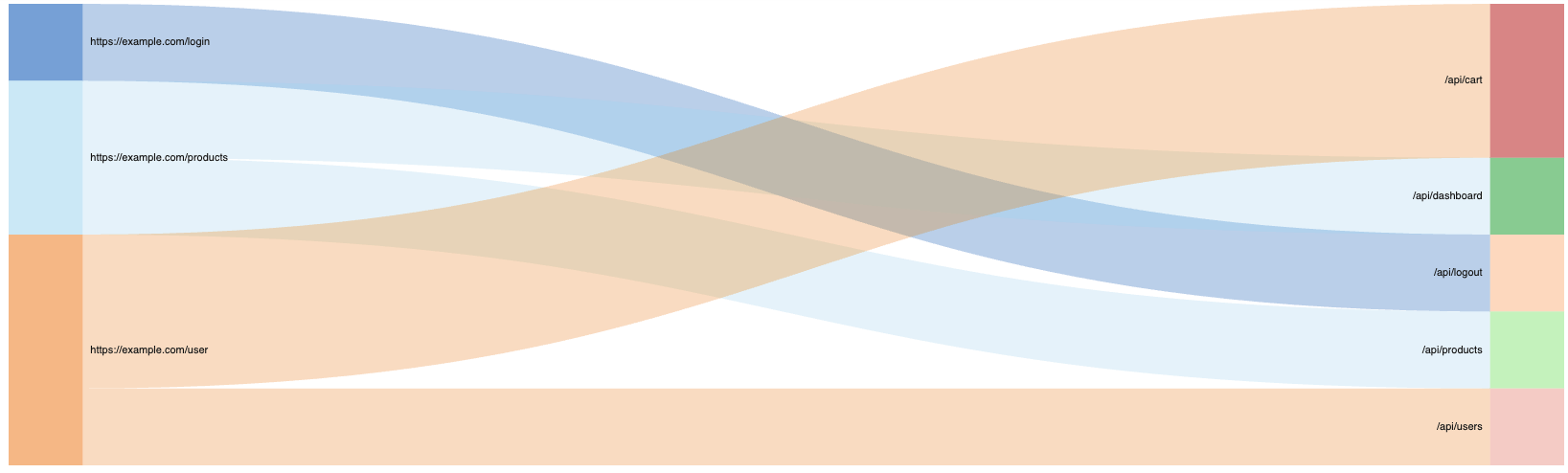

| sankey(source=method, target=url)For a webserver log, shows referrers by URL:
#type=accesslog referrer!="-"
| sankey(source=referrer, target=url)sankey() Examples
Click next to an example below to get the full details.
Create Sankey Diagram Calculating Edge Thickness
Create a Sankey diagram calculating the edge thickness using the
sankey() function with an aggregator
Query
sankey(source="src", target="dst", weight=(sum(cnt)))Introduction
In this example, the sankey() function is used with
the weight parameter to show
the edge thickness of the fields cnt (count),
dst (destination), and src
(source) in a Sankey diagram. Edge thickness in a Sankey diagram
represents the magnitude or quantity of flow between nodes.
The edge is the connecting line between source and
target nodes, and the thickness represents the
weightend value of that connection.
Example incoming data might look like this:
| cnt | dst | src |
|---|---|---|
| 12 | apples | john |
| 1 | bananas | john |
| 1 | apples | joe |
| 1 | apples | sarah |
| 1 | apples | sarah |
| 1 | apples | sarah |
Step-by-Step
Starting with the source repository events.
- logscale
sankey(source="src", target="dst", weight=(sum(cnt)))Creates a Sankey diagram showing the sources on the left side (john, joe, sarah), and the targets on the right side (apples, bananas), and then provides the edge thickness based on the sum.
Event Result set.
Summary and Results

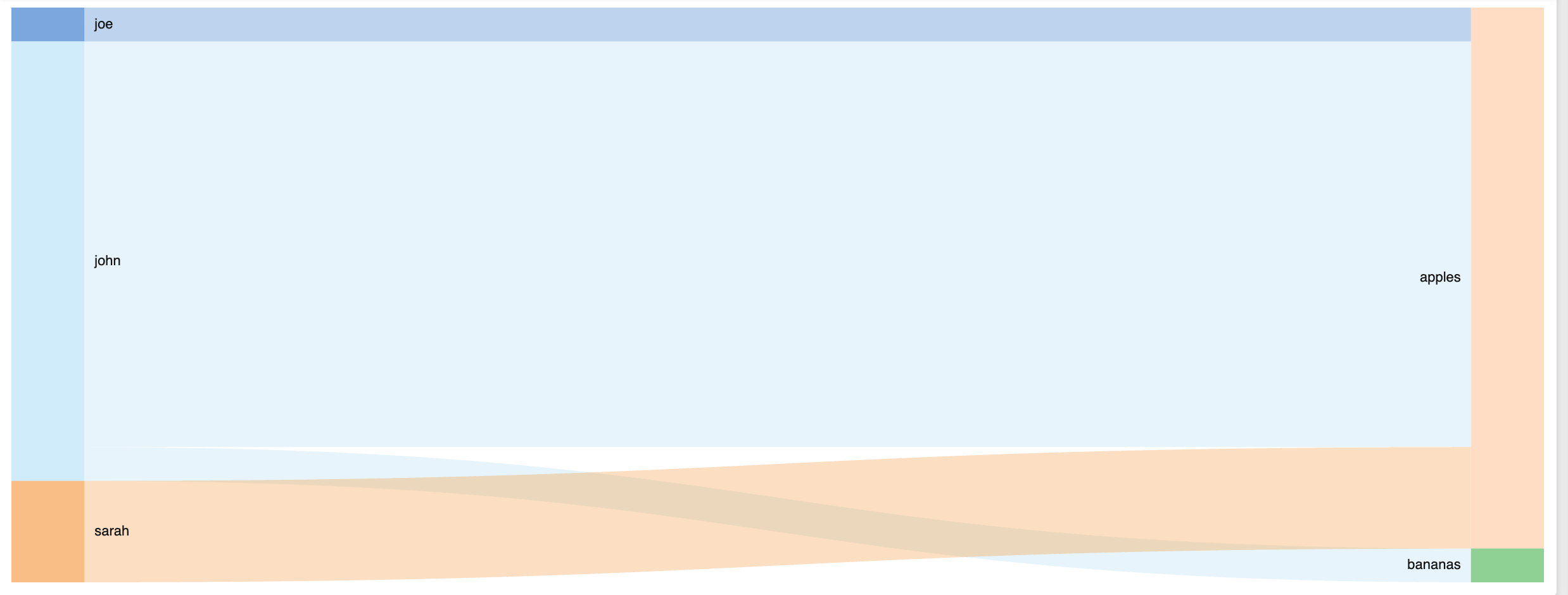

The query is used to create a Sankey diagram showing the sources on the
left side (john, joe, sarah), and the targets on the right side (apples,
bananas), and then display the edge thickness using the
weight parameter. In this
example, the thickest edge is john → apples
(12), the medium edge is sarah → apples
(3), and the thin edges are joe → apples
(1) and john → bananas (1).
The query is useful for rendering results as a two-level Sankey diagram and visualize flow relationships between nodes. It shows proportional relationships between data categories.
Sample output from the incoming example data:
| source | target | weight |
|---|---|---|
| joe | apples | 1 |
| john | apples | 12 |
| john | bananas | 1 |
| sarah | apples | 3 |
 |
