Adding & Removing Fields

To optimize the data visualized you can select which of the result fields should be displayed or hidden.

Fields can be added/removed from both the Fields panel and the Tool panel under Search. From the Tool panel you can add formatting to the field as well.

Fields Panel

  1. Run a query as explained in Writing a New Query.

  2. In the Fields panel, click the + or - signs next to each field (see Figure 53, “Fields Panel”):

    • + adds the field to the currently displayed result.

    • - removes the field from the currently displayed result.

Note

By default, LogScale displays fields coming from 200 events at most. You can display more data by clicking Fetch more.

From the Fields panel, you can also click on a field name and get quick access to filtering options:

  • ⊜ — Match value in query

  • — Exclude value in query

Tool Panel

  1. Run a query as explained in Writing a New Query.

  2. From the Tool panel, click the Format Event List icon (the brush) to expand it.

    Expanding the Format Event List Panel

    Figure 57. Expanding the Format Event List Panel


  3. The Format event list panel, that appears when clicking the Format Event List icon (the brush), stands as a separate area on the right-hand side of the User Interface and shows only the fields added as columns in the Event list.

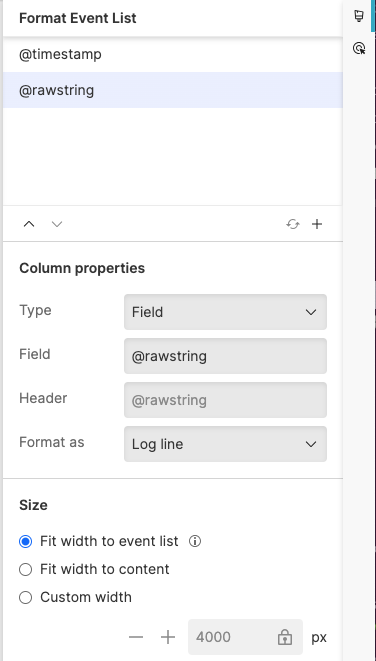

    Format Event List Panel

    Figure 58. Format Event List


    From here, click + to add a new column in the Event list and format the field accordingly.

    Clicking - removes the field from the currently displayed result. See Column Properties.

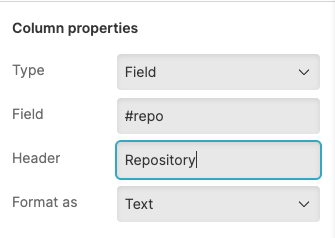

    Adding a New Field from the Format Event List Panel

    Figure 59. Adding a New Field from the Format Event List Panel


Reset to default results

Click the 🔄 icon in the Fields panel (Figure 53, “Fields Panel”) to reset and remove any fields recently added and display the default results only.
