Creating a Parser
Security Requirements and Controls
Change parsers
permission
A parser consists of a script, plus a few related settings. The parser script is the main part of the parser, as this defines how a single incoming event is transformed before it becomes a searchable event. LogScale has built-in parsers for common log formats like accesslog.
Note
The goal for a parser script is to extract the correct timestamp from the incoming event and set fields that you want to use frequently in your searches.
The following diagram provides an overview of where parsers fit in the configuration flow to ingest data using LogScale.
Figure 43. Flow
If you have checked the available options for parsers to select, and found that you would like to create your own (or edit an existing one perhaps), then this guide will help you understand how to do so best.
Creating a New Parser
This section describes how to create a parser from scratch.

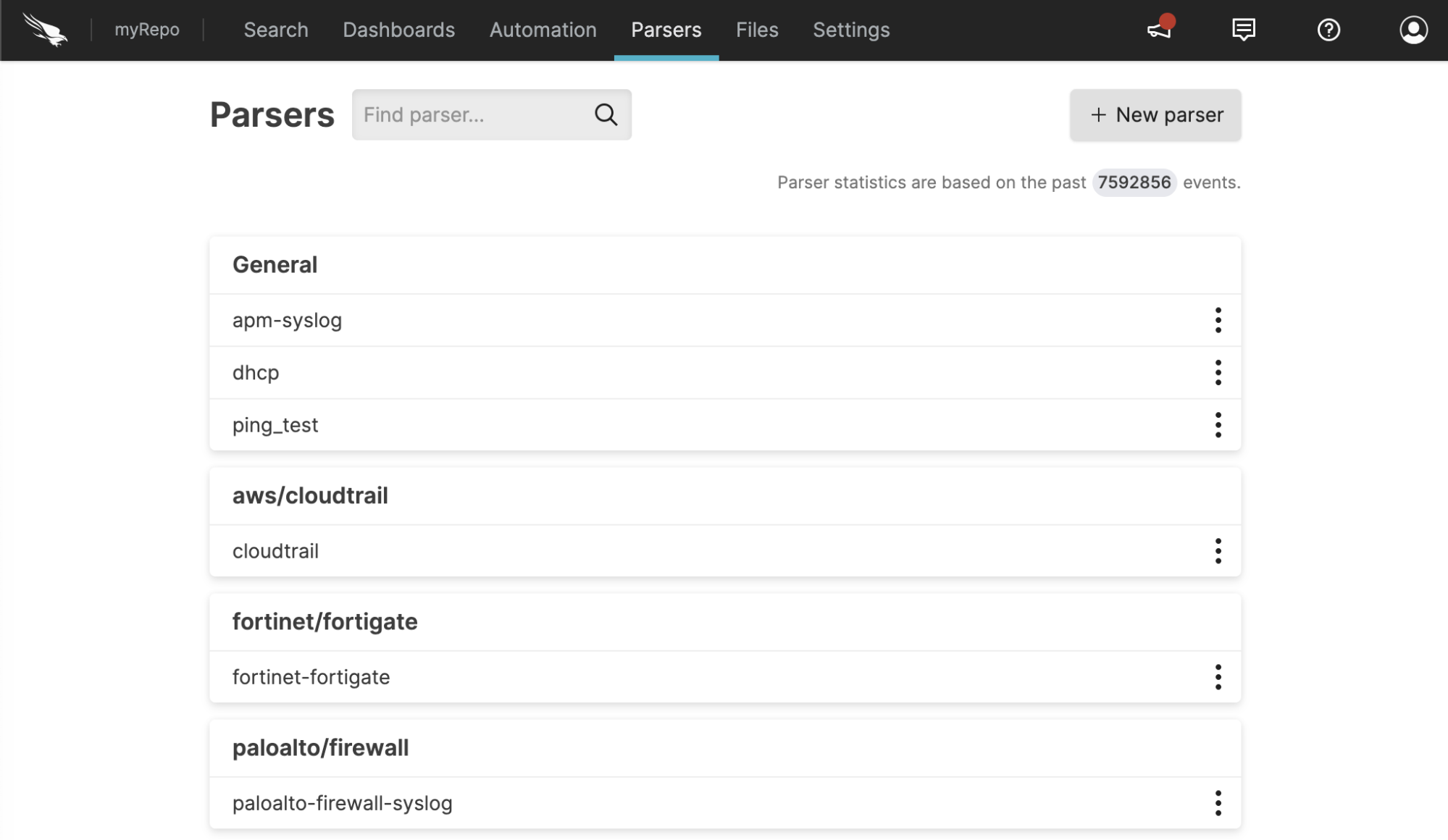

Figure 44. Parser Overview
Go to
page and select the repository where you want to create a parser.Click Figure 44, “Parser Overview”.
to reach the parser overview, and then click , seeIn the New parser dialog box, enter a name for you parser: only alphanumeric characters, underscore and hyphen are allowed, and the name must be unique inside the repository.
Select how to create the parser:
Empty Parser – Select Empty parser and click .
Clone Existing – Select Duplicate existing, select a parser from the Duplicate Template list and click .
From Template – Select From template, browse for or drag and drop a parser and click .
From Package – Select From package and click .
Clicking write a script for the parser.
will open a code editor where you can
Writing a Parser
Once you have created your parser, you will be presented with a code editor.
Figure 45. Writing a Parser
Parser Editor - a simple parser and two test cases.
The programming language used for creating a parser is the same as you use to write queries on the search page.
Important
The main difference between writing a parser and writing a search
query is that you cannot use aggregate functions like
groupBy()
, as the parser acts on one event at a
time.
The input data is usually log lines or JSON objects, but could be any text format like a stack trace or CSV.
When sending data to LogScale, the text string for the input is put in the field @rawstring. Depending on how data is shipped to LogScale, other fields can be set as well. For example when sending data with Filebeat, the fields @host and @source will also be set. And it is possible to add more fields using this log shipper.
Using the Parser Code Editor
The editor allows you to create and edit parsers code and run test for your parsers.
To access the editor go to create a new parser. The code editor is displayed.
and select an existing parser from the list or click toWrite the script for your parser or edit an existing parser in the Parser script area, see the following for examples:
Click
to save your changes.Optionally, you can to add a test click.
or the ellipsis button to export or duplicate the parser.
Creating an Event from Incoming Data
The parser converts the data in @rawstring into an event. That means the parser should:
Assign the special @timestamp and @timezone fields.
Extract additional fields that should be stored along with your event.
Let's take a look at a couple of parsers to understand how they work.
Example: Parsing Log Lines
Assume we have a system producing logs like the following two lines:
2018-10-15T12:51:40+00:00 [INFO] This is an example log entry. id=123 fruit=banana
2018-10-15T12:52:42+01:30 [ERROR] Here is an error log entry. class=c.o.StringUtil fruit=pineapple
We want the parser to produce two events (one per line) and use the timestamp of each line as the time at which the event occurred; that is, assign it to the field @timestamp, and then extract the "fields" which exist in the logs to actual LogScale fields.
To do this, we will write a parser, and we'll start by setting the correct timestamp. To extract the timestamp, we need to write a regular expression like the following:
@rawstring = /^(?<temp_timestamp>\S+)/
| parseTimestamp("yyyy-MM-dd'T'HH:mm:ss[.SSS]XXX", field=temp_timestamp)
| drop(temp_timestamp)
This creates a field named temp_timestamp using a "named group" in the regular expression, which contains every character from the original event up until the first space, i.e. the original timestamp. The regular expression reads from the @rawstring field, but it doesn't modify it; it only copies information out.
With the timestamp extracted into a field of its own, we can call parseTimestamp() on it, specifying the format of the original timestamp, and it will convert that to a UNIX timestamp and assign it to @timestamp for us. With @timestamp now set up, we can drop temp_timestamp again, as we have no further need for it.
In addition to the timestamp, the logs contain more information. Looking at the message
2018-10-15T12:51:40+00:00 [INFO] This is an example log entry. id=123 fruit=banana
We can see:
The log level
INFO
The message
This is an example log entry
The id
123
The fruit
banana
To extract all of this, we can expand our regular expression to something like:
/^(?<temp_timestamp>\S+) \[(?<logLevel>\w+)\] (? <message>.*?)\. (?<temp_kvPairs>.*)/
The events will now have additional fields called logLevel (with value
INFO
) and message (with value
This is an example log entry
), which we
can use as is. The event also has a
temp_kvPairs field, containing
the additional fields which are present after the message i.e.
id=123 fruit=banana
. So we still need to
extract more fields from
temp_kvPairs, and we can use the
kvParse()
function for that, and drop
temp_kvPairs once we are
finished.
As a result, our final parser will look like this:
@rawstring = /^(? <temp_timestamp>\S+) \[(? <logLevel>\w+)\] (? <message>.*?)\. (? <temp_kvPairs>.*)/
| parseTimestamp("yyyy-MM-dd'T'HH:mm:ss[.SSS]XXX", field=temp_timestamp)
| drop(temp_timestamp)
| kvParse(temp_kvPairs)
| drop(temp_kvPairs)
Example: Parsing JSON
We've seen how to create a parser for unstructured log lines. Now let's create a parser for JSON logs based on the following example input:
{
"ts": 1539602562000,
"message": "An error occurred.",
"host": "webserver-1"
}
{
"ts": 1539602572100,
"message": "User logged in.",
"username": "sleepy",
"host": "webserver-1"
}
Each object is a separate event and will be parsed separately, as with unstructured logs.
The JSON is accessible as a string in the field
@rawstring. We can extract fields from the JSON by
using the parseJson()
function. It takes a field
containing a JSON string (in this case @rawstring)
and extracts fields automatically, like this:
parseJson(field=@rawstring)
| @timestamp := ts
This will result in events with a field for each property in the input
JSON, like username and
host, and will use the value of
ts as the timestamp. As
ts already has a timestamp in
the UNIX format, we don't need to call
parseTimestamp()
on it.
Named Capture Groups
LogScale extracts fields using named capture
groups
— a feature of regular expressions that allows you
to name sub-matches, for example:
/(?<firstname>\S+)\s(?<lastname>\S+)/
This defines a regex that expects the input to contain a first name and a last name. It then extracts the names into two fields firstname and lastname. The \S means any character that is not a whitespace and \s is any whitespace character.
Next Steps
Once you have your parser script created you can start using it by Ingest Tokens.
You can also learn about how parsers can help speed up queries by Event Tags.
