Advanced
The advanced reference architecture section provides a visual representation through a comprehensive diagram illustrating the sophisticated deployment model. The diagram showcases the advanced architectural components and their relationships within the OCI environment.
Advanced use cases include:
Dedicated processing tier (ingestion) scaling separate from digest/storage
Dedicated UI tier for dashboards and search
Segmentation of system responsibilities and independent scaling

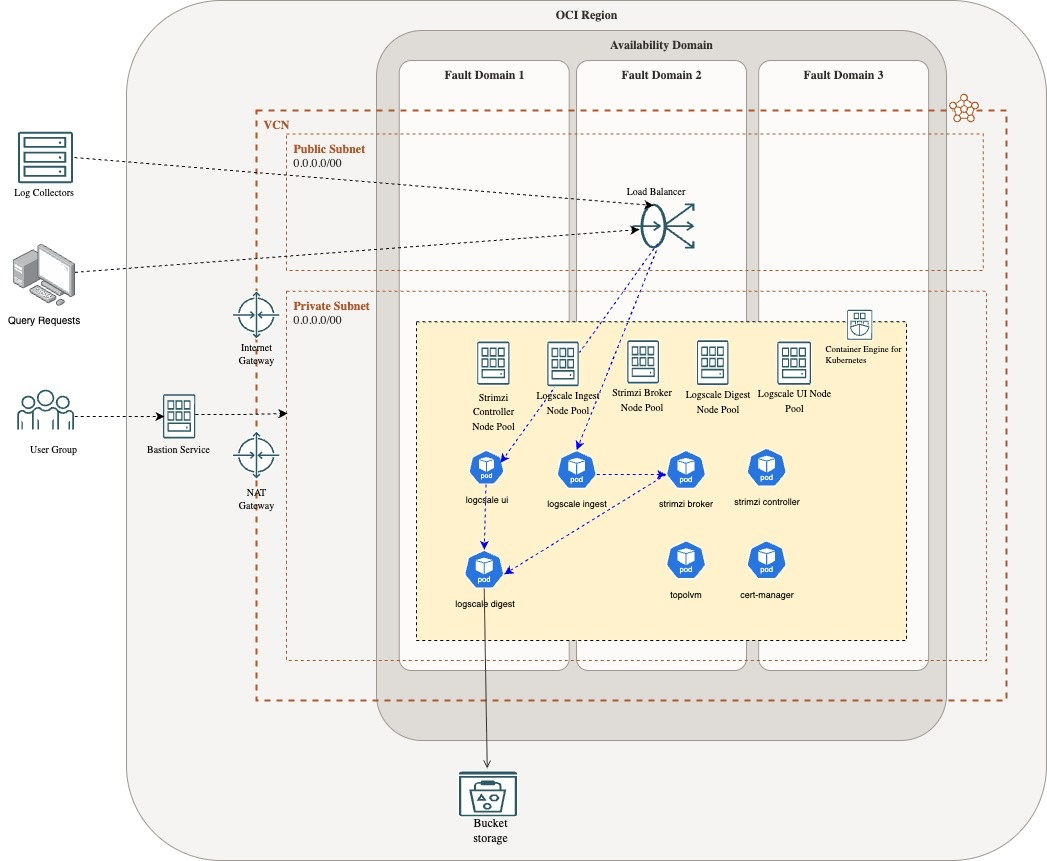

The advanced reference architecture is shown in the following diagram:
 |
