Failover Function Security

The DR failover Azure Function is secured with multiple layers:

  1. Azure Function Failover Chain

  2. Security Architecture

  3. Security Controls

  4. Function App Outbound IPs and AKS Access

These are described in the following sections.

Azure Function Failover Chain
Azure DR - Function Failover Chain

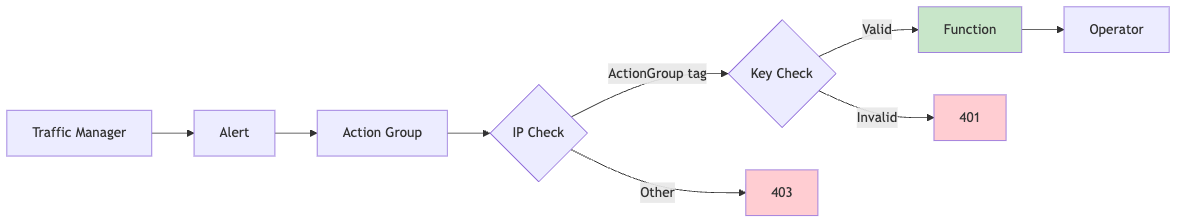

Security architecture
Azure DR - Security Architecture
Security controls
Layer Control Configuration Purpose
Network IP Restriction ip_restriction_default_action = "Deny" Deny all traffic by default
Network Service Tag Allow service_tag = "ActionGroup" Only Azure Monitor Action Groups
Transport HTTPS Only https_only = true Enforce encrypted connections
Transport TLS 1.2 Minimum minimum_tls_version = "1.2" Prevent downgrade attacks
Application Function Key auth_level = FUNCTION Require function key in URL
Function App Outbound IPs and AKS Access

When AKS is configured with authorized IP ranges, the Function App's outbound IPs must be included. This is handled automatically by Terraform.

Troubleshooting Function App connectivity

If the Function App logs show connection timeout errors:

text
Connection to <aks-cluster>.hcp.<region>.azmk8s.io timed out

Verify the function's outbound IPs are in the AKS authorized ranges:

shell
# Get Function App outbound IPs
az functionapp show \
  --name <function-app-name> \
  --resource-group <rg-name> \
  --query "possibleOutboundIpAddresses" -o tsv | tr ',' '\n'

# Get AKS authorized IP ranges
az aks show \
  --name <aks-cluster-name> \
  --resource-group <rg-name> \
  --query "apiServerAccessProfile.authorizedIpRanges" -o tsv
