Column Properties
Fields in the Event List can be configured in the Format Panel (see Figure 56, “Format Event List Panel”). You can set the following Column properties.
Type, options are:
To use field interpolation, write two sets of curly braces (one nested in the other), and write fields
["nameOfField"]
inside, like this:https://internal-tool/customers/{{fields["customerId"]}}
. This creates a unique link for every value ofcustomerId
.The same mechanism can also be used to generate the text for the link, if you would like a different text than the raw URL to show as the link.

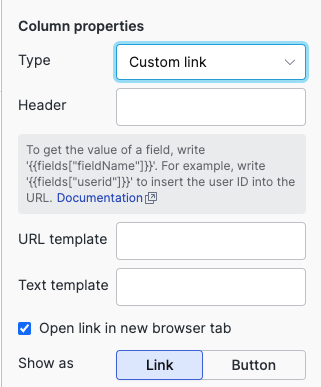

Figure 63. Adding a New Custom Link Column
Group fields by prefix option to organize data that share a prefix into a tree-structure. A prefix is any string followed by a dot in the field name, as
is used to format all fields in an event as a list of key-value pairs. Select theactor
inactor.ip
andactor.organizationId

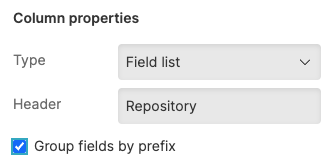

, for instance.Figure 64. Group a field list by prefix
In the example here below, all fields prefixed with
actor.
anduser.

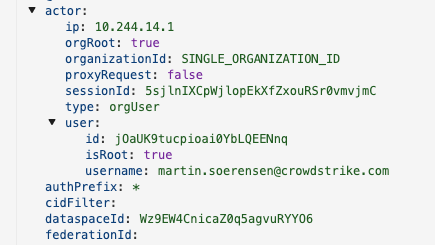

will be grouped in a tree that can be expanded or collapsed.Figure 65. Field List as shown in the Event List
Header is the custom field name you want to see displayed in the Event List.
Open link in new browser tab checkbox.
Show as controls whether the link should be displayed as a link or a button.
