The humio-audit repository contains audit events for
the LogScale cluster. Reporting on this information can provide a
wealth of information, but a useful summary can be created based
on the activities, users and which the latest user of that
particular operation.
The first step to creating a pivot table is the base query
that will create the initial summary of the information. In
this fragment, a nested groupBy()
aggregation. The embedded aggregation creates a group of the
maximum access time for a given user, by using
max() on the
@timestamp against the
actor.user.id.
This creates a table of the last event by the user. The outer
groupBy() then creates an aggregation of
this maximum user time against the
type which
defines the operation performed.
The result is a table of the last user and time for a specific
operation; for example, the last time a query was executed. An
example of this table can be seen below:
type
actor.user.id
_max
alert.clear-error
0O7WGPBX9YbvZbKOrBMd5fgH
1700546666592
alert.create
0O7WGPBX9YbvZbKOrBMd5fgH
1699004139419
alert.update
0O7WGPBX9YbvZbKOrBMd5fgH
1700546666676
dashboard.create
0O7WGPBX9YbvZbKOrBMd5fgH
1698417330709
dataspace.query
0O7WGPBX9YbvZbKOrBMd5fgH
1700721296197
logscale
|transpose(header=type)
The transpose() will convert individual
columns into rows, switching the orientation. For example, the
type column will now
become the type row.
However, there are no row titles, so the title for the
resulting table will by default create a header row containing
the column and row numbers, like this:
column
row[1]
row[2]
row[3]
row[4]
row[5]
_max
1700546666592
1699004139419
1700546666676
1698417330709
1700722209214
actor.user.id
0O7WGPBX9YbvZbKOrBMd5fgH
0O7WGPBX9YbvZbKOrBMd5fgH
0O7WGPBX9YbvZbKOrBMd5fgH
0O7WGPBX9YbvZbKOrBMd5fgH
0O7WGPBX9YbvZbKOrBMd5fgH
type
alert.clear-error
alert.create
alert.update
dashboard.create
dataspace.query
However, the aggregate grouping,
type could be used
instead as a valid header for each column. To achieve that,
use the header
parameter to specify
type as the column.
The resulting table now looks like this:
alert.clear-error
alert.create
alert.update
column
dashboard.create
dataspace.query
1700546666592
1699004139419
1700546666676
_max
1698417330709
1700722210073
0O7WGPBX9YbvZbKOrBMd5fgH
0O7WGPBX9YbvZbKOrBMd5fgH
0O7WGPBX9YbvZbKOrBMd5fgH
actor.user.id
0O7WGPBX9YbvZbKOrBMd5fgH
0O7WGPBX9YbvZbKOrBMd5fgH
logscale
|drop(column)
The table created contains the summarized information pivoted
around the user ID and last event time further summarized by
the type of the event. However, there is a column in the
table, column, which
is now a field in the event stream that was generated from the
old row before the table was pivoted.
That column can be removed by dropping the
column field from the
event using drop() to remove the column
from the events.
Event Result set.
Summary and Results
Pivoting an event set of data allows for the information to be
displayed and summarized in a format that may make more logical
sense as a display format. The final table will look like this:
alert.clear-error
alert.create
alert.update
dashboard.create
dataspace.query
1700546666592
1699004139419
1700546666676
1698417330709
1700722210073
0O7WGPBX9YbvZbKOrBMd5fgH
0O7WGPBX9YbvZbKOrBMd5fgH
0O7WGPBX9YbvZbKOrBMd5fgH
0O7WGPBX9YbvZbKOrBMd5fgH
0O7WGPBX9YbvZbKOrBMd5fgH
Transpose a Basic Table
Transposing an event set effectively switches rows (each event) into columns (an event)
By transposing event set, the information can be viewed and
summarized in a more human readable form. Transposing also allows
for aggregated data to be viewed in a form where the value of an
aggregated field becomes the columns. This can be used to
summarize the information further by showing multiple rows of
data. For example, in the humio repository the event
information contains a list of errors, warnings, or informational
events for activity within the cluster.
Step-by-Step
Starting with the source repository events.
logscale
groupBy([loglevel])
Aggregates the lows by the loglevel. This field will either be
WARN,
ERROR or
INFO depending on the
level of the event log entry. The default function is used,
which results in a count in the number of times an event of
this type has been seen:
loglevel
_count
ERROR
27424
INFO
18840156
WARN
2059898
In this output, each event is a row in the table, each with
two fields, loglevel
and _count.
logscale
|transpose(header=loglevel)
Transposing the events within the
transpose() will make each field in each
event a row in the new stream of events, for example, the
loglevel field with
the value ERROR will
become the field
ERROR, swapping the
rows for columns. By using the
header
parameter, transpose() uses the value of
the aggregated field as the fieldname. The output will now be
a table with a column (field) for each value, and a single row
with the count:
ERROR
INFO
WARN
column
97159
63719404
5716733
_count
logscale
|drop(column)
In the final output, the
column field in the
events is the one generated from the field names of the original
events and it's not needed, so it can be removed by using the
drop() function to remove the field from
the event set.
Event Result set.
Summary and Results
The transpose() is a great way of
reorganizing data into a format is either more readable, or
easily applied to other display formats as part of a widget. The
final table looks like this:
ERROR
INFO
WARN
97159
63719404
5716733

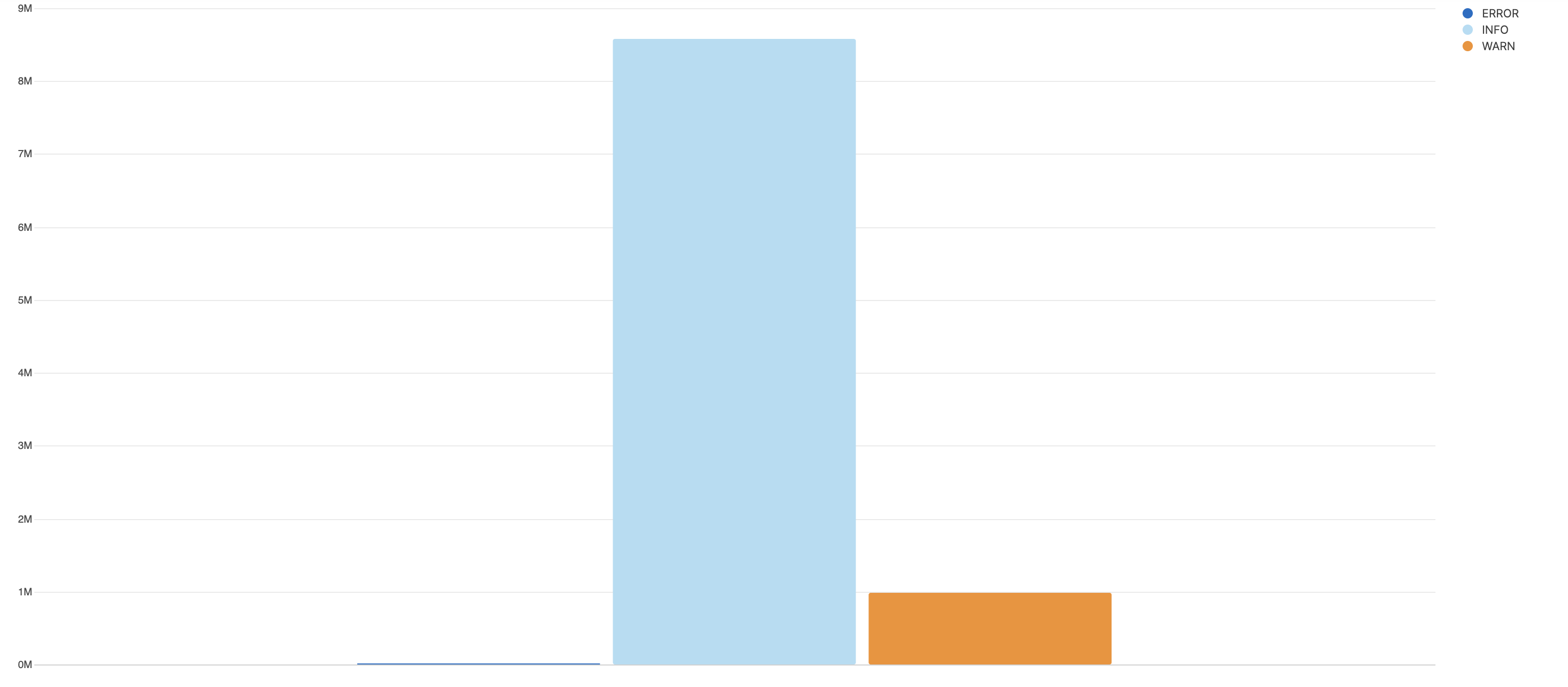

However, the information as it is now formatted can more easily
be applied to a variety of visualizations. For example, the data
can be formatted as a bar chart, as we now have a list of fields
and a value:
The difference is that without transpose(),
the aggregate result set is a list of events with a field name
and value. With transpose(), the result set
is a single event with multiple fields, and this is interpreted
by the bar chart as a series of values.
