Split an event structure that includes an array into multiple distinct events with each array element.
When LogScale ingests data into arrays, each array entry
is turned into separate attributes named
[0]
,
[1]
,
...
This function takes such an
event and splits it into multiple events based on the prefix of
such [N] attributes, allowing for aggregate functions across
array values.
When the function is called, each split event generated is given a unique index ID in the _index field. This can be used to identify the individual event.
If the event data includes an @id field,
then the @id field is split into multiple
fields to identify each array element, with the string
__
and the index number appended. For
example, given the input record:
"@id=1", "a=[1,2,3]" |
When executing:
split(a)
Generates the following events:
@id | _index | a |
---|---|---|
1__0 | 0 | 1 |
1__1 | 1 | 2 |
1__2 | 2 | 3 |
Note
The split()
function is not very
efficient, so it should only be used after some aggressive
filtering.
split()
Examples
In GitHub events, a PushEvent contains an array of commits,
and each commit gets expanded into subattributes of
payload.commit_0,
payload.commit_1,
.... LogScale
cannot sum/count, etc. across such attributes.
split()
expands each
PushEvent
into one
PushEvent
for each commit so
they can be counted.
type=PushEvent
| split(payload.commits)
| groupBy(payload.commits.author.email)
| sort()
There might be a case where your parser is receiving JSON events in a JSON array, as in:
[
{"exampleField": "value"},
{"exampleField": "value2"}
]
In this case, your @rawstring text contains this full array, but each record in the array is actually an event in itself, and you would like to split them out.

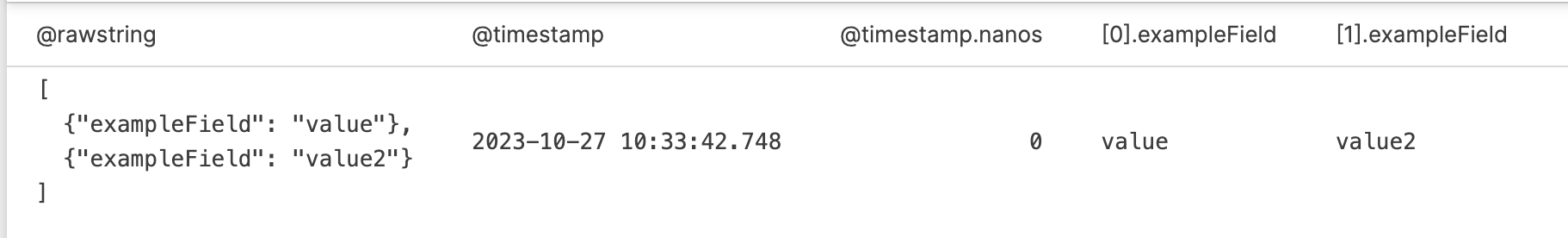

First you need to call parseJson()
, but
when @rawstring contains an array, the
parseJson()
function doesn't assign names
to the fields automatically, it only assigns indexes. In other
words, calling parseJson()
adds fields
named something like
[0].exampleField
,
[1].exampleField
, etc. to the
current event.
![]() |
Since split()
needs a field name to
operate on before it reads indexes, it seems like we can't
pass it anything here. But we can tell
split()
to look for the empty field name
by calling split(field="")
.
This means that parsing the above with:
parseJson()
| split(field="")

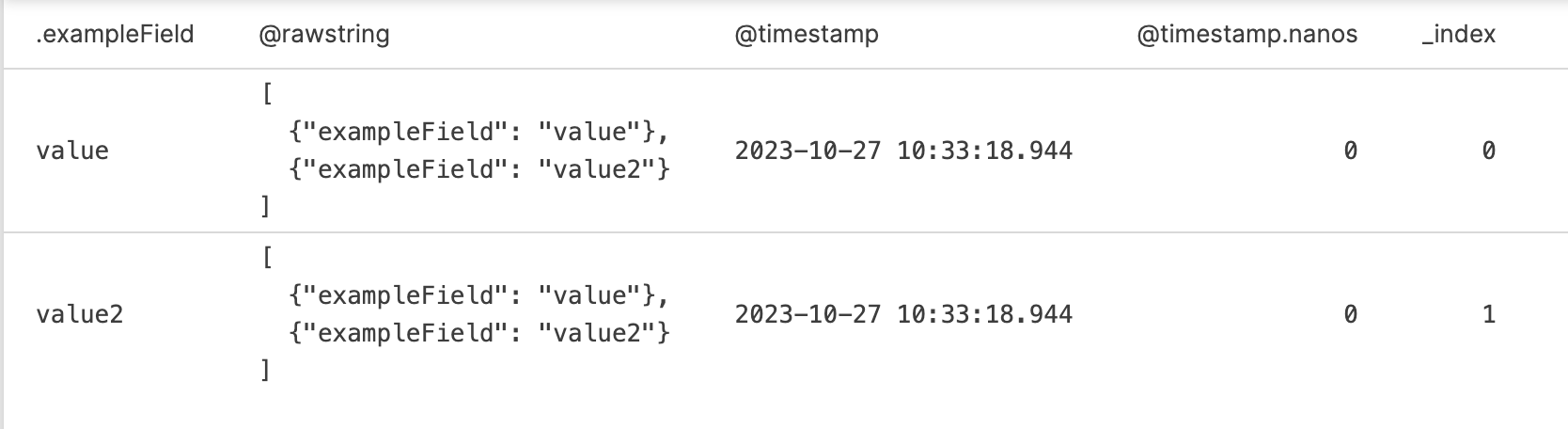

will produce two events, each with a field named
exampleField, and with
an additional field,
_index containing the
index (count) of the original data so that each individual
split()
event can be identified:
![]() |
Alternatively, we can tell parseJson()
to
add a prefix to all the fields, which can then use as the
field name to split on:
parseJson(prefix="example")
| split(field="example")
Unfortunately this adds the
example
prefix to all fields
on the new event we've split out, so you may prefer splitting
on the empty field name to avoid that.
