Lookup Files

Security Requirements and Controls

Lookup files are used to add additional context to data, enabling you to attach or replace text from events recorded in a repository when searched.

To add a lookup file, create or import a CSV (comma-separated value) or JSON file and upload it to the repository.

These files can be used together with query functions to provide lookups and matching using the match() function.

The following operations are available:

For information on how Lookup files interact with the rest of the system, see Lookup Files Operations.

Supported File Types and Formats

LogScale supports two different file formats for uploaded lookup files. JSON and CSV.

  CSV Files JSON Files
Viewable within LogScale UI Yes No
Editable within LogScale UI Yes No
File Size Limit 200MB 100MB

Lookup Files using CSV Format

When using CSV for lookup files, the following rules apply:

  • Individual fields should be separated by a comma (,)

  • Whitespace is always included in the imported fields, the input takes the literal contents split by the comma character.

  • Fields can optionally be quoted by double quotes, for example to include commas in the imported values.

  • The first line of the CSV is interpreted as the column header and can be used as the field name when looking up values with functions like match().

For example, the CSV file:

csv
number,code,description
17,udp,UDP
80,http,HTTP Service
ip,"Internet Protocol, pseudo protocol"

Would be interpreted as:

numbercodedescription
17udpUDP
80httpHTTP Service
ipInternet Protocol, pseudo protocol

CSV files can be viewed within the Files interface to confirm how the information has been interpreted.

Lookup Files using JSON Format

When using JSON files, two different formats are supported, object-based and array-based.

Important

Once uploaded, JSON files cannot be viewed or updated. They can be exported to confirm the file format.

  • Object-based

    In the object-based format, the JSON should be formatted as a hash or associative array, with a single key and corresponding object. For example:

    json
    {
  "1": { "name": "chr" },
  "2": { "name": "krab" },
  "4": { "name": "pmm" },
  "7": { "name": "mgr" }
}

    When performing a lookup, match() will return the object (as an event with multiple fields), based on the matching key.

  • Array-based

    In the array-based format, the JSON should be formatted as an array of objects. In this model, the keys for each individual object become fields that can be matched when performing a lookup. For example, in the file:

    json
    [
  { "userid": "1", "name": "chr" },
  { "userid": "2", "name": "krab" },
  { "userid": "4", "name": "pmm" },
  { "userid": "7", "name": "mgr" }
]

    The userid and name fields in the JSON object can be used to lookup and return other key/value pairs as event fields/values. For example, the fragment:

    logscale Syntax
    ...
| match(file="long.json",field=codename,column="name")

    Would return the userid field for objects within the lookup file array.

For both formats, the following common apply:

  • JSON must be formatted in strict notation format. This requires no trailing commas (where there is no additional value),

  • Individual keys and values should be quoted, even as a number.

Important

Nested objects, that is an object within the returned object, are not supported. For example:

Invalid Example for Demonstration - DO NOT USE
json
{
  "1": { "name": "chr", "roles": { "user" : true }},
  "2": { "name": "krab" },
  "4": { "name": "pmm" },
  "7": { "name": "mgr" }
}

Would return only the simple field, name when used with match(); the remainder of the embedded object would be not be returned or included in the events. LogScale does not reject files in this format.

Create a File

  1. Click Files → + New File → Create New.

  2. Specify a name for the file and then select either + Empty File to create an empty file to populate or From Package to use a template from a previously installed package.

  3. Click Create file.

  4. If you've created an empty file, click + to add rows and columns.

  5. Click Save to save the changes.

If you have many changes to make, editing a data table through the Files interface page can be tedious: click Export and then edit the table in a spreadsheet program or a simple text editor.

Note

Files larger than 100 MB cannot be viewed in the UI.

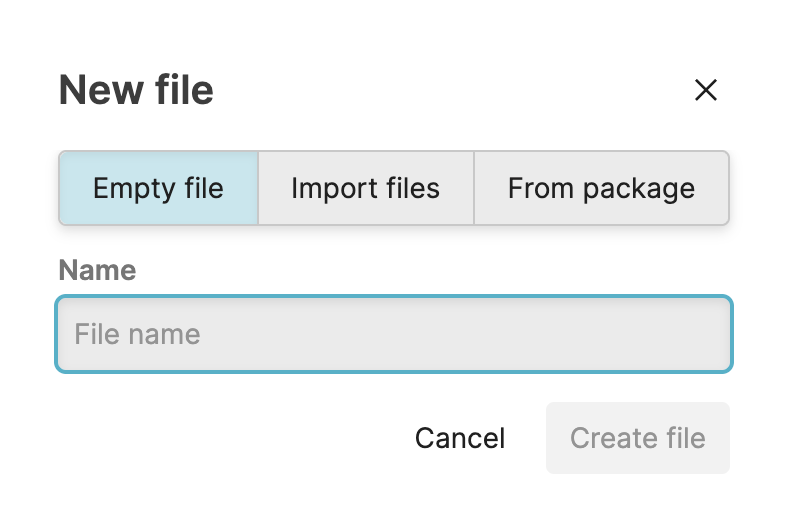

Create New CSV File

Figure 33. Create New CSV File

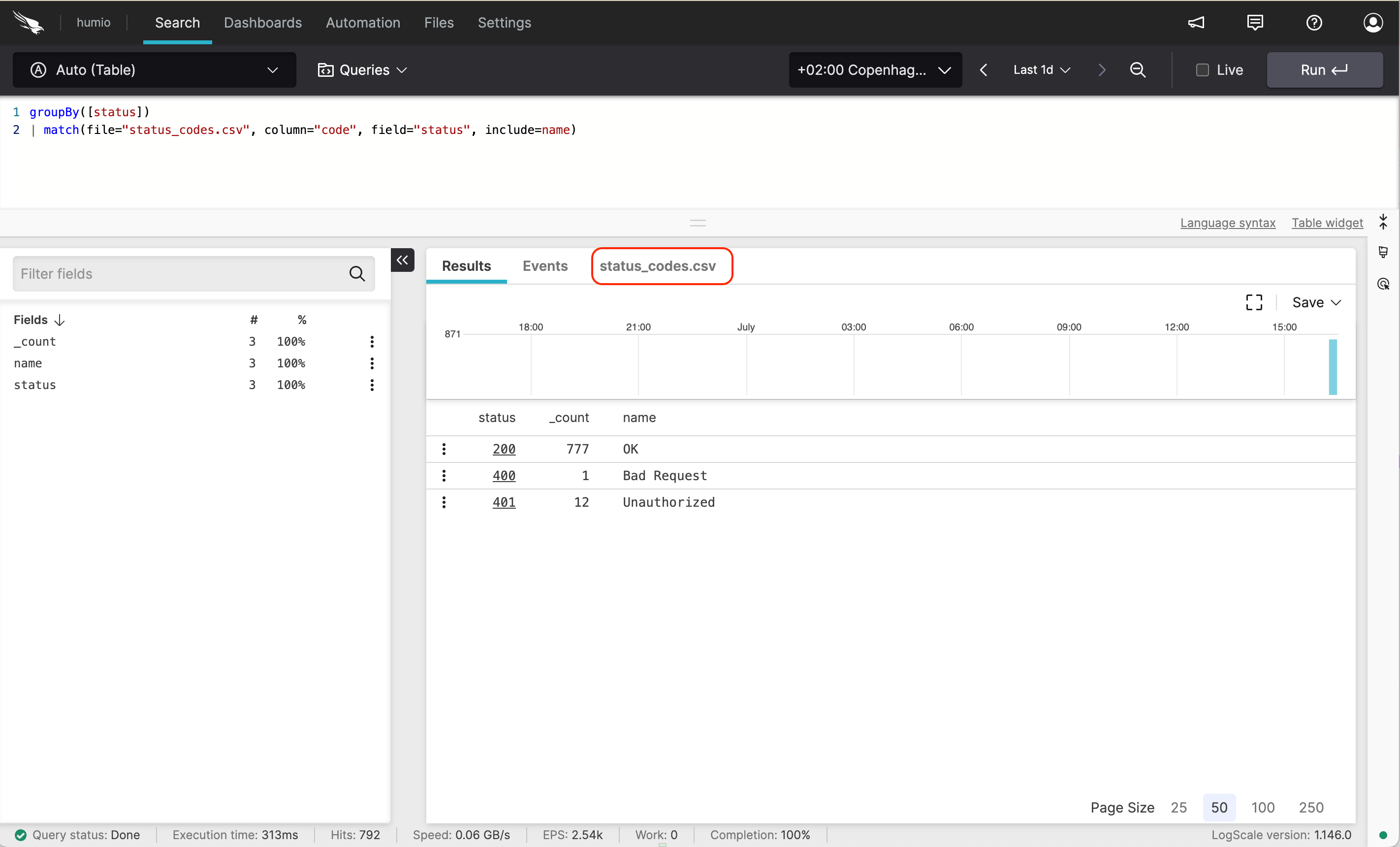

File Tab in Search View

Figure 34. File Tab in Search View


Upload Files

  1. Go to the Files interface → + New file → Import files.

  2. Drag and drop your file or browse for the file to upload.

    You can upload a CSV file containing text like what you see below, which is essentially a lookup table that you can use for labels or value lookups.

    csv
    userid,ip,username,region
1,"212.12.31.23","pete","EU"
2,"212.12.31.231","bob","EU"
3,"98.12.31.21","anders","EU"
4,"121.12.31.23","jeff","US"
5,"82.12.31.23","ted","AU"
6,"62.12.31.23","annie","US"
7,"122.12.31.23","joe","CH"
8,"112.11.11.21","alice","CH"
9,"212.112.131.22","admin","RU"
10,"212.12.31.23","wendy","EU"

    Once it has been uploaded, it will look like what you see in figure below.

    Import CSV File

    Figure 35. Import CSV File


    Typically, the content is used within the match() to lookup fixed reference information. Notice that the values are in quotes, except for the ones for userid, which are integers. See the Lookup API reference page for more information on this topic.

  3. Once created of uploaded, the file can be edited and updated withing the user interface. Additional columns and rows can be added to the file using the + button. Clicking the tiny information icon next to the file name displays metadata info about the file (created by, time it was created, etc.)

    Important

    Only CSV files can be edited once uploaded within the user interface.

  4. Once you have finished editing, click Save, or click Export if you wish to download the edited file.

Export or Delete a File

Files can be managed by clicking the menu icon next to each file. You can either export or delete a file:

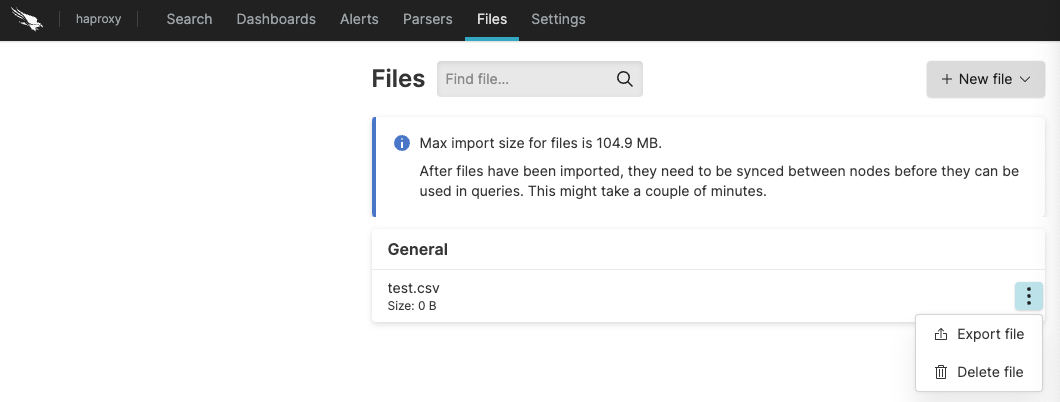

Manage CSV Files

Figure 36. Manage CSV Files


Lookup Files Operations

When using Lookup files and match() functionality, consider the following:

  • Lookup files use server memory proportional to the size of the file on disk; at least as much and typically more. If you have a 1Gb lookup file it will take up at least 1Gb of memory on some, potentially all, hosts within the cluster. This requirement should be taken into account when uploading and sizing the nodes within the cluster.

  • Up to version 1.89.0, LogScale maintains a copy of a file for each different query that uses it. Therefore, if you have 2 different queries using a 1G file then that will occupy at least 2G of memory.

  • Up to version 1.116, LogScale restarts all live queries and alert queries that use a file whenever the file is updated. If you don't update your files it makes little difference if you have many small or one large. If you do update your files then prefer to have fewer bigger files since many updates to small files leads to many query restarts.
