This section describes how to create a parser from scratch.

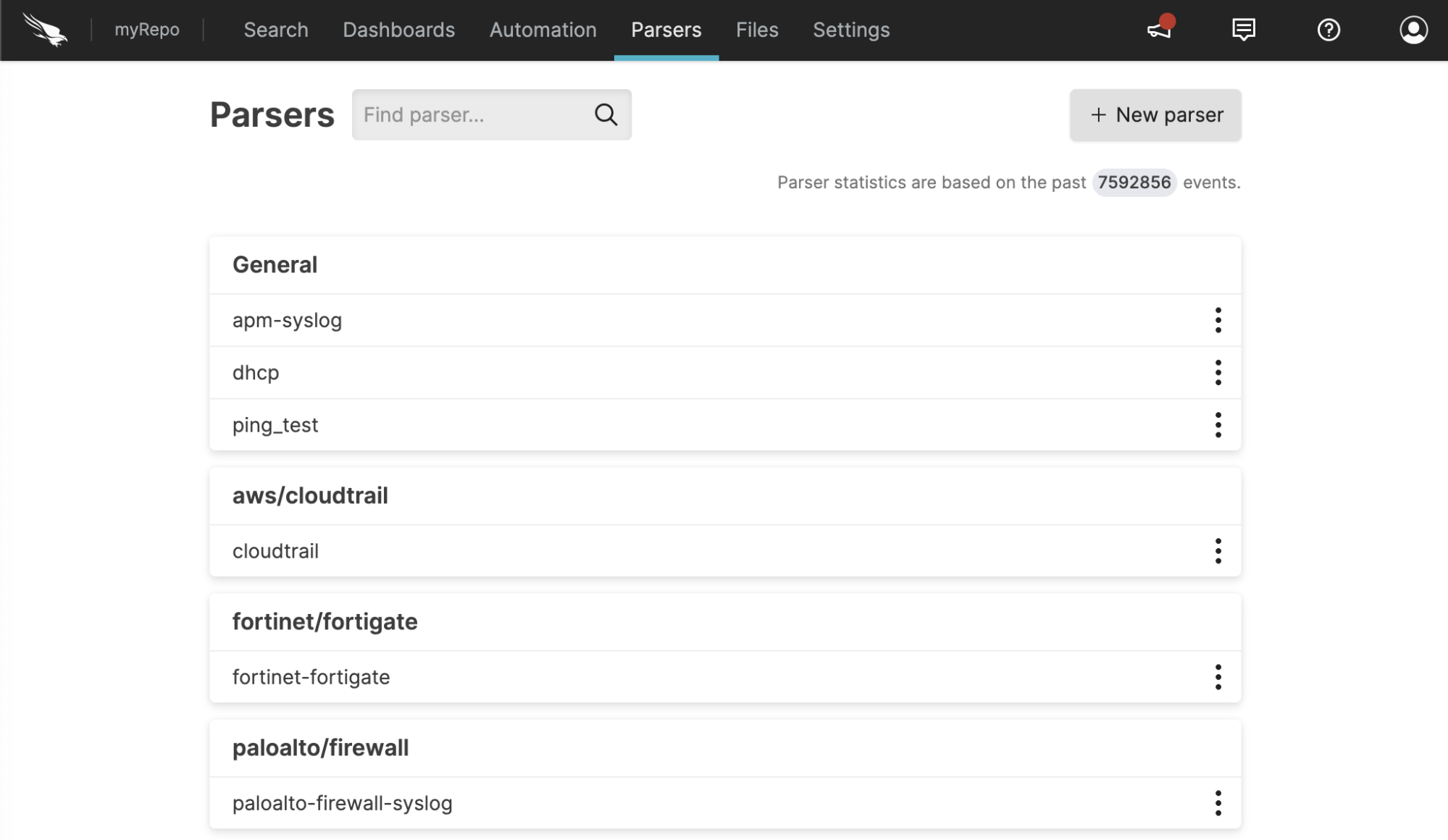

Figure 44. Parser Overview

Once you have created your parser, you will be presented with a code editor.

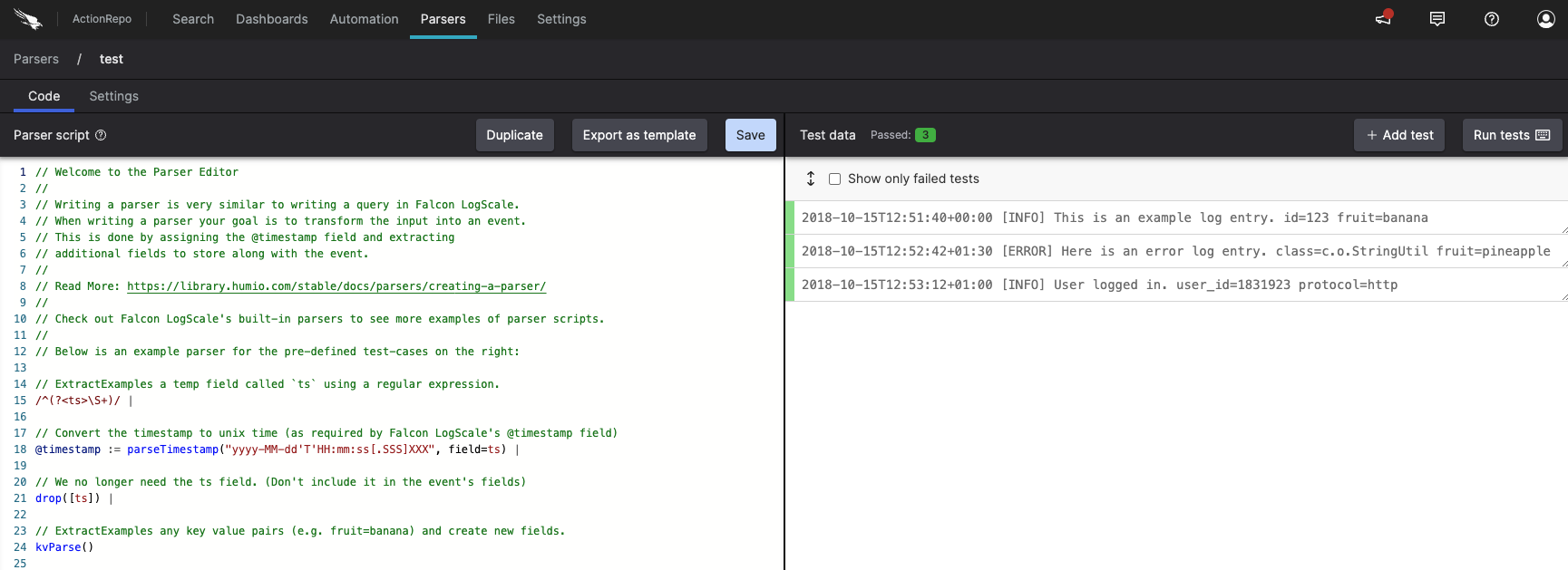

Figure 45. Writing a Parser

Parser Editor - a simple parser and two test cases.

The programming language used for creating a parser is the same as you use to write queries on the search page.

The input data is usually log lines or JSON objects, but could be any text format like a stack trace or CSV.

When sending data to LogScale, the text string for the input is put in the field @rawstring. Depending on how data is shipped to LogScale, other fields can be set as well. For example when sending data with Filebeat, the fields @host and @source will also be set. And it is possible to add more fields using this log shipper.

The parser converts the data in @rawstring into an event. That means the parser should:

Let's take a look at a couple of parsers to understand how they work.

Assume we have a system producing logs like the following two lines:

2018-10-15T12:51:40+00:00 [INFO] This is an example log entry. id=123 fruit=banana
2018-10-15T12:52:42+01:30 [ERROR] Here is an error log entry. class=c.o.StringUtil fruit=pineapple

We want the parser to produce two events (one per line) and use the timestamp of each line as the time at which the event occurred; that is, assign it to the field @timestamp, and then extract the "fields" which exist in the logs to actual LogScale fields.

To do this, we will write a parser, and we'll start by setting the correct timestamp. To extract the timestamp, we need to write a regular expression like the following:

@rawstring = /^(?<temp_timestamp>\S+)/
| parseTimestamp("yyyy-MM-dd'T'HH:mm:ss[.SSS]XXX", field=temp_timestamp)
| drop(temp_timestamp)

This creates a field named temp_timestamp using a "named group" in the regular expression, which contains every character from the original event up until the first space, i.e. the original timestamp. The regular expression reads from the @rawstring field, but it doesn't modify it; it only copies information out.

With the timestamp extracted into a field of its own, we can call parseTimestamp() on it, specifying the format of the original timestamp, and it will convert that to a UNIX timestamp and assign it to @timestamp for us. With @timestamp now set up, we can drop temp_timestamp again, as we have no further need for it.

In addition to the timestamp, the logs contain more information. Looking at the message

2018-10-15T12:51:40+00:00 [INFO] This is an example log entry. id=123 fruit=banana

We can see:

To extract all of this, we can expand our regular expression to something like:

/^(?<temp_timestamp>\S+) \[(?<logLevel>\w+)\] (? <message>.*?)\. (?<temp_kvPairs>.*)/

The events will now have additional fields called logLevel (with value INFO) and message (with value This is an example log entry), which we can use as is. The event also has a temp_kvPairs field, containing the additional fields which are present after the message i.e. id=123 fruit=banana. So we still need to extract more fields from temp_kvPairs, and we can use the kvParse() function for that, and drop temp_kvPairs once we are finished.

As a result, our final parser will look like this:

@rawstring = /^(? <temp_timestamp>\S+) \[(? <logLevel>\w+)\] (? <message>.*?)\. (? <temp_kvPairs>.*)/
| parseTimestamp("yyyy-MM-dd'T'HH:mm:ss[.SSS]XXX", field=temp_timestamp)
| drop(temp_timestamp)
| kvParse(temp_kvPairs)
| drop(temp_kvPairs)

We've seen how to create a parser for unstructured log lines. Now let's create a parser for JSON logs based on the following example input:

{
  "ts": 1539602562000,
  "message": "An error occurred.",
  "host": "webserver-1"
}
{
  "ts": 1539602572100,
  "message": "User logged in.",
  "username": "sleepy",
  "host": "webserver-1"
}

Each object is a separate event and will be parsed separately, as with unstructured logs.

The JSON is accessible as a string in the field @rawstring. We can extract fields from the JSON by using the parseJson() function. It takes a field containing a JSON string (in this case @rawstring) and extracts fields automatically, like this:

parseJson(field=@rawstring)
| @timestamp := ts

This will result in events with a field for each property in the input JSON, like username and host, and will use the value of ts as the timestamp. As ts already has a timestamp in the UNIX format, we don't need to call parseTimestamp() on it.

LogScale extracts fields using named capture groups — a feature of regular expressions that allows you to name sub-matches, for example:

/(?<firstname>\S+)\s(?<lastname>\S+)/

This defines a regex that expects the input to contain a first name and a last name. It then extracts the names into two fields firstname and lastname. The \S means any character that is not a whitespace and \s is any whitespace character.

Once you have your parser script created you can start using it by Ingest Tokens.

You can also learn about how parsers can help speed up queries by Event Tags.
