Select & Filter Fields

Select single fields to search and filter on those fields.

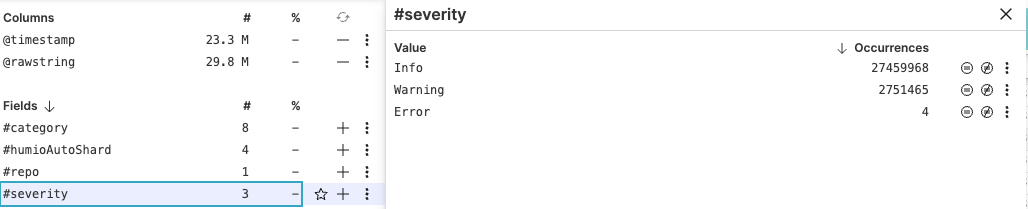

  1. Click on a field in the Fields panel — #severity in the example: a resizable flyout opens with the list of values found and the number of occurrences for each.

    Select Fields

    Figure 51. Select

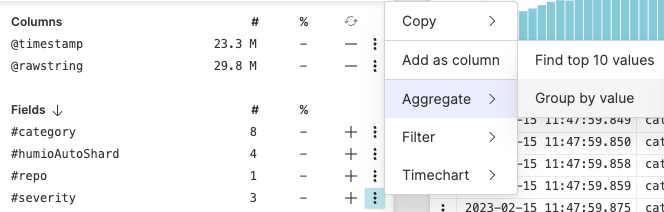

  2. Click the ⋮ icon next to a field name to get several filtering options.

    Filtering Options

    Figure 52. Filtering Options


  3. Select one of the options: for example, Aggregate → Group by value will group events by the value of that field, Timechart → Use field as series will run the timeChart() function in the Query editor to show events that have that field grouped into series and plotted in a timechart.

More filter options and interactions with fields are available, such as exclude () or include (⊜) in the search all events that have the selected field.

When the menu is opened for Field Interactions with live queries, the Fields panel flyout will display a fixed list of top values. The top values are kept from the point in time when the menu was opened. See Field Interactions for more information.
