Amazon Bucket Storage

LogScale supports writing a copy of the ingested logs to Amazon S3 using the native file format of LogScale, enabling LogScale to fetch those files and search them efficiently if the local copies are lost or deleted. For more details on this topic in general, see the Bucket Storage page.

If you use S3 for bucket storage, two options for encryption are supported (you can apply both):

  • LogScale-implemented and enforced, not relying on any support from the bucket provider. It is controlled by the configuration variable S3_STORAGE_ENCRYPTION_KEY, which is applied whenever its value is not set to off (because this value would disable the use of an encryption key).

  • AWS-implemented. Access to objects and decryption is managed by AWS as the object storage provider. To ensure better security using AWS supplied encryption, you may want to turn on KMS key for encrypting objects in S3 via the S3_STORAGE_KMS_KEY_ARN configuration — for more information on how Key Management Service works on the AWS side, see Amazon S3 documentation.

Configure an Amazon S3 Bucket

LogScale supports multiple ways of configuring access to the bucket, enabling you to use any of the five listed in Using the Default Credential Provider Chain on top of the following, which takes precedence if set.

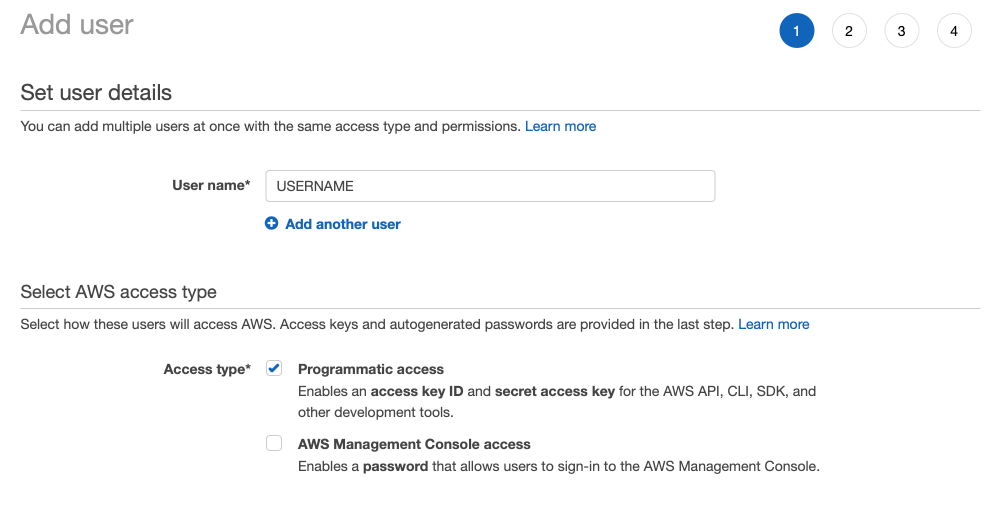

If you run your LogScale installation outside AWS, you need an IAM user with write access to the buckets used for storage. That user must have programmatic access to S3, so when adding a new user through the AWS console make sure programmatic access is set.

Self-Hosting with S3

Figure 1. Self-Hosting with S3

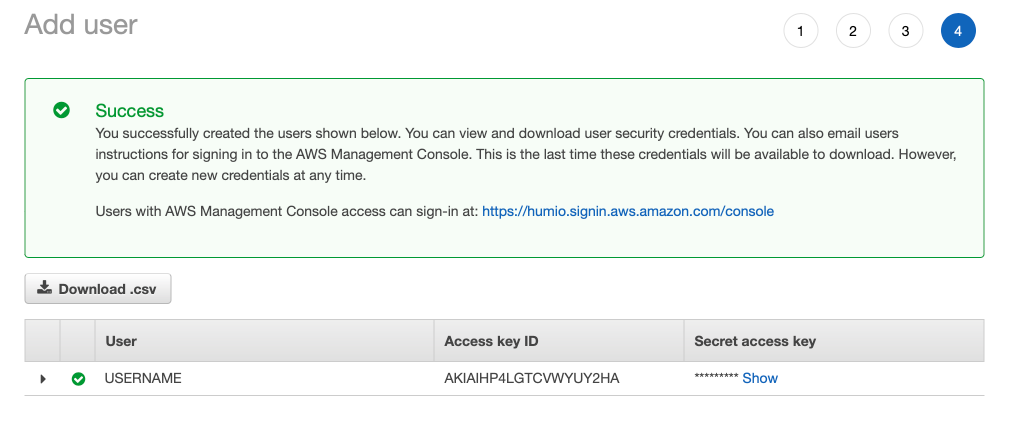

Later in the process, you can retrieve the access key and secret key:

Self-Hosting with S3

Figure 2. Self-Hosting with S3


Enable S3 Storage in LogScale

To configure S3 storage, the access key and secret key from the S3 bucket configuration must be set using the corresponding S3_STORAGE_ACCESSKEY and S3_STORAGE_SECRETKEY configuration variables.

Note

See Encryption of S3 Bucket Data for more information on the LogScale encryption key used for storing bucket data. In the example below, use of a LogScale encryption key has been disabled.

For example:

ini
# These two take precedence over all other AWS access methods.
S3_STORAGE_ACCESSKEY=$ACCESS_KEY
S3_STORAGE_SECRETKEY=$SECRET_KEY
S3_STORAGE_ENCRYPTION_KEY=off

Alternative variables are also supported:

ini
# Also supported:
AWS_ACCESS_KEY_ID=$ACCESS_KEY
AWS_SECRET_ACCESS_KEY=$SECRET_KEY

The keys are used for authenticating the user against the S3 service. For more guidance on how to retrieve S3 access keys, see AWS access keys. More details on creating a new user in IAM.

Configuring the user to have write access to a bucket can be done by attaching the right access policy to the user.

Encryption of S3 Bucket Data

Amazon S3 enforces server-side encryption of stored data since January 2023. Explicit configuration of an encryption key for storage of bucket data must be configured. Without explicit declaration of an encryption key, S3 bucket key encryption in LogScale is required due to the checksum reported by S3 being different to the checksum calculated by LogScale.

Best practice is to use the key managed by Amazon Service Side Encryption (SSE) with KMS support turned on, in place of the key configured and stored on disk in plain text.

KMS support in LogScale is controlled via the S3_STORAGE_KMS_KEY_ARN configuration.

To switch off additional LogScale encryption in LogScale:

ini
S3_STORAGE_ENCRYPTION_KEY=off

This will enable data stored in S3 to be encrypted using the the Amazon S3 configured key (see Protecting data with server-side encryption for more information).

Using a custom key is supported, and can be configured to encrypt the bucket data by setting the encryption key explicitly:

ini
S3_STORAGE_ENCRYPTION_KEY=customencryptionkey

This key will be used in addition to the SSE key used.

When using this option, LogScale automatically disables checking of the encryption tag information once AWS Key Management Service is configured (through the S3_STORAGE_KMS_KEY_ARN environment variable).
