Cross-Region Storage Access

LogScale data is stored in GCS buckets, one per cluster. The secondary cluster needs read access to the primary's bucket during failover recovery.

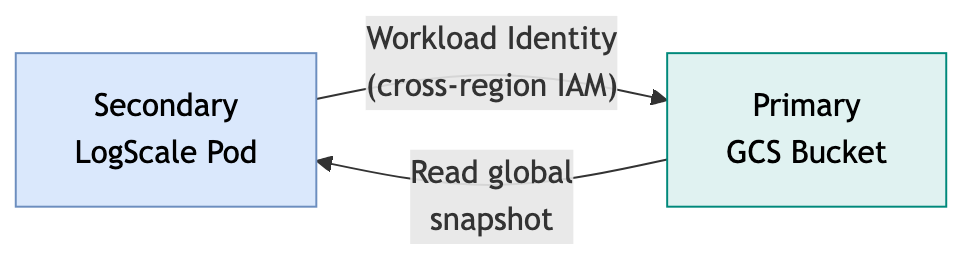

GCP DR - Recovery Data Flow
Cross-Region GCS Access

During failover, the secondary cluster reads the global snapshot from the primary's GCS bucket. The bucket access is controlled via Workload Identity โ€” the secondary cluster's GCP service account is granted IAM roles on the primary bucket.

IAM Configuration (from modules/gcp/gke/storage.tf):

Resource Role Member Purpose
Own GCS bucket roles/storage.objectUser Own cluster's Workload Identity SA LogScale read/write to own bucket
Primary GCS bucket roles/storage.legacyBucketReader Secondary cluster's Workload Identity SA Bucket-level read access for DR recovery
Primary GCS bucket roles/storage.objectViewer Secondary cluster's Workload Identity SA Object-level read access for snapshot recovery

Cross-region IAM binding:

The Terraform GKE module grants these roles when var.dr == "standby" and var.dr_primary_gcs_bucket is set:

terraform
resource "google_storage_bucket_iam_member" "dr_cross_region_bucket_access" {
  count  = var.dr == "standby" && var.dr_primary_gcs_bucket != "" ? 1 : 0
  bucket = var.dr_primary_gcs_bucket
  role   = "roles/storage.legacyBucketReader"
  member = module.gcs_workload_identity.gcp_service_account_fqn
}

resource "google_storage_bucket_iam_member" "dr_cross_region_object_access" {
  count  = var.dr == "standby" && var.dr_primary_gcs_bucket != "" ? 1 : 0
  bucket = var.dr_primary_gcs_bucket
  role   = "roles/storage.objectViewer"
  member = module.gcs_workload_identity.gcp_service_account_fqn
}
Deterministic GCS Bucket Naming

GCS bucket names are passed as the gcs_bucket_name variable to the GKE module. The bucket is created using the terraform-google-modules/cloud-storage module with the provided name and the cluster's region.

Encryption Key Sync

The primary cluster generates an encryption key using random_password (64 characters, no special characters) and stores it in a Kubernetes secret. The secondary cluster retrieves this key via Terraform remote state.

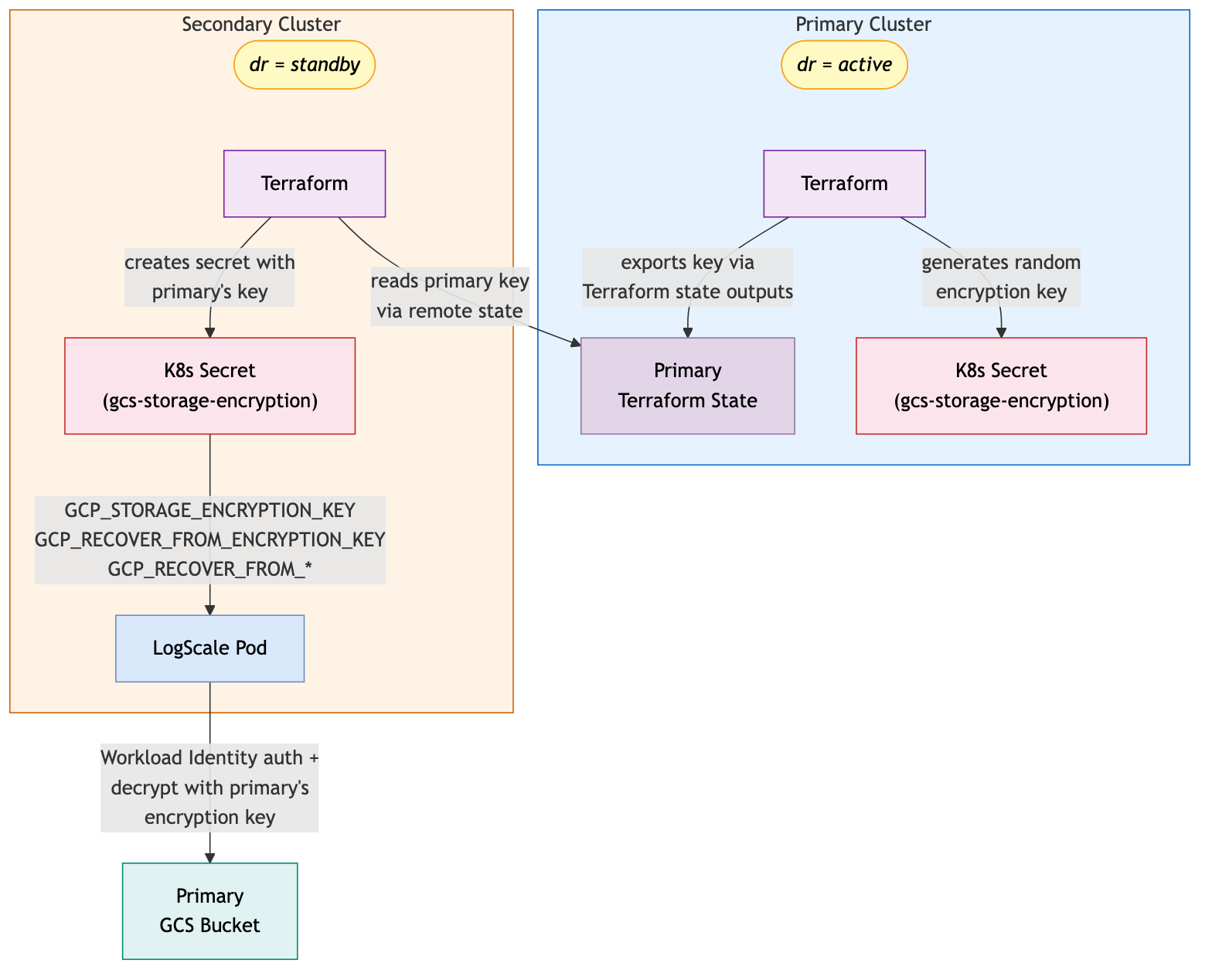

GCP DR - Encryption Key Synchronization
Method Configuration Use Case
Remote State (Recommended) primary_remote_state_config block in secondary tfvars GCS backend โ€” automatic sync from primary workspace
Explicit Key existing_gcs_encryption_key variable Manual key management

Key details:

  • Primary generates the key via random_password.gcp_storage_encryption_password (not CMEK/KMS)

  • Primary stores the key in secret: <cluster-name>-gcp-storage-encryption-key (key name: gcp-storage-encryption-key)

  • Secondary retrieves the key via primary_remote_state or existing_gcs_encryption_key

  • Secondary stores the DR recovery key in a separate secret: dr-secondary-gcs-storage-encryption (configurable via gcp_recover_from_encryption_key_secret_name)

  • The DR recovery secret is referenced by the GCP_RECOVER_FROM_ENCRYPTION_KEY environment variable via secretKeyRef

  • Same key must be used across both clusters for DR recovery

Note: Standby apply will fail if the encryption key is not available.

Verification

To verify cross-region GCS access is working:

shell
# From secondary cluster, verify read access to primary bucket
gcloud storage buckets describe gs://<primary-bucket-name> \
  --project=<project-id>

# Verify service account permissions
gcloud storage buckets get-iam-policy gs://<primary-bucket-name> | grep <secondary-sa>

# Test object read (if snapshot exists)
gcloud storage cp gs://<primary-bucket-name>/snapshot.tar.gz /tmp/snapshot-test.tar.gz
