The following JSON is an example policy configuration:

{
"Version": "2012-10-17",
"Statement": [
  {
    "Effect": "Allow",
    "Action": ["s3:ListBucket"],
    "Resource": ["arn:aws:s3:::BUCKET_NAME"]
  },
  {
    "Effect": "Allow",
    "Action": ["s3:PutObject", "s3:GetObject", "s3:DeleteObject"],
    "Resource": ["arn:aws:s3:::BUCKET_NAME/*"]
  }
]
}

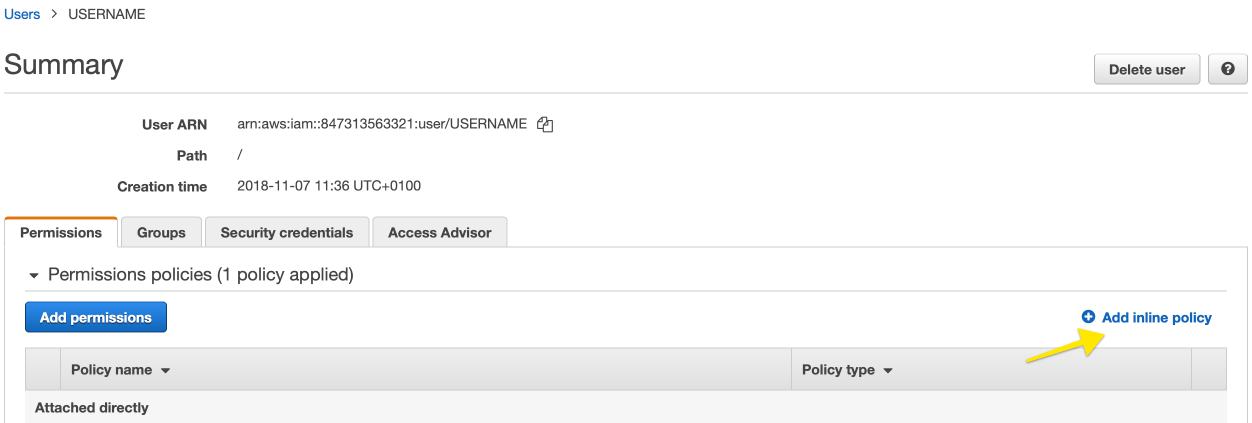

The policy can be used as an inline policy attached directly to the user through the AWS console:

Figure 3. IAM User Example Policy

You must also tell which bucket to use. These settings must be identical on all nodes across the entire cluster.

S3_STORAGE_BUCKET=$BUCKET_NAME
S3_STORAGE_REGION=$BUCKET_REGION
S3_STORAGE_ENCRYPTION_KEY=$ENCRYPTION_SECRET
S3_STORAGE_OBJECT_KEY_PREFIX=/basefolder
USING_EPHEMERAL_DISKS=true

The first option here is to set the name of the bucket to use. The encryption key given with S3_STORAGE_ENCRYPTION_KEY can be any UTF-8 string. The suggested value is 64 or more random ASCII characters.

The S3_STORAGE_OBJECT_KEY_PREFIX is used to set the optional prefix for all object keys allows multiple LogScale clusters to use the same bucket. The prefix is unset by default.
