Ingest Listeners

Security Requirements and Controls

Important

Due to the nature of TCP/UDP raw sockets, LogScale is unable to respond back to log forwarders should any errors occur during ingest. This could result in data loss if ingestion errors occur after data arrives to LogScale using these methods.

Ingest listeners are a great way of shipping data to LogScale through raw sockets, using either UDP or TCP. Some example use cases are:

An ingest listener binds a UDP or TCP port on a network interface to a repository with a Parsing Data. All data sent to a network port will be parsed before it is inserted into the repository.

Important

Ingest listeners are not available on system repositories including humio, humio-audit and others.

View Ingest Listeners

  1. Go to Repositories and views page and select a relevant repository.

  2. Click Settings, under Ingest on the side menu click Listeners.

  3. On the Ingest listener page you can see all configured listeners.

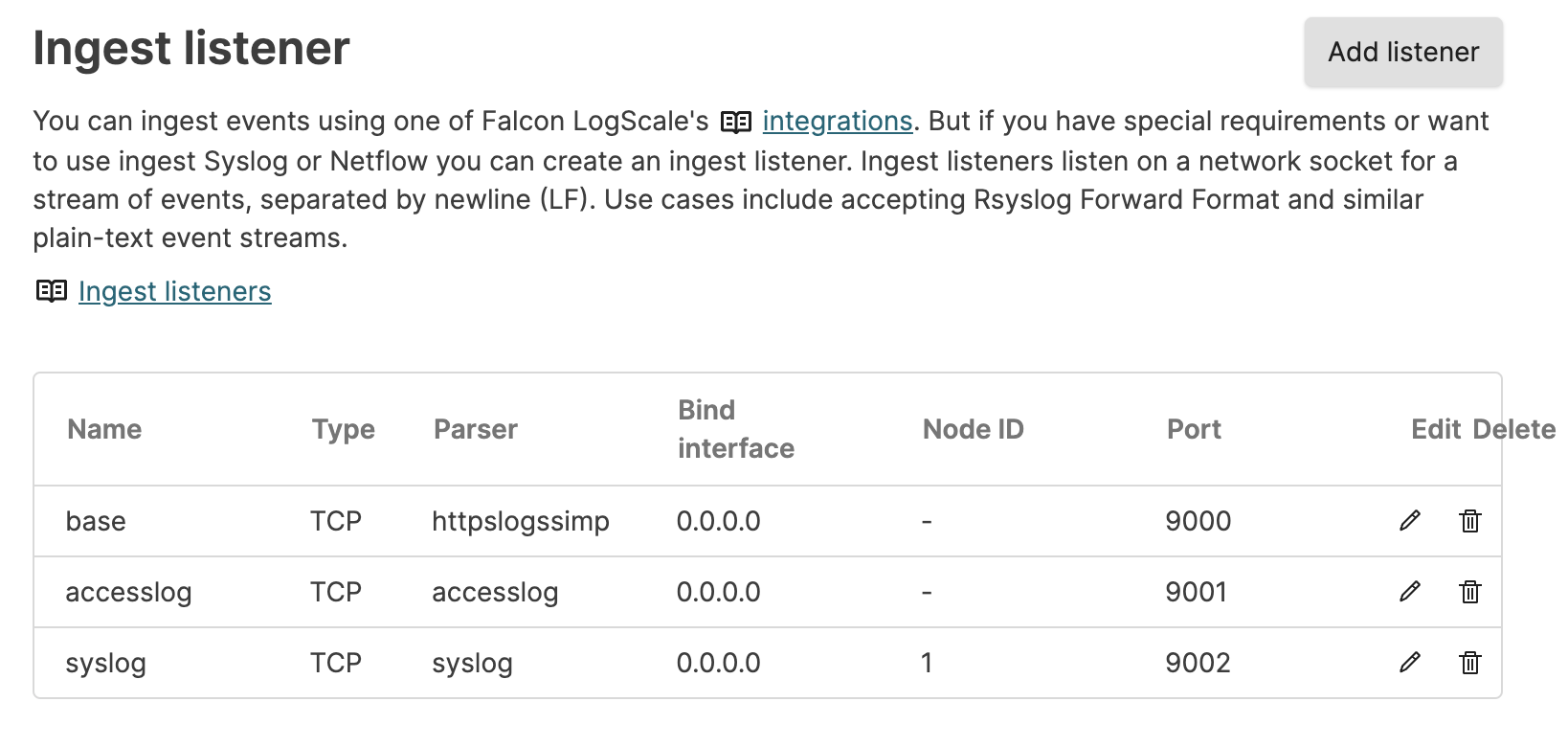

Ingest Listeners

Figure 86. Ingest Listeners


Creating Ingest Listeners

Creating a new ingest listener is all about mapping a port on a network interface through a parser to a repository.

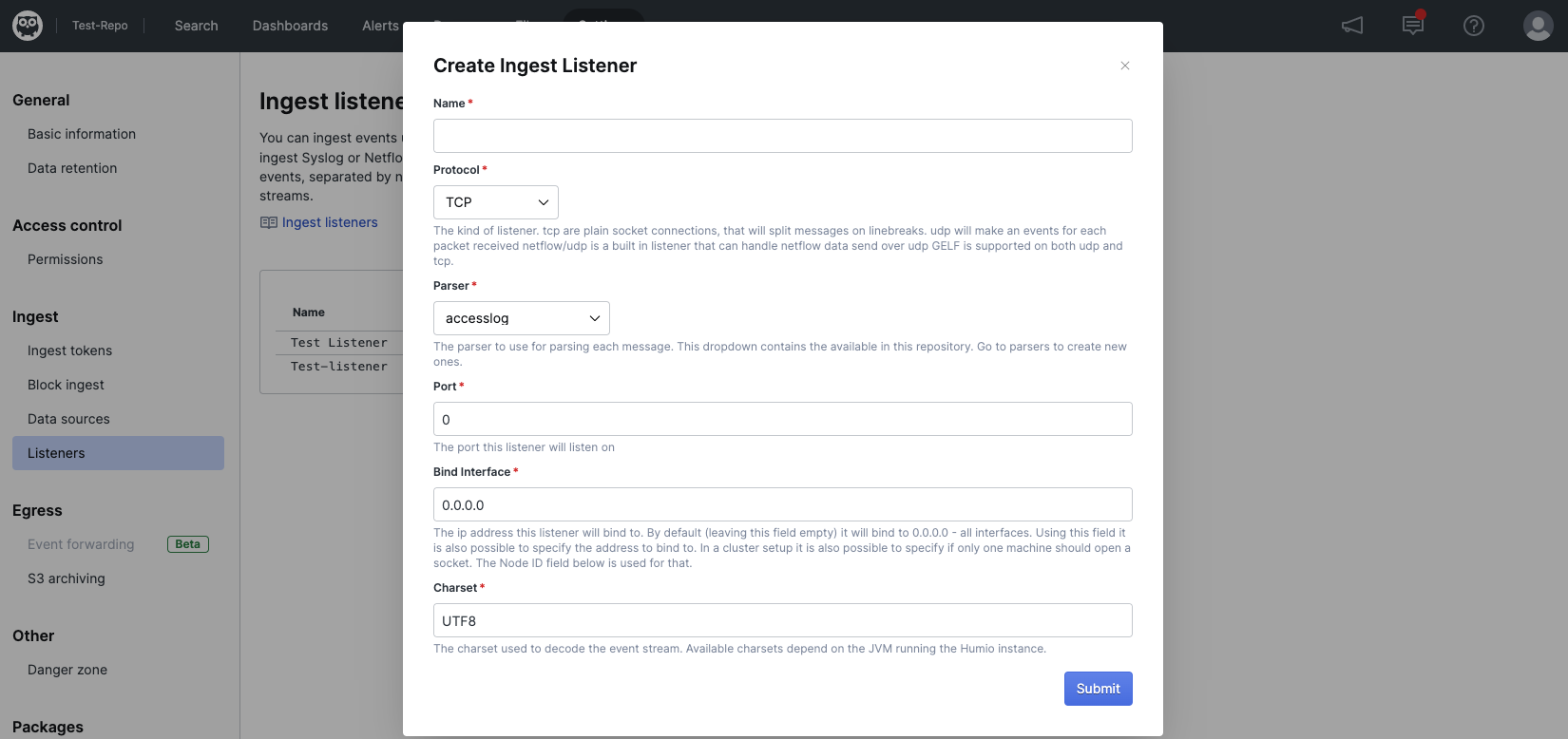

Create Listener

Figure 87. Create Listener


  1. Go to Repositories and views page and select a relevant repository.

  2. Click Settings, under Ingest on the side menu click Listeners.

  3. On the Ingest listener page, click Add Listeners and enter the following details for the ingest listener:

    • Name

      A name, usually describing the purpose of the ingest listener.

    • Protocol

      Transport protocol for the ingest listener. This can be TCP, gelf/TCP, UDP gelf/UDP, or Netflow/UDP.

    • Parser

      A Parsing Data to send each event on the socket through to extract fields from the line. Usually a timestamp. Netflow/UDP does not need a parser as it has a rather complex syntax, and a built-in handler. Gelf variants currently use only the tags aspect of the parser, as the gelf format already has a timestamp specified.

    • Port

      Network port to accept data. If you are not running your Docker images with --net=host, this port needs to be exposed through the --publish Docker argument.

    • Bind Interface

      The IP of the interface that this ingest listener should listen on.

    • Charset

      The charset used to decode the event stream. The value must be a supported charset in the JVM that LogScale is running on.

  4. Click Submit.

Reducing Packet Loss from Bursts on UDP

To reduce packet loss in bursts of UDP traffic, please increase the maximum allowed receive buffer size for UDP.

LogScale will try to increase the buffer to up to 128MB, but will accept whatever the system sets as maximum.

logscale
# Get the current limit from the kernel (in bytes)
sysctl net.core.rmem_max
# Set to 16MB. Decide on a value of (say) 0.5 - 2 seconds worth of inbound UDP packets.
sudo sysctl net.core.rmem_max=16777216

Important

Increasing the maximum allowed receive buffer size for UDP must take place before LogScale is started. You probably want it done when the system boots. On Debian (Ubuntu) you can achieve this by creating a file in /etc/sysctl.d/ with a name such as raise_rmem_max.conf and the contents.

logscale
net.core.rmem_max=16777216

Adding an Ingest Listener Endpoint

You can ingest events using one of the many Integrations but when your requirements do not match, you can supply a stream of events on TCP, separated by line feeds. This API allows you to create and configure a TCP listener for such events.

Deprecated: Ingest Listeners REST API

The ingest listener REST API is deprecated and replaced by a GraphQL API.

Use cases include accepting rsyslogd forward format and similar plain-text event streams.

http
GET    /api/v1/listeners
POST   /api/v1/listeners
GET    /api/v1/listeners/$ID
DELETE /api/v1/listeners/$ID

If you use rsyslog for the transport of logs, this example serves as a starting point:

ini
# Example input line on the wire:
142017-08-07T10:57:04.270540-05:00 mgrpc kernel: [   17.920992] Bluetooth: Core ver 2.22

Using a simple text editor, create a file named, create-rsyslogd-rfc3339-parser.json and copy the following lines into it:

json
{
  "parser": "^(?pri\\\\d+)(?datetimestring\\\\S+) (?host\\\\S*) (?syslogtag\\\\S*): ?(?message.*)",
  "kind": "regex",
  "parseKeyValues": true,
  "dateTimeFormat": "yyyy-MM-dd'T'HH:mm:ss[.SSSSSS]XXX",
  "dateTimeFields": ["datetimestring"]
}

Then execute the following from the command-line:

shell
curl -XPOST \
 -d @create-rsyslogd-rfc3339-parser.json \
 -H "Authorization: Bearer $TOKEN" \
 -H 'Content-Type: application/json' \
 "$YOUR_LOGSCALE_URL/api/v1/repositories/$REPOSITORY_NAME/parsers/rsyslogd-rfc3339"

Example setting up a listener using the rsyslogd forward format added above.

Using a simple text editor, create a file named, create-rsyslogd-listener.json and copy the following lines into it:

json
{
  "listenerPort": 7777,
  "kind": "tcp",
  "dataspaceID": "$REPOSITORY_NAME",
  "parser": "rsyslogd-rfc3339",
  "bindInterface": "0.0.0.0",
  "name": "my rsyslog input",
  "vhost": 1
}

The setting bindInterface is optional. If set, sets local interface to bind on to select network interface. Also, vhost is optional. If set, only the cluster node with that index binds the port.

Execute the following from the command-line:

shell
curl -XPOST \
 -d @create-rsyslogd-listener.json \
 -H 'Content-Type: application/json' \
 -H "Authorization: Bearer $TOKEN" \
 '$YOUR_LOGSCALE_URL/api/v1/listeners'

curl -H "Authorization: Bearer $TOKEN" "$YOUR_LOGSCALE_URL/api/v1/listeners"
curl -H "Authorization: Bearer $TOKEN" "$YOUR_LOGSCALE_URL/api/v1/listeners/tcp7777"

Listeners also support UDP by setting kind to udp. For UDP, each UDP datagram is ingested as a single log line (it is not split by newlines).

It is possible to specify that fields in the incoming events should be turned into tags. This can be done by setting "tagFields": ["fielda", "fieldb"] when creating a listener. Only use tags like this if you really need them.

To reduce packet loss in bursts of UDP traffic, increase the maximum allowed receive buffer size for UDP. LogScale will try to increase the buffer up to 128 MB but will accept whatever the system sets as maximum.

shell
# To set to 16 MB.
sudo sysctl net.core.rmem_max=16777216
