Azure Active Directory

Security Requirements and Controls

Azure Active Directory is Microsoft's enterprise cloud-based identity and access management (IAM) solution. It can be used to access your LogScale repositories. Microsoft365 also uses this interface, for more information see Tag Fields Created by Parser microsoft365.

Integrating Azure AD with LogScale

To integrate Azure AD with LogScale, three main operations are required:

  1. Create Azure application

  2. Set up LogScale IDP configuration

  3. Set up group mapping (optional).

Step 1 — Create Azure application

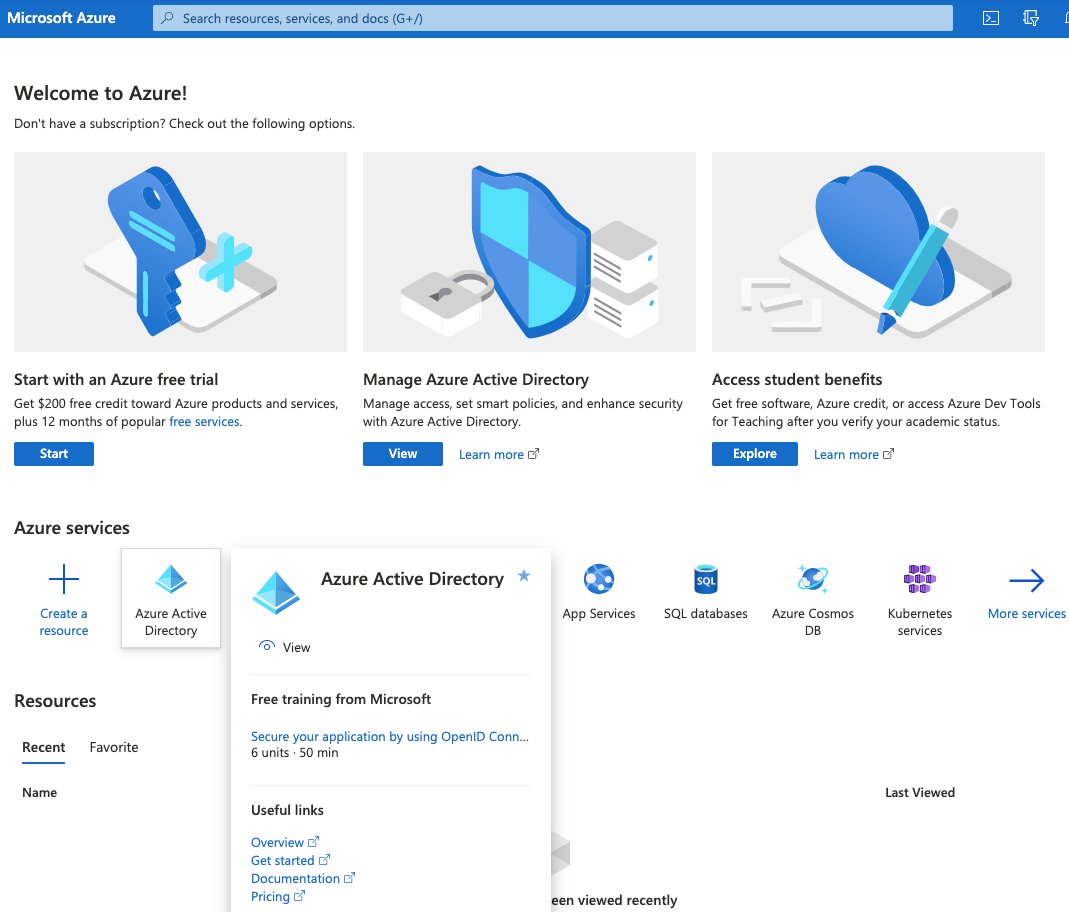

  1. Sign in to the Azure portal and choose the Azure Active Directory card:

    Azure Active Directory

    Figure 47. Azure Active Directory


  2. Open Groups and click New group: here you create the groups that will be added later in LogScale for synchronization. For example, you can create a logscale_admin group.

    Groups in Azure AD

    Figure 48. Groups in Azure AD

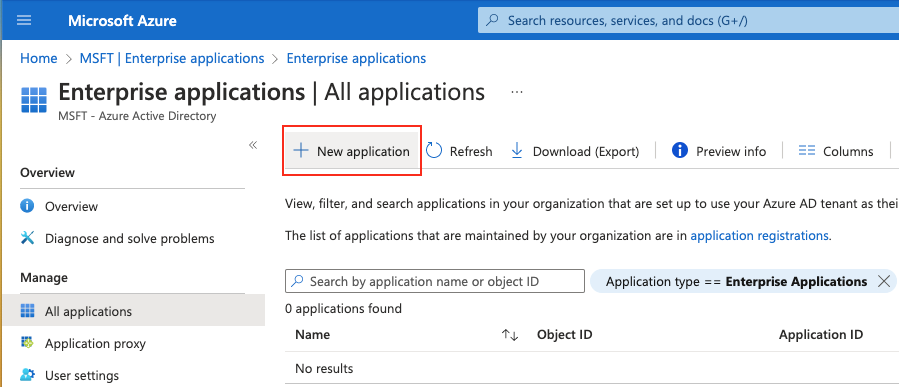

  3. Open Enterprise Applications and click New application:

    Enterprise Applications in Azure AD

    Figure 49. Enterprise Applications in Azure AD

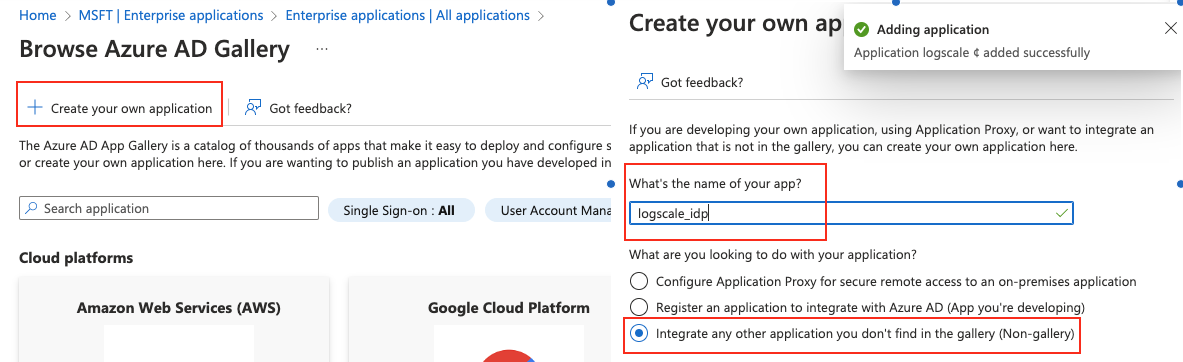

  4. From the Browse Azure AD Gallery page:

    • Click + Create your own application

    • Enter a name for the app, e.g., logscale_idp

    • Choose Integrate any other application you don't find in the gallery option

    Create your application in Azure

    Figure 50. Create your application in Azure


  5. Click Create: your application is now added successfully.

Step 2 — Set up LogScale IDP configuration

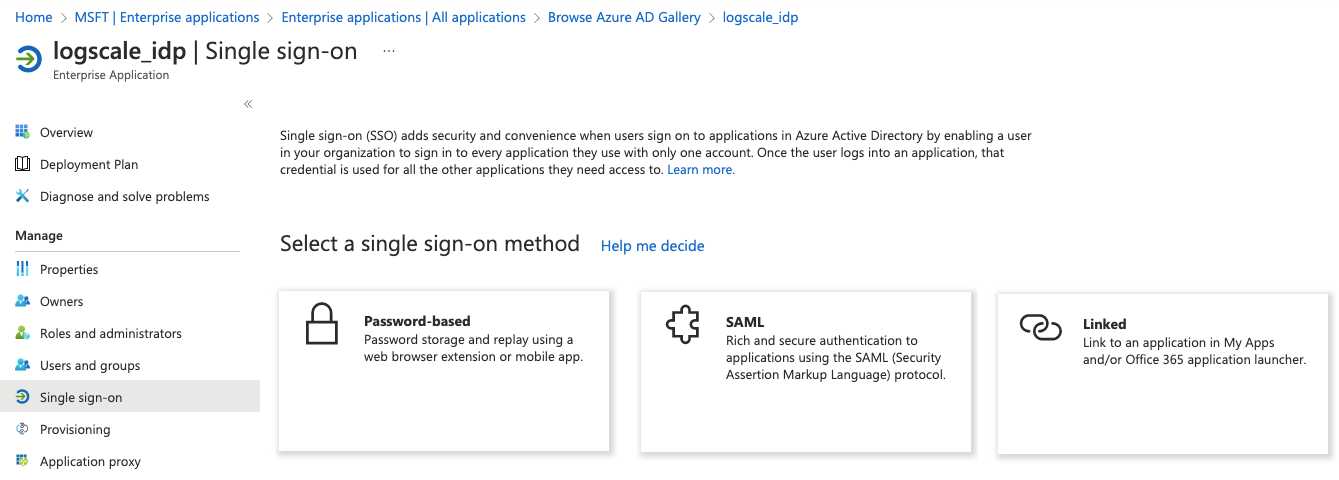

  1. In the new application page, click Single sign on and then choose SAML as your single sign-on method:

    Select SAML single sign-on

    Figure 51. Select SAML single sign-on


  2. In the Basic SAML Configuration window:

    • Set Identifier (Entity ID) to $YOUR_LOGSCALE_URL/api/v1/saml/metadata

    • Set Reply URL to $YOUR_LOGSCALE_URL/api/v1/saml/acs

    • Set Sign on URL if you want to perform identity provider-initiated single sign-on.

    • PopulateRelay State with an integration URL to instruct the application where to redirect users after authentication e.g. the URL to a specific location within the application.

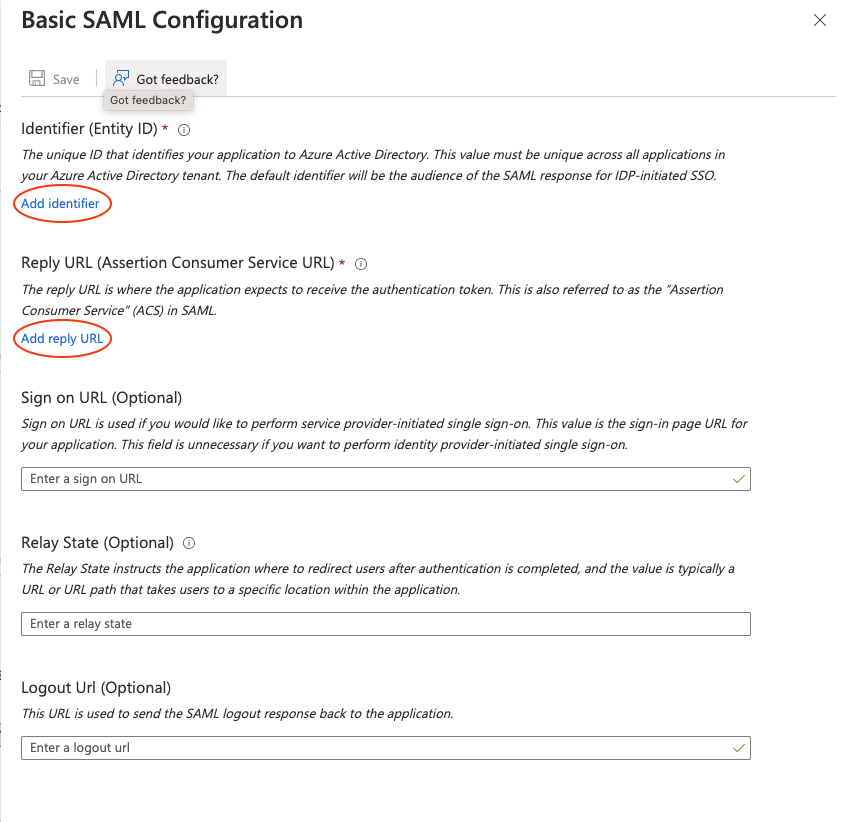

    Basic SAML Configuration settings

    Figure 52. Basic SAML Configuration settings


  3. In the SAML-based Sign-on page of your newly created application, copy Login URL, Azure ID Identifier and the text of the Certificate (Base 64) and note them down, as you will need to copy them later in LogScale.

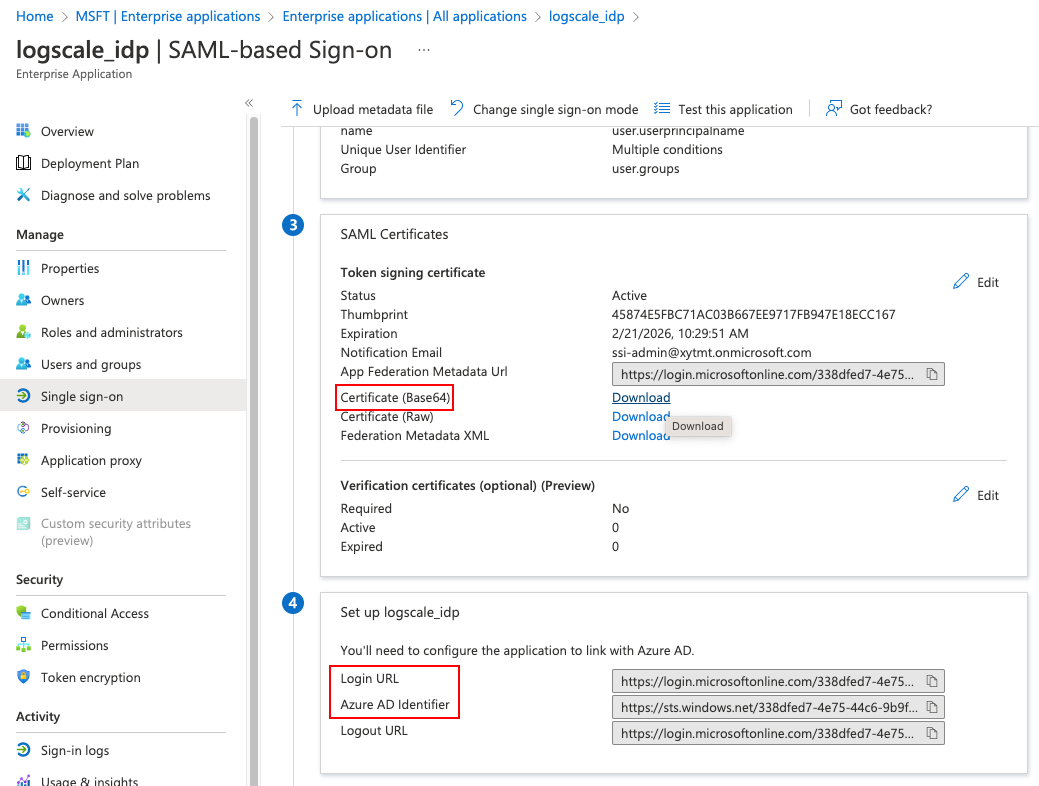

    SAML-based Sign-on information

    Figure 53. SAML-based Sign-on information


Step 3 — Set up group mapping (optional)

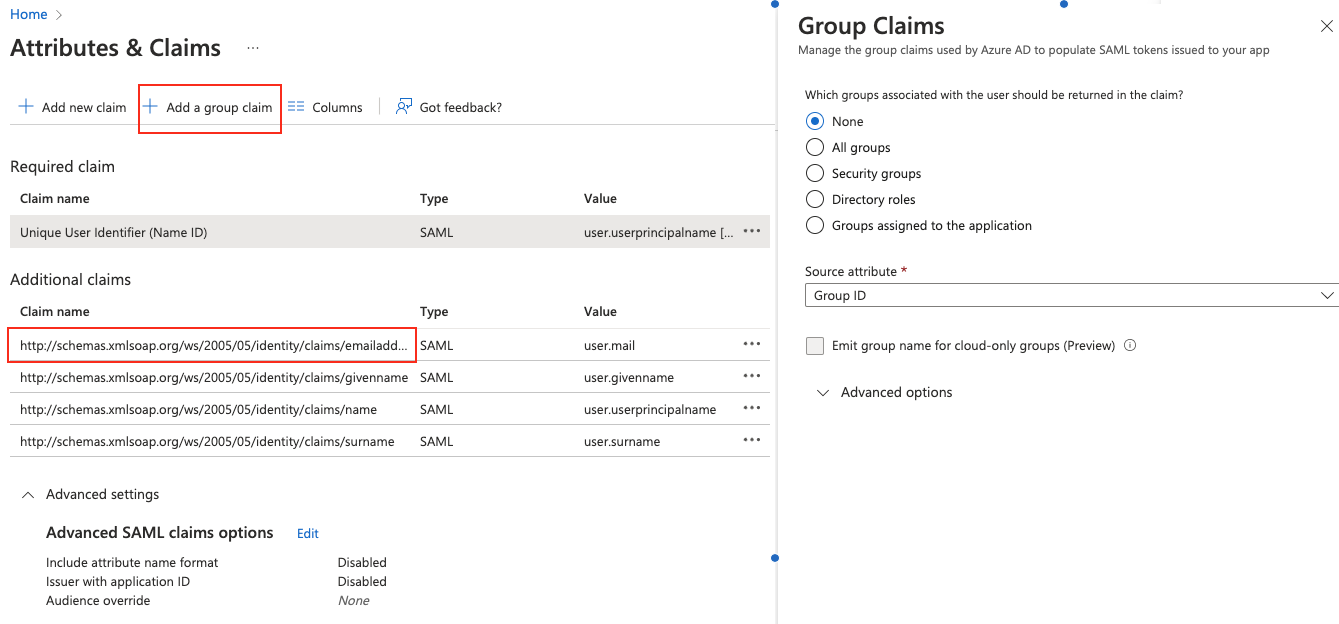

  1. Click + Add a group claim and select which groups you want to be associated with the users e.g., Security Groups:

    Add a group claim

    Figure 54. Add a group claim


    From this same page:

    • Click the first claim Unique User Identifier to assign users to LogScale on the IDP side.

    • Copy and note down the http://schemas.xmlsoap.org/ws/2005/05/identity/claims/emailaddress claim as you will need it later to synchronize your group in LogScale.

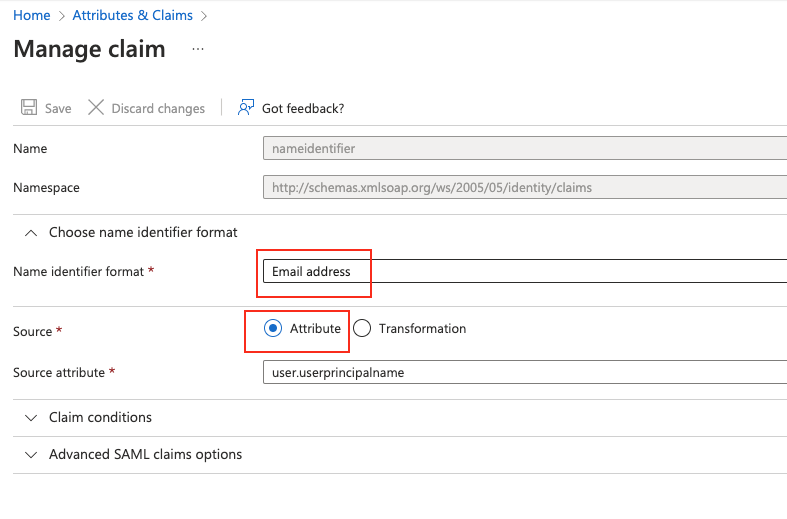

  2. In the Manage claim window, ensure that Name identifier format and Source are set as in figure below:

    Manage claim

    Figure 55. Manage claim

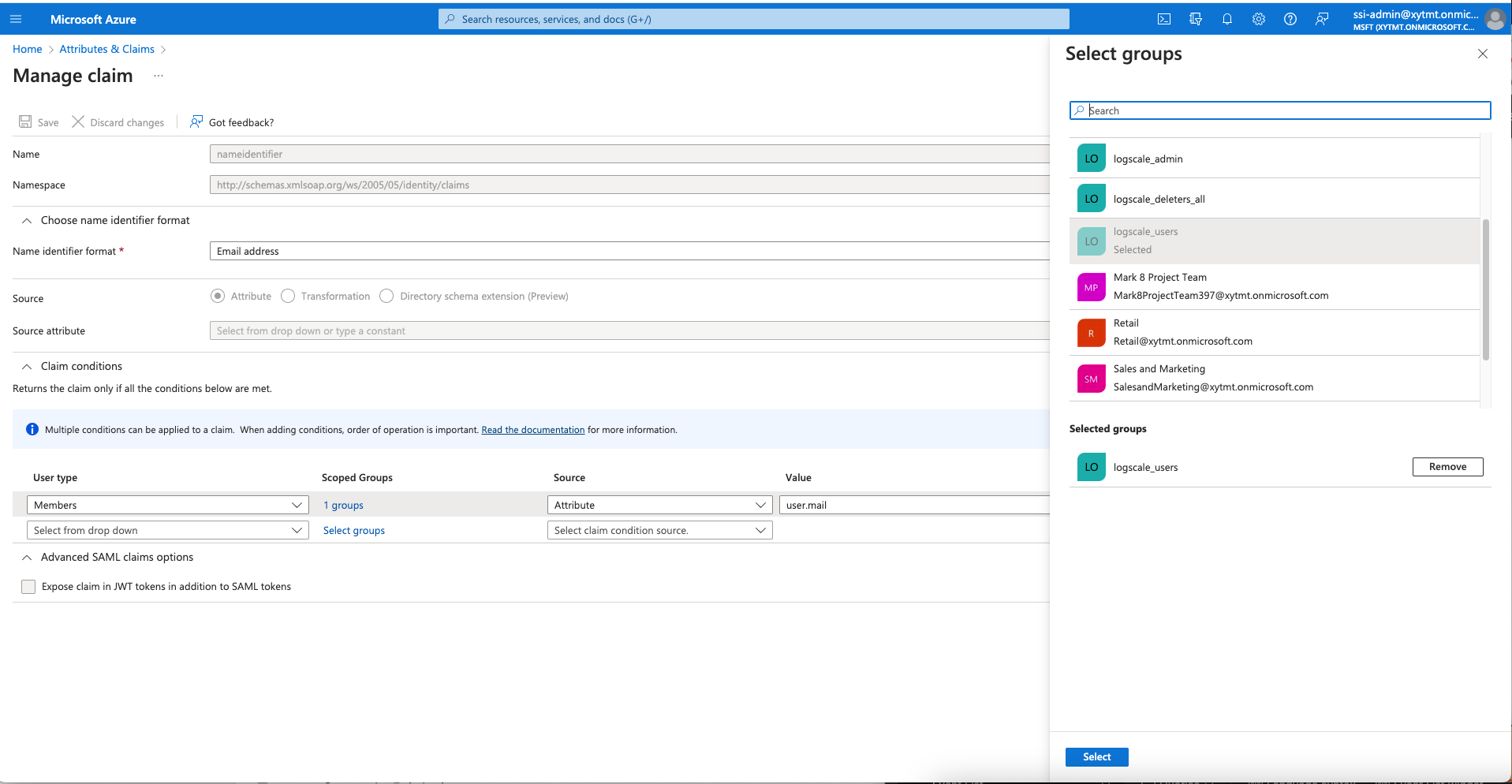

  3. Still in the Manage claim window, click under Scoped Groups to select the new group and assign user type (e.g. Members, Admin) and user.mail as the value:

    Add user types to group

    Figure 56. Add user types to group


Configuring LogScale to use Azure AD

You finished configuring Azure AD to work with LogScale. Now, you need to configure LogScale to work with Azure AD.

  1. Go to LogScale and from your avatar profile click Organization Settings → Identity Providers → Add IDP Configuration pull-down menu → SAML 2.0

  2. Click + Add domain to choose which email domain your configuration applies to.

  3. In the Configure SAML 2.0. integration page, fill in the information as required (see an example in Figure 57, “Example Configuration in LogScale”) . In particular:

    • Name of the configuration

    • SAML metedata endpoint. If available, paste here your SAML provider metadata endpoint link to autofill most of the fields listed below.

    • Identity provider single sign-on URL — enter the value of Login URL that you have previously copied from Azure AD (as seen in Figure 52, “Basic SAML Configuration settings”).

    • Identity provider entity ID — enter the value of Azure AD identifier that you have previously copied from Azure AD.

    • X.509 certificate — paste the text of Certificate (Base 64) found in Azure AD, which you should have previously downloaded and copied.

    • Enable debugging — recommended, allows to store debug logs in a LogScale repository to monitor the activity between the IDP and LogScale, see LogScale Debug Logs.

    • User attribute — populate with emailaddress that you have previously copied from Azure AD.

    • Let identity provider handle group memberships in Falcon LogScale — check the box and populate the field with http://schemas.microsoft.com/ws/2008/06/identity/claims/groups (this is needed to pass AD Groups you've previously created to LogScale).

    • Default IDP — check the box if you want to set the Azure AD as the primary external Identity Provider. In this case it is good practice to disable other external identity providers that you are not using; you can do so individually on each provider from Identity Providers.

    • Automatically create users on login — check the box to allow users to appear in LogScale after their first sign-in.

    Configuration in LogScale

    Figure 57. Example Configuration in LogScale


Group Synchronization

After LogScale has been configured to use Azure AD (see previous section), you need to align the Azure AD groups' Object ID in LogScale.

  1. Go back to Azure AD and from your group's page, copy the Object ID:

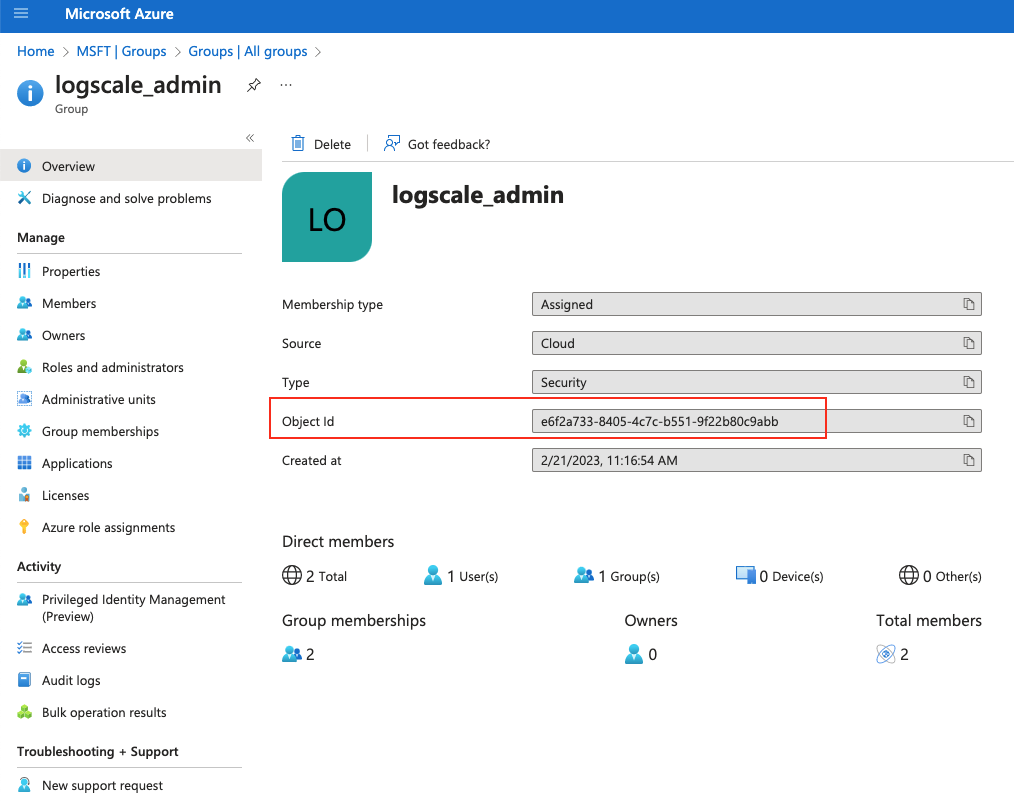

    Copy Object ID from Azure AD

    Figure 58. Copy Object ID from Azure AD

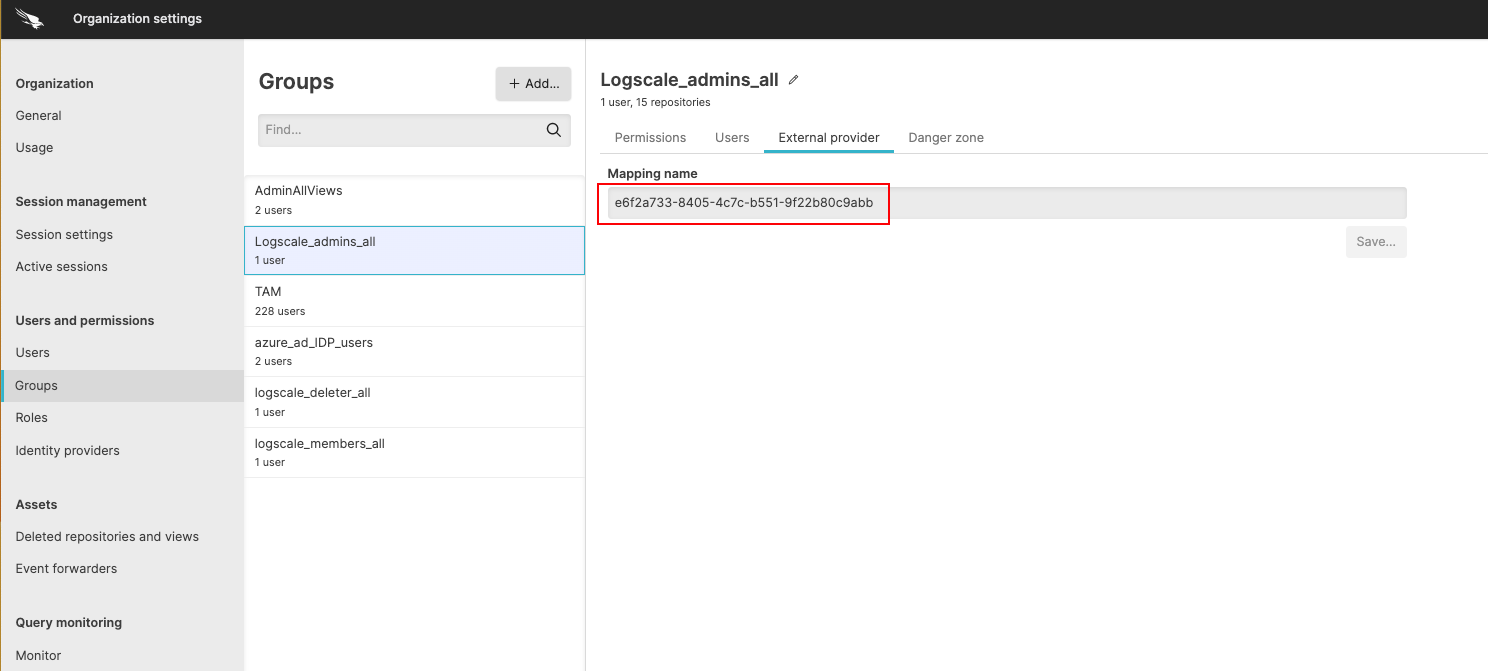

  2. In LogScale, first create the group manually (provide a name that is similar to the group name set in Azure AD) and then paste the Object ID into the Mapping Name field, under the External provider tab:

    Mapping Name

    Figure 59. Mapping Name


Refer to Azure portal for more information on SAML 2.0 integration.

Also refer to Configure SAML for LogScale Self-Hosted documentation section.

To configure LogScale on your own server, go to the top of this page on Configuring LogScale.

See the Azure Active Directory Documentation for more information on Azure AD.
