__ms_entra__ (formerly Azure Active Directory)

can integrate __ms_entra__ (formerly known as Azure Active Directory or Azure AD) for identity and access management. Find detailed steps for creating an __ms_entra__ application, configuring SAML-based single sign-on, and setting up group synchronization between the two platforms. For cloud customers, the integration process requires working with Support to complete the configuration while following specific requirements for security controls and permissions.

__ms_entra__ is Microsoft's enterprise cloud-based identity and access management (IAM) solution. It can be used to access your repositories. Microsoft365 also uses this interface, for more information see Tag Fields Created by Parser microsoft365.

Prerequisites to configure __ms_entra__

Prior to configuring __ms_entra__ for authentication with make sure to have the following:

Integrate __ms_entra__ with

To integrate __ms_entra__ with , three main operations are required:

  1. Create __ms_entra__ application

  2. Set up IDP configuration

  3. Set up group mapping (optional).

Step 1 — Create an application

  1. Sign in to the Azure portal and choose the __ms_entra__ ID card:

    Screenshot of the Azure portal home page showing various service cards, with the Azure Active Directory card highlighted. The Azure Active Directory card appears as a rectangular tile with its logo (a stylized user silhouette inside a key-shaped border) and is the first service that needs to be selected when beginning the SAML configuration process with Azure AD. This is the initial navigation step where administrators click to access identity and access management settings.

    Figure 40. Azure Active Directory

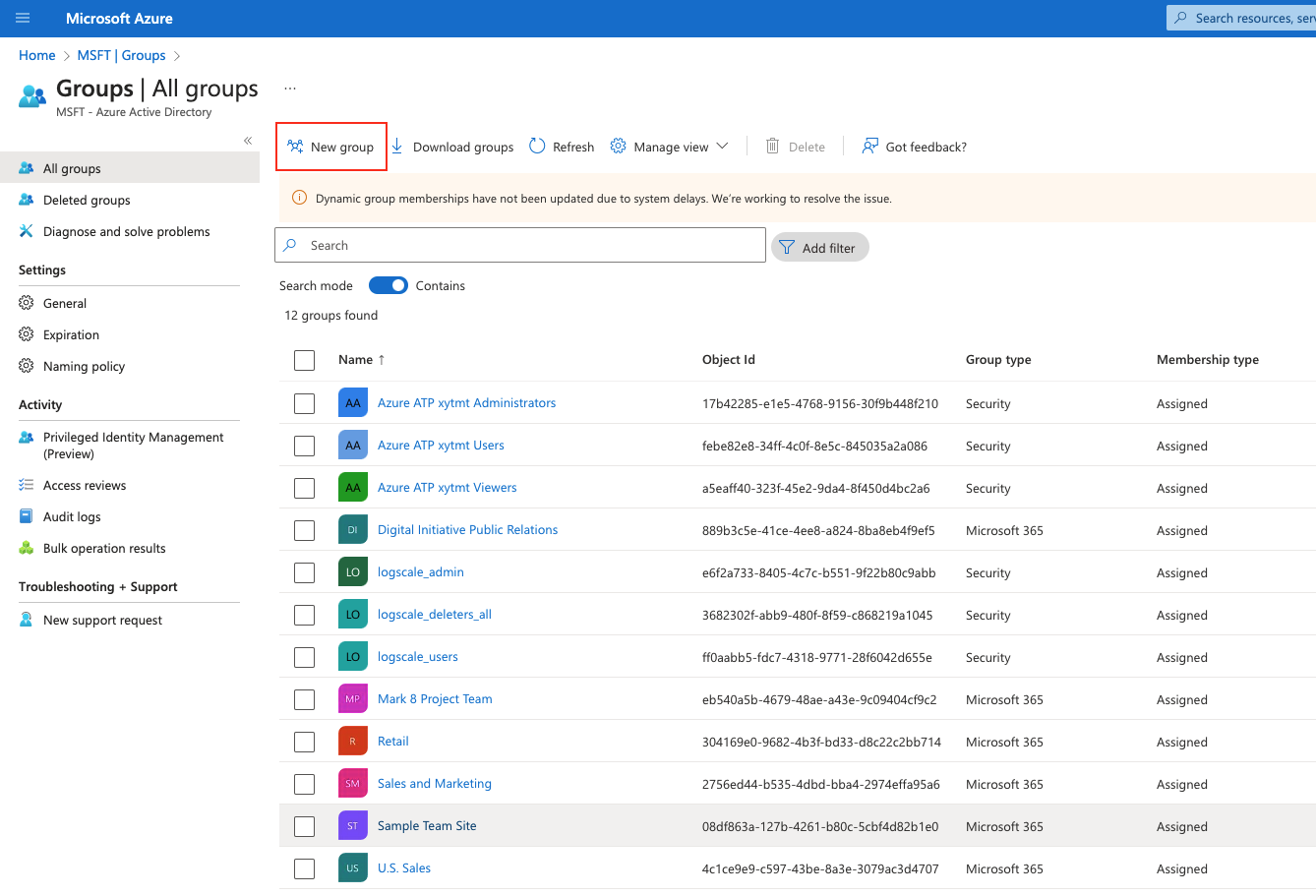

  2. Open Groups and click New group: here you create the groups that will be added later in for synchronization. For example, you can create a logscale_admin group.

    Screenshot of the Azure Active Directory Groups management interface showing the process of creating a new group for integration. The image displays the Azure portal's Groups page with the 'New group' button highlighted, which administrators need to click to create groups such as 'logscale_admin'.

    Figure 41. Groups in Azure AD

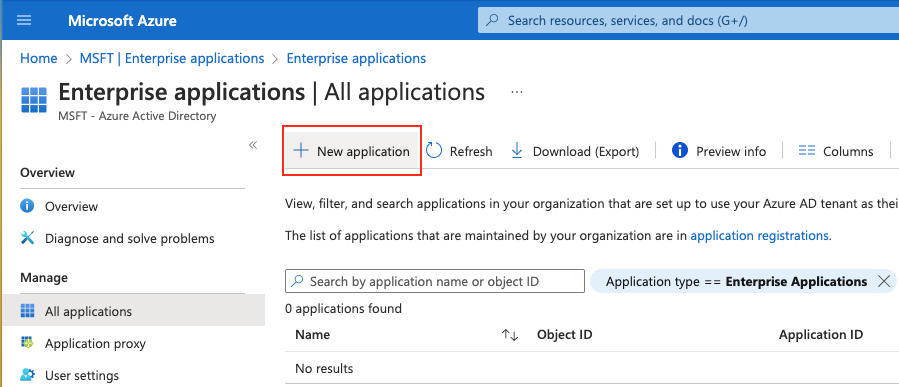

  3. Open Enterprise Applications and click New application:

    Screenshot of the Azure Active Directory Enterprise Applications interface showing the page where administrators need to click the 'New application' button to begin creating a custom application for integration. The image displays the Azure portal's Enterprise Applications management screen, which is a crucial step in the integration process as it initiates the creation of an application that will establish the SAML connection between Azure AD and for user authentication and single sign-on capabilities.

    Figure 42. Enterprise Applications in Azure AD


  4. From the Browse __ms_entra__ App Gallery page:

    • Click + Create your own application

    • Enter a name for the app, e.g., logscale_idp

    • Choose Integrate any other application you don't find in the gallery option

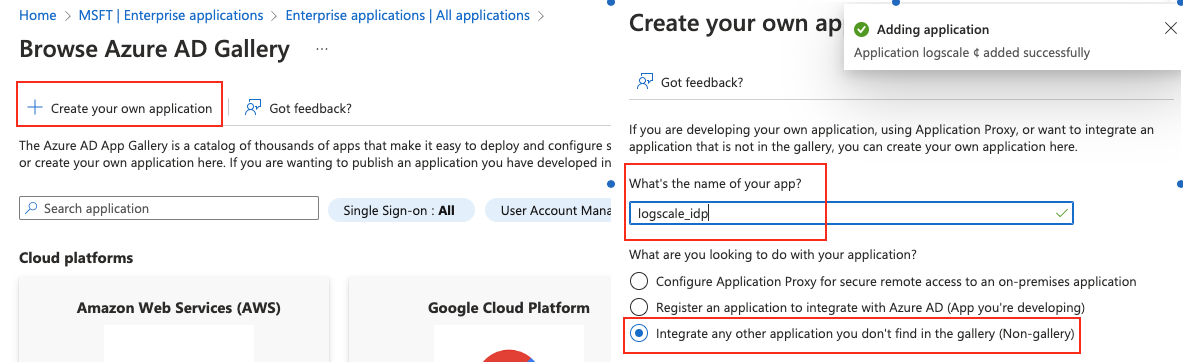

    Screenshot of the Azure AD application creation interface showing the 'Create your own application' dialog. The form displays a text field for entering an application name (example shown: 'logscale_idp') and radio button options for integration types, with 'Integrate any other application you don't find in the gallery' selected. This interface appears during step 1 of the Azure AD integration with , where administrators must create a custom application to establish SAML authentication between Azure AD and .

    Figure 43. Create your application in Azure


  5. Click Create: your application is now added successfully.

Step 2 — Set up IDP configuration

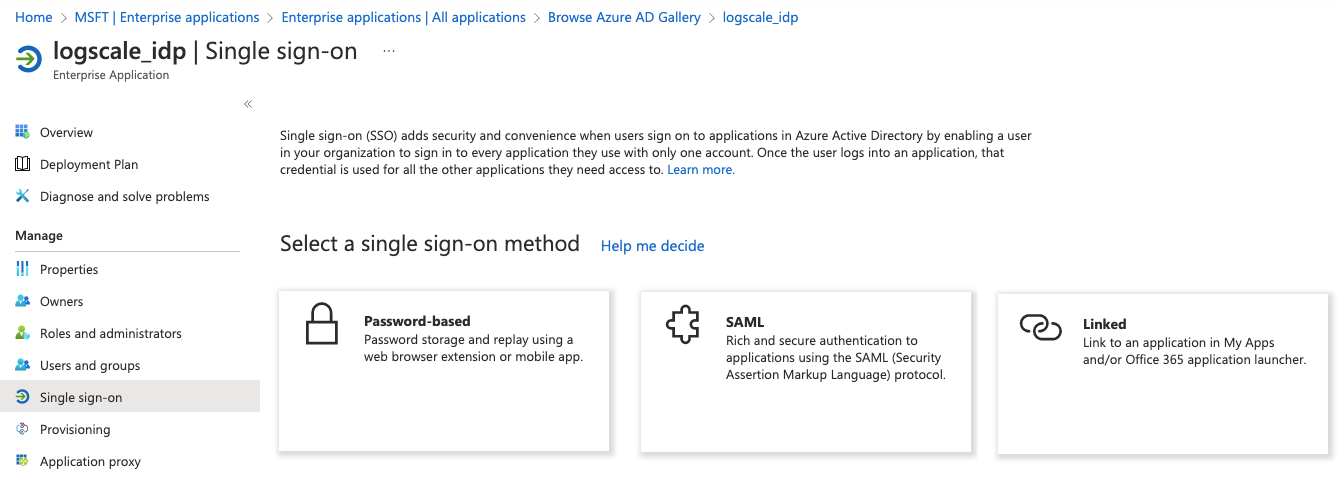

  1. In the new application page, click Single sign on and then choose SAML as your single sign-on method:

    Screenshot of the Azure portal showing the single sign-on method selection page for the application. The interface displays a list of authentication options with SAML highlighted and selected from among choices like password-based, OIDC, and other protocols. This is a critical step in configuring Azure Active Directory as an identity provider for , where administrators must select SAML to proceed with the federation setup.

    Figure 44. Select SAML single sign-on


  2. In the Basic SAML Configuration window:

    • Click Add identifier. Set Identifier (Entity ID) to $YOUR_LOGSCALE_URL/api/v1/saml/metadata

    • Click Add reply URL. Set Reply URL to $YOUR_LOGSCALE_URL/api/v1/saml/acs

    • If needed, set Sign on URL if you want to perform identity provider-initiated single sign-on. Contact Support to get the Sign on URL.

    • If needed, populateRelay State with an integration URL to instruct the application where to redirect users after authentication, for example, the URL to a specific location within the application.

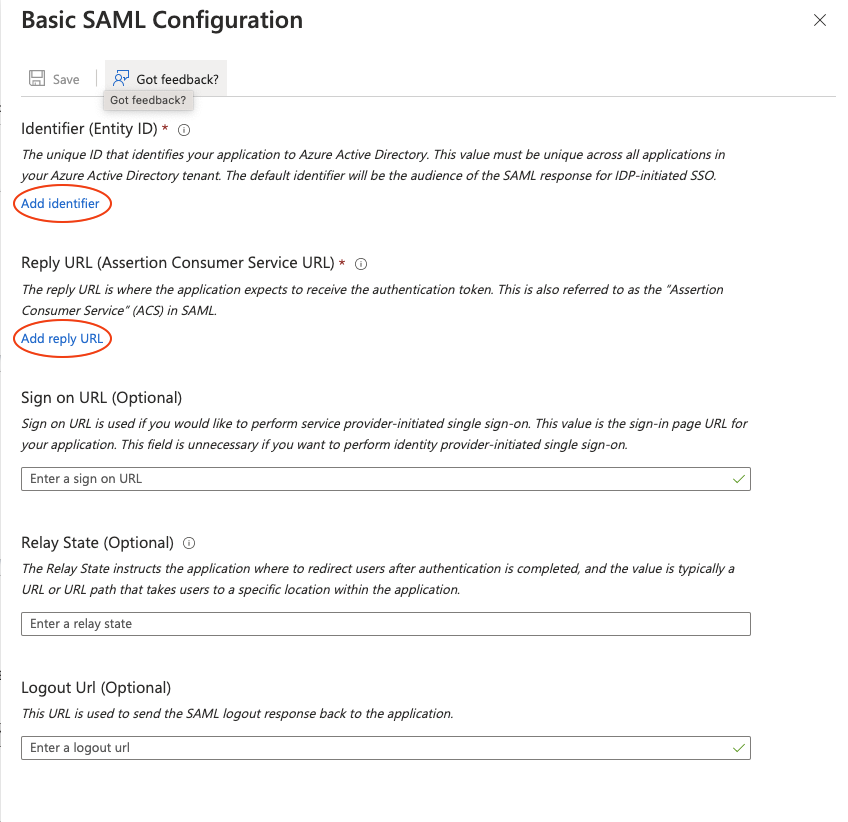

    Screenshot of the Azure AD SAML configuration interface showing the 'Basic SAML Configuration' form where administrators must enter critical connection parameters for integration. The form displays fields for 'Identifier (Entity ID)', and optional fields for 'Sign on URL' and 'Relay State'. These parameters establish the trust relationship between Azure AD as the identity provider and as the service provider, enabling proper SAML authentication flow between the two systems.

    Figure 45. Basic SAML Configuration settings


  3. In the SAML-based Sign-on page of your newly created application, copy the Login URL, Azure ID Identifier, and the text of the Certificate (Base 64) as you will need them later for .

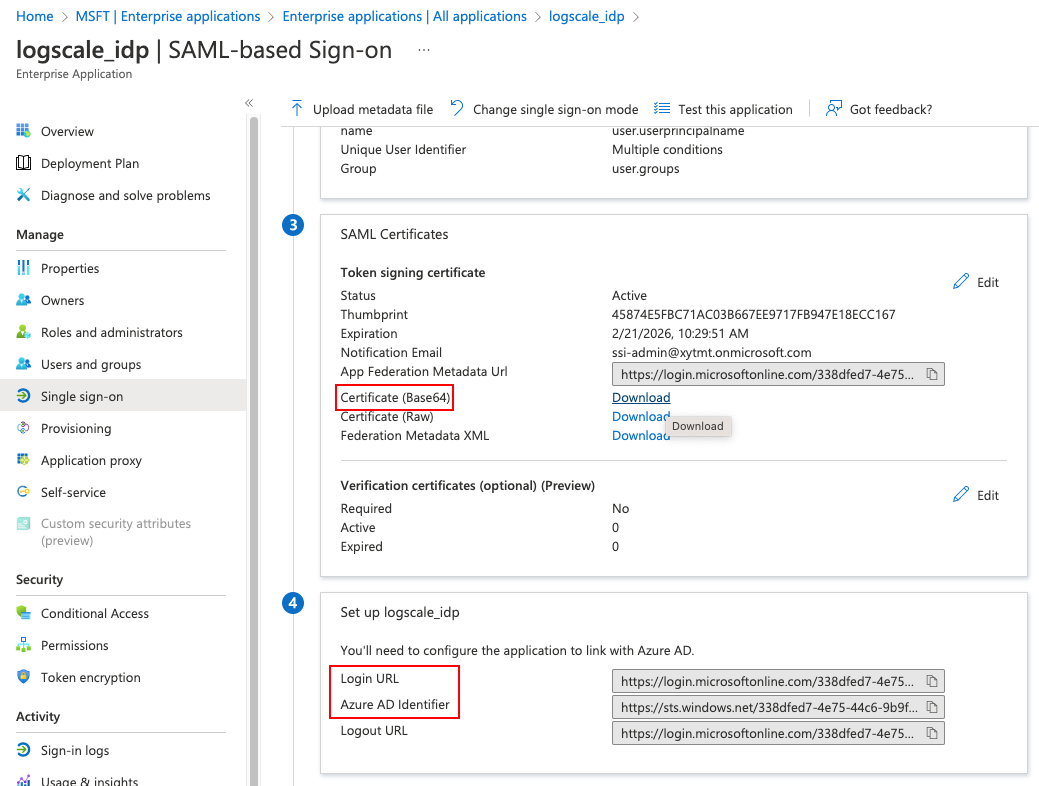

    Screenshot of the Azure AD SAML-based Sign-on information page showing the essential federation parameters that administrators need to copy for configuration. The image displays the three critical values that must be collected: the 'Login URL' (SAML single sign-on service URL), the 'Azure AD Identifier' (issuer URL), and the 'Certificate (Base 64)' text that contains the authentication certificate.

    Figure 46. SAML-based Sign-on information


Step 3 — Set up group mapping (optional)

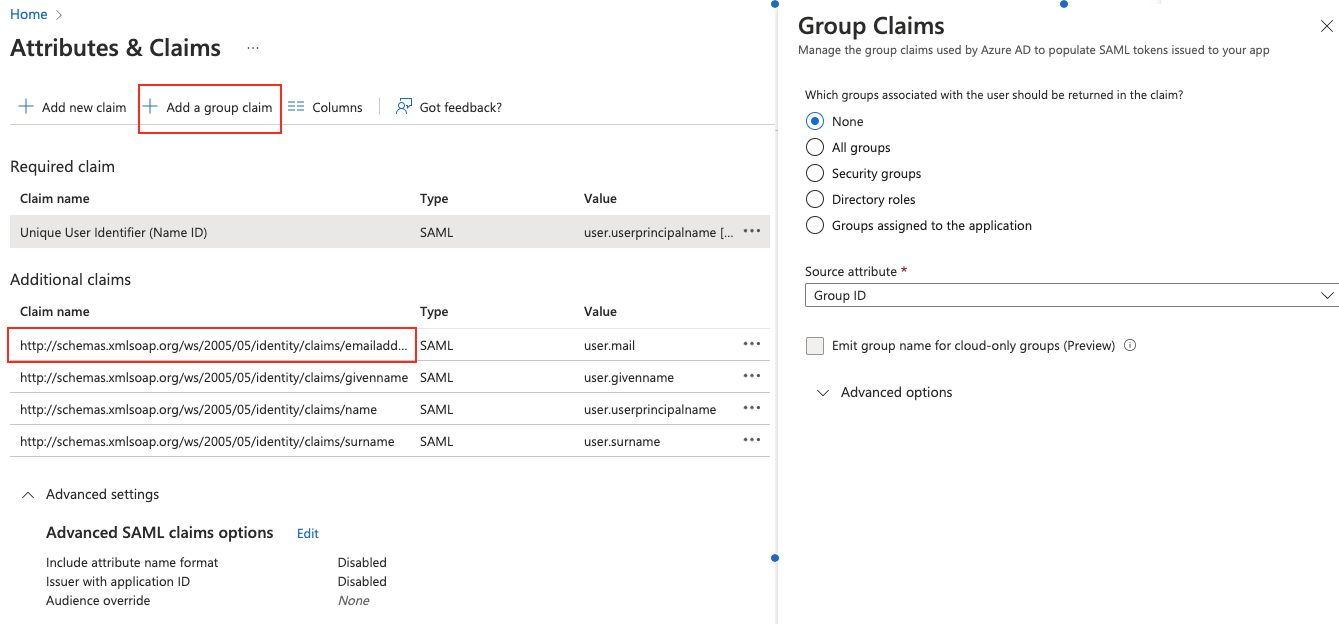

  1. Go to Attributes and Claims. Click + Add a group claim and select which groups you want to be associated with the users (except None) and the source attribute. Click Save.

    Screenshot of the Azure AD group claims configuration interface showing the '+ Add a group claim' button that administrators must click to configure group membership synchronization with . The image displays the UI where security groups and other user group associations are selected for inclusion in the SAML token. This critical step enables mapping Azure AD group memberships to permissions, allowing for automatic role assignment when users authenticate. The interface shows options for selecting the type of groups to include, with Security Groups typically being selected for role-based access control in .

    Figure 47. Add a group claim

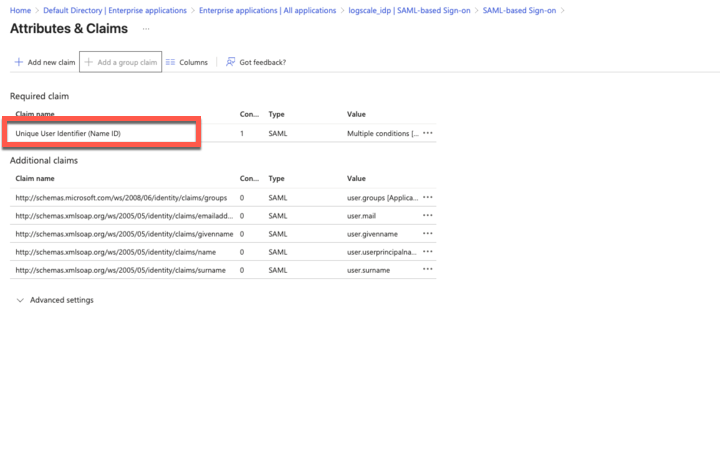

  2. Still in the Attributes and Claims page, click the first claim Unique User Identifier to assign users to on the IDP side.

    Screenshot of the Azure AD 'Manage claim' interface showing the configuration page for editing the Unique User Identifier claim settings. The interface displays form fields where administrators can configure how user identities are passed from Azure AD to during SAML authentication. This critical configuration step ensures that user identification attributes are properly mapped between Azure AD and , enabling correct user matching and authentication flow. The page shows options for setting the name identifier format and source attribute that will be used to uniquely identify users during the single sign-on process.

    Figure 48. Edit the Unique User Identifier claim


  3. In the Manage claim window, ensure that Name identifier format and Source are set as in figure below:

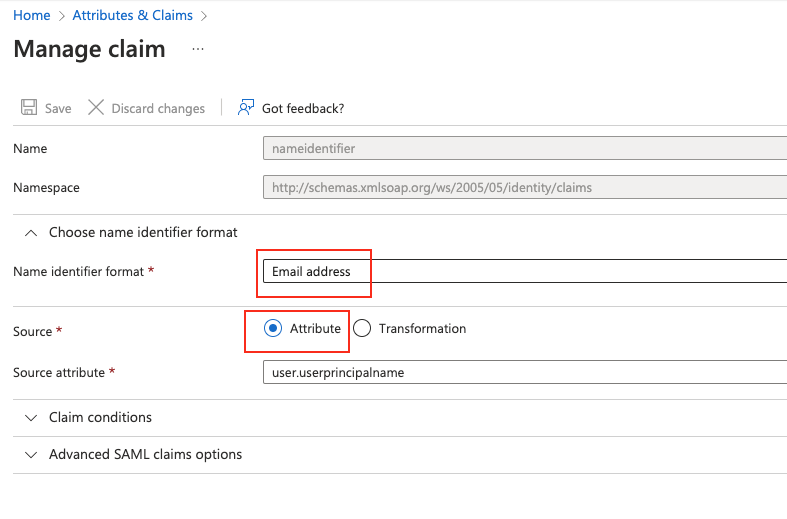

    Screenshot of the Azure AD 'Manage claim' configuration window showing the settings for user identity claims that must be properly configured for integration. The image displays the crucial configuration form where 'Name identifier format' and 'Source' fields need to be set to specific values as shown in the figure.

    Figure 49. Manage claim

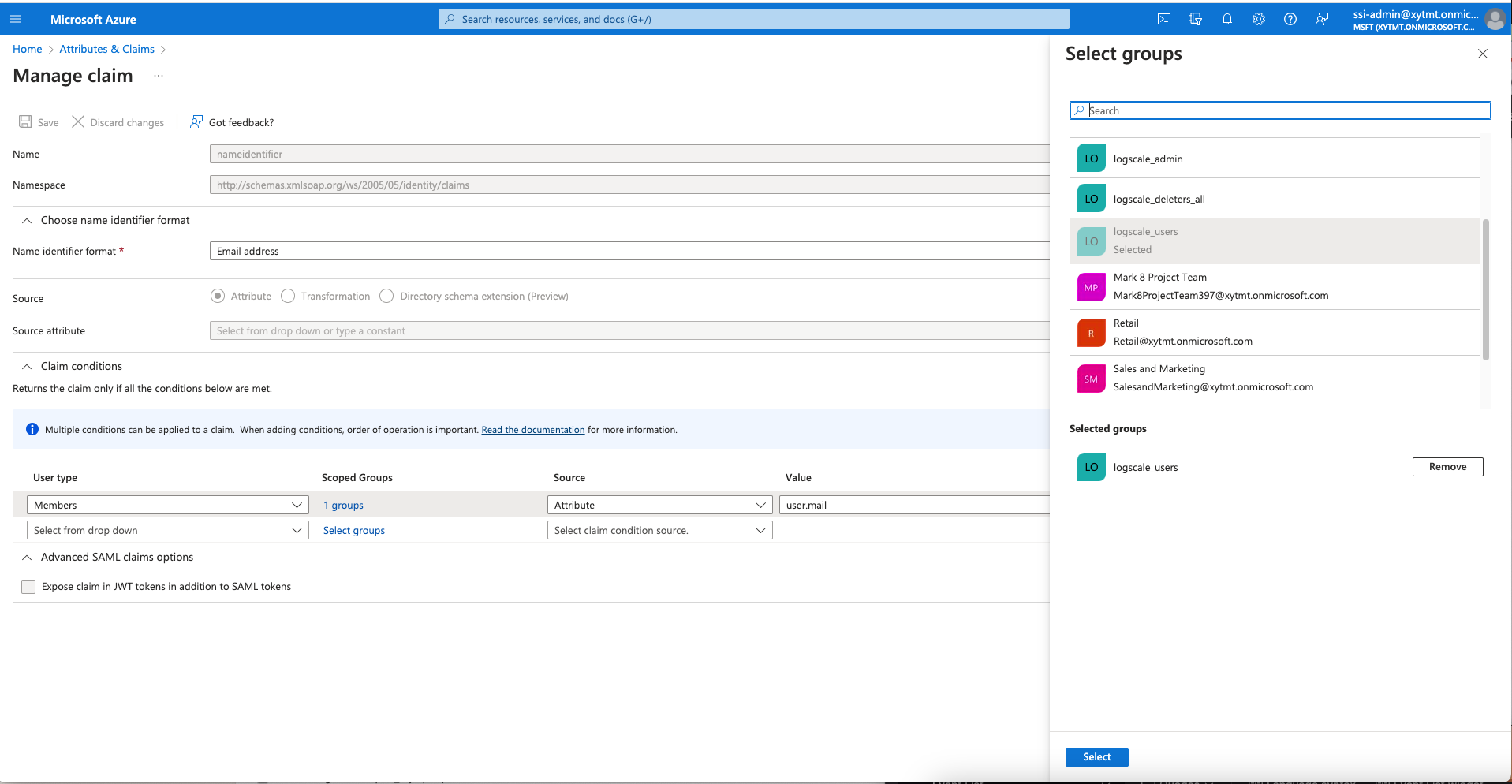

  4. Still in the Manage claim window, expand Claim conditions and click Scoped Groups to select the new group and assign user type (e.g. Members, Admin) and user.mail as the value:

    Screenshot of the Azure AD group configuration interface showing the process of assigning user types to Azure AD groups for integration. The image displays the section where administrators click under 'Scoped Groups' to select newly created groups and specify user types (Members or Admin) with 'user.mail' set as the attribute value.

    Figure 50. Add user types to group


Configure to use __ms_entra__

When __ms_entra__ is configured to work with , you must configure to work with __ms_entra__.

To configure __ms_entra__ to work with , navigate to the configuration files and add the environment variables shown below and configure the configuration variables as described in Configure SAML for Self-Hosted.

ini
AUTHENTICATION_METHOD=saml
PUBLIC_URL=http://localhost:8080

SAML_IDP_SIGN_ON_URL=

SAML_IDP_ENTITY_ID=

SAML_IDP_CERTIFICATE=

AUTO_CREATE_USER_ON_SUCCESSFUL_LOGIN=true
PERMISSION_MODEL_MODE=advanced
EMERGENCY_USERS=true

Group synchronization

After has been configured to use __ms_entra__, you need to align the __ms_entra__ groups' Object ID in .

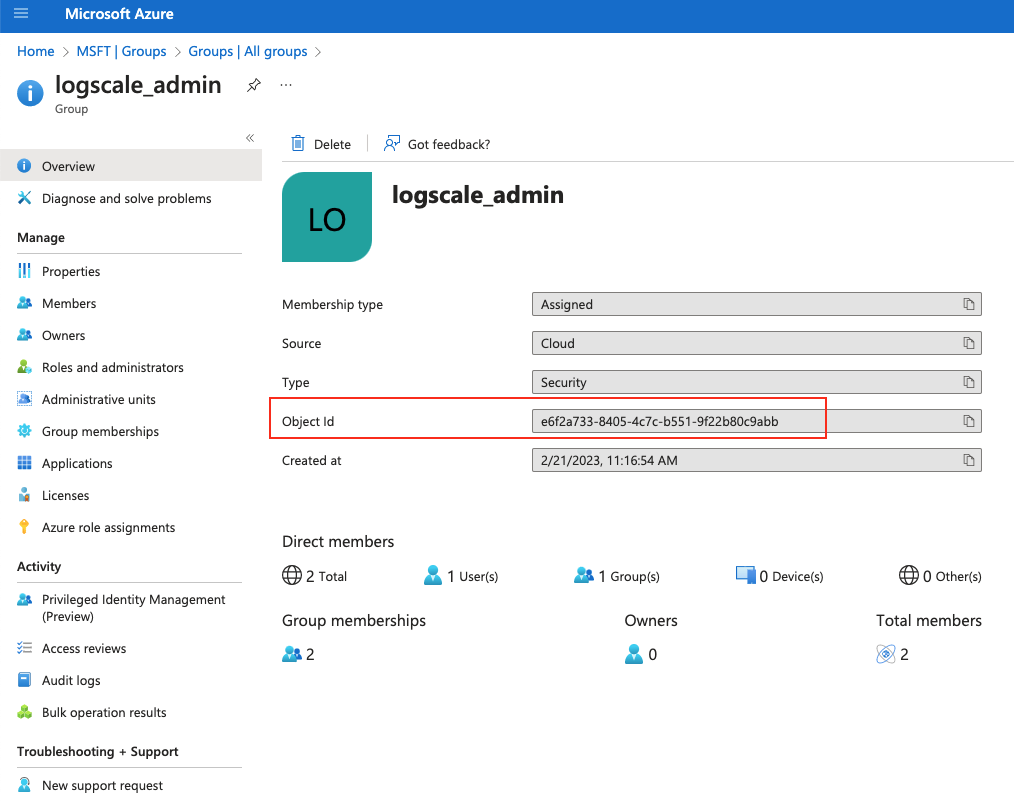

  1. Go back to Azure AD and from your group's page, copy the Object ID:

    Screenshot of the Azure AD group properties page showing where to locate and copy the Object ID that will be used for group synchronization with . The image displays the Azure AD interface where administrators can view group details, with the Object ID field highlighted or visible as a unique alphanumeric identifier. This Object ID is a critical value that must be copied exactly and pasted into 's group configuration to establish the correct mapping between Azure AD groups and groups.

    Figure 51. Copy Object ID from Azure AD


  2. In , first create the group manually (provide a name that is similar to the group name set in Azure AD) and then paste the Object ID into the Mapping Name field, under the External provider tab:

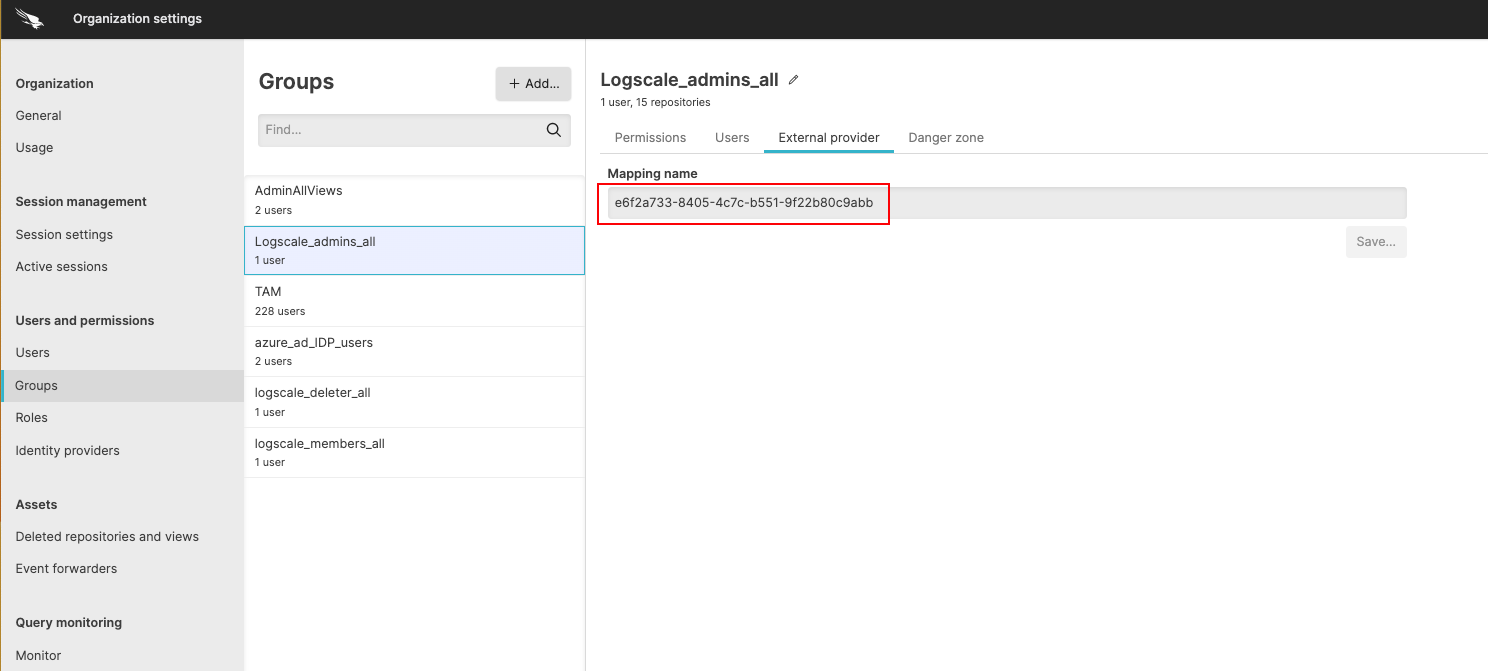

    Screenshot of the group configuration interface showing the External provider tab where an Azure AD Object ID is being entered into the Mapping Name field. This interface demonstrates how to link Azure AD groups to groups by pasting the Object ID copied from Azure AD into the appropriate field in 's group settings, which is a crucial step in the group synchronization process between Azure AD and .

    Figure 52. Mapping Name


Test the __ms_entra__ integration setup

Once all of the necessary steps to set up the __ms_entra__ authentication for are completed, you need to test the setup.

  1. Go to a Terminal and start with the following command:

    shell
    ./run.sh

    Allow two to three minutes for to start.

  2. Connect to localhost in a browser. It should redirect you to a Microsoft login.

  3. Sign into your __ms_entra__. You should be taken to .

Other references for __ms_entra__ configuration

Other documentation about __ms_entra__ configuration that may be helpful includes:
