Authenticate with OpenID Connect

LogScale supports authenticating with any provider following the OpenID Connect standard. When OpenID Connect is configured, LogScale accepts OpenID tokens issued by the OpenID Connect provider (LogScale acts as a resource in OpenID Connect terms). This is useful if you are running LogScale behind a proxy that handles authentication.

In addition to acting as a resource, LogScale can also act as a client responsible for authenticating users (a relying party in OpenID Connect terms). This is similar to other OAuth authentication flows LogScale supports.

The diagram illustrates how OpenID Connect (OIDC) authentication works with LogScale. LogScale can function in two roles within the OIDC framework:

  1. As a Resource where LogScale accepts tokens issued by an OIDC provider

  2. As a Relying Party (Client) where LogScale handles authentication through an OIDC provider

sequenceDiagram participant User participant Browser participant LogScale as LogScale participant IDP as OIDC Provider Note over User, IDP: LogScale as OIDC Relying Party (Client) Flow User->>Browser: Attempts to access LogScale Browser->>LogScale: Requests access to protected resource LogScale->>Browser: Redirects to OIDC provider Browser->>IDP: Redirects with client_id, redirect_uri, scope, etc. IDP->>Browser: Presents login page User->>Browser: Enters credentials Browser->>IDP: Submits login credentials IDP->>IDP: Authenticates user IDP->>Browser: Redirects with authorization code to redirect_uri Browser->>LogScale: Sends authorization code LogScale->>IDP: Requests tokens with authorization code + client_secret IDP->>LogScale: Returns ID token, access token, refresh token LogScale->>IDP: Validates tokens & requests user info (if needed) IDP->>LogScale: Returns user information LogScale->>LogScale: Creates session & maps OIDC claims to user profile Note right of LogScale: Maps username from claim<br>(configurable via OIDC_USERNAME_CLAIM)<br>Maps groups from claim<br>(configurable via OIDC_GROUPS_CLAIM) LogScale->>Browser: Returns authenticated session Browser->>User: Shows LogScale interface Note over User, IDP: Alternative: LogScale as Resource (Token Validation Only) User->>Browser: Attempts to access LogScale with token Browser->>LogScale: Sends request with OIDC token LogScale->>LogScale: Validates token signature using JWKS LogScale->>LogScale: Verifies audience, issuer, expiration LogScale->>LogScale: Extracts username & group info from claims LogScale->>Browser: Returns authenticated session if token valid

Create an OpenID Connect app

Important

Prior to performing the steps below, make sure that you have a fully activated Okta account.

Log in and navigate to the main page of the Okta interface:

  1. Click Adminto navigate to the Admin Dashboard. From there, click Applications and select Applications.

    Screenshot of the Okta Admin Dashboard showing the Applications navigation menu with the Applications option highlighted

    Figure 99. Navigating to the Applications Section in Okta


  2. Next, click Create App Integration.

    Screenshot of the Okta Applications page with the 'Create App Integration' button highlighted

    Figure 100. Starting the App Integration Process


  3. Select OIDC - OpenID Connect and Web Application. Click Next.

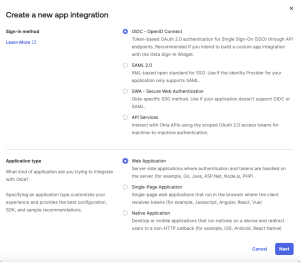

    Screenshot of the Okta "Create a new app integration" dialog showing the selection options for sign-in method and application type. The "OIDC - OpenID Connect" sign-in method and "Web Application" application type are selected, with the "Next" button enabled for proceeding with the configuration

    Figure 101. Selecting OpenID Connect App Type in Okta


  4. Name the app, for example LogScale OIDC, and upload an image (optional). Enter the following:

    • Grant Type: Client Credentials

    • Sign-in redirect URLs: $LOGSCALE_URL/auth/oidc

    • Sign-out redirect URLs: remove, if existing. Optional.

    • Assignments: Select Skip Group Assignment for now

    Click Save.

    Screenshot of the Okta "Create OpenID Connect App Integration" form showing the application configuration options including App integration name field, logo upload option, and Grant type selection. This is the first part of the configuration form where basic application identity details are specified

    Figure 102. Configuring OIDC Application Settings in Okta


    Screenshot of the Okta application configuration form's second section, showing the Sign-in redirect URI field populated with the LogScale authentication endpoint URL, Sign-out redirect URIs section, and the Assignment options where "Skip group assignment for now" is selected. This section configures how authentication redirects and user assignments are handled

    Figure 103. Configuring Redirect URLs and Assignments in Okta


  5. Click the Sign On tab of the app, and under OpenID Connect ID Token Set Issuer to Okta URL (https://dev-84903084.okta.com). Set Group claims filter to groups and select Matches regex with the regex pattern .*. Click Save.

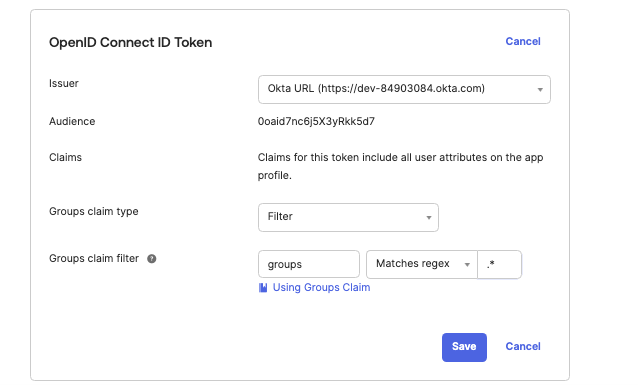

    Screenshot of the Okta Admin Dashboard showing the Sign On tab configuration for OpenID Connect ID Token settings, where the issuer is set to the Okta URL and the Group claims filter is configured with "groups" using a regex pattern of ".*" to include all groups in the token

    Figure 104. Configuring Group Claims in OpenID Connect ID Token


Configure LogScale to use OpenID Connect

To configure OIDC to work with LogScale you must add the necessary environment variables to your configuration and set the values. To read more about configuration, see Configuration Settings. It is necessary to setthe following parameters in humio-config.env for running LogScale as either a relying party or resource:

Environment variable Description Example
OIDC_PROVIDER Required. URL to the OpenID Connect provider. The provider URL must match the issuer reported by the OpenID provider exactly. https://auth.example.com
OIDC_AUDIENCE The audience to expect in a JWT. Defaults to the client ID, if set, and to "humio" otherwise. logscale-app
OIDC_USERNAME_CLAIM The name of the claim to interpret as username in LogScale. The value in the claim must be a string. Defaults to "humio-user". Can be set to "email" if using emails as usernames. email
OIDC_GROUPS_CLAIM Optional. The name of the claim to interpret as the groups in LogScale. The value in the claim must be an array of strings. Defaults to "humio-groups". groups
OIDC_CACHE_USERINFO_MS Optional. How long user info is cached on a LogScale node in milliseconds. Defaults to 600000 (10 minutes). 600000
PUBLIC_URL Base URL of the LogScale server. Required for OIDC client setup. https://logscale.company.com
OIDC_USE_HTTP_PROXY Optional. If running LogScale with an HTTP Proxy and you want to use it for OpenID Connect, sets whether to use the HTTP Proxy for calling OIDC. Defaults to "true". true
AUTHENTICATION_METHOD Specifies the authentication method. Set to oauth to enable OIDC authentication flow. oauth
AUTO_CREATE_USER_ON_SUCCESSFUL_LOGIN Whether to automatically create a user in LogScale after successful authentication. Defaults to "false". true

LogScale will use the OpenID Connect Discovery endpoint (%OIDC_PROVIDER%/.well-known/openid-configuration) to configure the remaining parameters automatically. If your provider does not have such an endpoint, specify the following parameters:

Environment variable Description Example
OIDC_AUTHORIZATION_ENDPOINT A URL to the endpoint a user should be redirected to when authorizing. Required for clients. https://auth.example.com/authorize
OIDC_TOKEN_ENDPOINT A URL to the token endpoint used to exchange an authentication code to an access token. Required for clients. https://auth.example.com/token
OIDC_TOKEN_ENDPOINT_AUTH_METHOD The authentication method used to authenticate LogScale against the token endpoint. Can either be client_secret_basic to place the client ID and secret in basic auth, or client_secret_post to place the client ID and secret in post data. client_secret_basic, or client_secret_post if client_secret_basic is not supported as per the discovery endpoint.
OIDC_USERINFO_ENDPOINT Required. A URL to the user info endpoint used to retrieve user information from an access token. https://auth.example.com/userinfo
OIDC_JWKS_URI Required. A URL to the JWKS endpoint for retrieving keys for validating tokens. https://auth.example.com/jwks

To use OIDC as a client, PUBLIC_URL must be set, LogScale must be registered as a client with your OpenID provider, and the provider must allow %PUBLIC_URL%/auth/oidc as a valid redirect endpoint for the client. The following parameters can be used to configure client setup:

Environment variable Description Example
OIDC_OAUTH_CLIENT_ID Client ID of your OpenID application. Required for client setup. logscale-client
OIDC_OAUTH_CLIENT_SECRET Client secret of your OpenID application. Required for client setup. s3cr3t-k3y-v4lu3
OIDC_SERVICE_NAME Optional. The display name of the OIDC provider on the sign-in page of LogScale. Defaults to "OpenID Connect". Company SSO
OIDC_SCOPES Optional. Comma-separated list of scopes to add in addition to the default requested scopes (openid, email, and profile). groups,offline_access

Below is an example of a configuration file:

ini
AUTHENTICATION_METHOD=oauth
AUTO_CREATE_USER_ON_SUCCESSFUL_LOGIN= True
AUTO_UPDATE_GROUP_MEMBERSHIPS_ON_SUCCESSFUL_LOGIN= True # default is false
PUBLIC_URL=$YOUR_SERVERS_BASE_URL
OIDC_PROVIDER=https://dev-xxxxx.okta.com #the provider URL
OIDC_USERNAME_CLAIM=email
OIDC_SCOPES=email
OIDC_OAUTH_CLIENT_ID=xxxxxxxx #The client_id from your OpenID Connect Application
OIDC_OAUTH_CLIENT_SECRET=xxxxxxxx #The client_secret your OpenID Connect Application
OIDC_AUTHORIZATION_ENDPOINT=https://dev-xxxxx.okta.com/oauth2/v1/authorize
OIDC_TOKEN_ENDPOINT=https://dev-xxxxx.okta.com/oauth2/v1/token
OIDC_USERINFO_ENDPOINT=https://dev-xxxxx.okta.com/oauth2/v1/userinfo
OIDC_JWKS_URI=https://dev-xxxxx.okta.com/oauth2/v1/keys
OIDC_TOKEN_ENDPOINT_AUTH_METHOD=client_secret_post
