Repository and View Settings
Security Requirements and Controls
Settings page of a repository or view
enables you to configure some key settings. The page is divided into a
number of sections:
Permissions controls user access to the repository
The creation, configuration and installation of Packages is described in the dedicated documentation, which you can find in Packages for more information.
The exact list of available options in this UI page will depend on the user permissions and repositories available. System repositories, for example, cannot be deleted and so the Danger Zone will not be shown. The personal Sandbox repository can't be deleted, and can't be configured with multiple users.
page. This description, along with the name of the repository, will
appear on the tab when you
first log into the LogScale Interface.

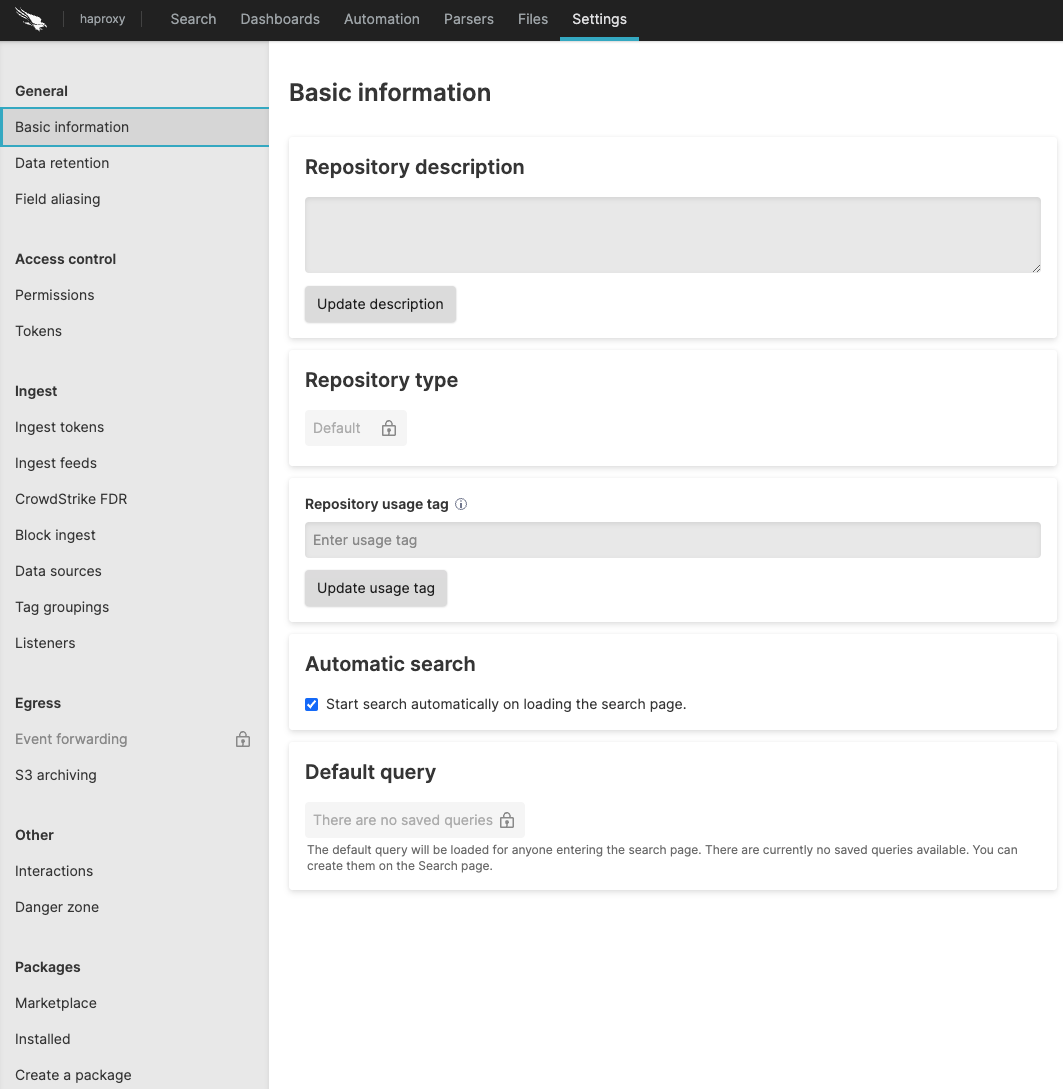

Figure 23. Basic Settings
Below is a list of each part of the
Information panel, with descriptions of each:
This is a description of the repository. To update it, type in the field and click.
Use this to specify the type of repository. For example, you could select a trial or a managed repository (e.g., Falcon LTR).
Repository usage tag
This is where you may specify a tag for the repository so that it may be grouped with other repositories with the same tag. To set or update this, enter a tag and click.
Check this box if search should be started automatically when the Search page is loaded. Uncheck it if it you don't want it started automatically.
Related to the above about automatic search, you can set here the default query which is loaded by default when the search pages is loaded.
Data retention settings' page allows
to configure when LogScale will delete events from the repository. Old
data will be removed automatically when any of the configured limits is
The following fields can be configured:
Ingest limit in GB (Uncompressed)
Automatically deletes old data when the ingest limit (raw data size) is reached. See LogScale Multiple-byte Units.
Storage size limit in GB (Uncompressed)
Automatically deletes old data when the stored data, including fields and data expanded or filters during parsing, is reached. See LogScale Multiple-byte Units.
Time limit in days
Automatically deletes old data when the event @timestamp passes beyond the configured limit.
The maximum customer configurable limit within LogScale Cloud deployments is 365 days. Please contact support if you would like a limit higher than this.
Field aliasing settings' page lists
all the schemas configured for any field aliasing being applied. For
more information, see

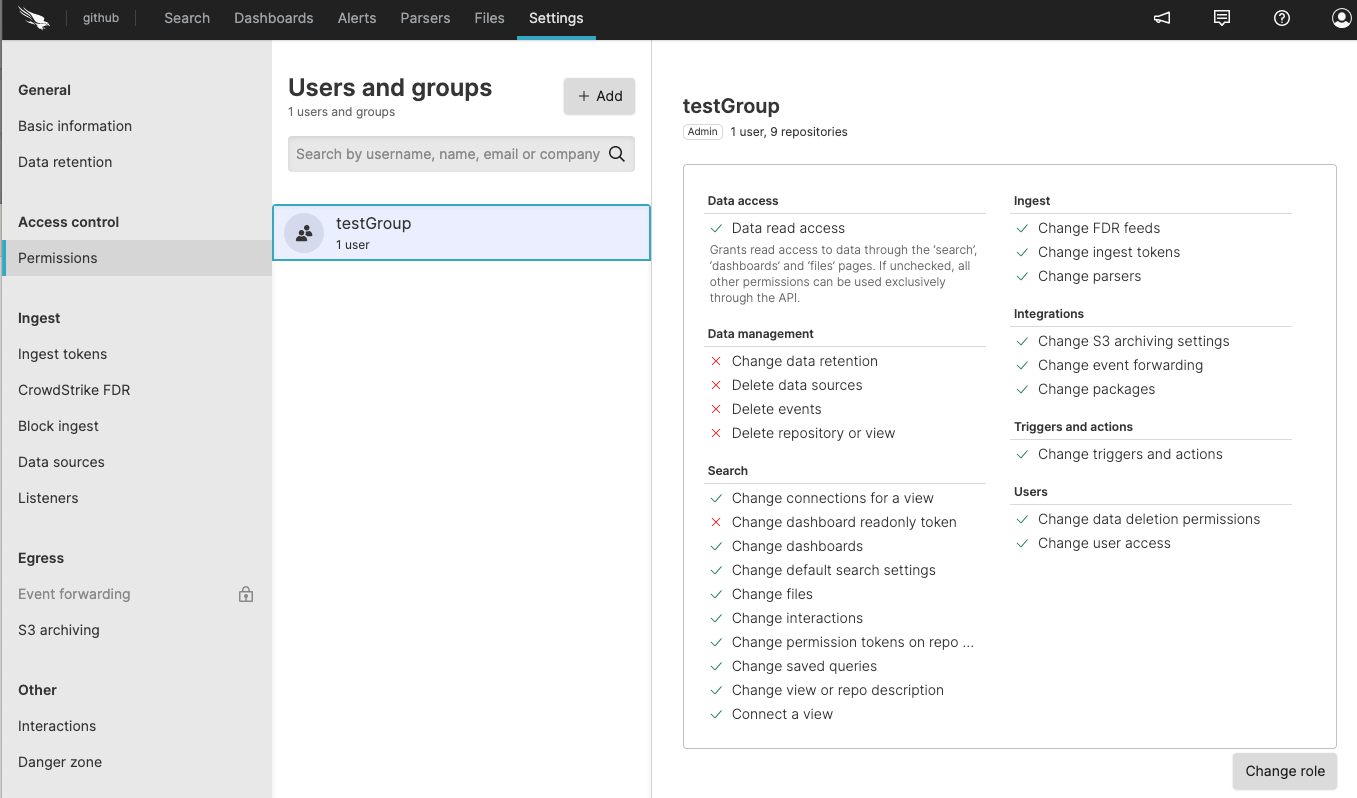

Repository access can be configured on a per-user basis by adding a user and setting their role for each repository.
Figure 24. User Permissions
Select a repository from the
Views page and click on the
To add a user to this repository, clickunder .
Click thebutton to add users and then you will be prompted to set their role.
For more information on user management, see Configuring Security.
This page allows you to add new repository tokens, which are used for granting API access to all functions that relate to a specific repository. For more information, see Repository and View API Tokens.

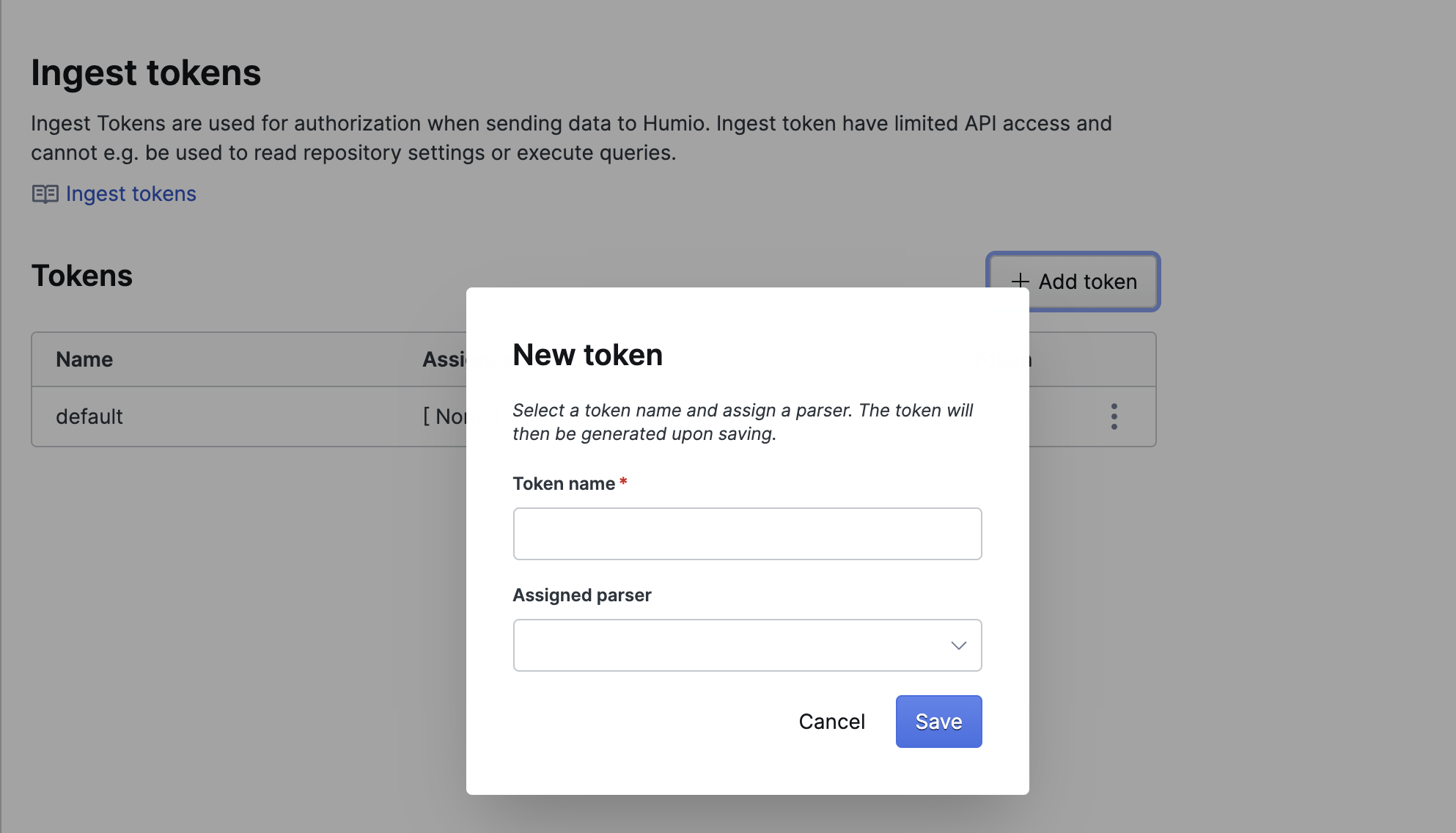

On this page you can manage the ingest tokens and assigned parsers, for more information on generating, editing and deleting tokens and assigning parsers to tokens see Ingest Tokens.
Figure 25. Ingest Tokens
This page allows you to add and manage ingest feeds, which are used for ingesting data from AWS Cloud to LogScale. For more information, see Ingesting Data from AWS S3.
Use a Falcon Data Replicator (FDR) feed to ingest data from Falcon into your Falcon LogScale repository. You need to create an FDR feed in Falcon before doing anything on this page. For more information, see Ingesting FDR Data.

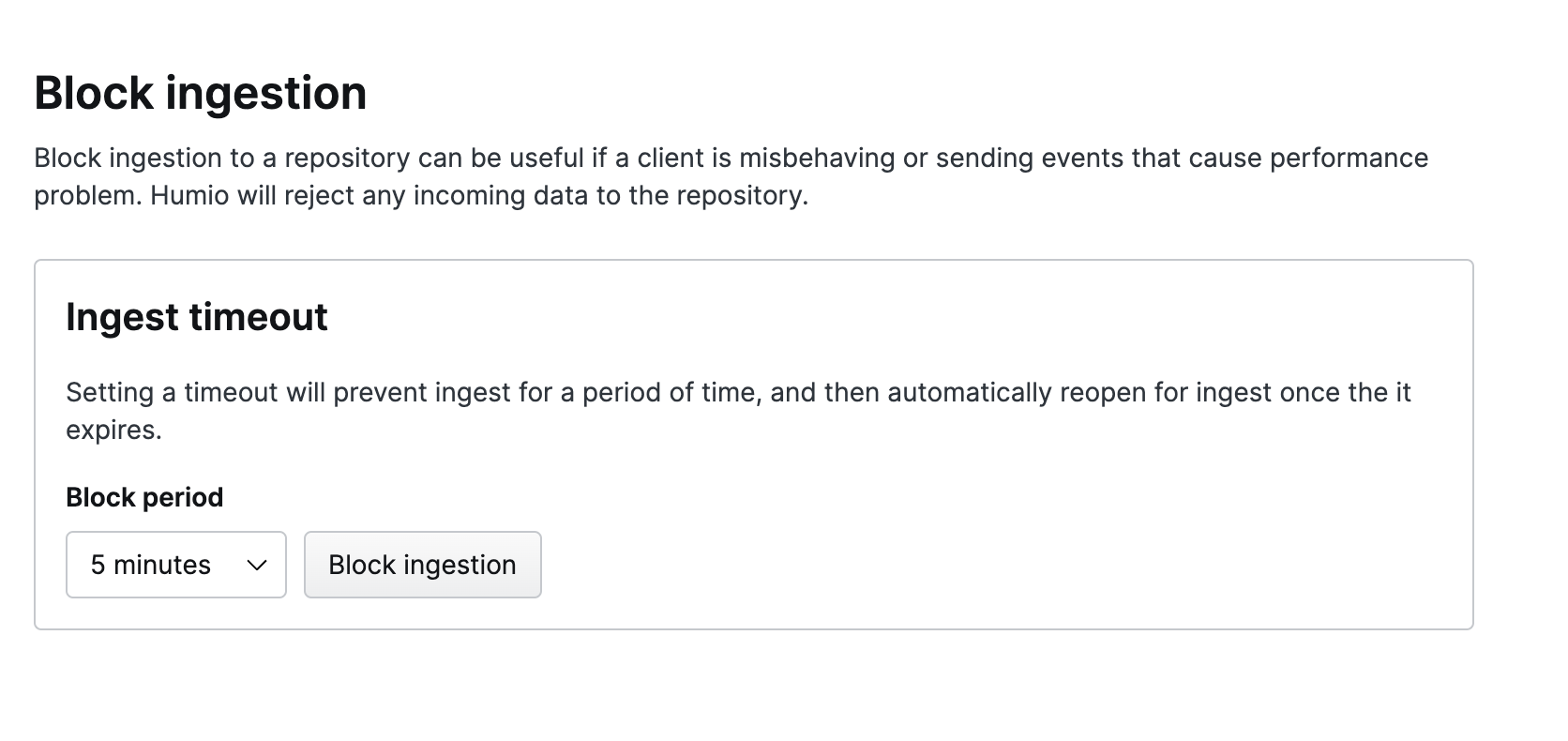

Block Ingestion page enables you to
temporarily block ingestion for a short period of time, after which it
will be re-enabled. This can be useful in a variety of situations where
the level of ingestion and activity are causing performance or reporting
For more information, see Disabling Ingestion.
Figure 26. Block Ingest

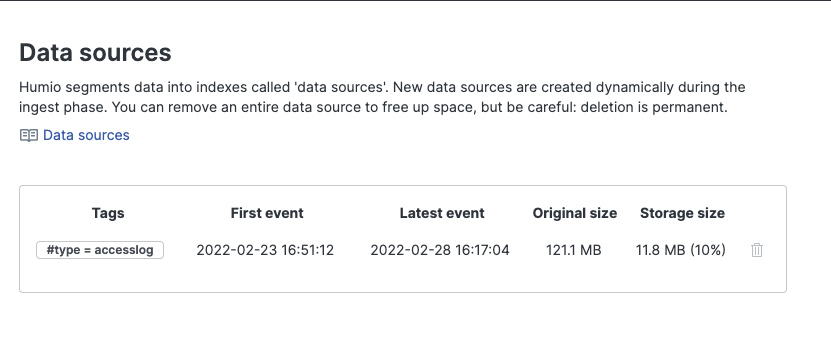

LogScale segments data into indexes called, data sources which are created automatically as data is ingested into the repository. You can't create them in this section of the User Interface. You can only delete them. You might do this if a data source is old and no longer needed and you want to save the space.
Datasources can be tagged. You can create your own tags and assign them to events. See the Event Tags documentation page for more information on tags.
Figure 27. Data Sources
Deleting a Datasource
Click the trash can icon next to the datasource to delete the datasource. This is a permanent deletion.
This page is for managing ingest listeners. For more information, see Ingest Listeners.

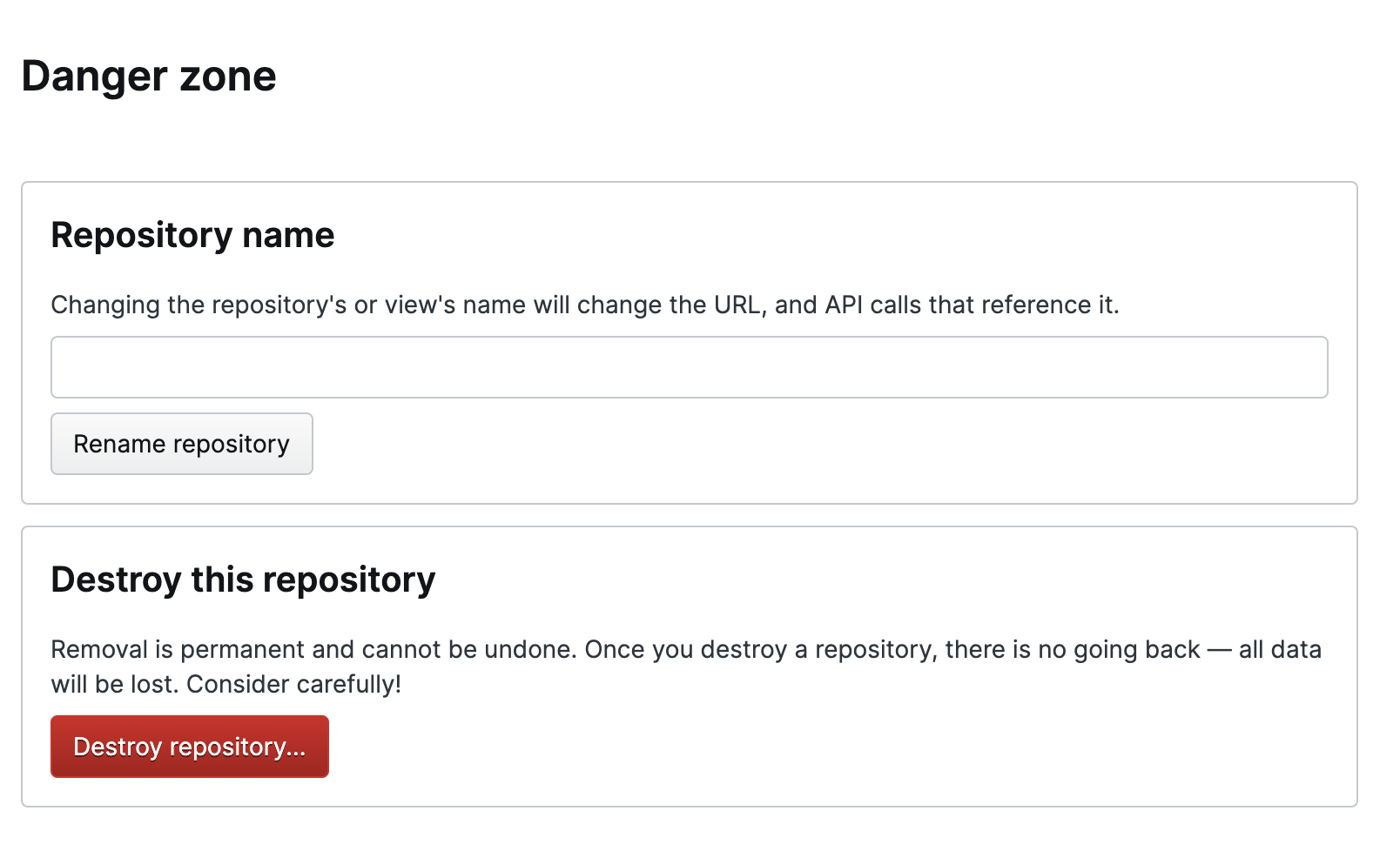

Danger Zone panel is so named because
the actions that can be taken here involve the deletion of data and
actions that cannot be reversed. Some actions don't include deleting
data, but can cause problems with the functioning of LogScale, leading
to major disruption of service — and can be difficult to resolve.
As a result, you should be very cautious when making changes here.
Figure 28. Danger Zone
Danger Zone provides access to two
areas of the repository settings which have the potential to modify or
Repository Name — enables you to change the name.
This will change the URL and API calls associated with the repository, and may also affect the queries and automated actions associated with the repository.
Destroy this repository — this option is not available to Cloud users. You must contact Support to delete a repository.
For how to delete repositories, see Delete Repositories & Views.
The Packages area allows you to install packages, verify the packages which are installed and create a custom package, see the dedicated documentation Packages for more information.
