Creating a Scheduled Search
Security Requirements and Controls
Change triggers and actions
permissionManage Organizations
permissionChangeTriggersAndActions
API permissionManageOrganizations
API permission
Go to the Repository and Views page.
Select a Repository.
Click the Scheduled Searches appears. They can have labels attached to them which are displayed next to the scheduled search name. This can be a useful way to tag the scheduled searches with meaningful data and to help when trying to locate them with a certain tag.

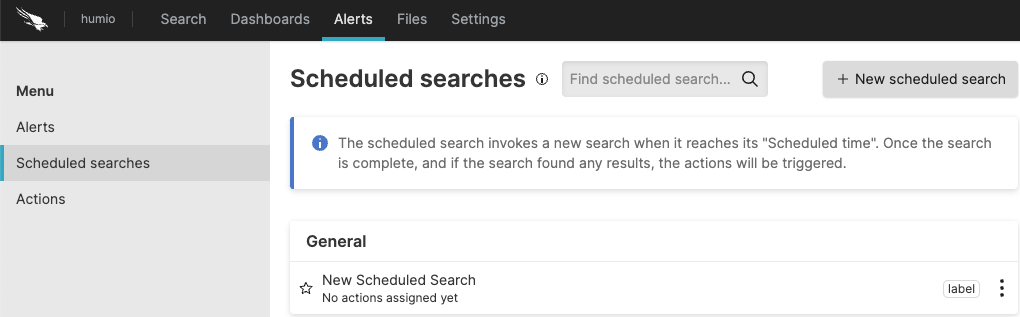

tab on the top bar of the User Interface and select from the menu on the left: the full list of availableFigure 162. Creating Scheduled Search from Tab
Click
The New Scheduled Search form is displayed, click on the top right if you wish to import the scheduled search from:
Fill in the form with the information required:

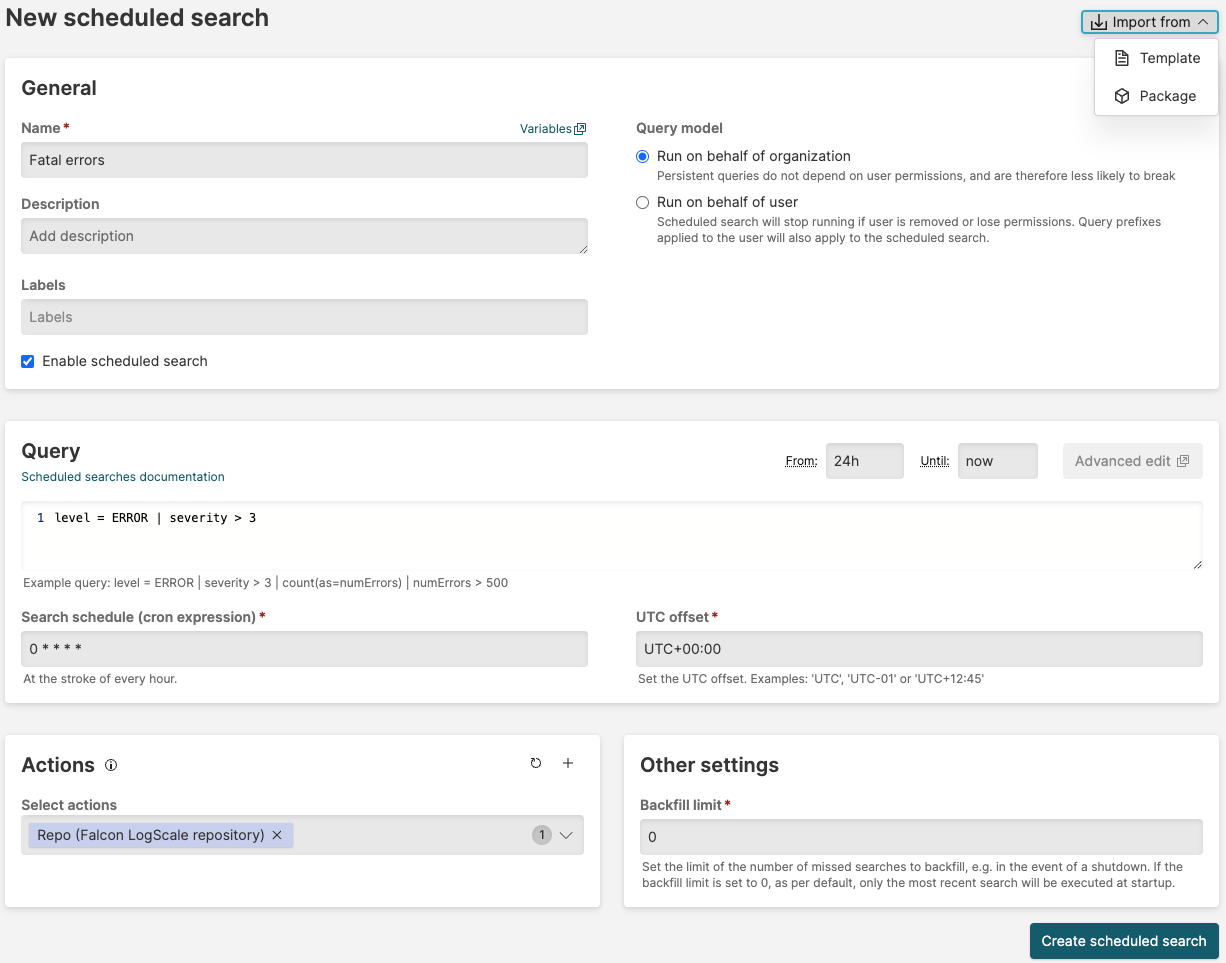

Figure 163. Setting Scheduled Search Properties
When you're finished setting the properties for the new scheduled search, click
.
Alternatively you can use the GraphQL API to view, create, update and delete scheduled searches using the associated queries and mutations.
Note
Scheduled searches, per default, will not trigger any action(s), if a query result contains a warning. Scheduled searches have the same behavior as alerts in regards to warnings and errors, see Diagnosing Alerts page.
The following sections describe some of the fields you can set or use on a scheduled search.
Scheduled Search Run on Behalf of
You can run the scheduled search with the permissions of another user; click the Run on behalf offield to get a list of available names to pick from, or directly enter the name of the user to whom you want to transfer the ownership of the schedule search.
Search Schedule
This field allows you to specify the schedule on which your scheduled search should be run. The schedule is defined using a UNIX cron expression, as known from the crontab file found in many UNIX-like systems. There are many online tools to help you generate UNIX cron expressions that you can use if you need help writing up an expression for your use case.
For more information about Cron Schedule Templates, see Cron Schedule Templates
UTC Offset
The Coordinated Universal Time(UTC) offset defines the temporal offset from UTC in which the search is scheduled. For instance, with a schedule:
0 6 * * *
With an offset UTC+01:00
, the search
will be scheduled for 5AM at UTC.
Time Interval
As for all searches, a time interval must be specified. For scheduled
searches the time interval is given by a
start
and
end
time relative to the scheduled
execution time. For instance, if a scheduled search is executing at
midnight Jan 2nd with a time interval of
start = 24h
and
end = now
, the search will consider
all logs within the time interval:
[20xx-01-01T00:00- 20xx-01-02T00:00]
.
Backfill Limit
If LogScale is down or an error prevents an action from being triggered, you will miss searches that would have otherwise been scheduled and executed. When it again becomes possible for schedule searches to run and have them trigger actions, LogScale will attempt to backfill searches that were missed previously.
The backfilling behavior depends on the value given to the backfill limit, which determines how many missed searches will be executed before any new searches are scheduled.
For example, if you schedule a search every hour:
0 * * * *
and LogScale is down between 10:30 and 14:15, this means that the searches at 11:00, 12:00, 13:00 and 14:00 would be missed.
Executing the most recent 'missed' search is not considered
backfilling, as this can also occur under normal operation if there is
a slight delay within LogScale. Thus, if the backfill limit is set to
0
, as per default, only the search at
14:00 will be executed at startup.
If you increase the limit to 1
you
would start off by executing the search scheduled at 13:00. If you
increase the limit to 2
you start with
the search at 12:00. And if you increase the limit to
3
you start with the search at 11:00.
Increasing the value of the backfill limit beyond this point will not
have any effect in this example. Missed searches are executed in
sequence from oldest to newest.
The backfill limit may not exceed the global maximum backfill limit.
