Different Visuals

You can display your data in different types of charts and tables.

  1. Click on the required view or repository on the Repositories and Views page:

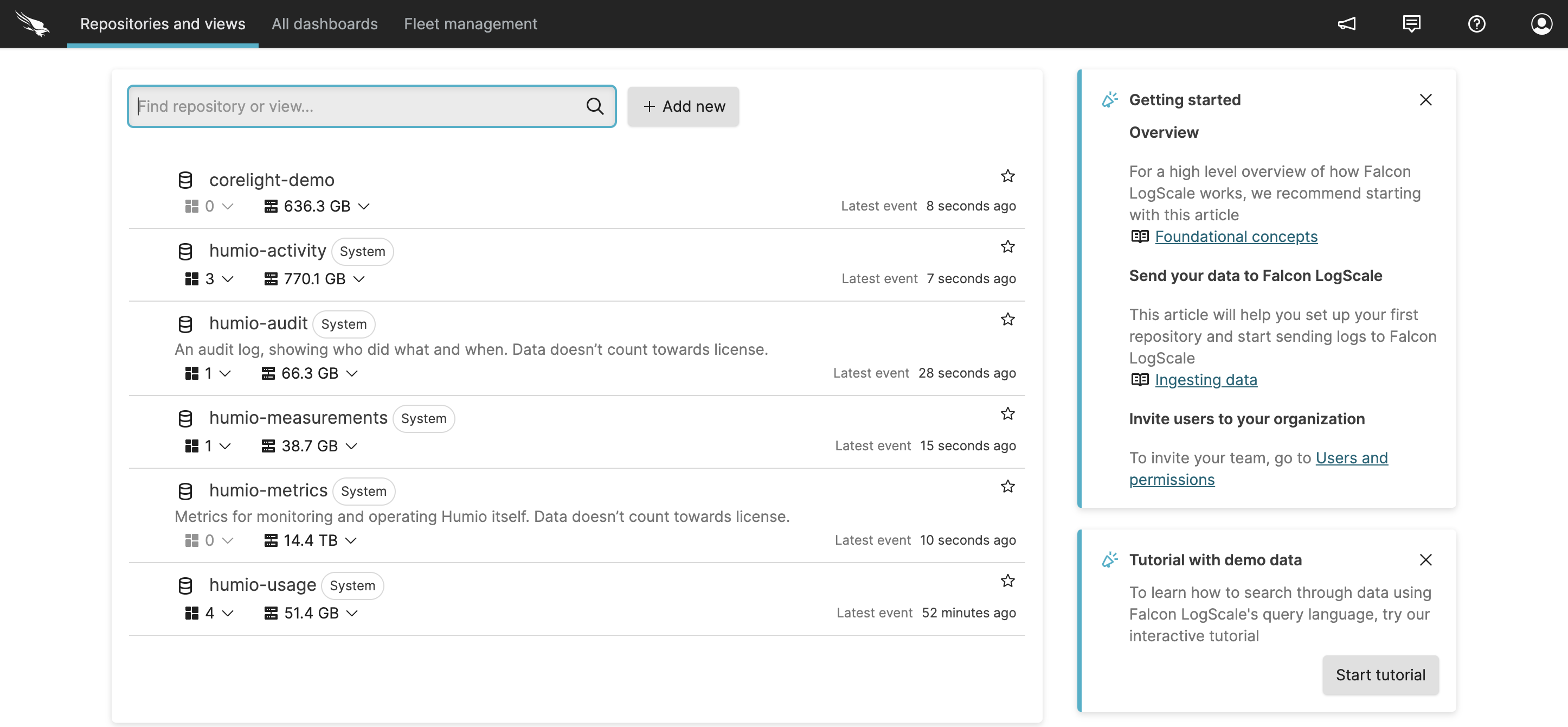

    Repositories and Views Page

    Figure 67. Repositories and Views Page


  2. Click on the display type drop down menu on the top left corner, you can then select which display type to use (default is Event List). Be aware that not all data is compatible with all types of a view, incompatible data for a chart/table is specified on the menu.

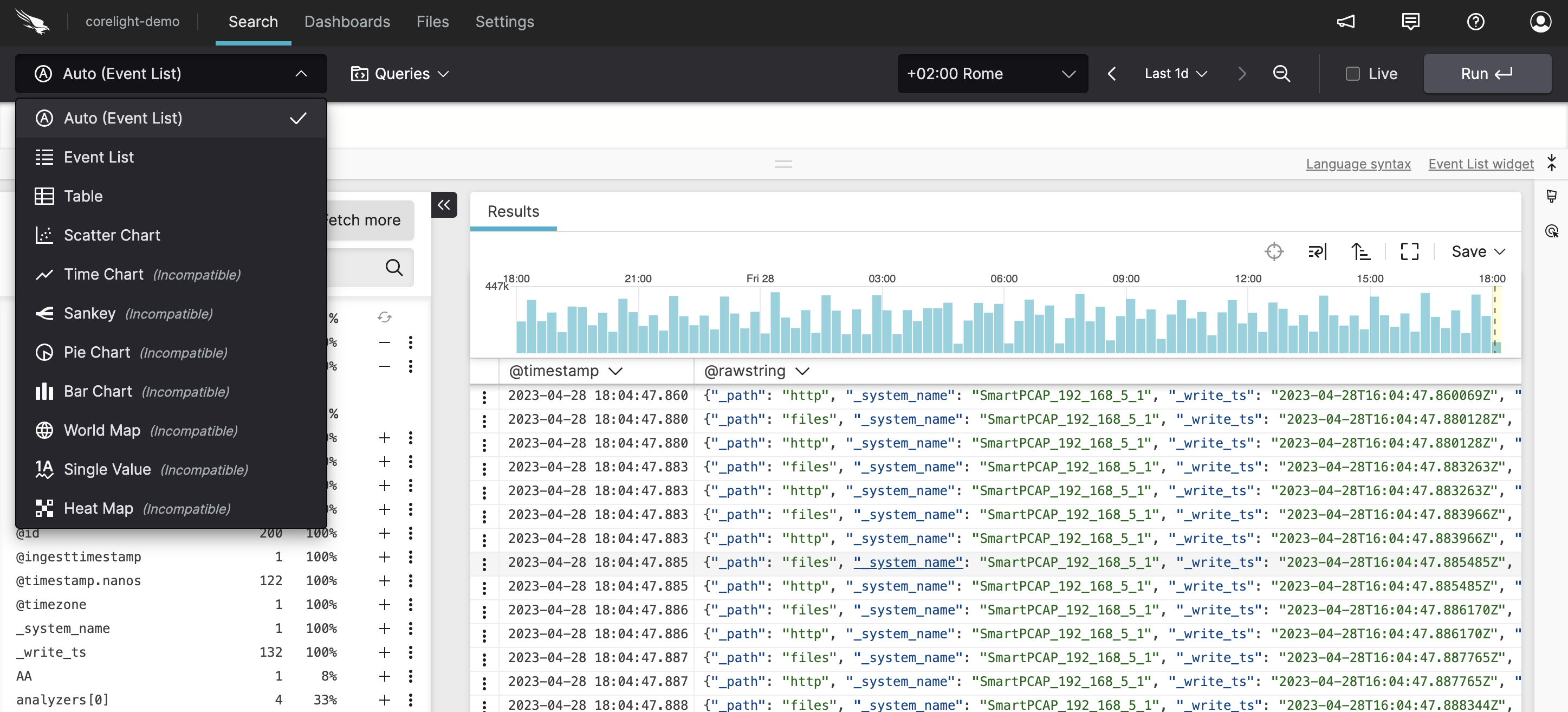

    Display Data Menu

    Figure 68. Display Data Menu


  3. Click on the small brush icon at the top-right corner of the Event List to expand the Format Panel — you can change the style of the data displayed (option available depending on the query and the resulting chart):

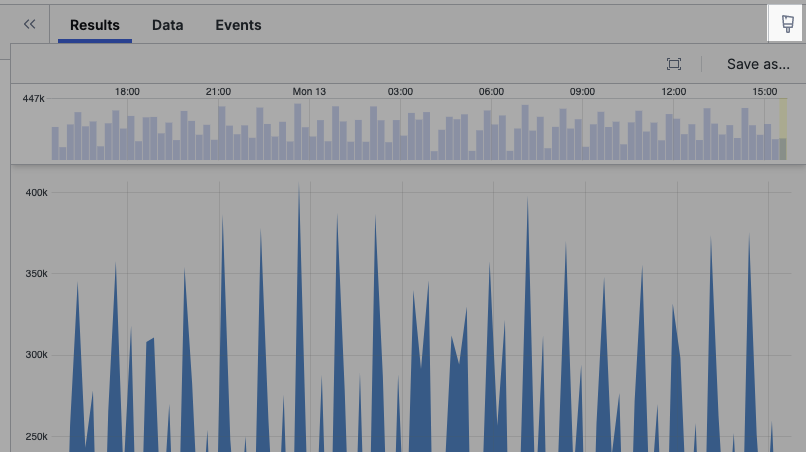

    Changing the Chart Style

    Figure 69. Changing the Chart Style


  4. Click the double arrows to collapse the Format Panel:

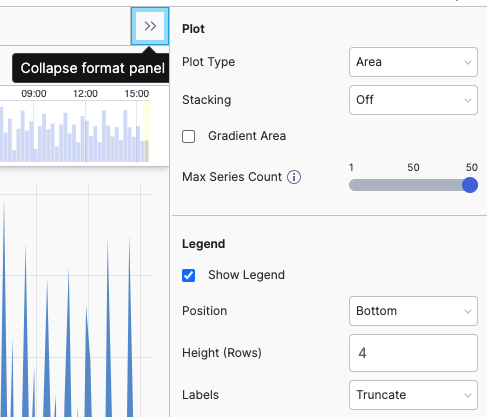

    Format Panel

    Figure 70. Format Panel
